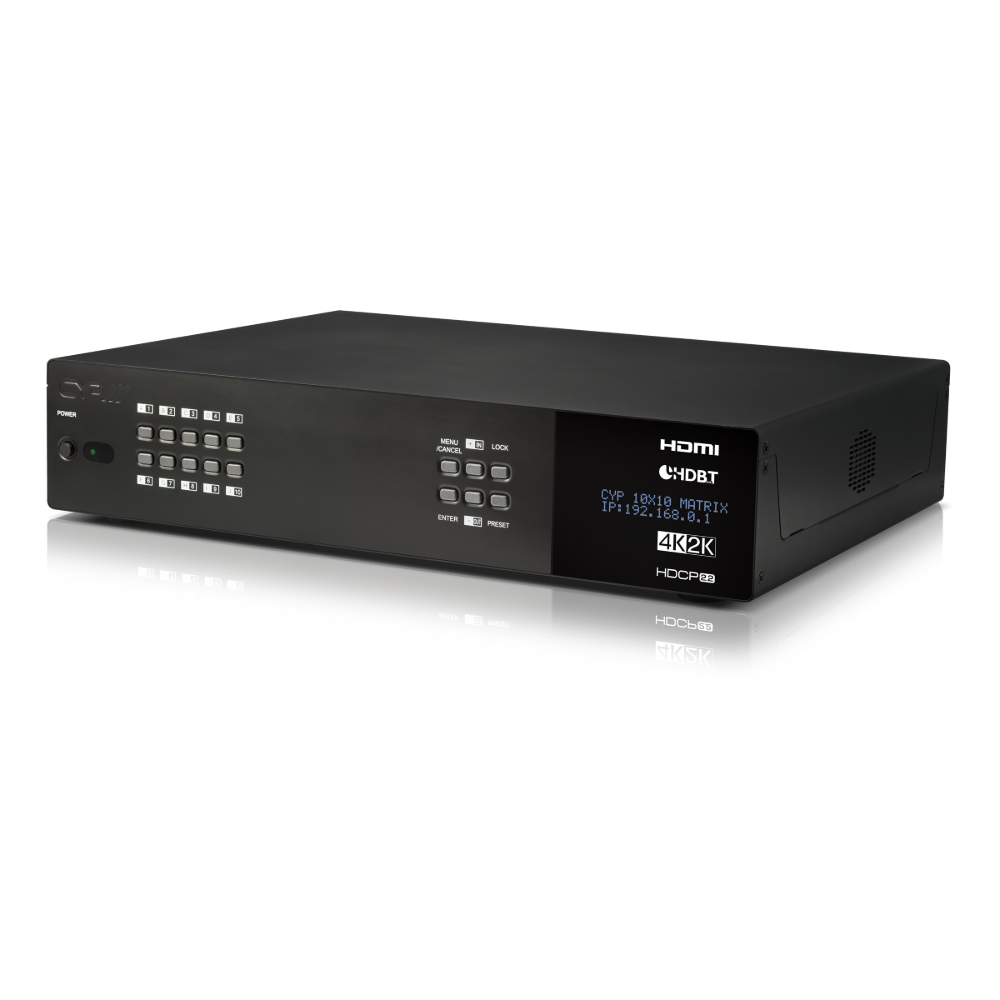

CYP PUV-1082PL-4K22N 10x10 HDBaseT Lite Matrix, 4K with Audio Matrix

Product code: 185600

£3,675.00 inc VAT
£3,062.50 ex VAT

SKU: CYP066

4 in stock

4 available online

Optional Add-Ons

CYP PUV-1230PL-RX HDBaseT Lite Receiver OAR for PUV-1082PL-4K22N

£192.00 inc VAT
£160.00 ex VAT

Add to basket

CYP PUV-1210PL-RX HDBaseT Lite Receiver 60m for PUV-1082PL-4K22N

£177.00 inc VAT
£147.50 ex VAT

Add to basket

About this Product

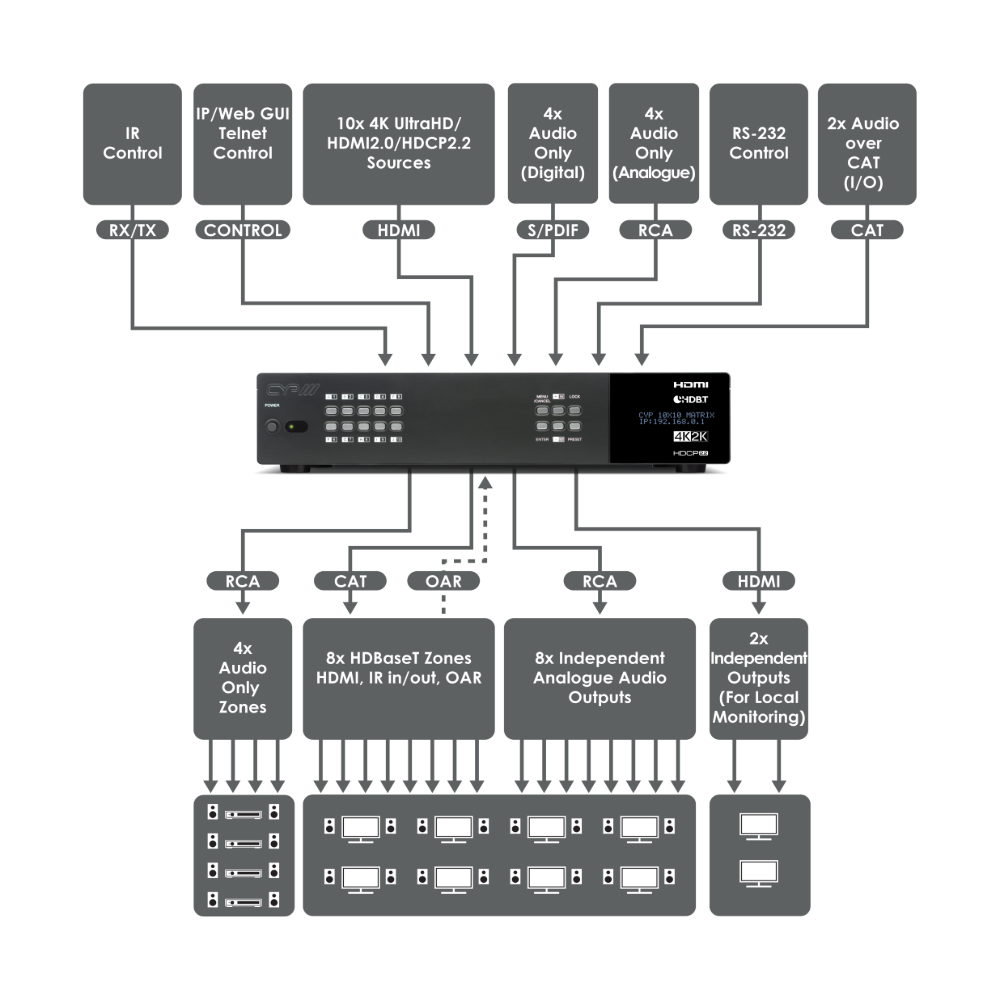

This revised 10×10 routes ten HDMI sources to eight HDBaseT Lite outputs and two HDMI outputs. The HDMI outputs run at 4K60 4:4:4, while HDBaseT carries up to 4K60 4:2:0 and higher bandwidth signals are converted automatically so a picture always arrives. New in this version are 6G input auto conversion, pre-gain on every audio input, CEC command sending and an improved pattern generator, alongside the audio matrix, zones and Optical Audio Return.

10×10

Matrix

4K60 4:2:0

HDBaseT outputs

40m

4K over Cat6A/7

Rack size

Receivers sold separatelyNo HDBaseT receivers are included. CYP design this matrix for the PUV-1230PL-RX or PUV-1210PL-RX, which take PoH from the matrix; OAR uses the optical input on the PUV-1230PL-RX.

Features

10 HDMI inputs to 8 HDBaseT Lite and 2 HDMI outputs

HDMI outputs up to 4K60 4:4:4; auto 4:2:0 and HDR conversion for HDBaseT

HDBaseT output downscaling, auto via EDID or fixed

HEX CEC messaging on inputs and outputs

Audio matrix with pre-gain, mixer, DAC/ADC and lip-sync delay

Audio over Cat inputs and outputs up to 150m

Optical Audio Return (OAR), PoH and two-way IR over HDBaseT

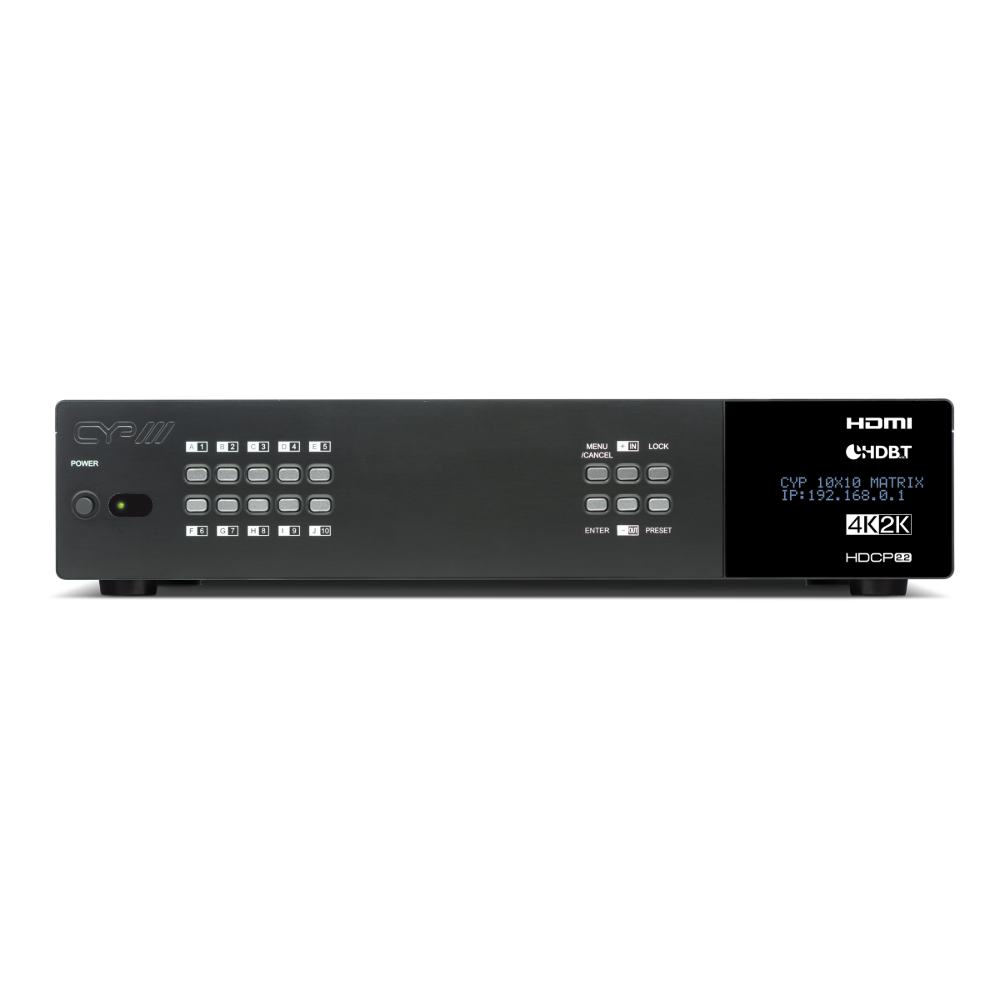

Control via front panel, IR, RS-232, Telnet and Web GUI

Specifications

CYP PUV-1082PL-4K22N 10×10 HDBaseT Lite Matrix, 4K with Audio Matrix specifications
Brand	CYP
Model	PUV-1082PL-4K22N
Video inputs	10x HDMI
Video outputs	8x RJ45 HDBaseT Lite, 2x HDMI
Audio inputs	4x stereo RCA, 2x TOSLINK, 2x coaxial, 2x audio over Cat
Audio outputs	12x stereo zone/extended (24 RCA)
HDBaseT resolution	4K60 YUV 4:2:0; 4K24/25/30 4:4:4
HDMI output resolution	4K60 4:4:4
HDMI / HDCP	HDMI 2.0 / HDCP 1.4 and 2.2
HDBaseT distance	4K: 35m Cat5e/6, 40m Cat6A/7
Audio formats	LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD MA, DTS:X
Control	Front panel, IR, RS-232 (DE-9), Telnet, Web GUI
Power	24V/6.25A
Dimensions (WxHxD)	438 x 89 x 316mm (2U)
Weight	6.22kg

Full features

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs
HDBaseT lite convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K@24Hz 4:2:2 HDR
Supports resolutions up to 4K@60 (YUV 4:4:4) on HDMI output ports
Supports automatic 4K@60 YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs
Supports automatic 4K HDR conversion for HDBaseT outputs as required
Supports HDMI inputs and HDBaseT / HDMI outputs HEX based CEC messaging
Supports HDBaseT output downscaling
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, fully independent audio only zones and HDMI audio embedding and de-embedding
Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration
Supports on-board audio over CAT inputs and outputs for transmission up to 150m
Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs
Supports Audio Pre-Gain level adjustment for all digital and analogue audio inputs
HDBaseT outputs with Optical Audio Return (OAR) system
Audio mixer function
Advanced internal and external EDID management with 4 sets of configurable EDID settings
Internal test pattern generation for self-testing and sink device testing.
Bi-directional IR support over HDBaseT
Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
Supports OSD for input and output naming plus banner text
2U rack mounted design

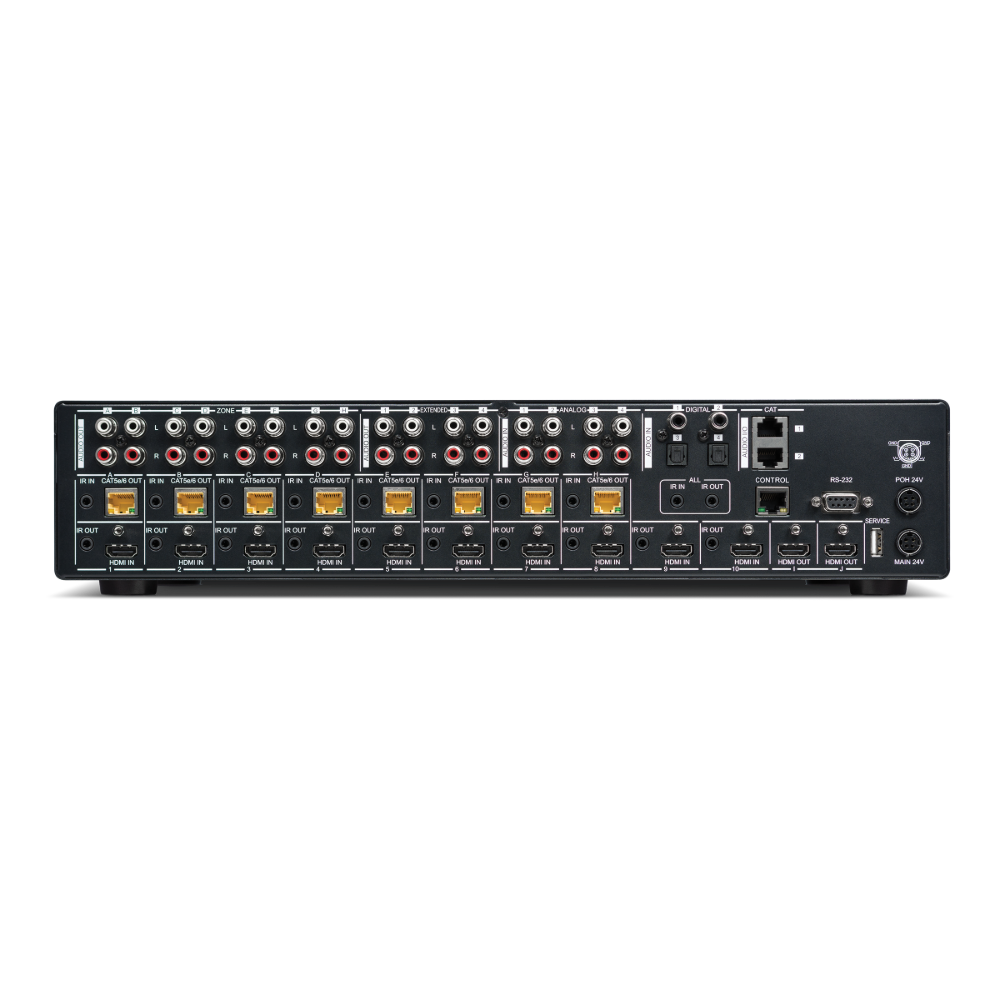

Inputs: 10 x HDMI [10 x HDMI Uncompressed AV and Data], 8 x RCA [4 x Configurable Analogue Audio Stereo (L/R)], 2 x RJ45 [2 x Bi-directional Audio plus Propriety Data], 9 x 3.5mm Stereo mini-jack [9 x Infra Red Receiver], 1 x RJ45 [1 x Control IP], 1 x 9pin Dsub [1 x RS-232 Data], 2 x Toslink [2 x Optical 2-channel LPCM], 2 x RCA [2 x Coaxial 2-channel LPCM]
Outputs: 8 x RJ45 [8 x HDBaseT HDMI & Propriety Data], 2 x HDMI [2 x HDMI Uncompressed AV and Data], 24 x RCA [12 x Zone and Extended Audio Stereo (L/R)], 11 x 3.5mm Stereo mini-jack [11 x Infra Red Emitter]
POE PSU: PoH
PSU: 24V/6.25A
Dimensions (H x W x D): 89 x 438 x 316mm
Net Weight: 6.22kg
Gross Weight: 10.65kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK_PUV-1082PL-4K22N_Manual_v1.00.pdfPDF
