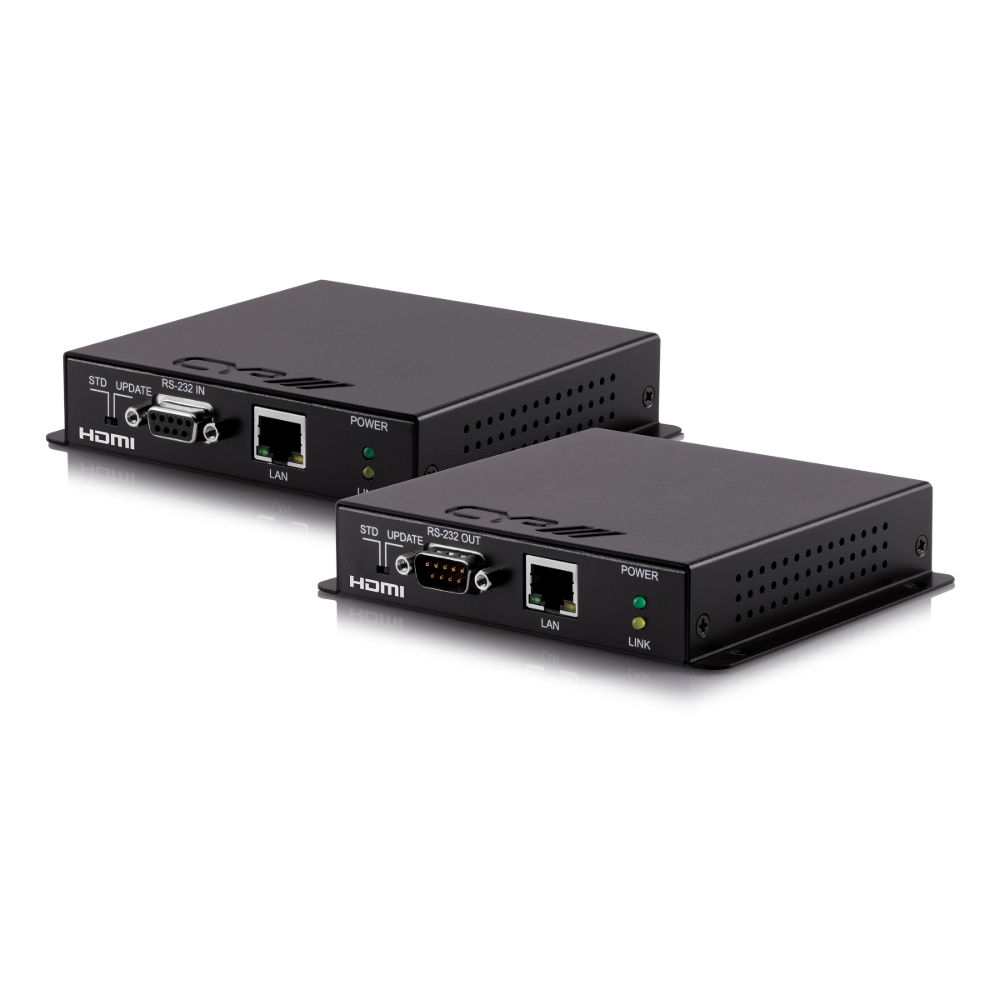

CYP PUV-1510-KIT HDBaseT HDMI Extender Kit 100m 4K, LAN, PoH

Product code: 186070

£486.00 inc VAT
£405.00 ex VAT

SKU: CYP052

4 in stock

4 available online

About this Product

Full HDBaseT rather than Lite, so this pair covers the longer runs: 1080p up to 100m on CAT5e/6, and 4K up to 70m on CAT5e/6 or 100m on CAT6a/7. Along with HDMI it carries Ethernet, two-way IR and RS-232, and the transmitter powers the receiver by PoH. Projectors, boardroom screens and lecture theatres are typical jobs.

100m

4K over CAT6a/7

70m

4K over CAT5e/6

LAN

Ethernet pass-through

PoH

Receiver powered by TX

Features

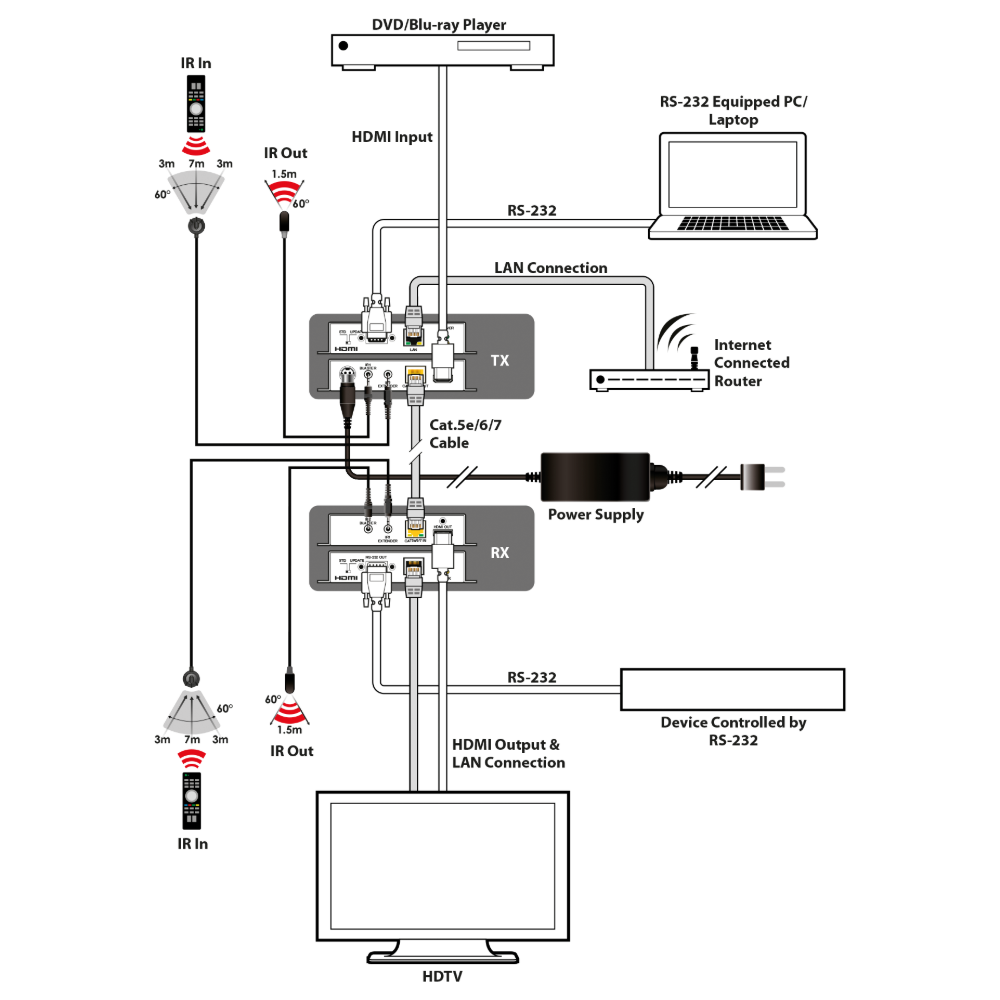

5-Play HDBaseT: HDMI, LAN, PoH, IR and RS-232 on one cable

1080p up to 100m over CAT5e/6/6a/7

4K up to 70m over CAT5e/6 or 100m over CAT6a/7

Receiver powered from the transmitter by PoH

HDCP 2.2, HDCP repeating, CEC and 3D support

Audio up to 7.1CH including Dolby TrueHD and DTS-HD

Specifications

CYP PUV-1510-KIT HDBaseT HDMI Extender Kit 100m 4K, LAN, PoH specifications
Brand	CYP
Model	PUV-1510-KIT

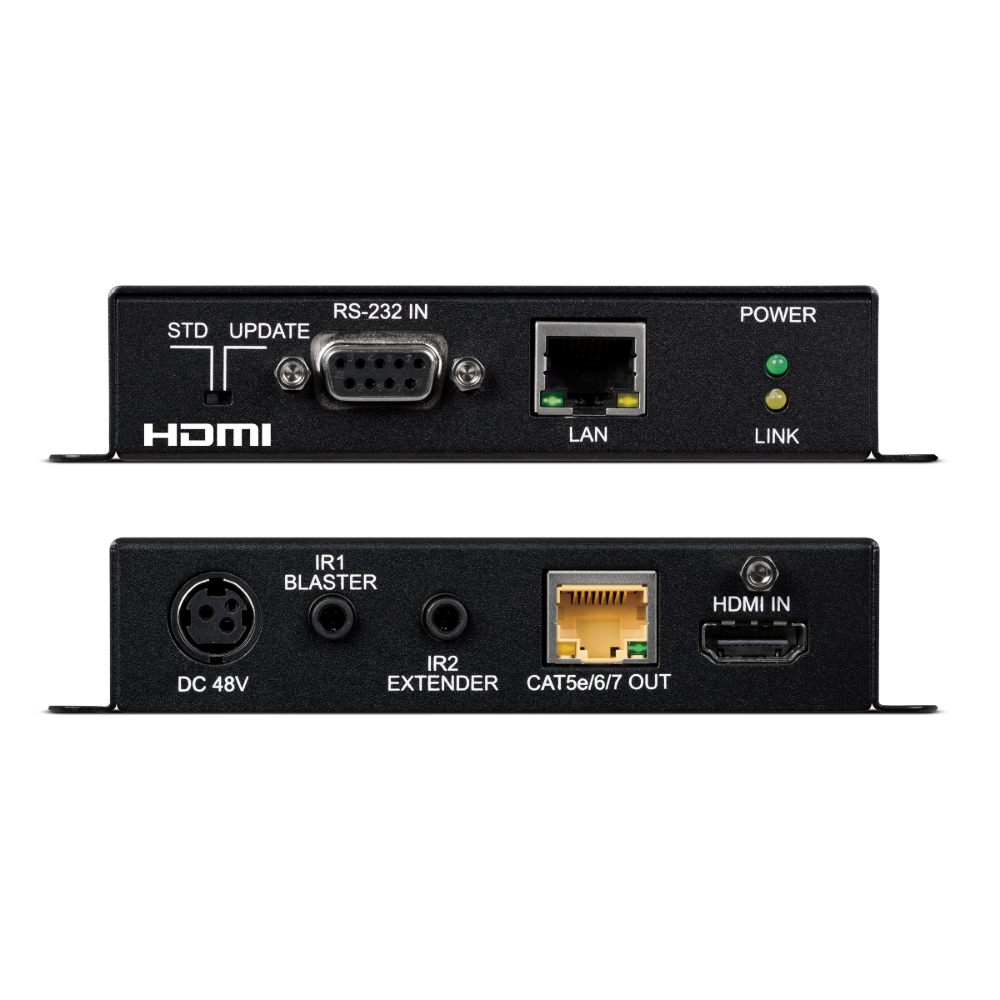

TX	1x HDMI in, 1x HDBaseT out, 1x LAN, RS-232 (9-pin D-sub), IR in/out

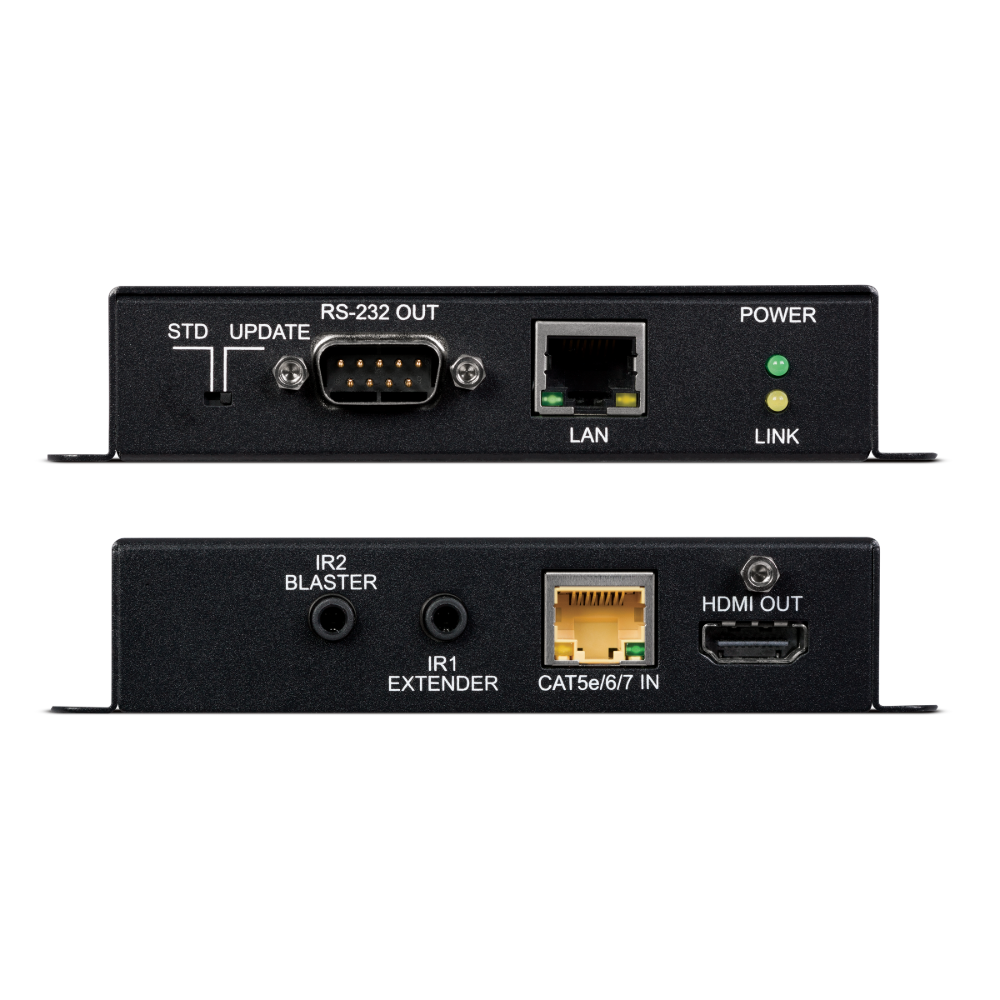

RX	1x HDBaseT in, 1x HDMI out, 1x LAN, RS-232 (9-pin D-sub), IR in/out
Max resolution	4K UHD@60Hz 4:2:0
Bandwidth	10.2Gbps
HDCP	HDCP 2.2
Distance (1080p)	100m over CAT5e/6/6a/7
Distance (4K)	70m CAT5e/6, 100m CAT6a/7
Power	TX 48V/0.83A DC, RX by PoH
In the box	Transmitter, receiver, IR blaster, IR extender, 48V DC adaptor
Dimensions (WxHxD)	128 x 25 x 108mm each
Weight	TX 220g, RX 200g

Full features

HDCP2.2 Compliant
Supports uncompressed video/audio up to 10.2Gbps
Supports HDCP repeating and CEC functions
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play™ convergence: HDMI, LAN, PoH & Control (IR & RS232)
Supports 3D signals

Inputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 9pin Dsub [1 x RS-232 Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver]
Outputs: 1 x RJ45 [1 x HDBaseT output HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter], 1 x RJ45 [1 x Ethernet (I/O) IP]
PSU: 48V/0.83A
Dimensions (H x W x D): 25 x 128 x 108mm
Net Weight: 220g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: PUV-1510-KIT_PDF-Manual_v1.01.pdfPDF

Manuals & Instructions: PUV-1510-KIT_Datasheet_v1.01.pdfPDF
