Rated 4.9 (112 reviews)

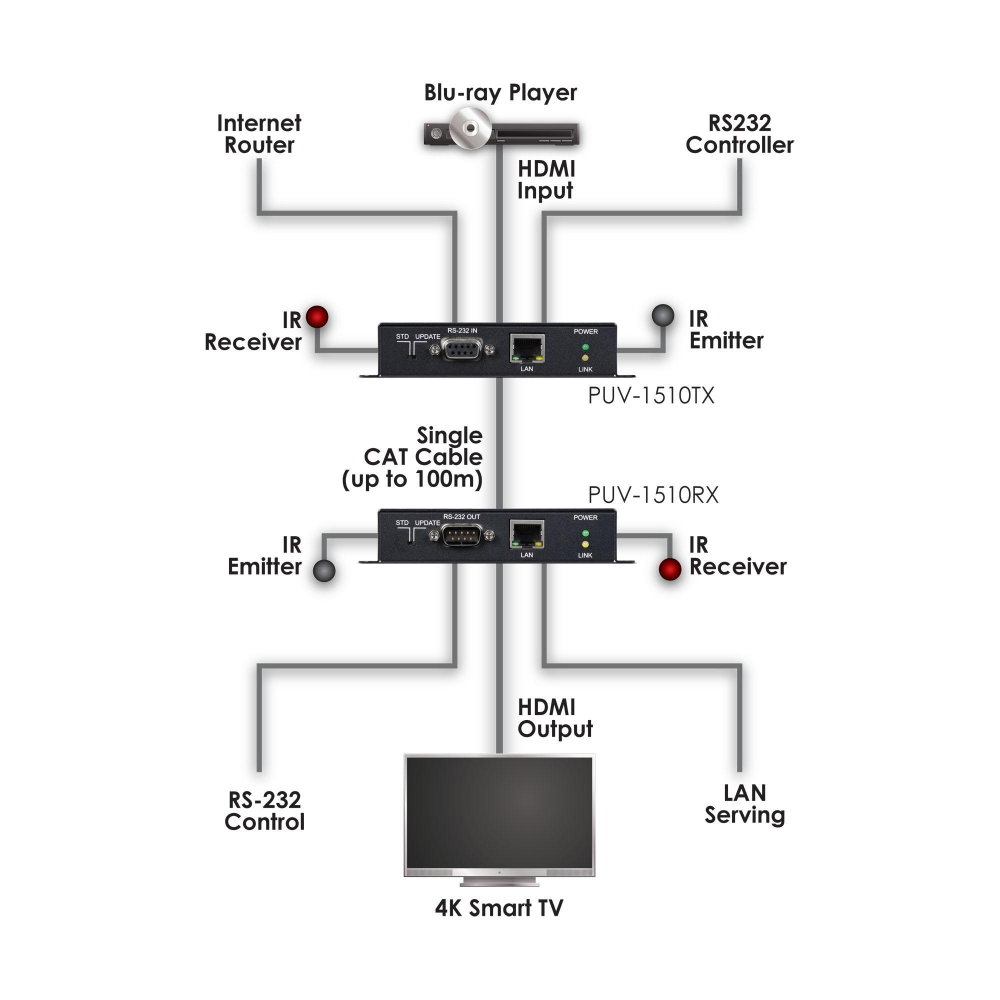

The EL-8300VA and EL-8500VA presentation switchers both list this unit as their HDBaseT receiver, and it also partners the PUV-1510TX transmitter. At the display it provides HDMI, Ethernet, RS-232 and two-way IR, all from one CAT cable, with power supplied by PoH. 4K reaches 70m on CAT5e/6 or 100m on CAT6a/7.
100m
4K over CAT6a/7
70m
4K over CAT5e/6
LAN
Ethernet pass-through
PoH
Cable powered
Needs a PoH sourceReceiver only, with no power supply. It is powered by PoH from a compatible CYP unit such as the EL-8300VA, EL-8500VA or PUV-1510TX.
Features
5-Play HDBaseT: HDMI, LAN, PoH, IR and RS-232 on one cable
1080p up to 100m over CAT5e/6/6a/7
4K up to 70m over CAT5e/6 or 100m over CAT6a/7

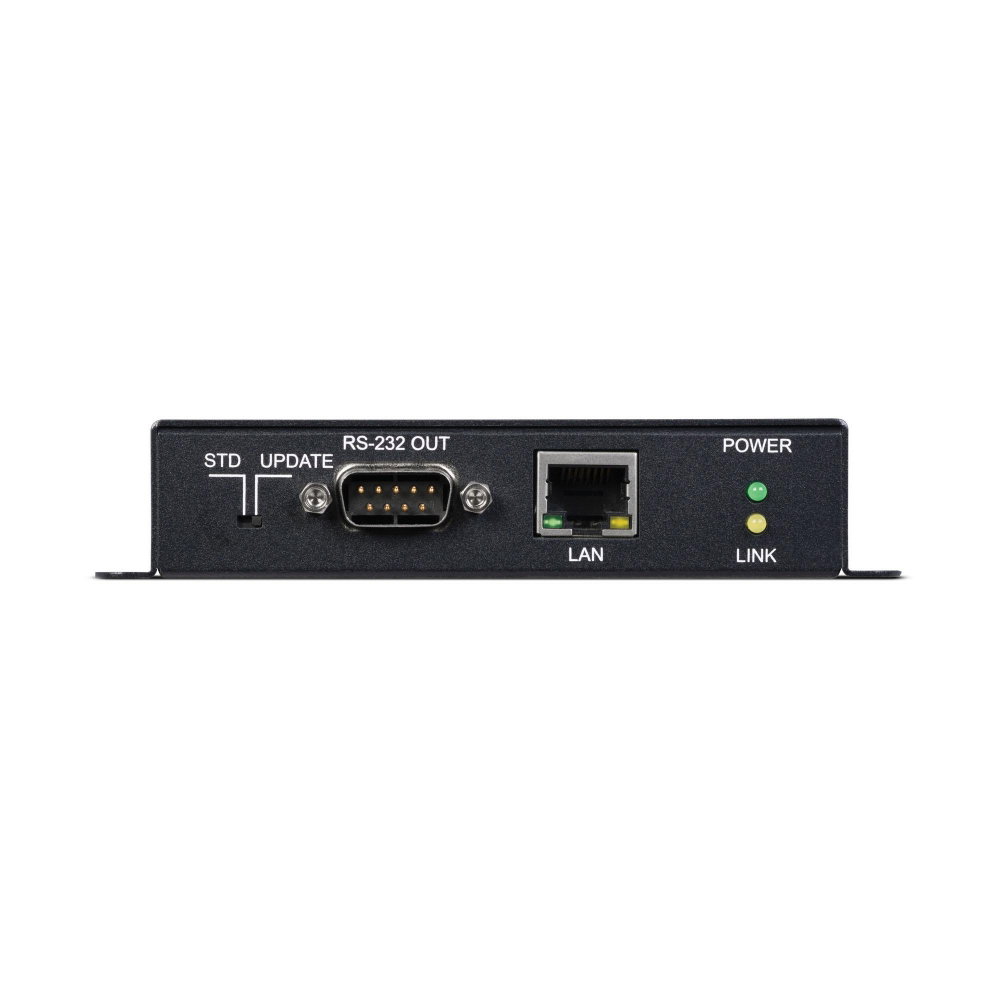

RS-232 on 9-pin D-sub and Ethernet at the display
HDCP 2.2, HDCP repeating, CEC and 3D support
Powered by PoH
Specifications
| Brand | CYP |
| Model | PUV-1510RX |

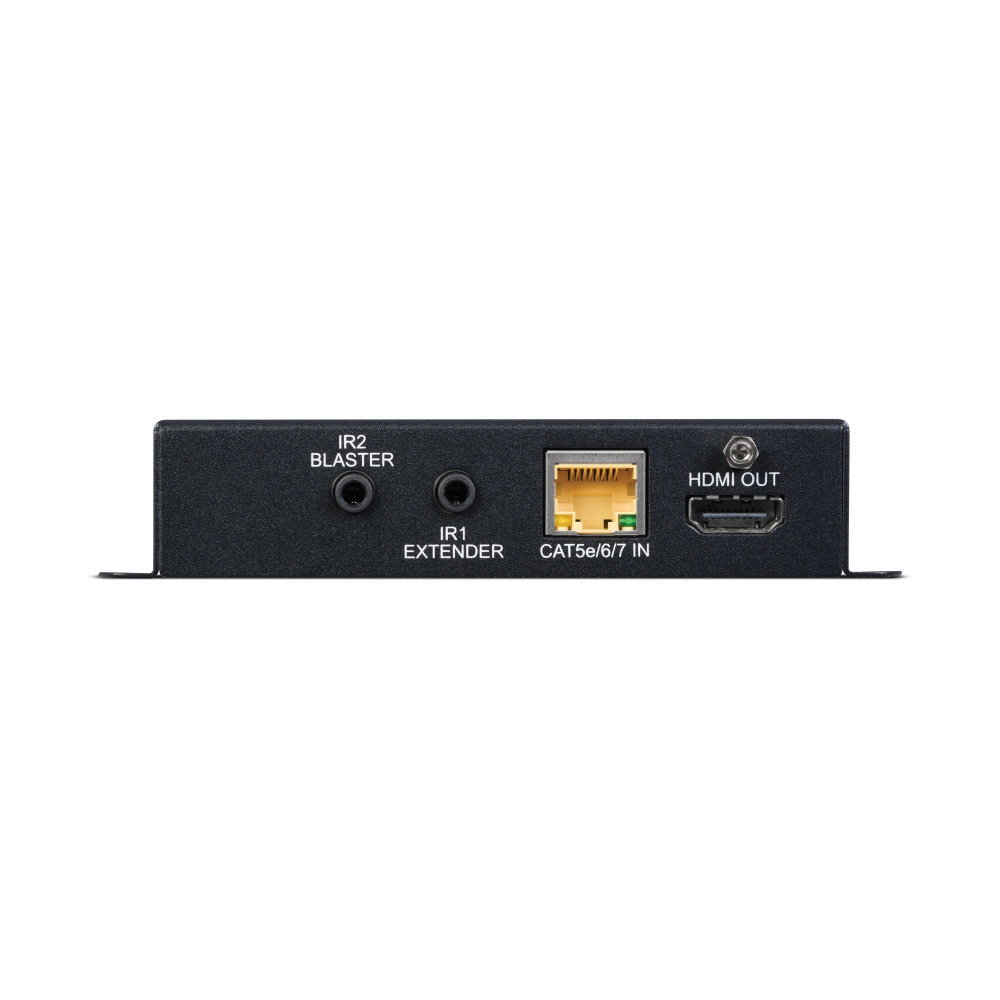

| Inputs | 1x HDBaseT (RJ45), 1x IR in (3.5mm), 1x LAN (RJ45) |
| Outputs | 1x HDMI, 1x RS-232 (9-pin D-sub), 1x IR out (3.5mm) |
| Max resolution | 4K UHD@60Hz 4:2:0 |
| Bandwidth | 10.2Gbps |
| HDCP | HDCP 2.2 |
| Distance (1080p) | 100m over CAT5e/6/6a/7 |
| Distance (4K) | 70m CAT5e/6, 100m CAT6a/7 |
| Power | PoH |
| Compatible with | EL-8300VA, EL-8500VA, PUV-1510TX |
| In the box | Receiver, IR extender |
| Dimensions (WxHxD) | 128 x 25 x 108mm |
| Weight | 200g |
