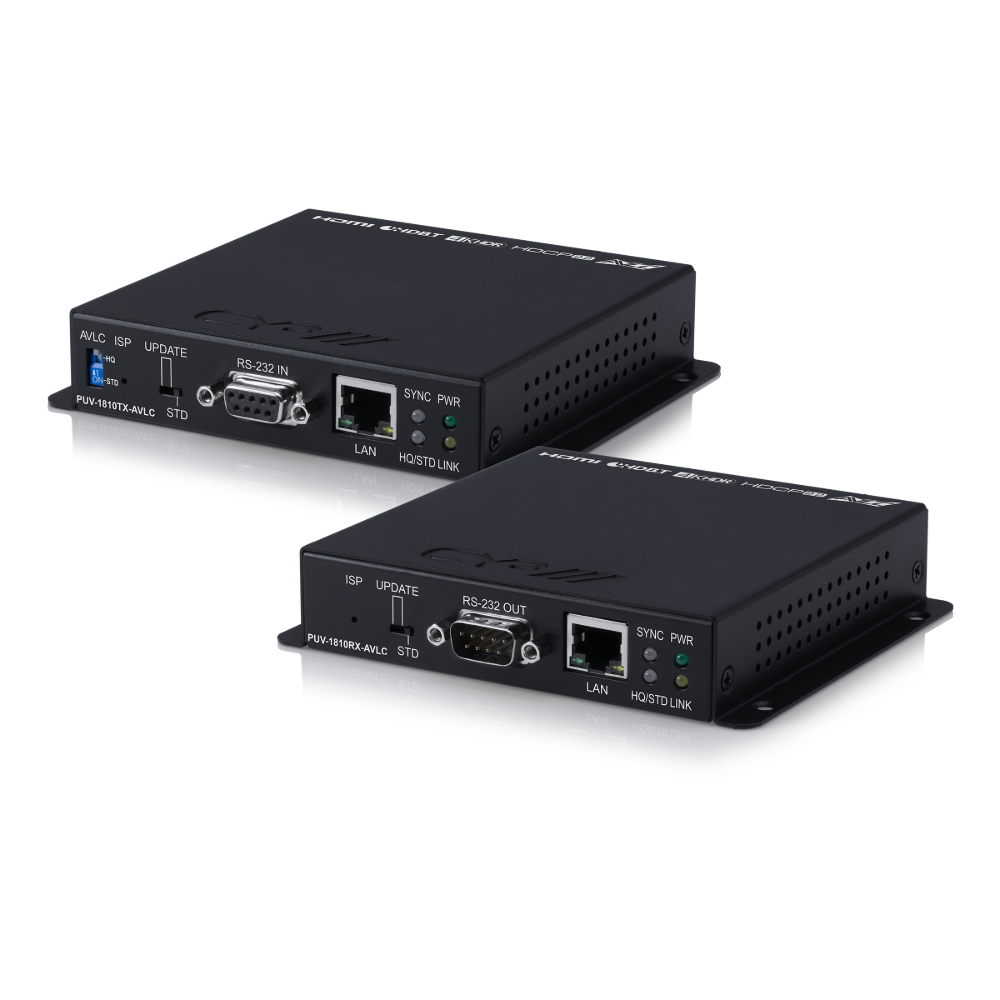

CYP PUV-1810-AVLC-KIT HDBaseT 4K60 AVLC Extender Kit 100m LAN PoH

SKU: CYP054
CYP PUV-1810-AVLC-KIT HDBaseT 4K60 AVLC Extender Kit 100m LAN PoH - Image 1
CYP PUV-1810-AVLC-KIT HDBaseT 4K60 AVLC Extender Kit 100m LAN PoH - Image 2
CYP PUV-1810-AVLC-KIT HDBaseT 4K60 AVLC Extender Kit 100m LAN PoH - Image 3
CYP PUV-1810-AVLC-KIT HDBaseT 4K60 AVLC Extender Kit 100m LAN PoH - Image 4
Click to enlarge

    £555.00 inc VAT
    £462.50 ex VAT

    3 in stock

    3 available online
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    Where the PUV-1510-KIT stops at 10.2Gbps, this AVLC kit carries full 18Gbps 4K60 4:4:4 and 10/12-bit HDR including Dolby Vision. 4K 6G timings reach 70m and 4K 3G or 1080p reach 100m, with Ethernet, two-way IR, RS-232 and PoH on the same cable. The transmitter can be set to High Quality or Standard compression, and Standard helps on longer runs.

    18Gbps
    4K60 4:4:4 via AVLC
    70m
    4K 6G timings
    100m
    4K 3G / 1080p
    LAN + PoH
    On one cable
    Features
    AVLC compression carries 18Gbps 4K@50/60Hz 4:4:4 8-bit over HDBaseT
    10-bit and 12-bit HDR, including Dolby Vision
    4K 6G timings up to 70m; 4K 3G and 1080p up to 100m
    5-Play: video, audio, 100BaseT Ethernet, PoH and control
    High Quality or Standard AVLC mode selectable on the transmitter
    Bi-directional IR and RS-232 pass-through
    Passes Dolby Atmos, Dolby TrueHD and DTS-HD Master Audio
    Specifications
    Brand CYP
    Model PUV-1810-AVLC-KIT

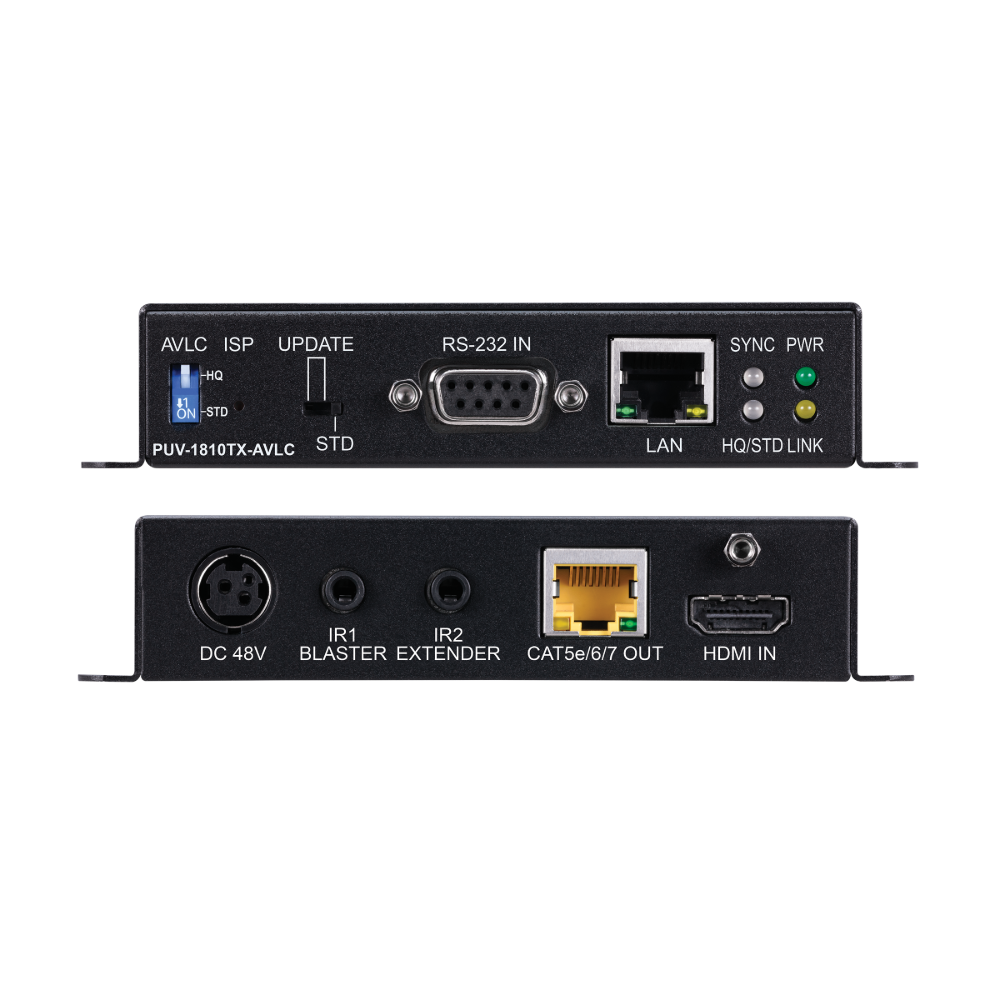

    TX 1x HDMI in, 1x HDBaseT out, 1x LAN, RS-232 (9-pin D-sub), IR in/out

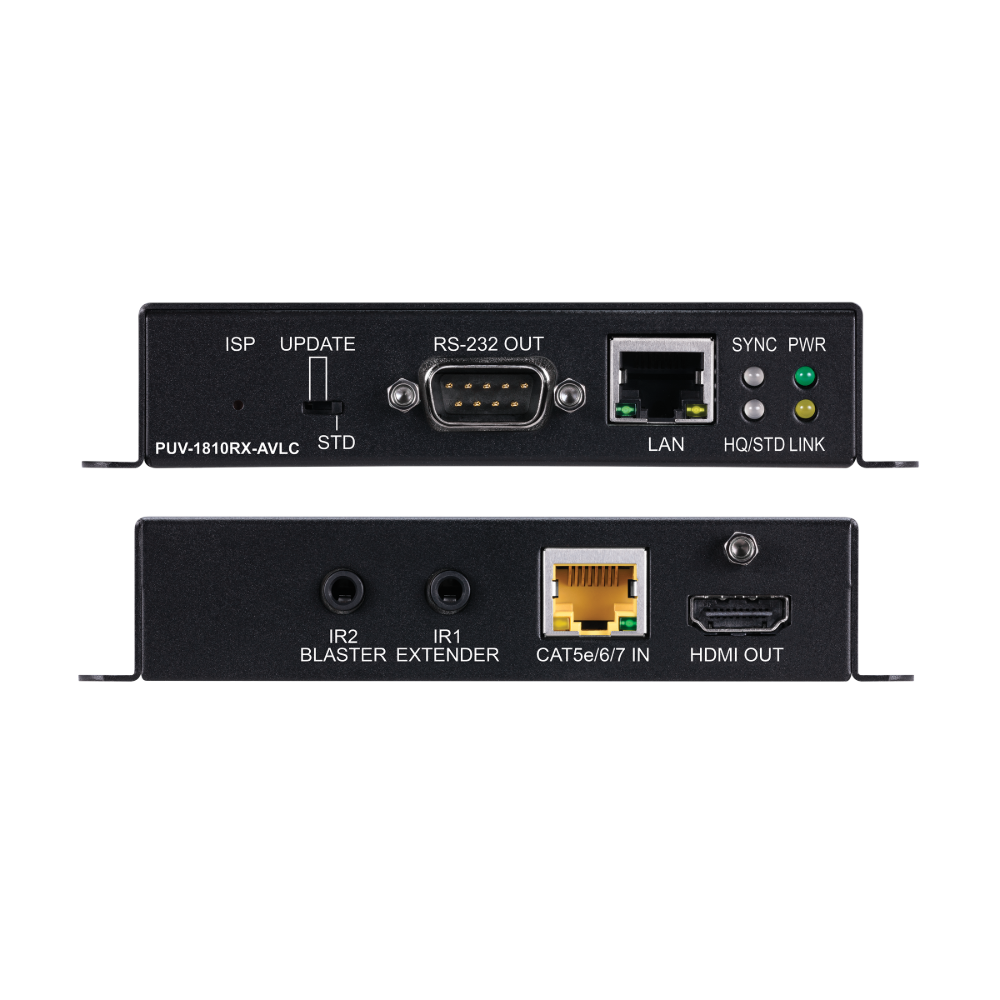

    RX 1x HDBaseT in, 1x HDMI out, 1x LAN, RS-232 (9-pin D-sub), IR in/out
    Max resolution 4K@50/60Hz 4:4:4 8-bit
    Compression AVLC, HQ / STD modes
    Distance 70m (4K 6G), 100m (4K 3G / 1080p)
    Cable Single CAT6a/7 recommended for 100m
    Power TX 48V/0.83A DC, RX by PoH
    In the box Transmitter, receiver, 48V/0.83A PSU, IR extender cable, IR blaster cable, manual
    Dimensions (WxHxD) 128 x 25 x 108mm each
    Weight 380g each

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • HDBaseT 5-Play™ convergence: high-definition video and audio, 100BaseT ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
    • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
    • AVLC (Adaptive Visually Lossless Compression)
    • AVLC features manual selection between high quality and standard compression from TX (useful for longer cable runs)
    • Supports 10-bit and 12-bit HDR (High Dynamic Range)
    • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
    • Supports Deep Colour input and output up to 12-bit
    • Supports CEC Bypass
    • 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G timings up to 70 Metres
    • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
    • Supports 3D signals

    Manuals & Downloads

    PDFManuals & Instructions: PUV-1810-AVLC-KIT_PDF-Manual_v1.00.pdfPDF
    PDFManuals & Instructions: PUV-1810-AVLC-KIT_Datasheet_v1.pdfPDF
