CYP PUV-1830RX-AVLC HDBaseT AVLC Receiver OAR, LAN for PUV-1082-PRO

Product code: 186063

£317.00 inc VAT
£264.17 ex VAT

SKU: CYP065

3 in stock

3 available online

Optional Add-Ons

CYP PUV-1082-PRO 10x10 HDBaseT Matrix, 4K60 AVLC with Audio Matrix

£4,656.00 inc VAT
£3,880.00 ex VAT

Add to basket

About this Product

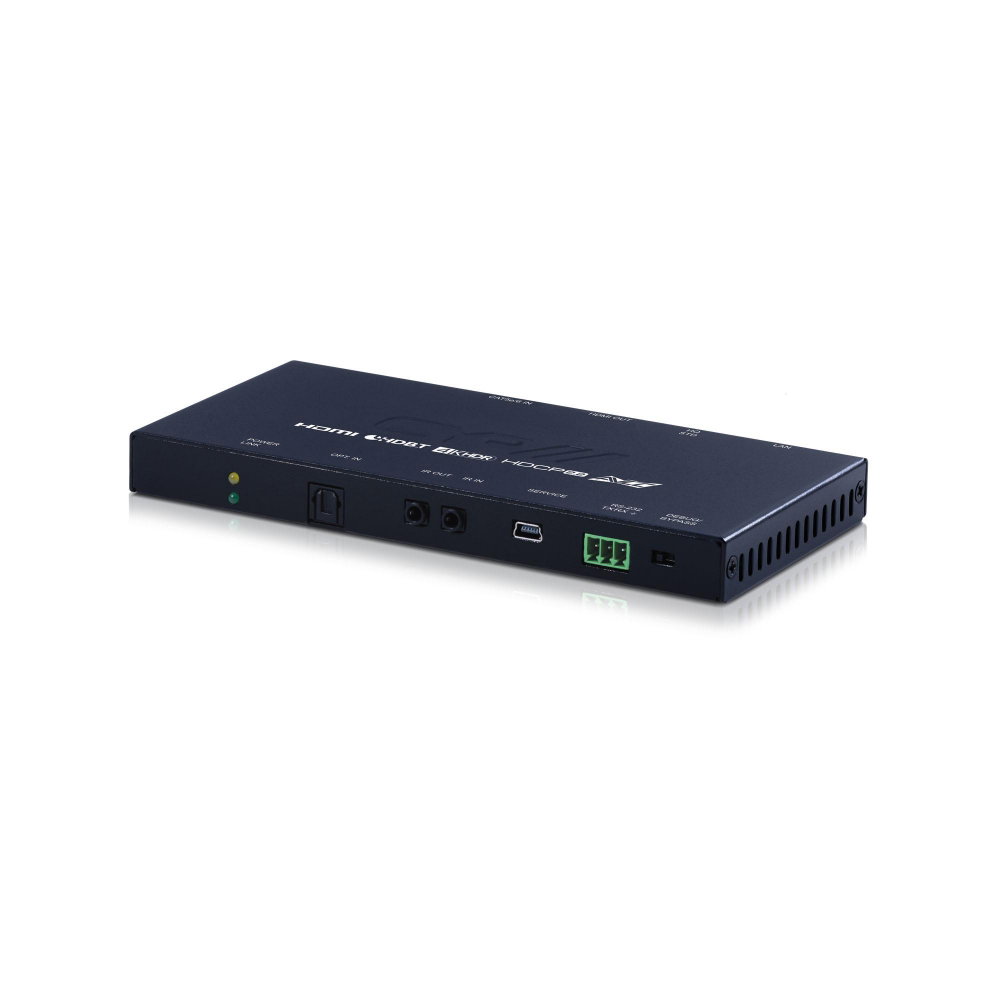

The OAR version of CYP’s AVLC receiver adds an optical input that sends audio from the display end back to the source, which on the PUV-1082-PRO matrix feeds the audio matrix. Video is AVLC-compressed 18Gbps 4K60 4:4:4 with HDR, and Ethernet, RS-232 and two-way IR are broken out locally. Its 16mm-high slimline case fits behind a wall-mounted TV.

OAR

Optical audio return

18Gbps

4K60 4:4:4 via AVLC

100m

4K 3G / 1080p

16mm

Slimline height

Needs an AVLC PoH sourceReceiver only, powered by 48V PoH. Use it with the CYP PUV-1082-PRO matrix or a PUV-1830TX-AVLC transmitter.

Features

Receives AVLC-compressed 18Gbps 4K@50/60Hz 4:4:4 8-bit

Optical Audio Return sends display-end audio back to the matrix or transmitter

10-bit and 12-bit HDR, including Dolby Vision

4K 6G timings up to 70m; 4K 3G and 1080p up to 100m

100BaseT Ethernet, RS-232 and two-way IR pass-through

Specifications

CYP PUV-1830RX-AVLC HDBaseT AVLC Receiver OAR, LAN for PUV-1082-PRO specifications
Brand	CYP
Model	PUV-1830RX-AVLC

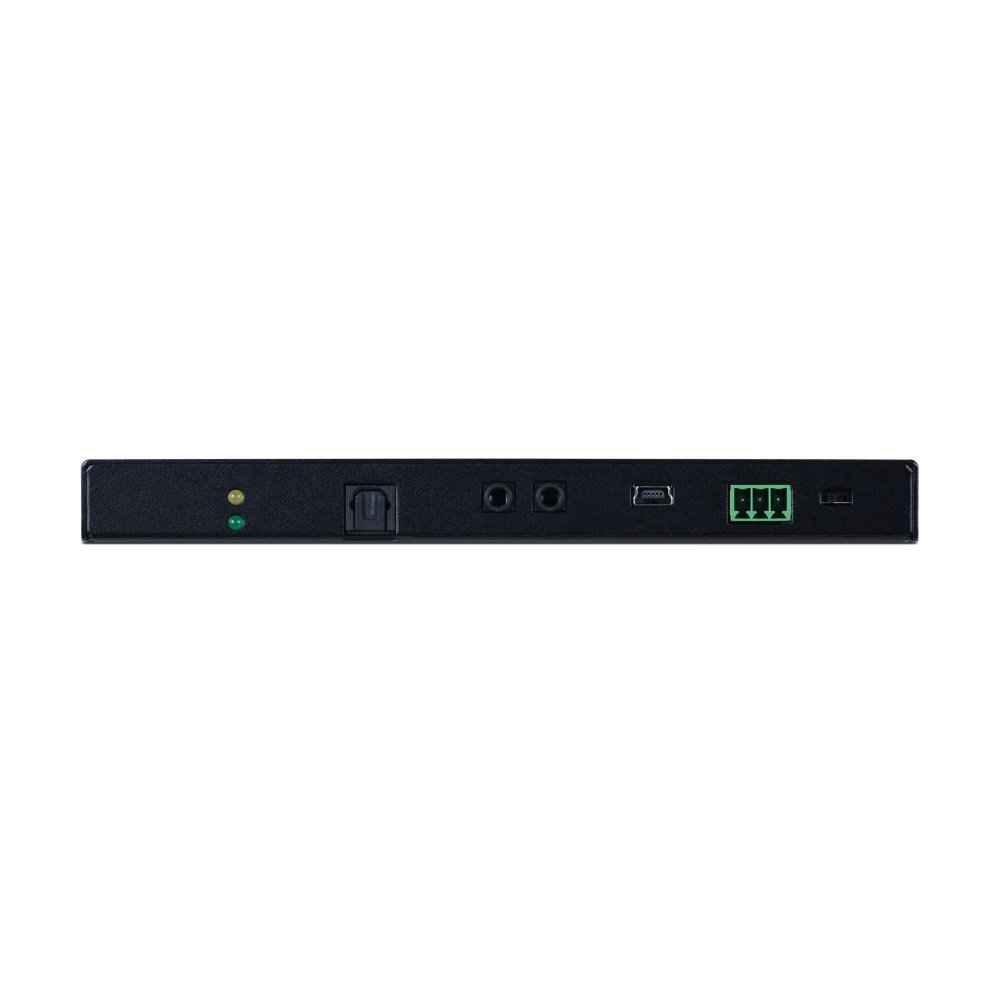

Inputs	1x HDBaseT (RJ45), 1x optical OAR (Toslink), 1x IR in (3.5mm)

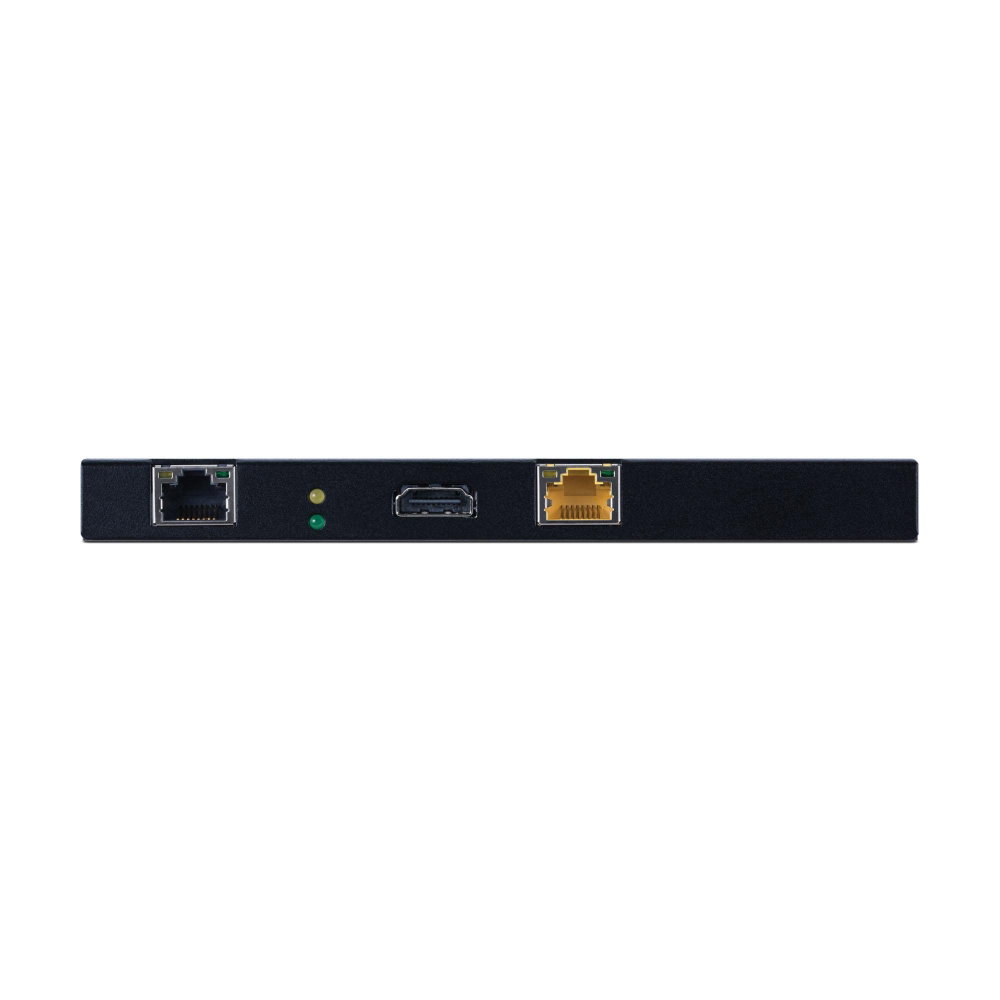

Outputs	1x HDMI, 1x RS-232 (3-pin Phoenix), 1x IR out (3.5mm), 1x LAN (RJ45)
OAR formats	2CH LPCM, DTS, Dolby Digital
Max resolution	4K@50/60Hz 4:4:4 8-bit
Compression	AVLC
Distance	70m (4K 6G), 100m (4K 3G / 1080p)
Power	48V PoH
Compatible with	PUV-1082-PRO, PUV-1830TX-AVLC
In the box	Receiver, IR extender cable, rackmount ears, manual
Dimensions (WxHxD)	163 x 16 x 78mm
Weight	200g

Full features

HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
AVLC (Adaptive Visually Lossless Compression)
AVLC Features manual selection between High Quality and Standard compression from TX (useful for longer cable runs)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Supports OAR (Optical Audio Return)
Supports Deep Colour input and output up to 12-bit
Supports CEC Bypass
4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings up to 70 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports 3D signals

Inputs: 1 x RJ45 [1 x HDBaseT HDMI & Propriety Data], 1 x Toslink [1 x OAR digital pathway 2-channel LPCM / DTS / Dolby Digital], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x USB Type A [1 x Service Port Propriety Data]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter], 1 x RJ45 [1 x LAN Serving], 1 x Phoenix (3-pin) [1 x RS-232]
PSU: PoH
Dimensions (H x W x D): 16 x 163 x 78mm
Net Weight: 200g
Gross Weight: 460g
