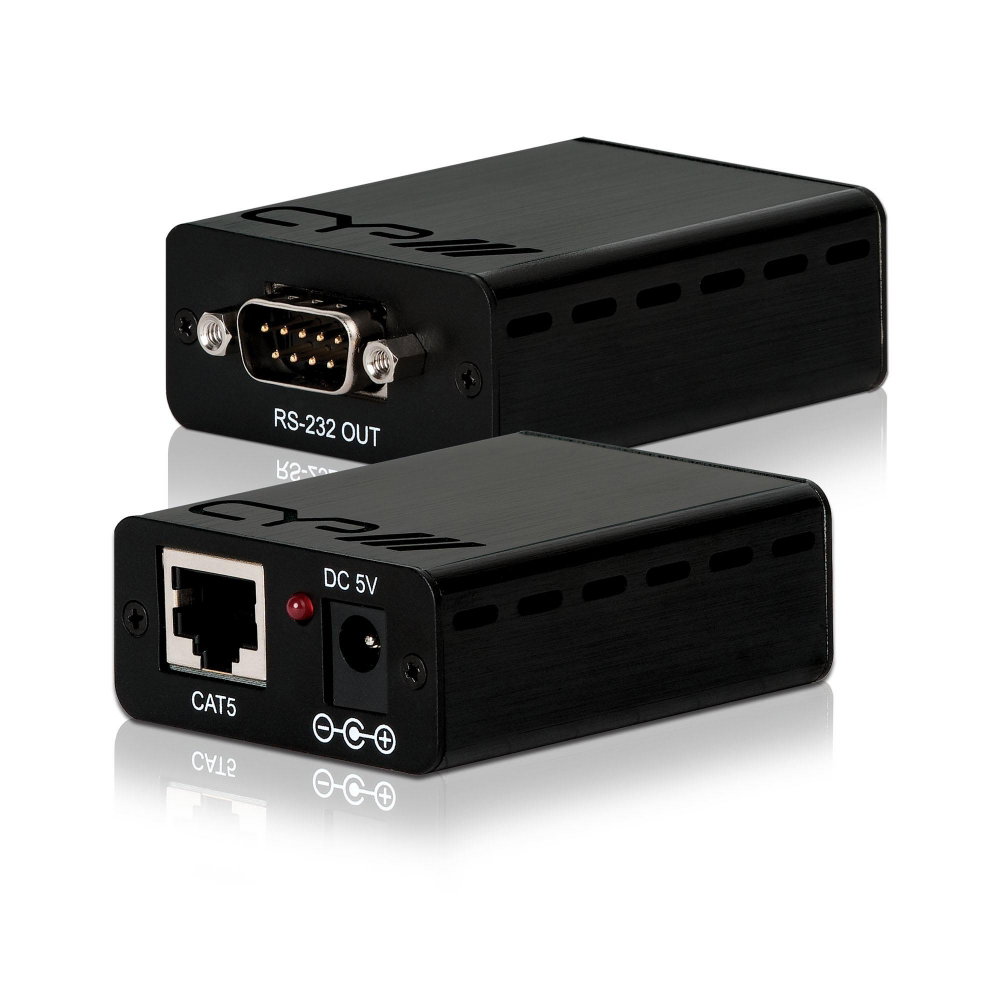

CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex

SKU: CYP058
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 1
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 2
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 3
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 4
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 5
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 6
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 7
CYP PU-232 RS-232 over CAT Extender Kit 250m, Full Duplex - Image 8
Click to enlarge

    £91.00 inc VAT
    £75.83 ex VAT

    2 in stock

    2 available online
    Delivered by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

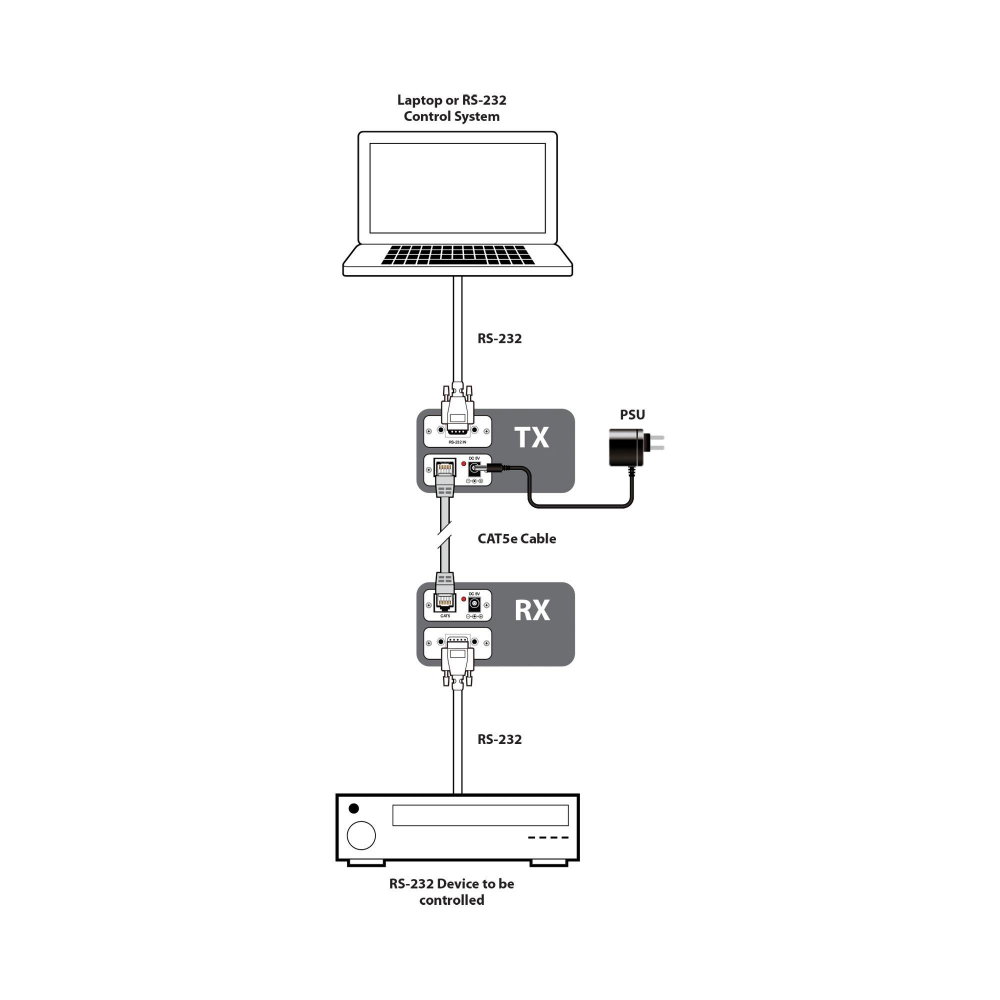

    Where a control system or laptop needs to reach an RS-232 device across a building, the PU-232 pair carries the serial link over one CAT5/6 cable for up to 250m. It is hardware based with full duplex and hardware handshake signals, so there is nothing to configure. Projectors, displays and signage players with serial control are the usual targets.

    250m
    Over CAT5/6
    921600
    Max baud rate
    Full duplex
    With handshake
    D-sub 9
    Connectors
    Features
    Extends RS-232 up to 250m over a single CAT5/6 cable
    Full duplex with hardware handshake signals
    Baud rate 110 to 921600, 8-bit data
    No set-up or configuration required
    9-pin D-sub connection at each end
    Specifications
    Brand CYP
    Model PU-232

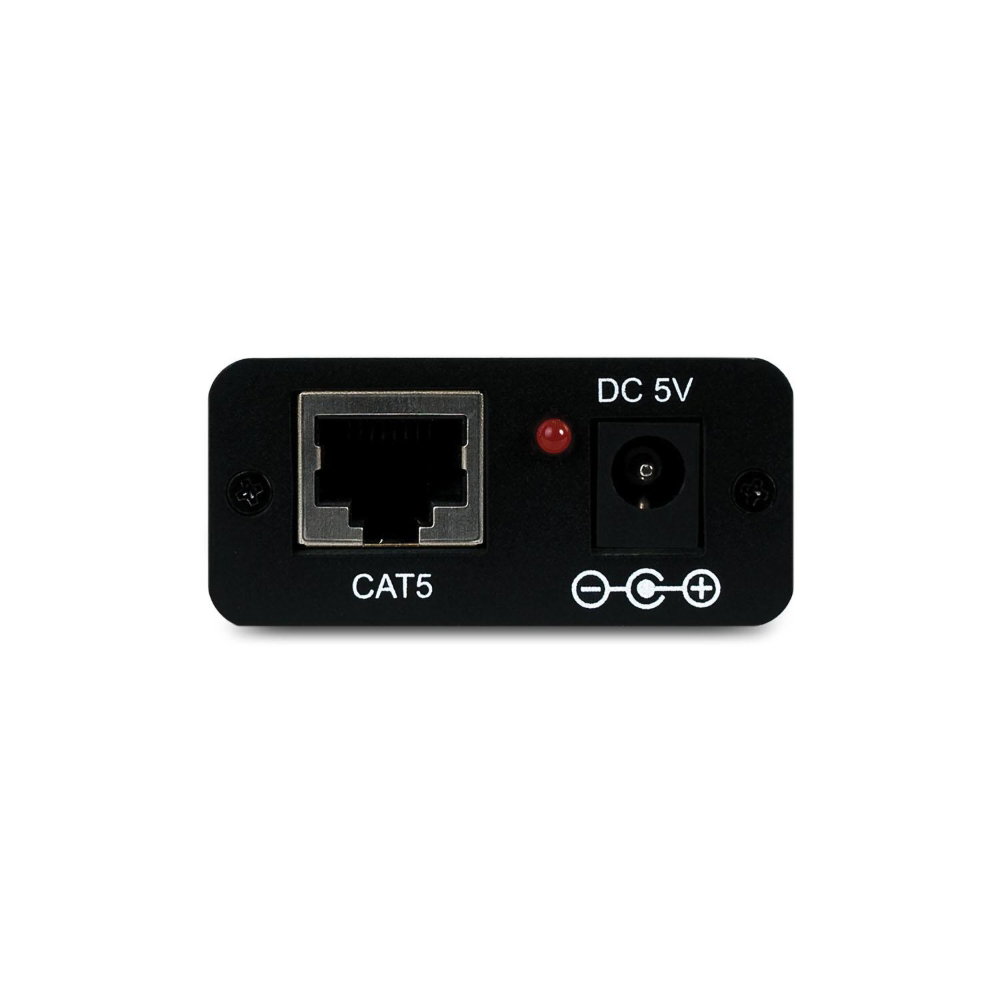

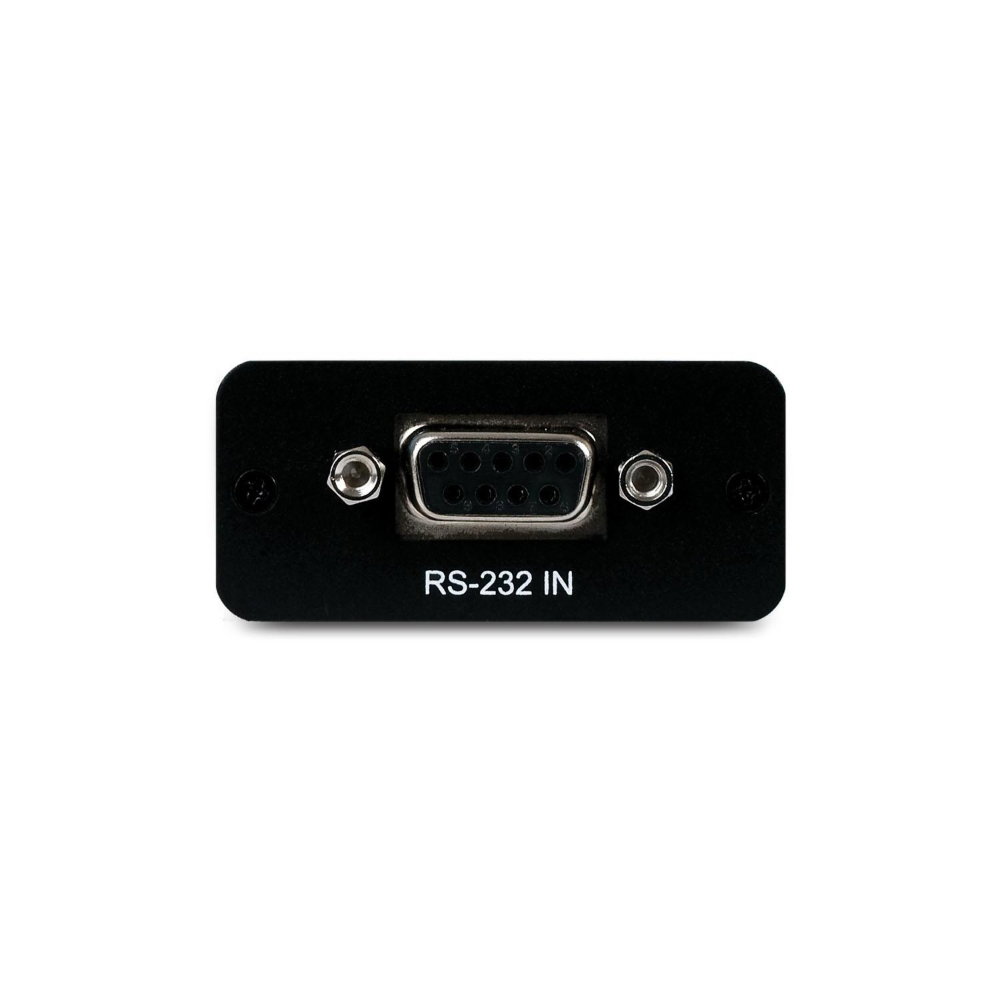

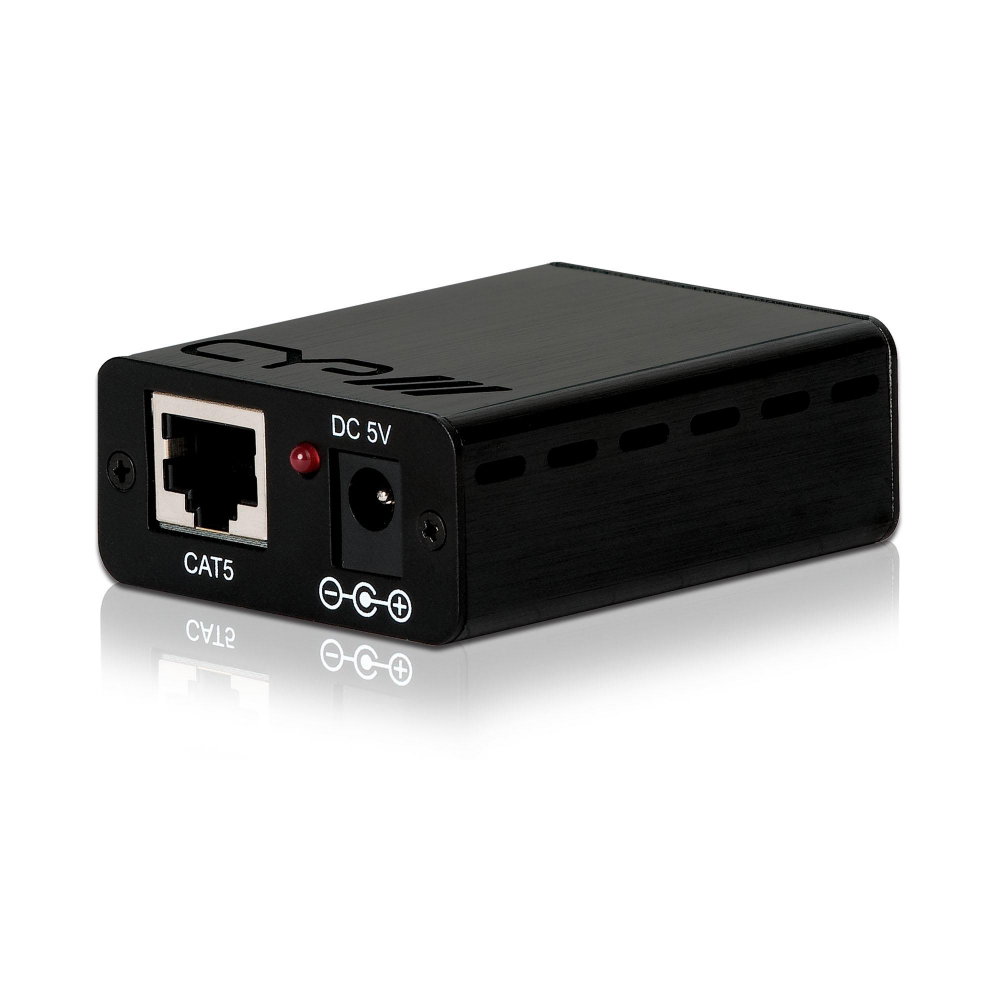

    TX 1x RS-232 in (9-pin D-sub), 1x RJ45 out

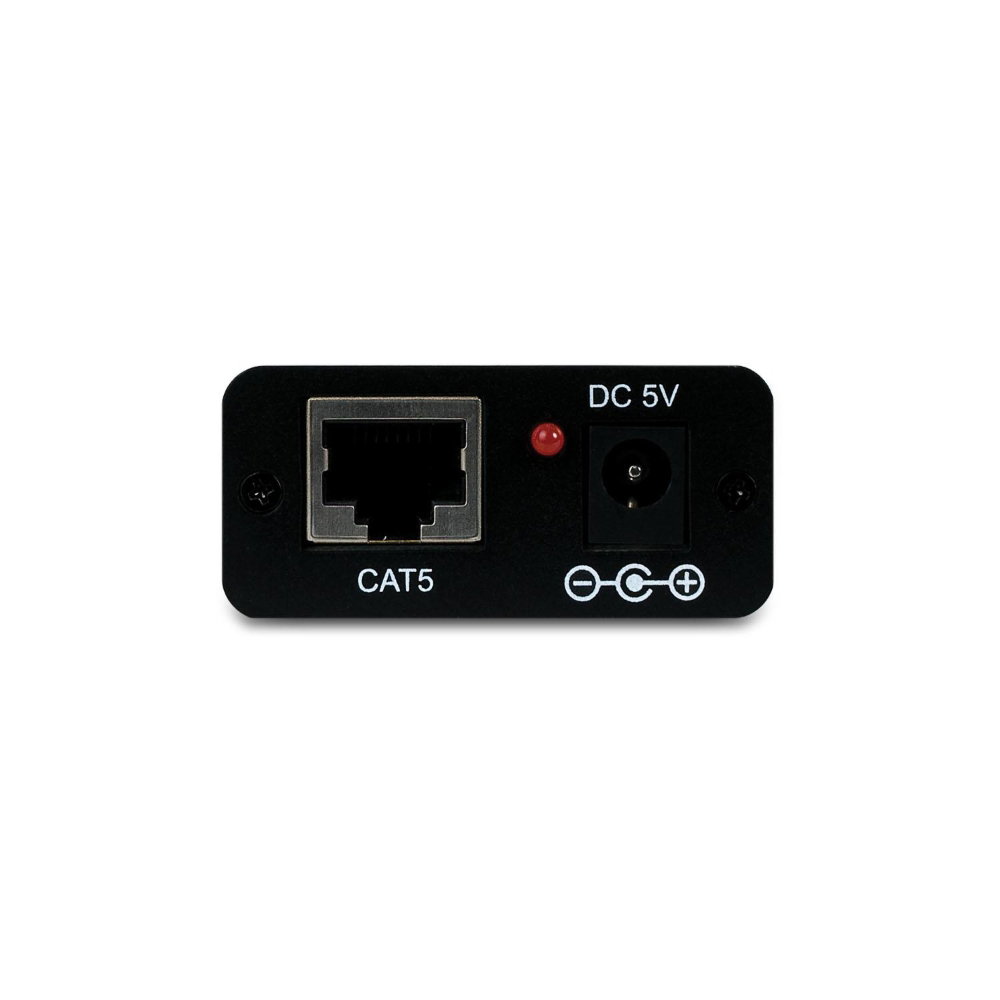

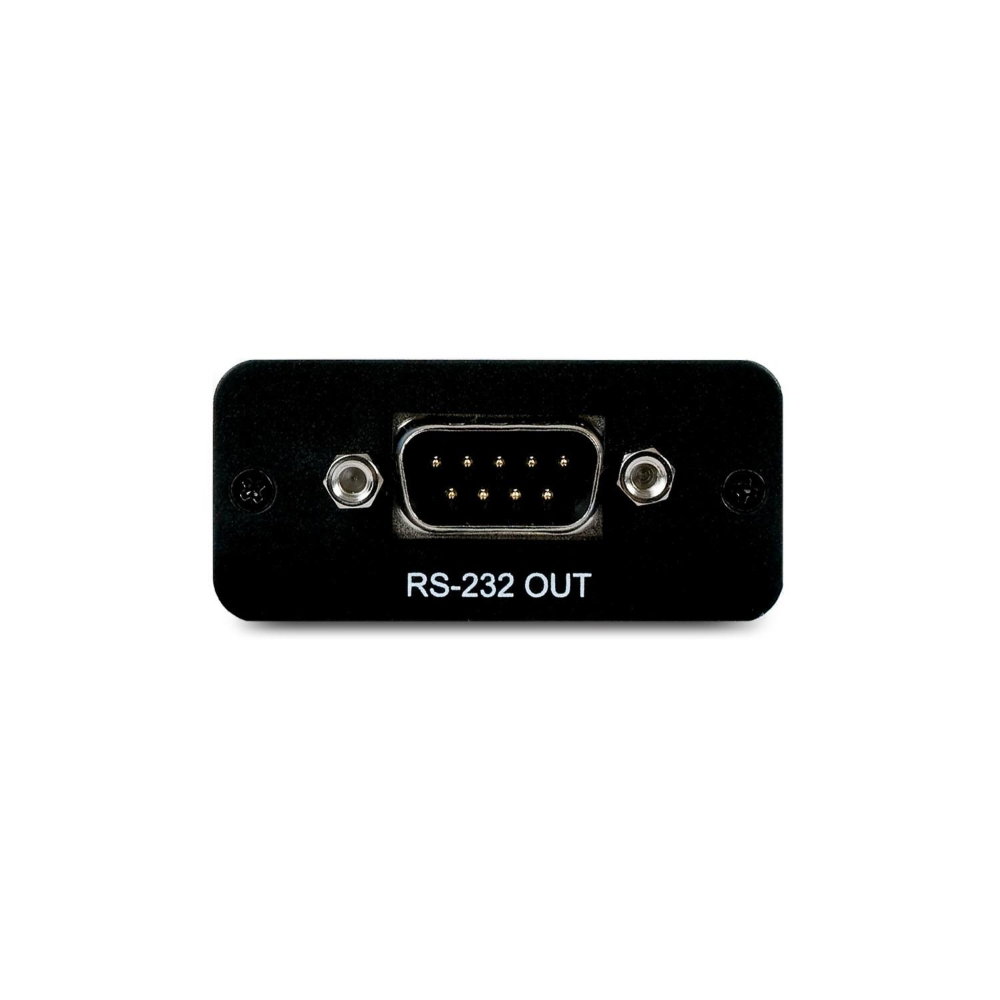

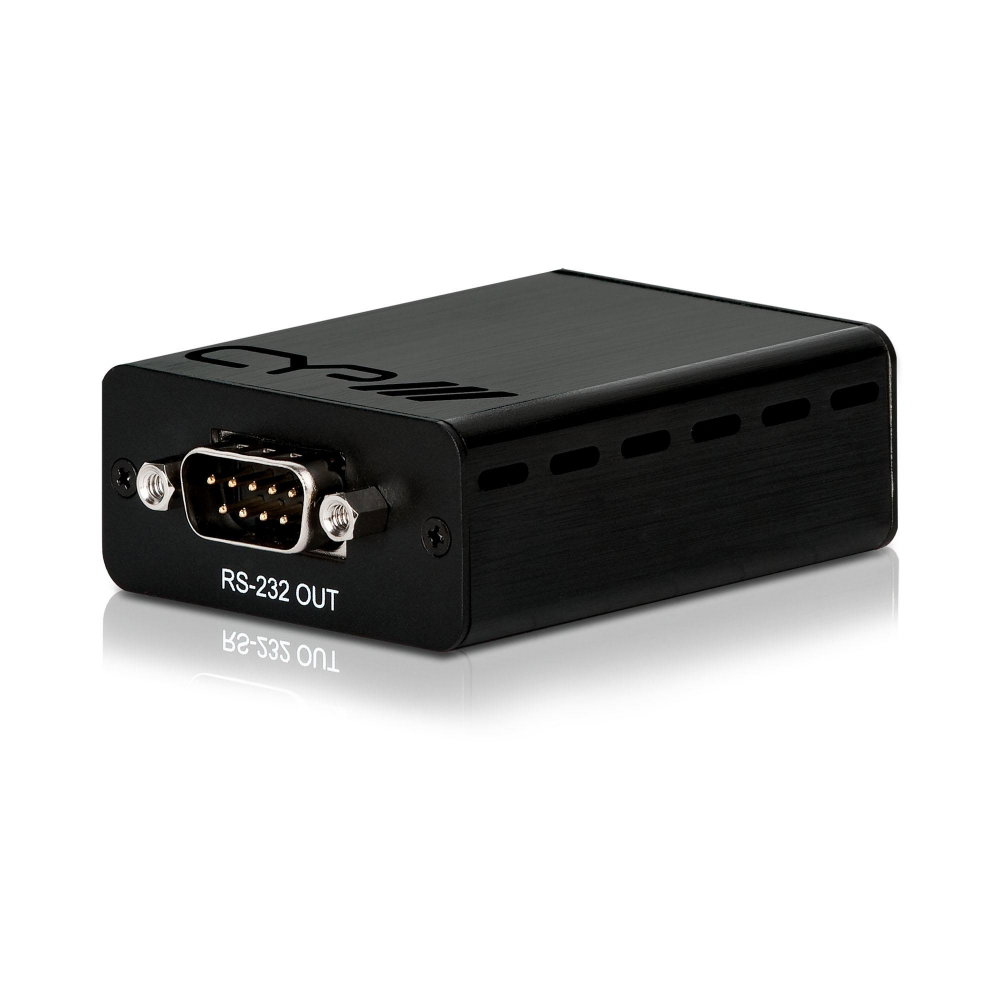

    RX 1x RJ45 in, 1x RS-232 out (9-pin D-sub)
    Distance Up to 250m over CAT5/6
    Baud rate 110 to 921600
    Data bits 8
    In the box Transmitter, receiver, 5V DC adaptor, manual
    Dimensions (WxHxD) 50 x 23 x 67mm each
    Weight 160g

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • Extends any RS-232 compliant device up to 250 metres from the source to display
    • Requires only one CAT5/6 cable
    • Perfect for digital signage applications
    • Baud Rate: 110~921600. Data bit: 8bit
    • Simple installation and operation

    Manuals & Downloads

    PDFManuals & Instructions: PU-232_PDF-Manual_v2.00.pdfPDF
    PDFManuals & Instructions: PU-232_Datasheet_v1.pdfPDF
