CYP SDV-CS8 SDVoE 10G AV over IP Controller, Dual LAN

Product code: 186102

£937.00 inc VAT
£780.83 ex VAT

SKU: CYP016

2 in stock

2 available online

Optional Add-Ons

CYP SDV-FTRX-BD SDVoE 10G Transceiver, Fibre SFP+, 4K60 with USB

£1,038.00 inc VAT
£865.00 ex VAT

Add to basket

CYP SDV-CTRX-BD SDVoE 10G Transceiver, Cat6A, 4K60 with USB

£993.00 inc VAT
£827.50 ex VAT

Add to basket

CYP SDV-C1H-RX SDVoE 10G Compact Receiver, Cat6A, 4K60 with PoE

£589.00 inc VAT
£490.83 ex VAT

Add to basket

CYP SDV-F1H-RX SDVoE 10G Compact Receiver, Fibre SFP+, 4K60

£589.00 inc VAT
£490.83 ex VAT

Add to basket

CYP SDV-C1H-TX SDVoE 10G Compact Transmitter, Cat6A, 4K60 with PoE

£565.00 inc VAT
£470.83 ex VAT

Add to basket

CYP SDV-F1H-TX SDVoE 10G Compact Transmitter, Fibre SFP+, 4K60

£565.00 inc VAT
£470.83 ex VAT

Add to basket

About this Product

Management unit for CYP’s SDVoE range. It configures and routes transmitters, receivers and transceivers from a single Web GUI and runs matrix, video wall and multiviewer modes with presets and display groups. An HDMI output with USB keyboard and mouse gives local control, and eight trigger inputs take a keypad fitted in a lectern or table.

2x RJ45

LAN ports

Trigger inputs

1080p60

HDMI GUI output

802.3af

PoE

Controller onlyCarries no video itself; it manages SDVoE endpoints on the 10G network. Runs on 802.3af PoE or a 5V/2.6A adaptor; sources do not say whether the adaptor is included.

Features

One Web GUI for all compatible SDVoE extenders

Matrix, video wall and multiviewer control with presets

Rapid switching between transmitters (depending on scaler mode)

Dual LAN ports keep controller access separate from the AV network

HDMI output displays the Web GUI and system status

8 trigger inputs for single-button preset recall

Control via Web GUI, RS-232, Telnet, IR remote and triggers

CYP list Crestron, Control4 and AMX drivers

Specifications

CYP SDV-CS8 SDVoE 10G AV over IP Controller, Dual LAN specifications
Brand	CYP
Model	SDV-CS8
Network	2x RJ45
Video output	1x HDMI (GUI display)
Output resolution	1920×1080@60, HDMI 1.4
Control ports	RS-232 (3-pin Phoenix), IR in (3.5mm), 8x trigger (10-pin Phoenix), USB Type-A
Control	Web GUI, RS-232, Telnet, IR, triggers
Power	PoE 802.3af or 5V/2.6A DC locking
Power consumption	2.99W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	640g

Full features

Enables the management and configuration of multiple compatible SDVoE extenders through a single Web GUI
Control over matrix, video wall, and multi-viewer modes using Web GUI pre-sets
Rapid Switching time between transmitters
Definable display groups
Web GUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection
HDMI output displays the Web GUI and system status
Dual LAN ports enable control over the local network as well as independent access to the controller separate to the distribution network
Supports the use of a USB mouse and keyboard providing control of the Web GUI (Optional)
Can be powered directly by Power over Ethernet (PoE) when connected to an Ethernet switch that follows the 802.3af PoE standard
Trigger Control Keypad support for simple single-button pre-set activation
Standard control is available via Web GUI (remote or local), RS-232, Telnet, IR Remote and triggers

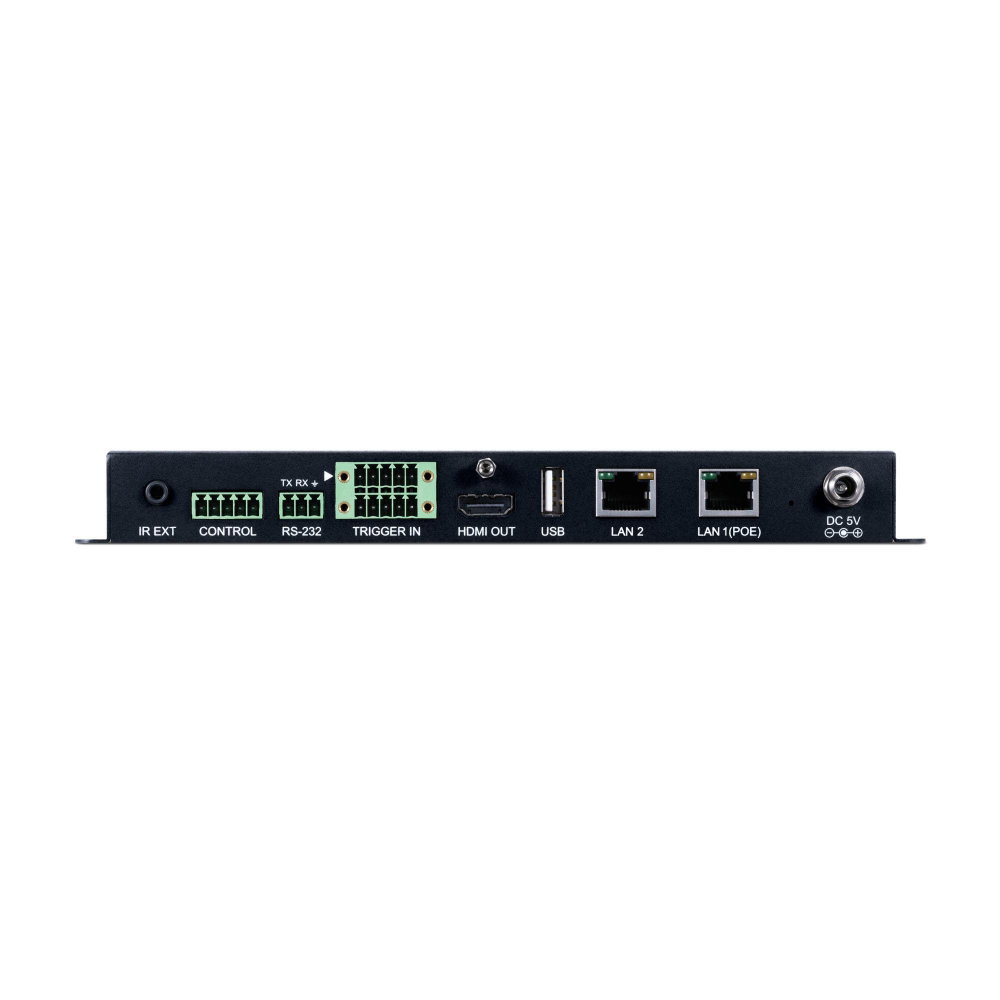

Inputs: 2 x RJ45 [2 x Individual Network IP], 1 x Phoenix (3-pin) [1 x RS-232], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x Phoenix (10-pin) [1 x Trigger In (8)], 1 x USB Type A [1 x Service Port Propriety Data]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data]
POE PSU: PoE
PSU: 5V/2.6A
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 640g
Gross Weight: 1.3kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: SDV-CS8_PDF-Manual_RDV2.pdfPDF

Manuals & Instructions: SDV-CS8_Datasheet_v1.pdfPDF
