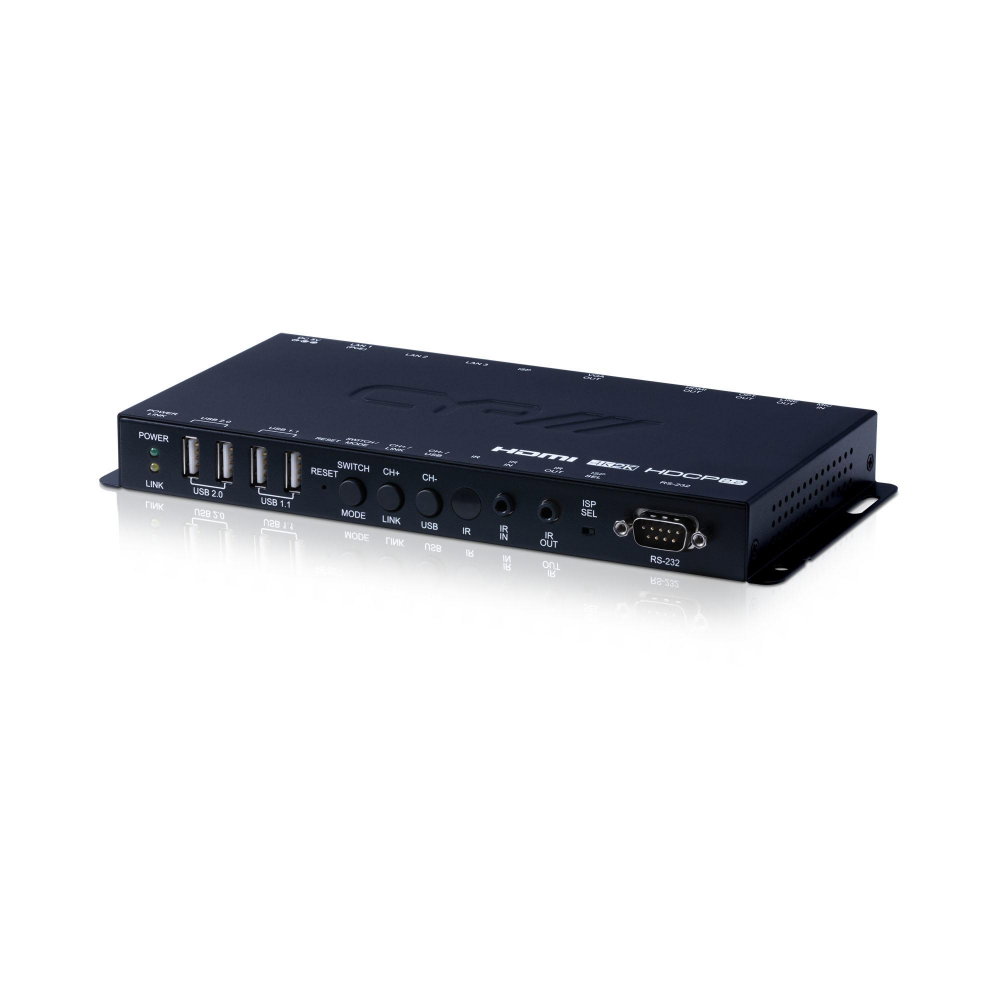

CYP IP-7000RX 1G AV over IP Receiver, HDMI and VGA Out with USB

Product code: 185613

£363.00 inc VAT
£302.50 ex VAT

SKU: CYP006

6 in stock

6 available online

About this Product

Receiver for the IP-7000 series with both HDMI and VGA outputs, so one model can feed an older projector or a current display. It also has TOSLINK and analogue audio outputs, a mic input, IR, RS-232 and four USB ports for remote KVM, and three LAN ports allow receivers to be daisy chained without an extra switch. HDMI output runs up to 4096×2160 at 30Hz and VGA up to 1920×1200.

HDMI + VGA

Outputs

4K30

Max HDMI output

3x GbE

LAN ports

802.3af

PoE

Power supply not includedCan be powered by PoE. Without PoE, the 5V/4A adaptor (PSU-5V4A-L) is sold separately.

Features

HDMI and VGA outputs, scaled or native

Video wall support with 180 and 270 degree rotation

3 LAN ports for daisy chaining receivers

4 USB ports for keyboard, mouse and storage extension

TOSLINK optical and 3.5mm analogue audio outputs

Mic input returns audio to the transmitter’s line out

Control via OSD, Telnet, Web GUI, IR remote and RS-232

Specifications

CYP IP-7000RX 1G AV over IP Receiver, HDMI and VGA Out with USB specifications
Brand	CYP
Model	IP-7000RX
Network	3x RJ45 Gigabit (1x PoE)
Video outputs	1x HDMI, 1x VGA (HD-15)
Audio outputs	1x TOSLINK (2ch LPCM, DTS, Dolby Digital), 1x 3.5mm stereo
Audio input	1x 3.5mm mic
USB	4 ports
Control ports	RS-232 (DB-9), IR in and out (3.5mm)
Max output	HDMI 4096×2160@30; VGA 1920×1200@60RB
HDMI / HDCP	HDMI 2.0 / HDCP 2.x
Distance	100m to switch, 100m between switches
Power	PoE or 5V/4A (PSU not supplied)
Power consumption	17.68W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	660g

Full features

HDCP 2.2, HDMI & DVI compatible with HDMI and VGA inputs and outputs
Supports video transmission over IP up to 100m
Supports input resolutions up to 4K2K@30Hz (RGB4:4:4) or 4K2K @ 60Hz (YUV 4:2:0)
Supports pass through of HD audio formats (LPCM, Dolby® Digital and DTS®)
Independent Audio Transmission
Features 2 x USB 1.1 and 2 x USB 2.0 ports
Supports microphone input on receiver unit
Control via OSD, Telnet, Web GUI, IR Remote and RS-232

Inputs: 1 x RJ45 [1 x PoE HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Microphone], 1 x 9pin Dsub [1 x RS-232 Data]

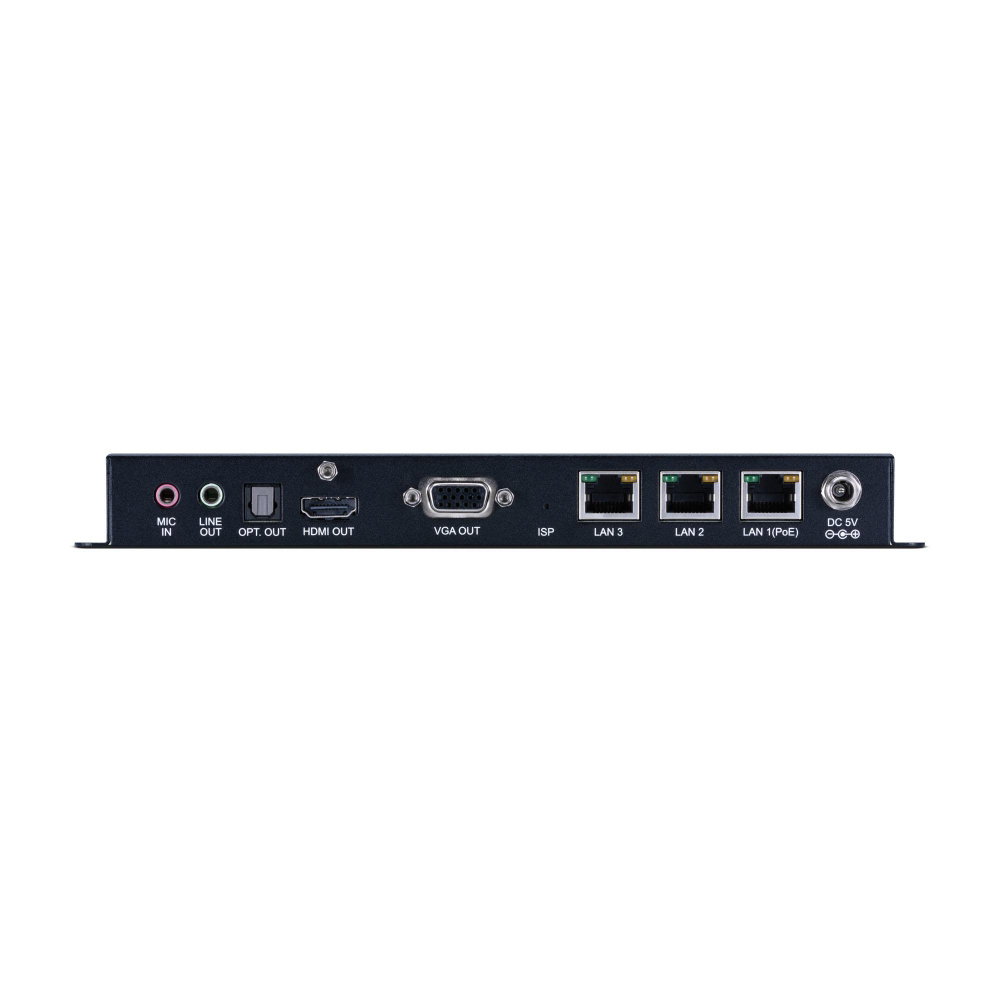

Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 15pin Dsub [1 x VGA RGBHV], 2 x RJ45 [2 x LAN Serving], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)], 1 x Toslink [1 x Optical 2-channel LPCM / DTS / Dolby Digital], 4 x USB Type B [4 x USB Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter]
POE PSU: PoE
PSU: 5V/4A (not supplied Order code: PSU-5V4A-L)
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 660g
Gross Weight: 1.02kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK_IP_Setup_Guide_V2.00.pdfPDF

Manuals & Instructions: IP-7000RX_PDF-Manual_v1.01.pdfPDF

Manuals & Instructions: CYP_IP-7000RX_Datasheet.pdfPDF
