CYP SDV-CTRX-BD SDVoE 10G Transceiver, Cat6A, 4K60 with USB

Product code: 186116

£993.00 inc VAT
£827.50 ex VAT

SKU: CYP010

2 in stock

2 available online

Optional Add-Ons

CYP SDV-CS8 SDVoE 10G AV over IP Controller, Dual LAN

£937.00 inc VAT
£780.83 ex VAT

Add to basket

About this Product

A 10G SDVoE endpoint that encodes and decodes at the same time, with HDMI and DisplayPort inputs and an HDMI output on one unit. Video up to 4K60 4:4:4 with HDR uses light compression that CYP describe as lossless for most content, and travels with audio, IR, RS-232, USB 2.0 and Ethernet over up to 100m of Cat6 (Cat6A recommended). Point to point it works alone; matrix, multiview and video wall functions need the SDV-CS8 controller.

10GbE

Network

4K60 4:4:4

Max resolution

100m

Cat6/6A

TX + RX

Bi-directional

Needs 10G switching and SDV-CS8 for matrix useNetworked routing requires 10 Gigabit Ethernet switches, and matrix switching, video wall, multiview and audio insertion or extraction require the SDV-CS8 controller. Power is 12V/3A DC or 802.3at PoE from a 10GbE switch.

Features

Simultaneous transmit and receive in one unit

HDMI and DisplayPort inputs, HDMI output

4K60 4:4:4 with 10/12-bit HDR pass-through

Up to 8ch LPCM, Bitstream and HD Bitstream audio

USB 2.0 KVM extension, routable between endpoints

IR, RS-232 and Ethernet extension

Front panel buttons with OSD for basic setup

PoE (802.3at) from a 10GbE switch

Specifications

CYP SDV-CTRX-BD SDVoE 10G Transceiver, Cat6A, 4K60 with USB specifications
Brand	CYP
Model	SDV-CTRX-BD
Inputs	1x HDMI, 1x DisplayPort, 1x 3.5mm stereo
Outputs	1x HDMI, 1x 3.5mm stereo
Network	1x RJ45 10GbE SDVoE, 1x RJ45 LAN
USB	2x USB 2.0 Type-A, 1x USB Mini-B
Control ports	IR in and out (3.5mm), RS-232 (3-pin Phoenix)
Max resolution	4096×2160@60 YUV 4:4:4
HDMI / HDCP	HDMI 2.0 / HDCP 2.2 and 1.x
Audio formats	8ch LPCM, Bitstream, HD Bitstream
Distance	100m, Cat6 (Cat6A recommended)
Power	12V/3A DC locking or PoE 802.3at
Power consumption	18.7W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	580g

Full features

HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
1 HDMI and 1 DisplayPort input
1 HDMI output
1 analog stereo input & 1 analog stereo output
2 USB 2.0 (Type-A) ports and 1 USB 2.0 (Mini-B) port
Transceiver supports simultaneous bi-directional AV signal extension
IP switchable with minimum latency
Ultra-light compression, lossless for most content
Extension up to 100m in Point-to-Point or 10G IP matrix mode
Supports independent breakaway A/V matrix switching with minimal latency, video wall generation, and multiview compositing (requires SDV-CS8)
Supports pass-through of 10/12-bit HDR sources
Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI or DP sources
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller, the SDV-CS8)

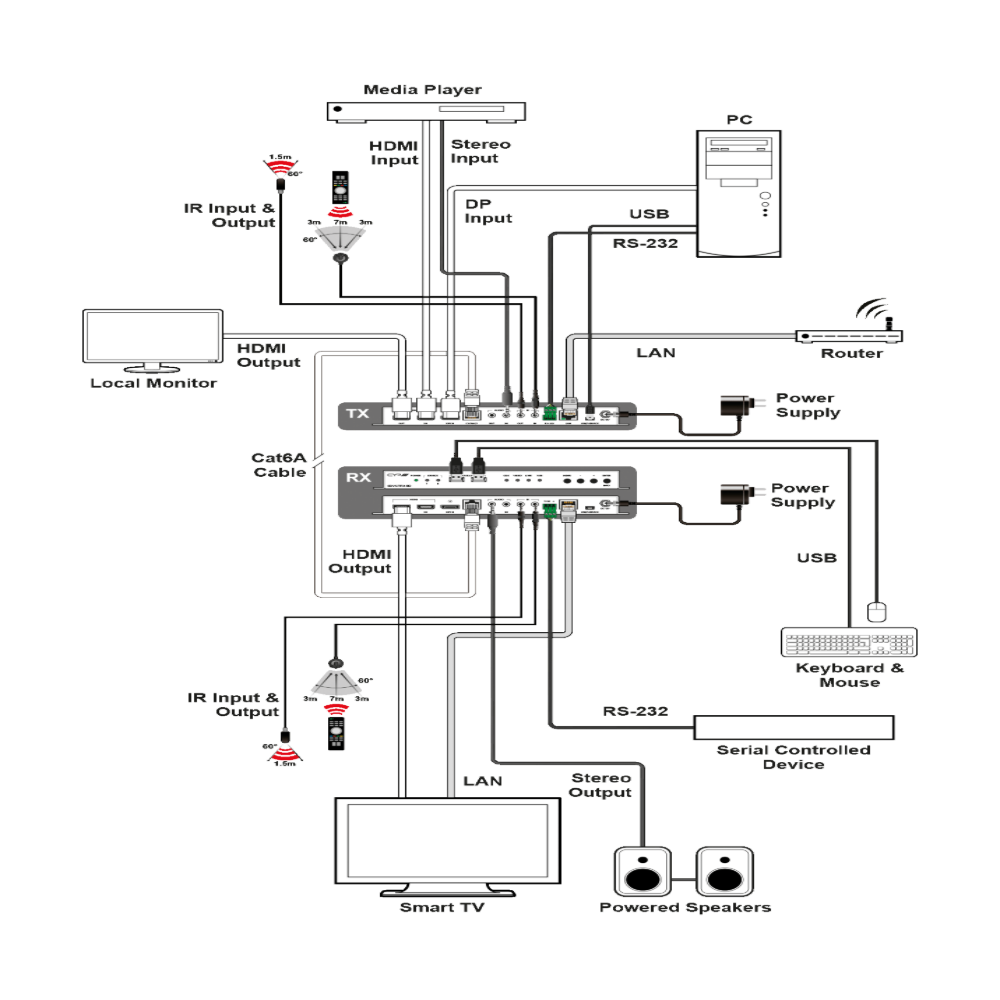

Bi-directional AV, IR, RS-232, USB 2.0, and Ethernet extension
Supports a special Simultaneous Mode for USB extension allowing a host connected to a single transceiver to connect to up to 7 transceivers with USB devices connected (Mass storage devices are not supported in this mode. Requires optional IP Master Controller)
Unit can be powered directly by PoE when connected to a 10 Gigabit Ethernet (10GbE) switch that provides PoE (802.3at)

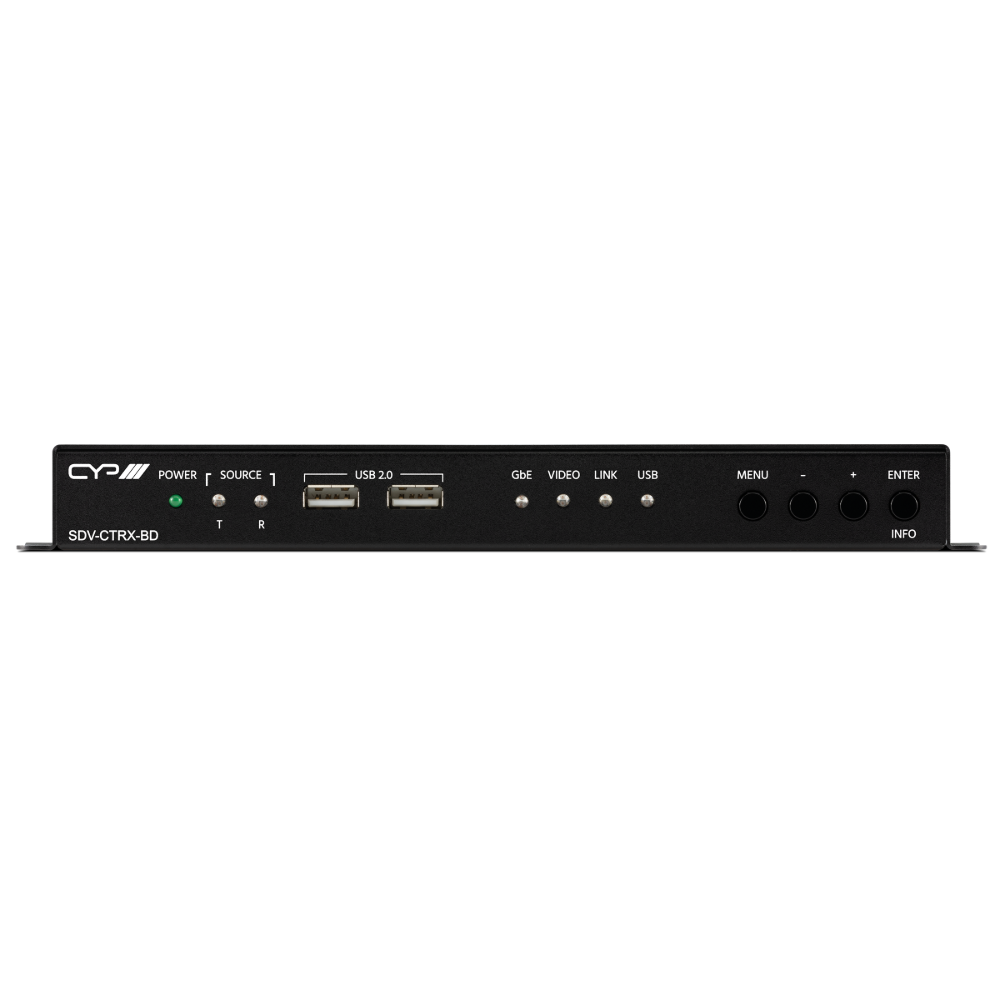

Basic configuration via front panel buttons with an OSD

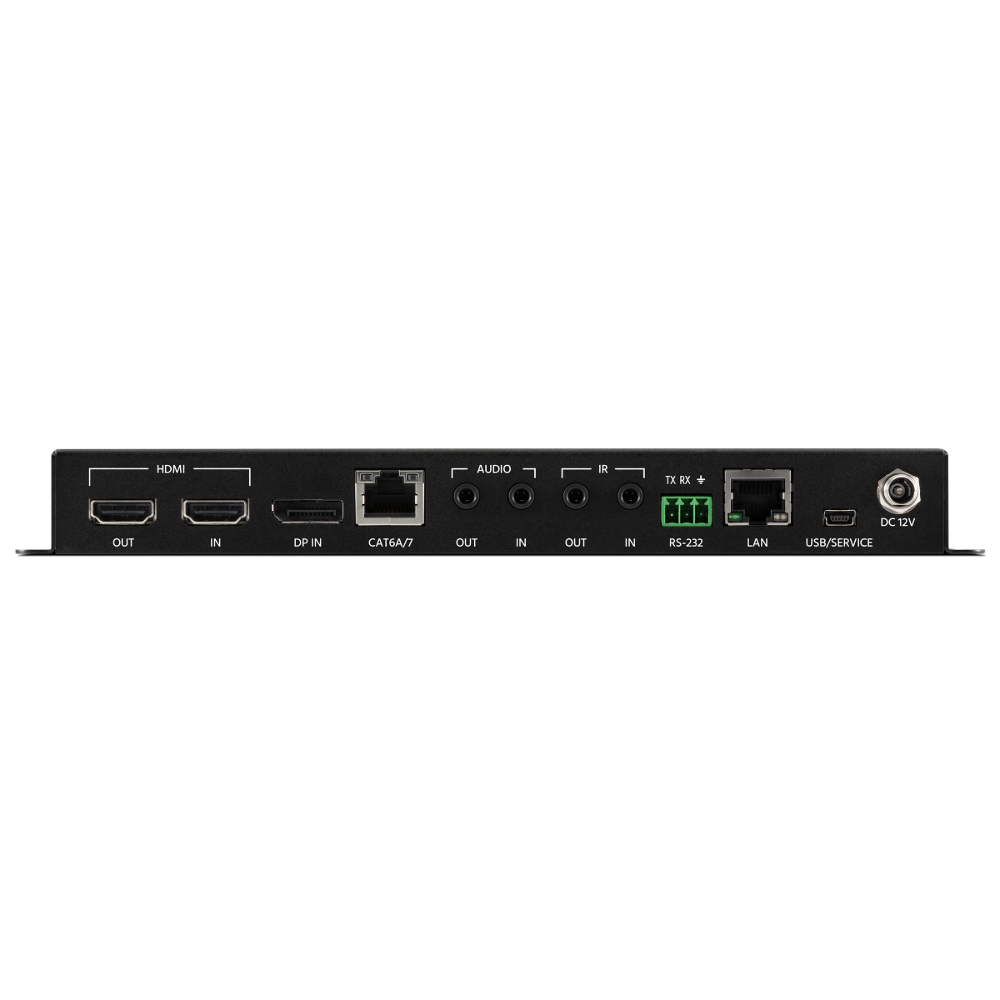

Inputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x Display Port [1 x Uncompressed AV], 1 x RJ45 [1 x SDVoE HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x Phoenix (3-pin) [1 x RS-232], 1 x RJ45 [1 x LAN Serving], 1 x USB Mini B [1 x USB host & service port Propriety Data]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x RJ45 [1 x SDVoE (shared) HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter]
POE PSU: PoE
PSU: 12V/3A
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 580g
Gross Weight: 1.6kg
