CYP IP-CS7 AV over IP Controller for IP-7000 Series, Dual LAN

Product code: 185672

£771.00 inc VAT
£642.50 ex VAT

SKU: CYP009

2 in stock

2 available online

Optional Add-Ons

CYP IP-7000C-TX 1G AV over IP Transmitter, USB-C and HDMI, 4K

£442.00 inc VAT
£368.33 ex VAT

Add to basket

CYP IP-7000H-TX 1G AV over IP HDMI Transmitter, 4K with USB and PoE

£390.00 inc VAT
£325.00 ex VAT

Add to basket

CYP IP-A750TX Audio over IP Transmitter for IP-7000 Series

£246.00 inc VAT
£205.00 ex VAT

Add to basket

CYP IP-A750RX Audio over IP Receiver for IP-7000 Series

£239.00 inc VAT
£199.17 ex VAT

Add to basket

About this Product

Central controller for CYP’s 1G IP-7000 range, with IP-6000 compatibility also listed. Once on the network it finds the transmitters and receivers and presents them in a Web GUI with drag and drop switching, source preview, groups and presets, and the setup pages sit behind admin rights. It is required for routing the IP-A750 audio units.

2x RJ45

LAN ports

Trigger inputs

1080p60

HDMI GUI output

PoE

Power

Controller only, PSU not includedManages IP-7000 series units and passes no AV itself. Runs on PoE or the 5V/2.6A adaptor (PSU-5V2.6A-L), which is sold separately.

Features

Discovers and configures IP-6000/7000 transmitters and receivers

Unicast and multicast routing with video group presets

Drag and drop source switching with visual preview

Setup wizard with admin-protected configuration

Dual LAN ports for separate AV and control networks

8 trigger inputs for button control of presets

Control via RS-232, Telnet and Web GUI

CYP list Control4, Crestron and AMX drivers

Specifications

CYP IP-CS7 AV over IP Controller for IP-7000 Series, Dual LAN specifications
Brand	CYP
Model	IP-CS7
Network	2x RJ45
Video output	1x HDMI (GUI display)
Output resolution	1920×1080@60, HDMI 1.4
Control ports	RS-232 (3-pin Phoenix), IR in (3.5mm), 8x trigger (10-pin Phoenix), USB Type-A
Control	Web GUI, RS-232, Telnet
Compatibility	IP-6000 and IP-7000 series, IP-A750TX/RX
Power	PoE or 5V/2.6A DC locking (PSU not supplied)
Power consumption	2.99W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	640g

Full features

Enables simple configuration and management of multiple IP6000/7000 devices via WebGui
Supports point to point (unicast) and many to many (multicast) signal routing
Video group pre-sets available
Web GUI setup wizard for simple system set up and control with admin rights
Web GUI status of all connected TX's & RX's including IP Addresses and swapping feature
PoE & Mains Powered
Simple drag and drop control of input sources with visual preview
Trigger input allows for simple touch button control of pre-sets
Standard control via RS-232, Telnet and Web GUI
Add more TX/RX’s to an existing system with ease

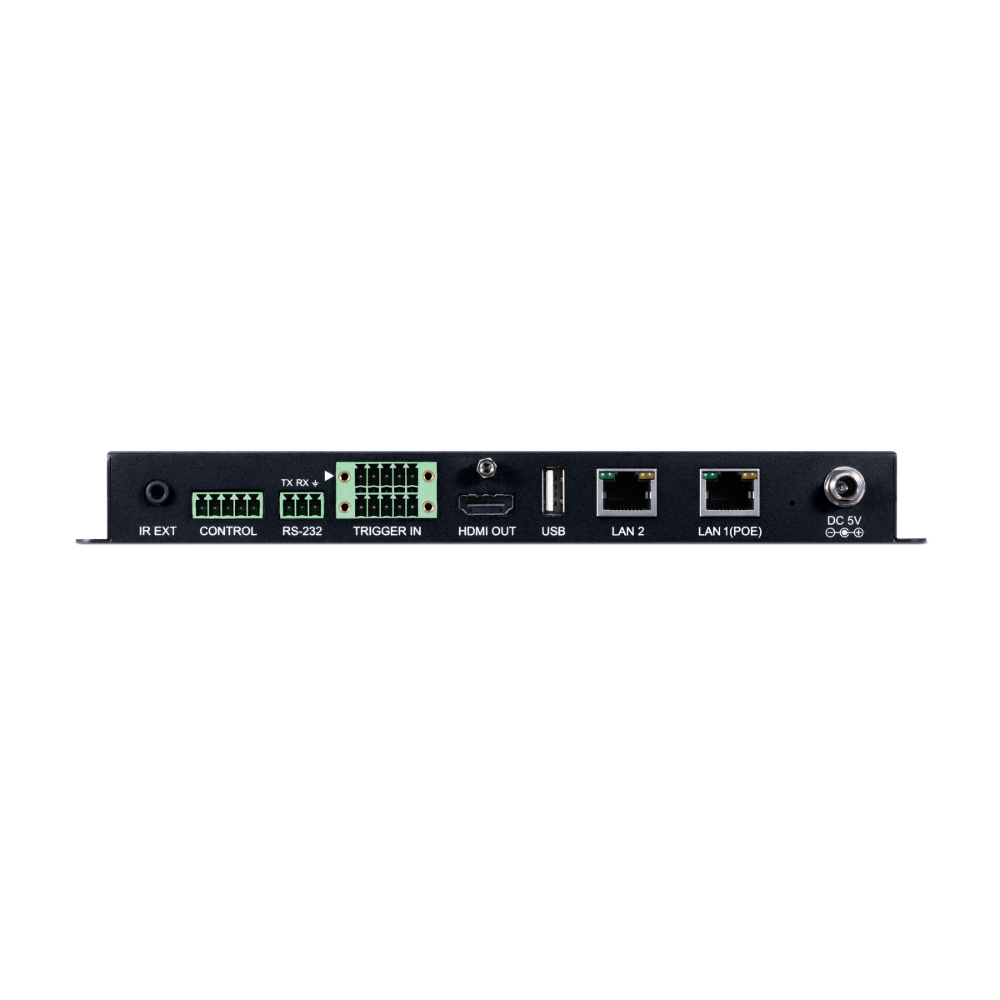

Inputs: 2 x RJ45 [2 x Individual Network IP], 1 x Phoenix (3-pin) [1 x RS-232], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x Phoenix (10-pin) [1 x Trigger In (8)], 1 x USB Type A [1 x Service Port Propriety Data]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data]
POE PSU: PoE
PSU: 5V/2.6A (not supplied Order code: PSU-5V2.6A-L)
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 640g
Gross Weight: 1.06kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK_IP_Setup_Guide_V2.00.pdfPDF

Manuals & Instructions: IP-CS7Phase-3_PDF-Manual_RDV4.pdfPDF

Manuals & Instructions: CYP_IP-CS7_Datasheet.pdfPDF
