Rated 4.9 (112 reviews)

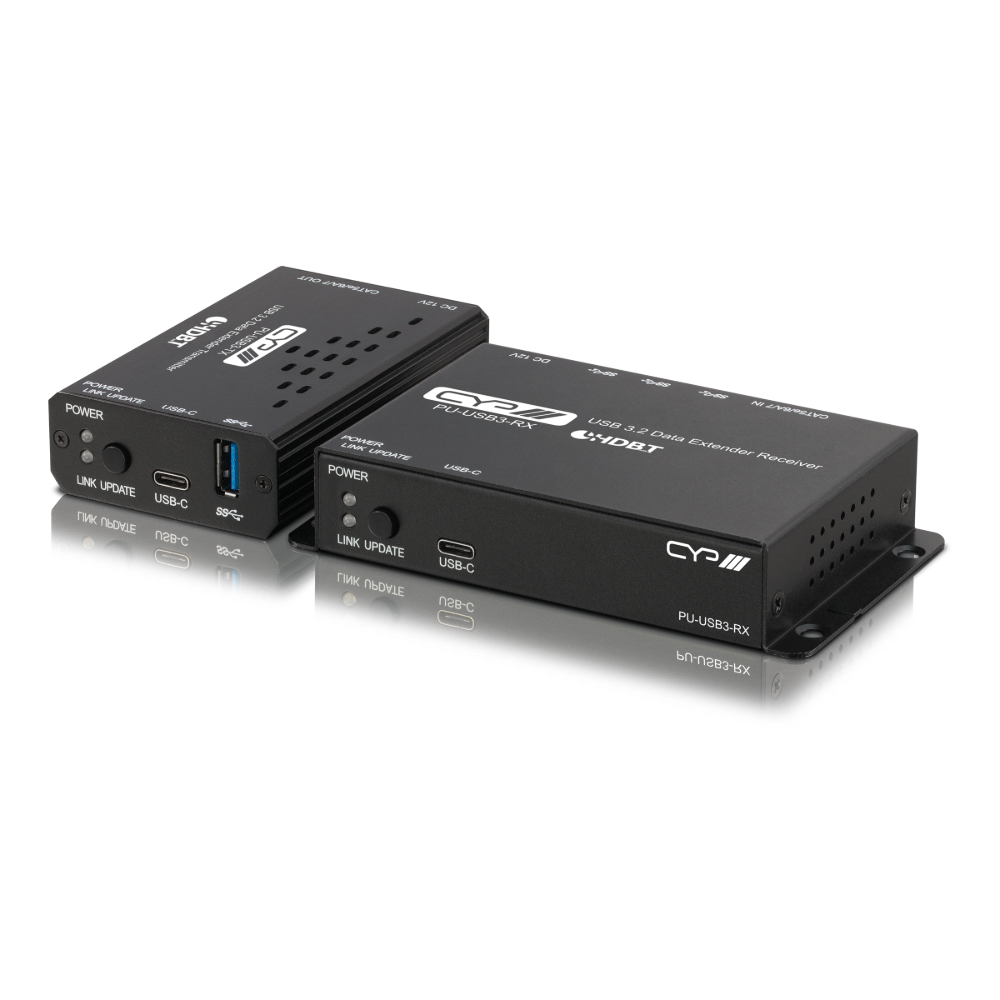

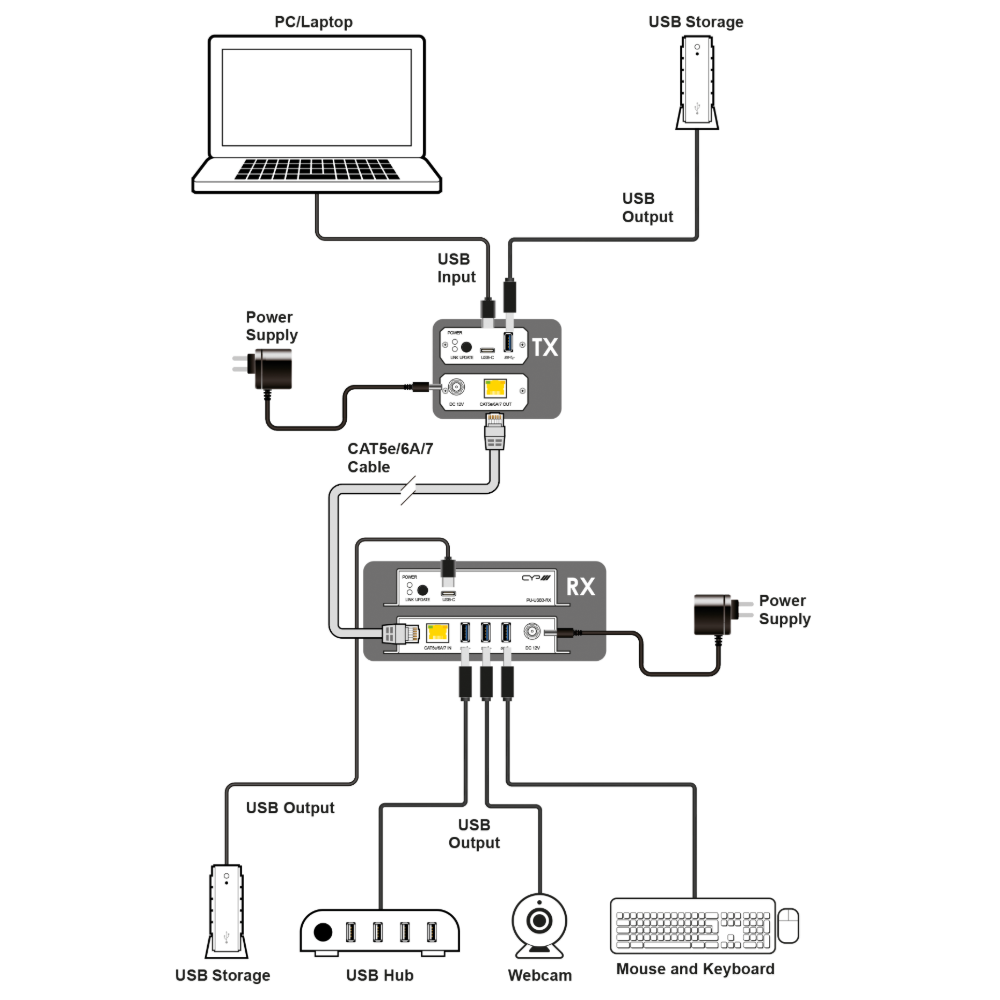

For USB cameras, touch screens and storage that need more than USB 2.0 speeds at a distance, this kit extends USB 3.2 Gen1 (5Gbps) up to 100m over CAT cabling. The transmitter connects to the host by USB-C and has its own local USB-A port, and the receiver gives three USB-A ports and one USB-C device port. A hotkey on the transmitter updates firmware on both units.
100m
Over CAT cable
5Gbps
USB 3.2 Gen1
4
Remote device ports
USB-C
Host connection
Transmitter PSU optionalThe receiver’s 12V/3A adaptor is supplied. The transmitter normally runs from the host’s USB-C port; CYP lists an optional 12V/1.25A adaptor for it (order code PSU-12V1.25A-L), which is not supplied.
Features
USB 3.2 Gen1 (5Gbps) extension up to 100m over CAT cabling
Transmitter: USB-C host port plus 1 local USB-A device port

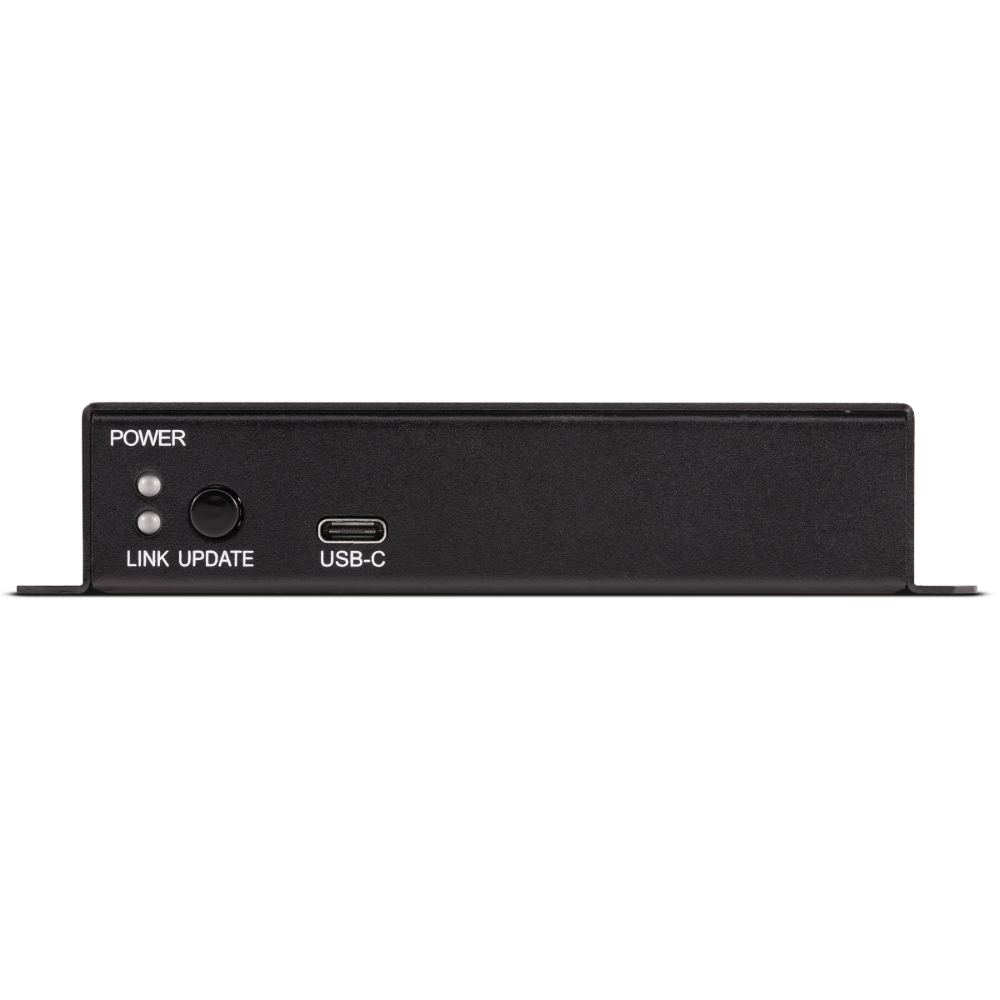

Receiver: 3 USB-A ports and 1 USB-C device port
Host can control devices at both the transmitter and receiver ends
Backward compatible with USB 2.0
Remote firmware update of the receiver via transmitter hotkey
Specifications
| Brand | CYP |
| Model | PU-USB3-KIT |

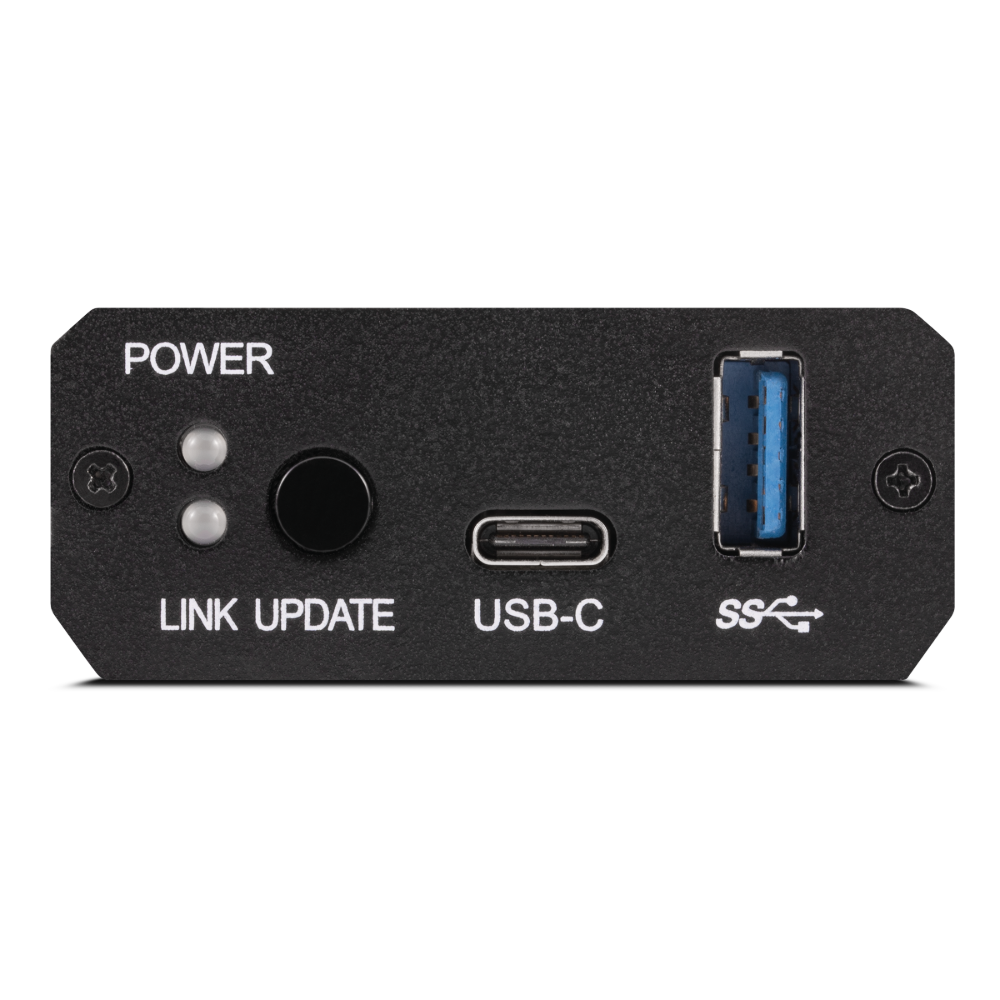

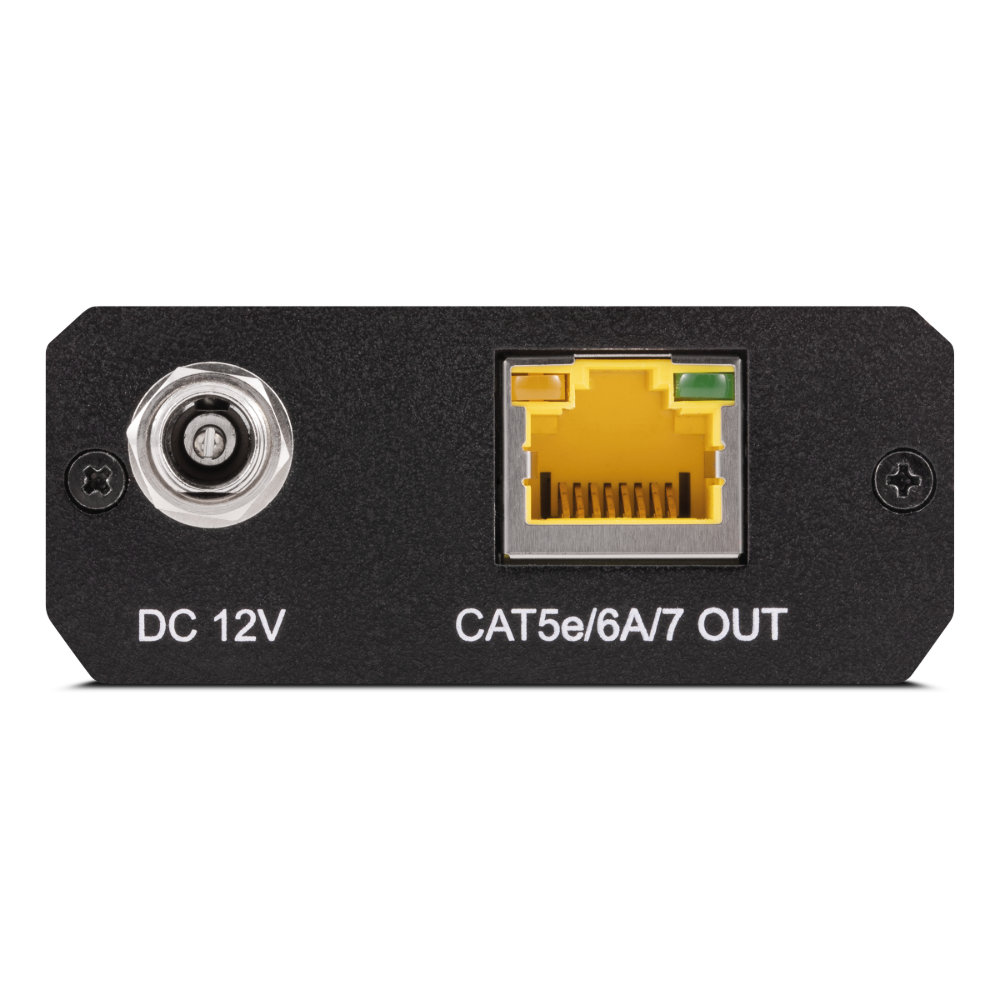

| TX ports | 1x USB-C host, 1x USB-A device, 1x RJ45 |

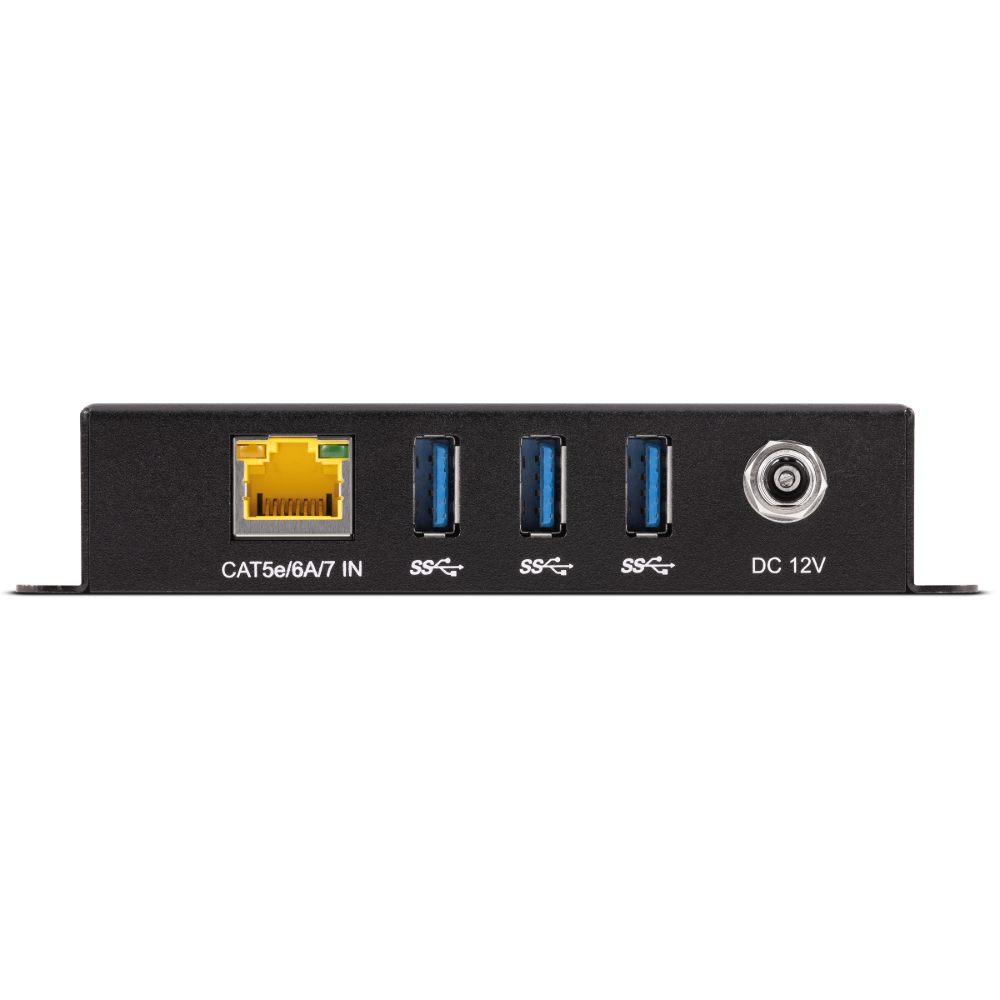

| RX ports | 1x RJ45, 3x USB-A, 1x USB-C device |
| USB speed | USB 3.2 Gen1, 5Gbps |
| Distance | Up to 100m over CAT5e/6A/7 |
| Port power | USB-A 5V/0.9A, USB-C 5V/3A (RX) |
| TX power | USB-C bus power or 12V/1.25A adaptor (not supplied) |
| RX power | 12V/3A DC adaptor |
| In the box | Transmitter, receiver, 12V/3A DC adaptor, manual |
| Dimensions (WxHxD) | TX 95 x 25 x 60mm, RX 128 x 25 x 75mm |
| Weight | TX 155g, RX 275g |
