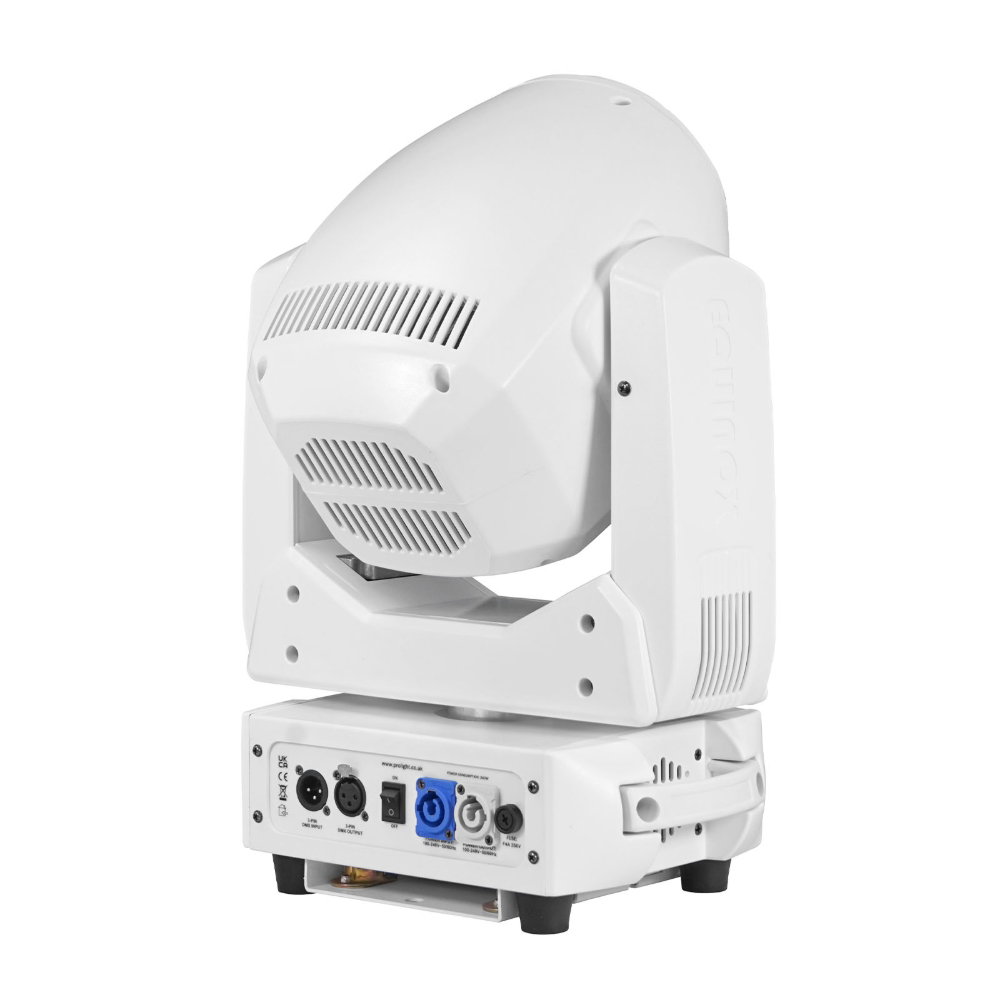

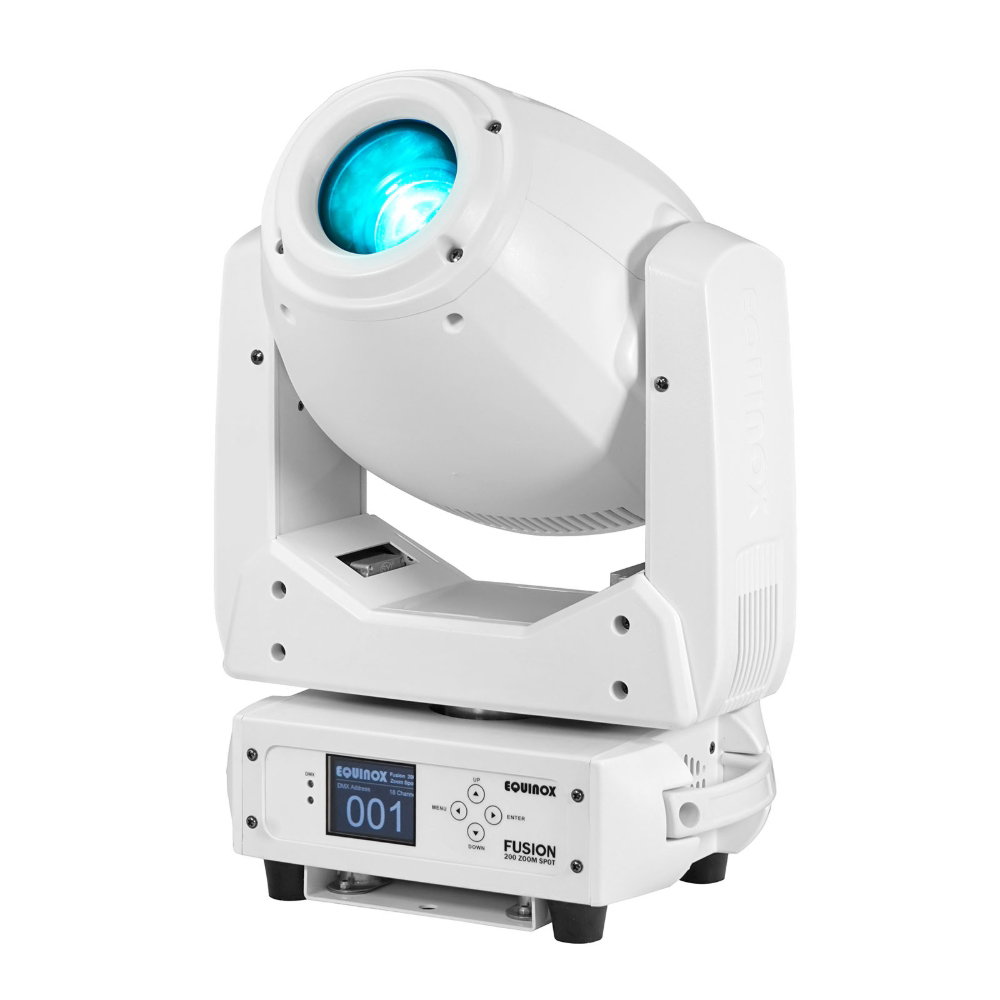

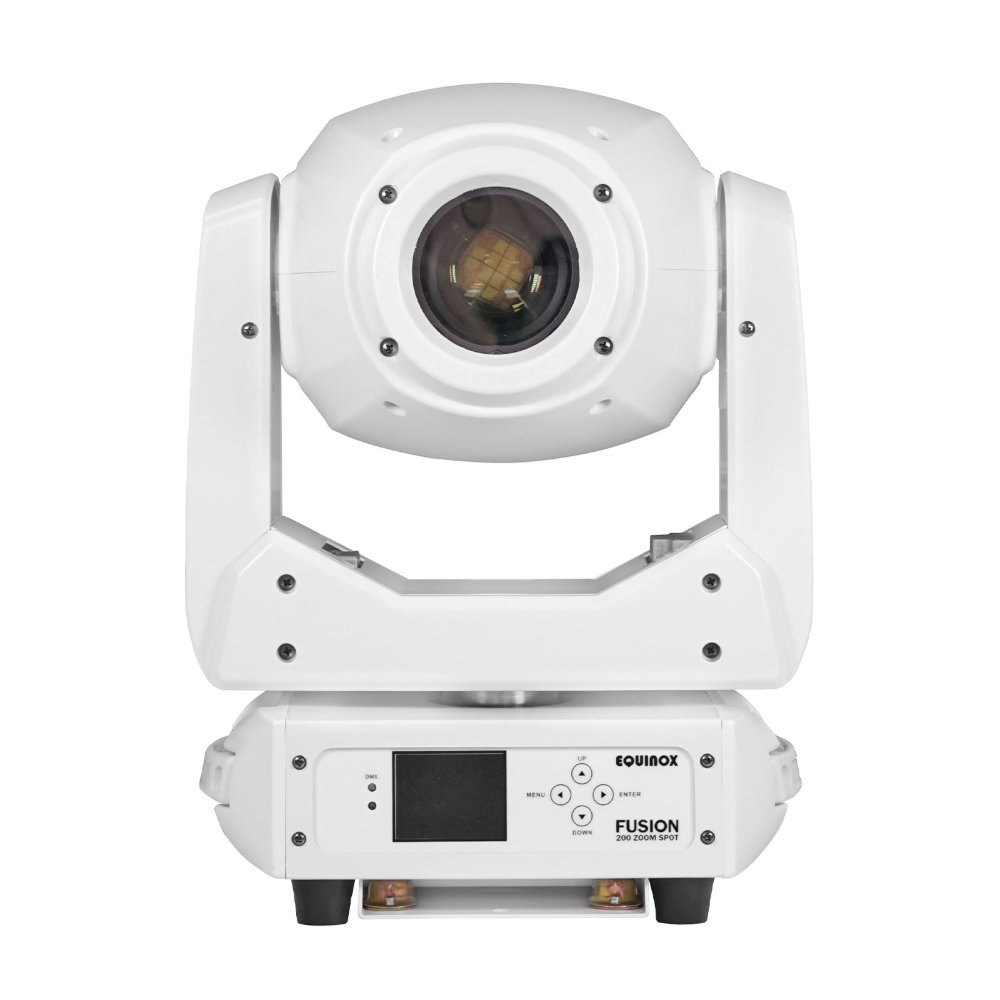

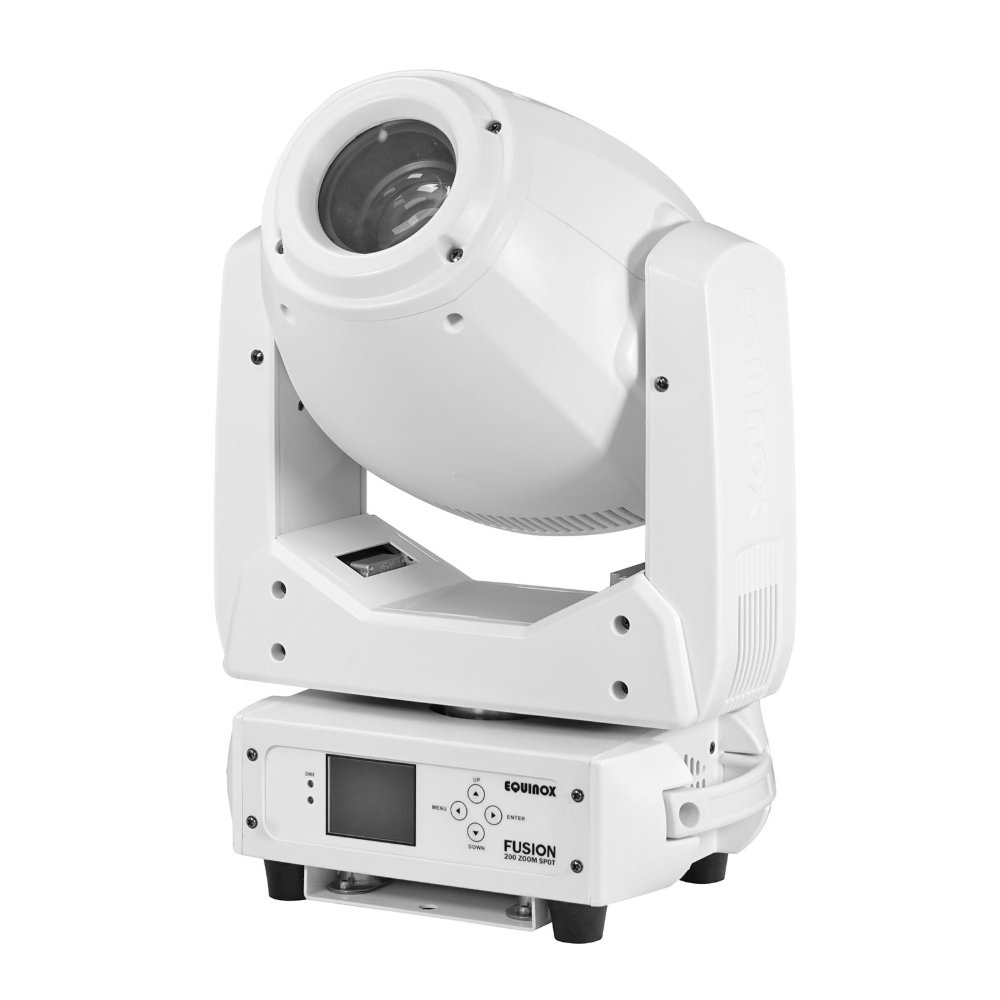

The Fusion 200 Zoom Spot is a 200W LED moving head spot in a white housing, aimed at mobile DJs, small touring rigs and permanent installs where a white fixture blends into the venue better than black. A motorised 11° to 25° zoom keeps gobos sharp at any throw, with two gobo wheels, a seven-colour wheel and two bi-directional prisms giving a genuinely varied show from a single unit. powerCON and 3-pin XLR in and out mean fixtures daisy-chain cleanly across a bar.
200W
LED · White, 7500K
11°-25°
Zoom range · Motorised
540° / 270°
Pan / tilt · 16-bit
2/14/18
DMX modes · Selectable channels
10.4kg
Weight · Per fixture

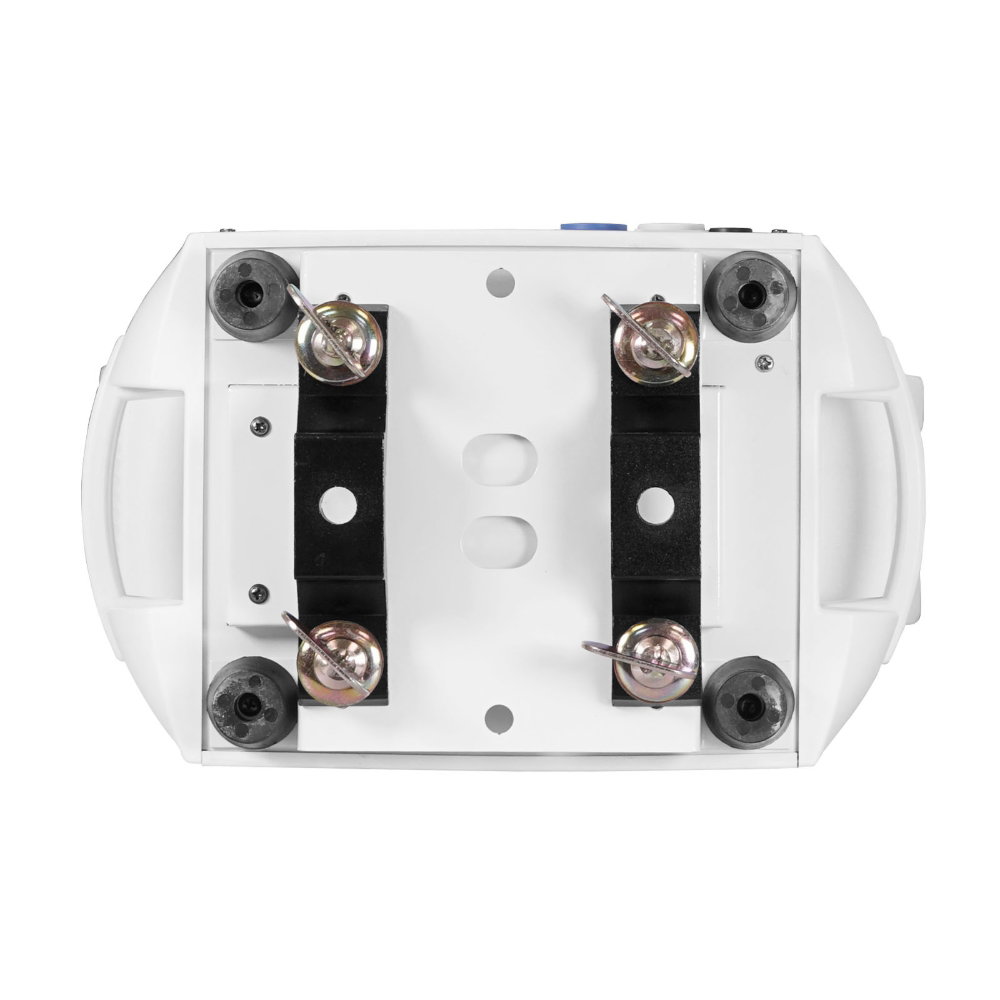

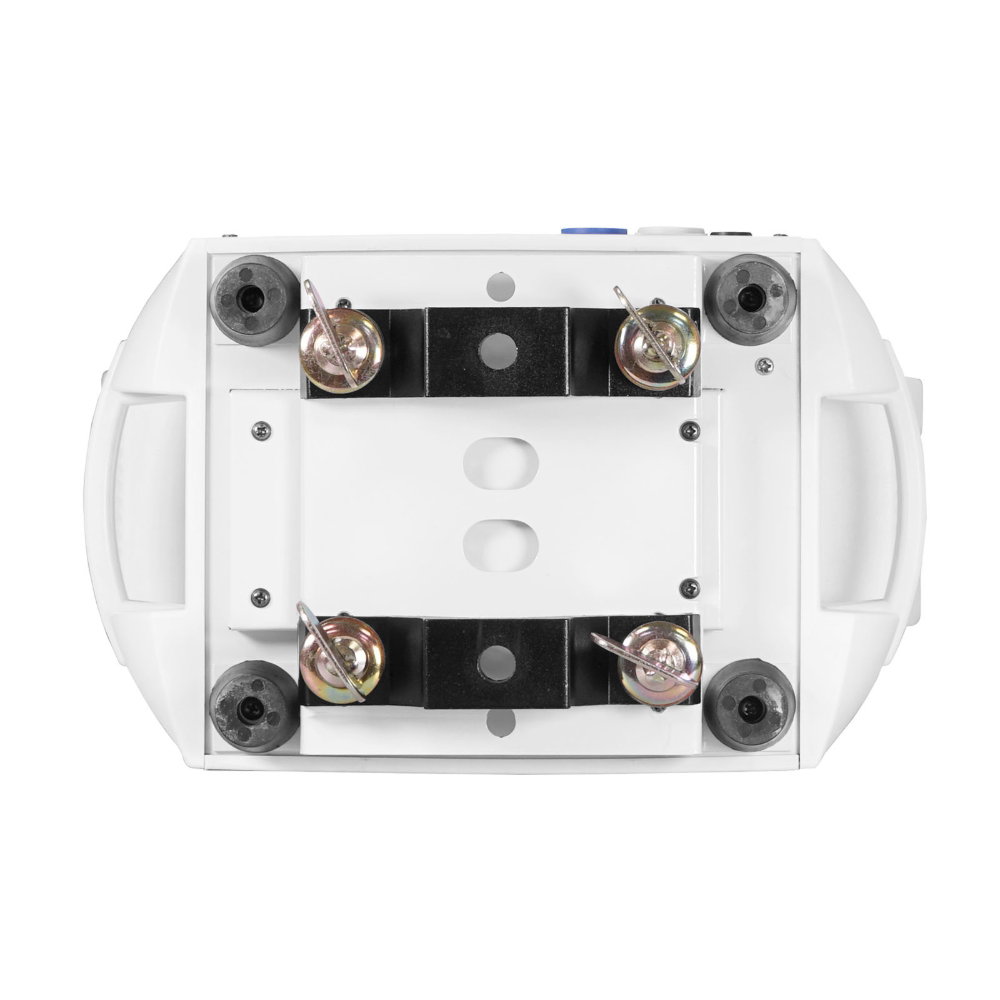

Power and riggingRuns on 100-240V 50/60Hz at 240W consumption, so UK 230V mains is well within range, with a F4A 250V fuse fitted. powerCON input and output allow fixtures to be linked from one supply – work out your chain length against the 240W per-fixture draw. Quick release omega clamps are included, and the square hole spacing on the clamp receivers lets clamps be mounted in any orientation.

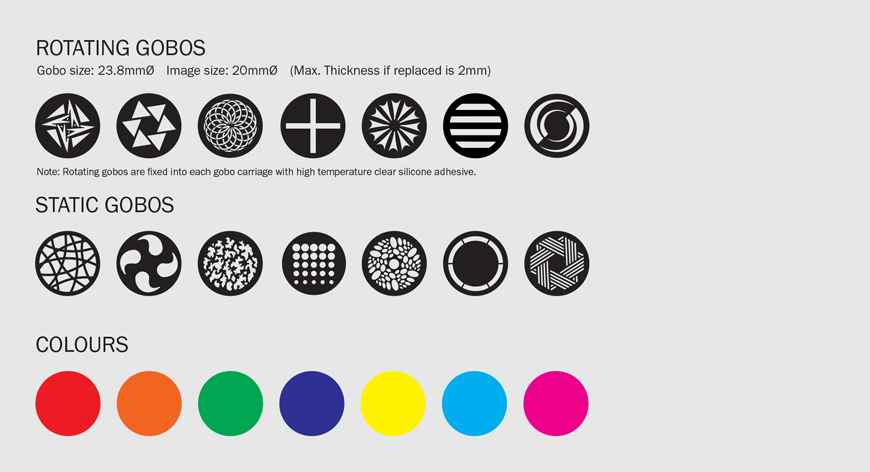

Optical effects
Everything on the wheel path:
7 rotating replaceable gobos + open
7 static gobos + open
7 colours + open
6 facet circular rotating prism
5 facet linear rotating prism
Motorised focus
Control and connections
Operating modes and I/O:
DMX 2/14/18 channel
Auto
Sound active
Manual
Master/slave

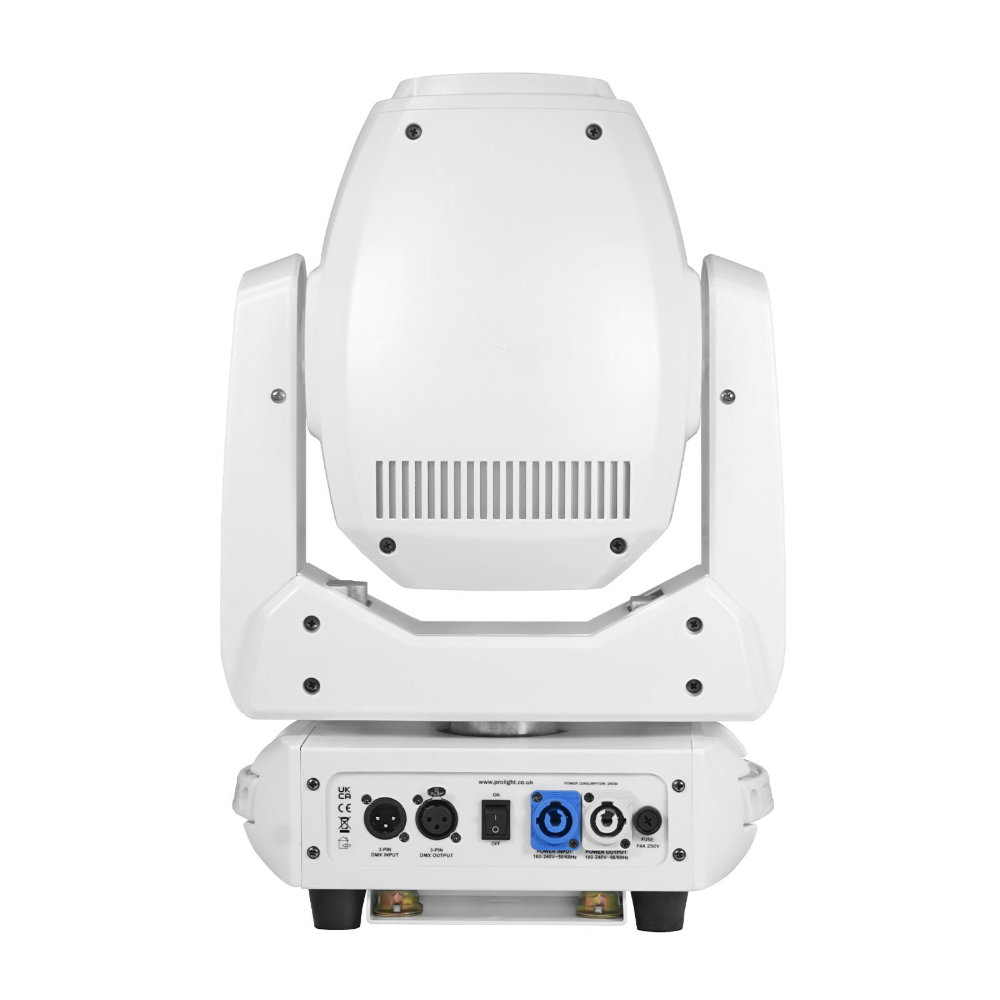

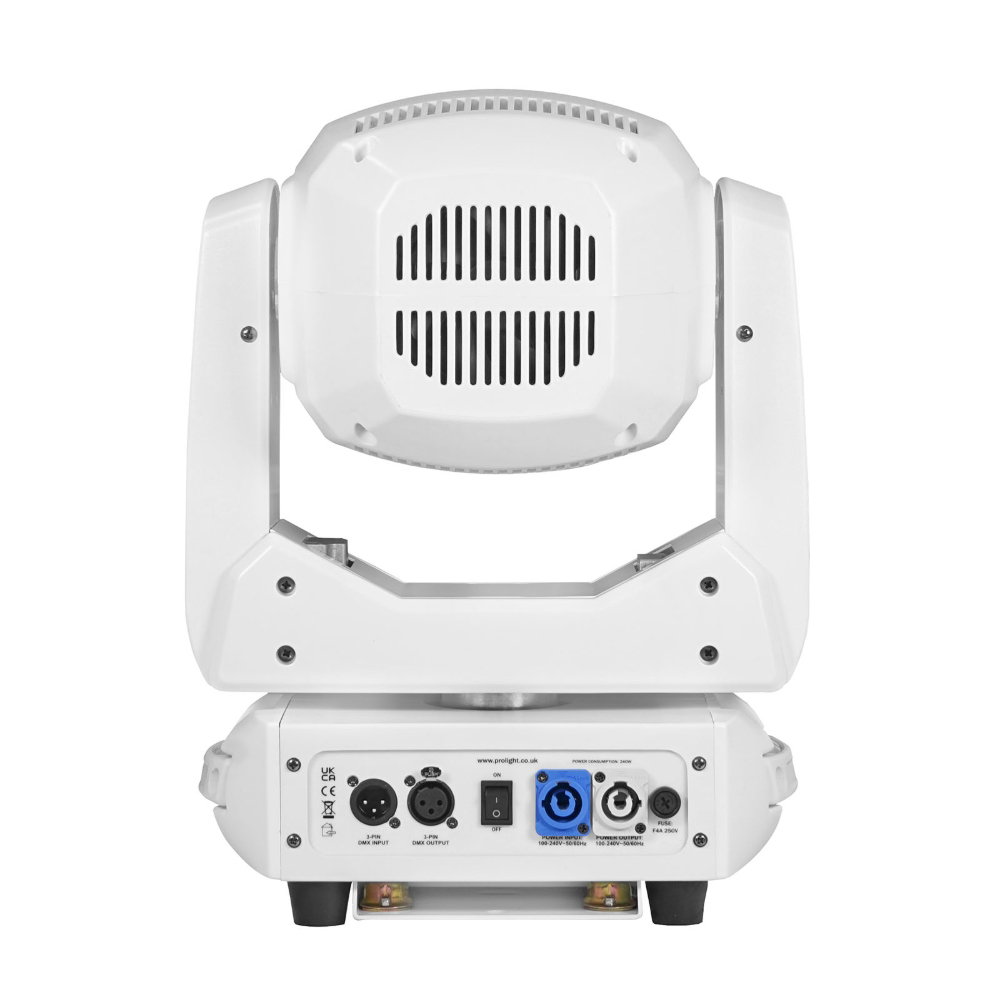

powerCON in/out
3-pin XLR in/out
Features
White housing – blends into pale venue ceilings and installs
1 x 200W white LED at 7500K
Motorised zoom and focus, 11° to 25°

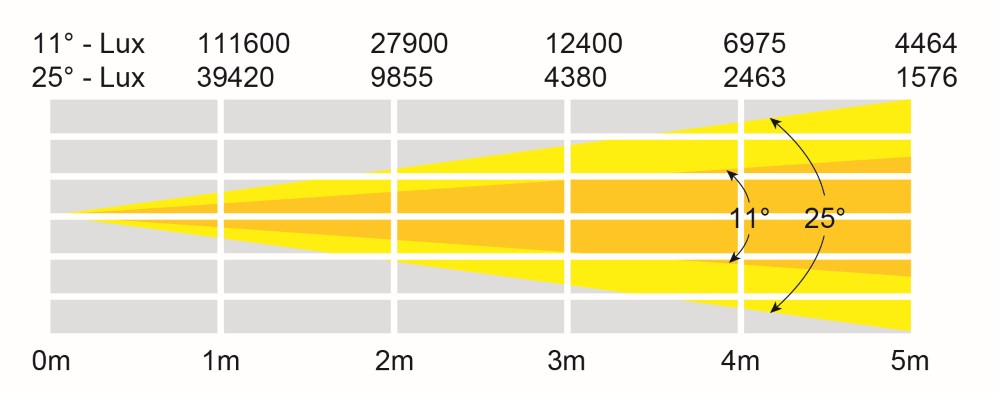

27,900 Lux at 2m at 11°, 9,855 Lux at 2m at 25°
4.3kHz refresh rate – flicker-free on camera
16-bit pan/tilt positioning with auto correction
0-100% dimming plus variable strobe
Forward facing show mode

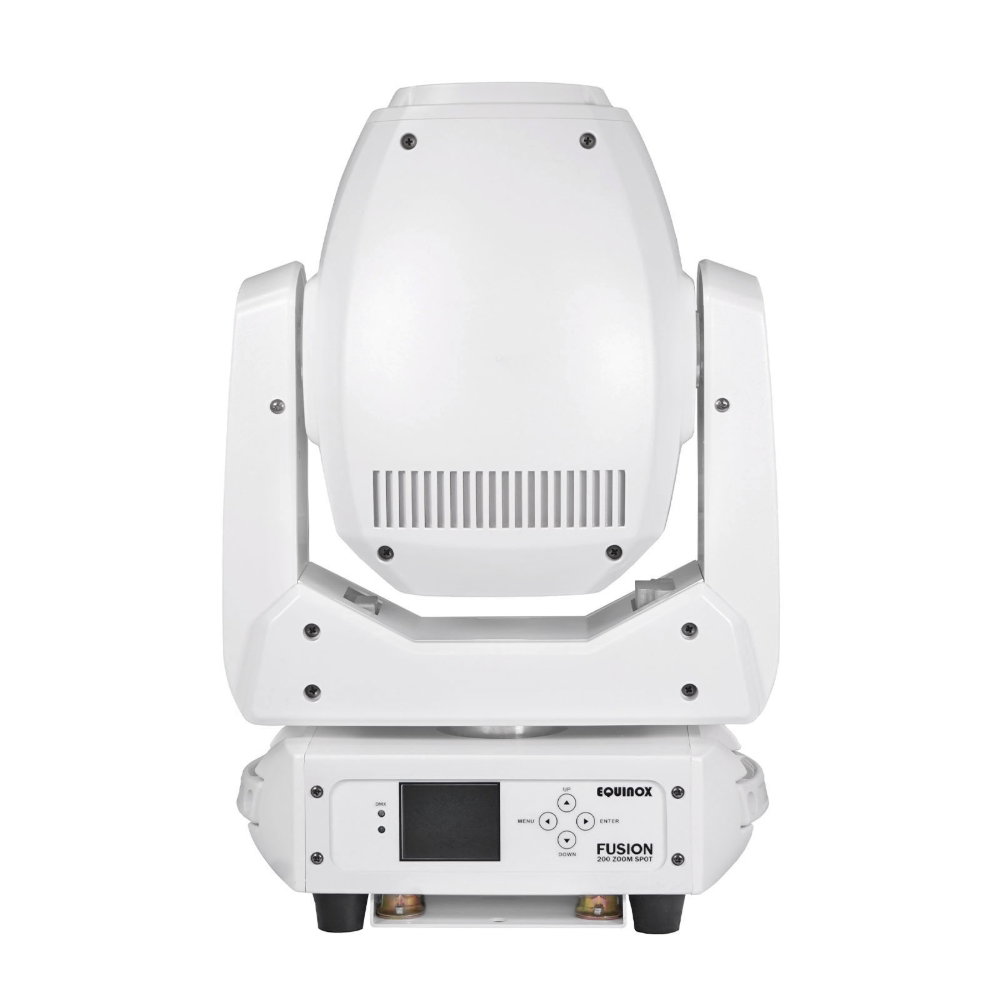

4 button menu with 2.6in LCD display

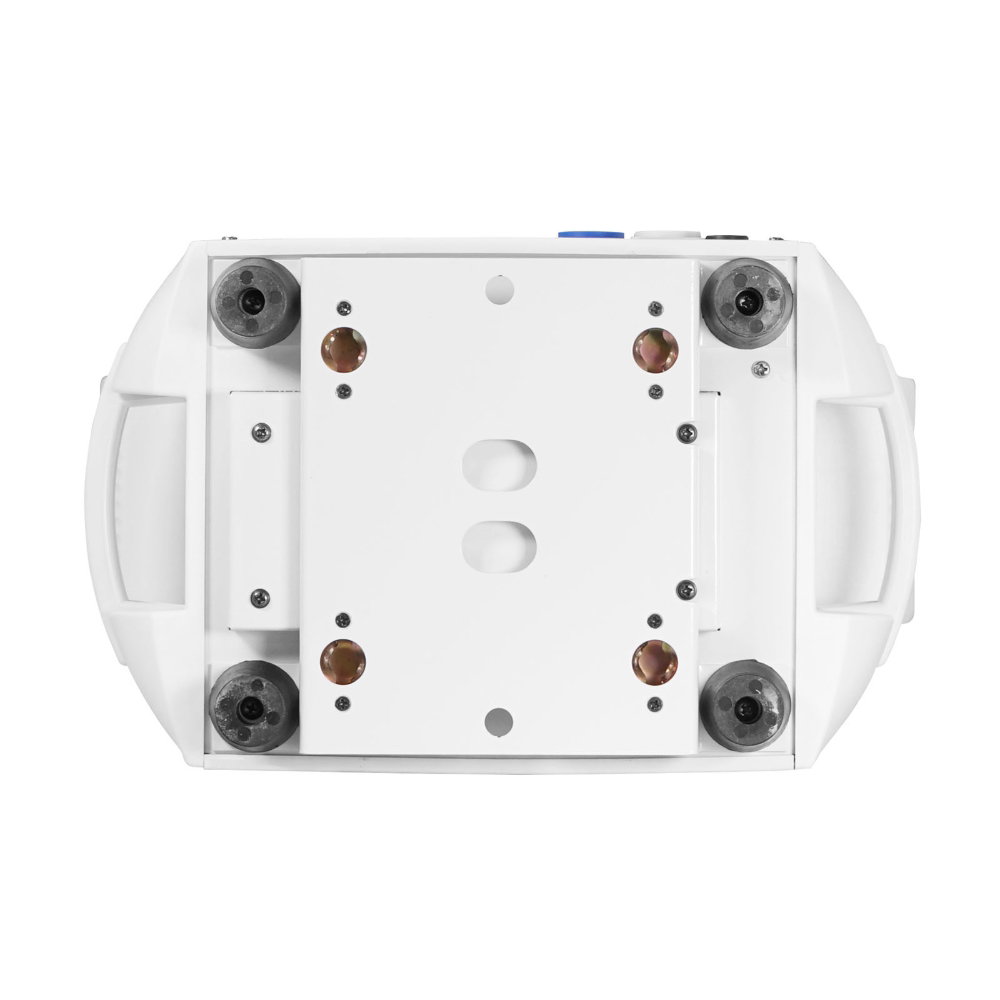

Quick release omega clamps included, fan cooled
NoteThis is the white housing variant (EQLED054A). The same fixture is also produced in a black housing – order the black version if you are matching an existing rig. Replacement gobo holders for this fixture are stocked separately as EQLED054G.
Specifications
| Stock code | EQLED054A |
| Light source | 1 x 200W white LED, 7500K |
| Beam angle | 11° to 25° motorised zoom |
| Output | 27,900 Lux @ 2m (11°), 9,855 Lux @ 2m (25°) |
| Refresh rate | 4.3kHz |
| Gobo wheel 1 | 7 rotating, replaceable gobos + open |
| Gobo wheel 2 | 7 static gobos + open |
| Colour wheel | 7 colours + open |
| Prisms | 6 facet circular rotating, 5 facet linear rotating |
| DMX channels | 2 / 14 / 18 selectable |
| Control modes | DMX, auto, sound active, manual, master/slave |
| Pan / tilt | 540° / 270°, 16-bit positioning |
| Connections | powerCON in/out, 3-pin XLR in/out |
| Display | 2.6in LCD with 4 button menu |
| Power consumption | 240W |
| Power supply | 100-240V, 50/60Hz |
| Fuse | F4A 250V |
| Cooling | Fan cooled |
| Dimensions (H x W x D) | 459 x 304 x 295mm |
| Weight | 10.4kg |
