Rated 4.9 (112 reviews)
The Laserworld DS-15.000 FB4 IP65 is a 15’000mW full-colour RGB diode laser in a weatherproof IP65 housing, built for medium-sized events that run indoors and out. It pairs high power output with a tight 5.5mm beam at 1.1mrad divergence, and the integrated Pangolin FB4 mainboard makes it graphics-capable at 30kpps at 8°. Aimed at production companies, club installers and event lighting hire firms who need one fixture that works in a marquee, a field and a fixed install.
15’000mW
POWER · guaranteed at aperture
30kpps
SCANNER · at 8°
IP65
INGRESS · outdoor rated
5.5mm
BEAM · 1.1mrad divergence
11.5kg
WEIGHT · 292x232x201mm
Class 4 laser – UK operationThis is a Class 4 laser product. It ships with a safety key and interlock dongle, and a beam masking plate is fitted to the front panel. In the UK, Class 4 laser displays over audiences or in public venues require competent-person setup, a written risk assessment and adherence to HSE guidance on laser shows. Do not operate without the interlock in place.

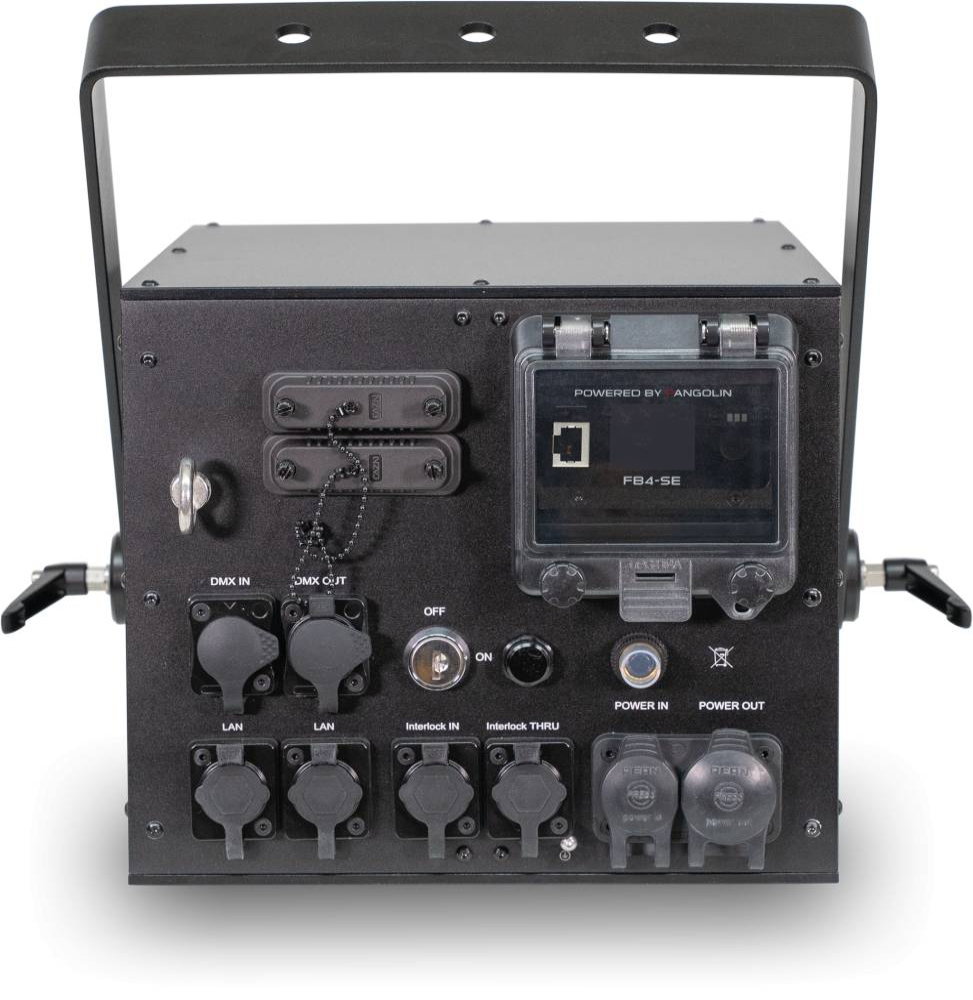

Control options
Run it from a desk, a laptop or on its own:
ILDA
DMX
Art-Net
LAN
Integrated SD card
Stand-alone
In the box
Supplied ready to rig:
Safety key
Interlock dongle
Power cable
Manual
Features
IP65 waterproof housing for outdoor and exposed positions
Pure RGB diode source, 15’000mW total output
Integrated Pangolin FB4 interface built in
DMX and Art-Net controllable from a standard lighting desk
Stand-alone operation from the integrated SD card
Computer control via QuickShow and BEYOND software
Graphics capable at 30kpps at 8° with 50° max scan angle
Analogue modulation for linear colour fading
Laser beam masking plate fitted to the front panel
360° mounting bracket for any rigging angle
NoteThe power supply is wide-range 85V-250V AC 50-60Hz, so it runs on UK 230V mains without a converter. Basic pattern sets are available for download rather than preloaded. Consumption is 120W.
Specifications
| Guaranteed power at aperture | 15’000mW |
| Red | 4’000mW / 638nm |
| Green | 4’500mW / 520nm |
| Blue | 8’000mW / 450nm |
| Beam specification | ca. 5.5mm / 1.1mrad |
| Scanner | 30kpps at 8° |
| Max scan angle | 50° |
| Operation modes | ILDA, DMX, Art-Net, LAN, integrated SD card, stand-alone |
| Laser class | 4 |
| Laser source | Diode |
| IP rating | IP65 |
| Power supply | 85V-250V AC, 50-60Hz |
| Power consumption | 120W |
| Dimensions | 292 x 232 x 201mm (LxWxH) |
| Weight | 11.5kg |
| Included accessories | Key, interlock dongle, power cable, manual |
| EAN / MPN | 7640144996086FB4 |
| Stock code | LW0093 |
| Warranty | 1 year |
