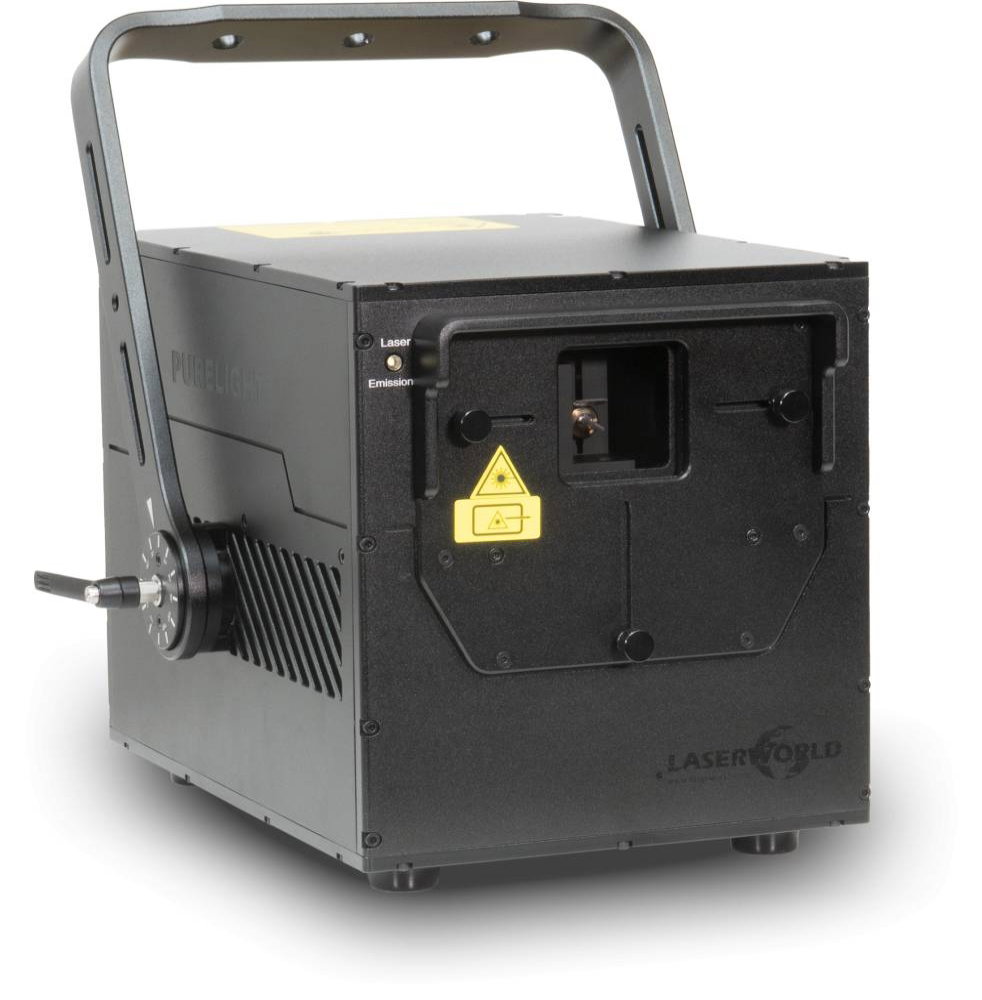

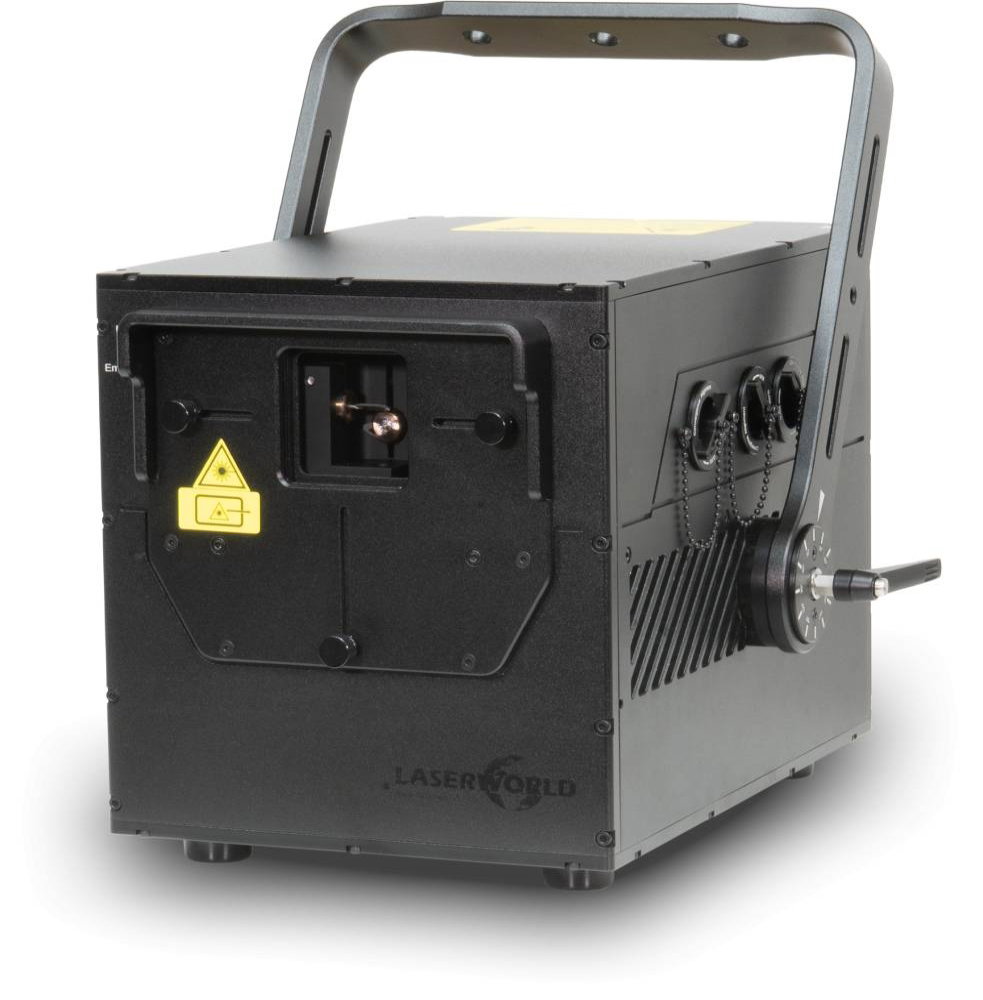

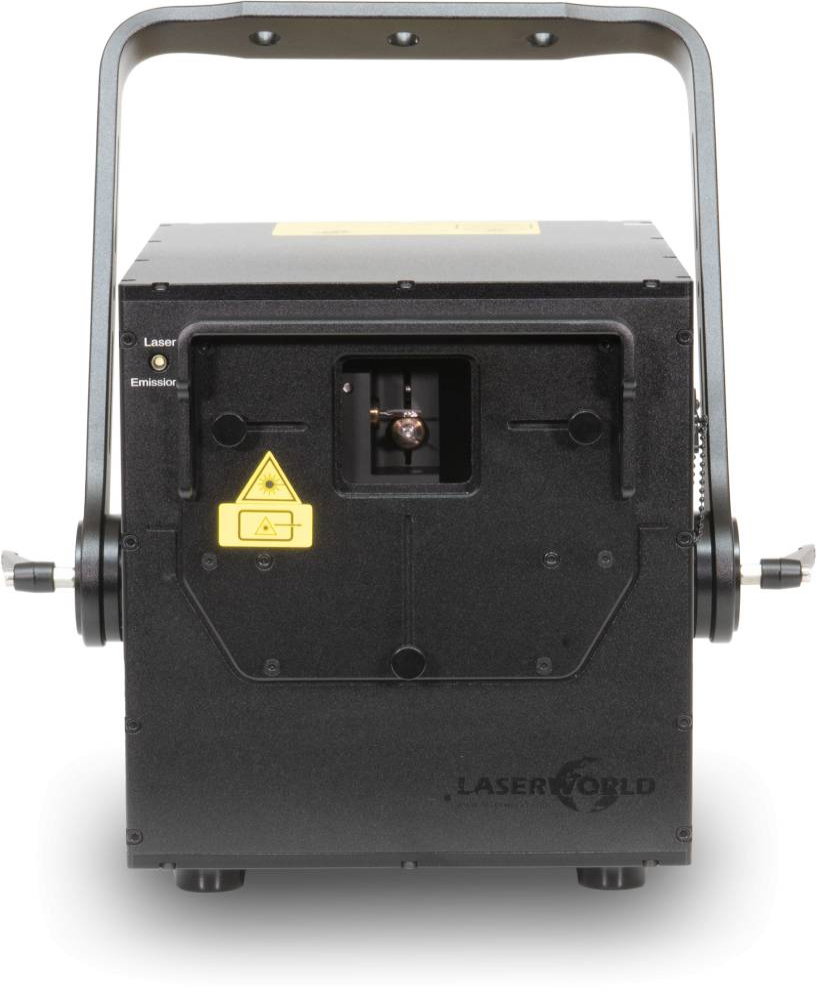

The Laserworld PL-5 FB4 is a 5’000mW RGB show laser from the latest generation of Purelight IP65 systems, built around RSL2 module technology for a compact, lightweight housing without losing beam quality. Its 45kpps at 8° scanning system puts it firmly in professional graphics territory, and the integrated FB4 mainboard with built-in colour display means operation modes can be set at the fixture. Built for large club installations, touring, production work and smaller outdoor shows, and it ships in a waterproof flightcase.
POWER
5’000mW
guaranteed at aperture
SCANNER
45kpps
at 8°
BEAM
0.9mrad
ca. 5.5mm diameter
INGRESS
IP65
outdoor rated
DRAW
80W
85V-250V AC
Class 4 laser – UK operation
This is a Class 4 laser product, supplied with a safety key and interlock. Safety settings can be stored to the laser itself so they apply across every operation mode – useful for fixed installs where a visiting operator plugs in their own control. Class 4 laser displays in UK public venues require competent-person setup and a written risk assessment in line with HSE guidance.
Control options
Multiple control modes on board:
FB4
ILDA
DMX
Art-Net
Auto
ILDA
DMX
Art-Net
Auto
In the box
Supplied tour-ready:
Waterproof flightcase
Power cable
Interlock
Safety key
Manual
Power cable
Interlock
Safety key
Manual
Features
✓
RSL2 module technology for optical performance in a compact housing
RSL2 module technology for optical performance in a compact housing
✓
Professional graphics capability at 45kpps at 8°
Professional graphics capability at 45kpps at 8°
✓
Maximum scan angle of 50°
Maximum scan angle of 50°
✓
Full colour mixing with analogue modulation
Full colour mixing with analogue modulation
✓
Sharp, intense beams at ca. 5.5mm and 0.9mrad divergence
Sharp, intense beams at ca. 5.5mm and 0.9mrad divergence
✓
IP65 waterproof housing for outdoor shows
IP65 waterproof housing for outdoor shows
✓
Safety settings saved to the laser and applied in all modes
Safety settings saved to the laser and applied in all modes
✓
Power, DMX and ILDA linking to chain multiple units
Power, DMX and ILDA linking to chain multiple units
✓

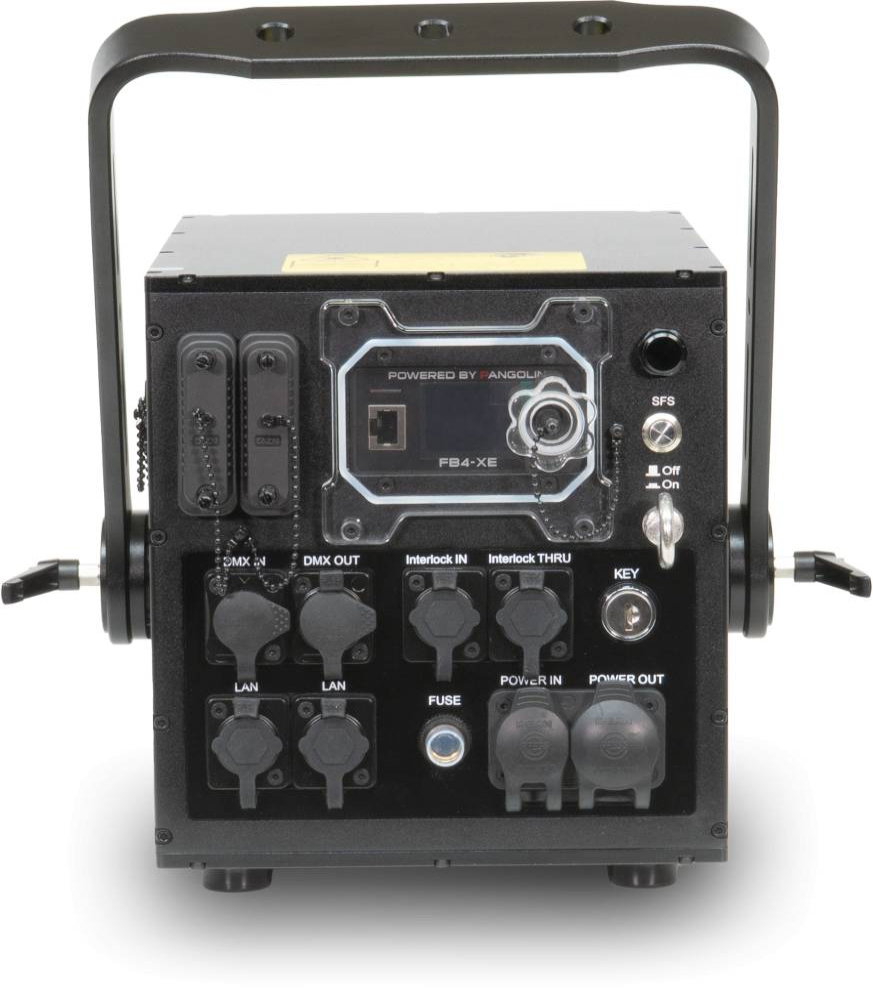

Integrated Pangolin FB4 interface with built-in colour display
Integrated Pangolin FB4 interface with built-in colour display
✓
Waterproof flightcase included as standard
Waterproof flightcase included as standard
Note
Lower rated output than the DS-15.000 but a faster 45kpps scanner and tighter 0.9mrad divergence, so the PL-5 is the better choice where graphics and beam definition matter more than raw brightness. Wide-range 85V-250V supply runs on UK 230V mains. Basic patterns are available for download.
Specifications
| Guaranteed power at aperture | 5’000mW |
| Red | 1’000mW / 638nm |
| Green | 2’000mW / 520nm |
| Blue | 3’000mW / 450nm |
| Beam specification | ca. 5.5mm / 0.9mrad |
| Scanner | 45kpps at 8° |
| Max scan angle | 50° |
| Operation modes | FB4, ILDA, DMX |
| Laser class | 4 |
| Laser source | Diode |
| IP rating | IP65 |
| Power supply | 85V-250V AC, 50-60Hz |
| Power consumption | 80W |
| Dimensions | 313 x 200 x 212mm (LxWxH) |
| Weight | 13.0kg |
| Included accessories | Waterproof flightcase, power cable, manual, interlock, key |
| EAN / MPN | 7640144998462FB4 |
| Stock code | LW0081 |
| Warranty | 1 year |
