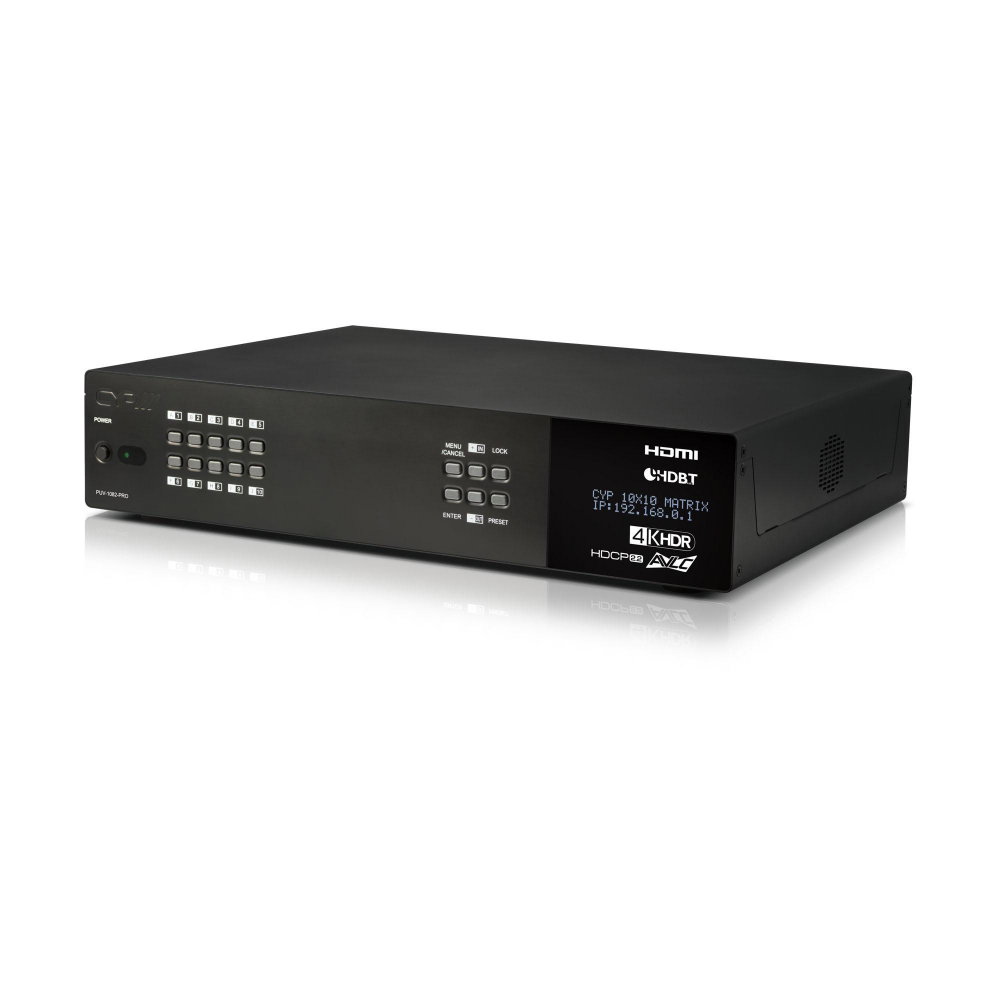

CYP PUV-1082-PRO 10x10 HDBaseT Matrix, 4K60 AVLC with Audio Matrix

Product code: 185606

£4,656.00 inc VAT
£3,880.00 ex VAT

SKU: CYP063

2 in stock

2 available online

Optional Add-Ons

CYP PUV-1830RX-AVLC HDBaseT AVLC Receiver OAR, LAN for PUV-1082-PRO

£317.00 inc VAT
£264.17 ex VAT

Add to basket

CYP PUV-1810RX-AVLC HDBaseT AVLC Receiver LAN for PUV-1082-PRO

£257.00 inc VAT
£214.17 ex VAT

Add to basket

About this Product

A 2U, ten input matrix with eight HDBaseT outputs that use AVLC to carry 4K60 4:4:4 HDR, plus two independent HDMI 2.0 outputs. Every output scales independently, and HDBaseT zones get 100BaseT Ethernet, PoH and two-way IR and RS-232. A separate audio matrix handles embedding, de-embedding, audio-only zones, tone and lip-sync delay, with Optical Audio Return from compatible receivers.

10×10

Matrix

8 HDBaseT + 2 HDMI

Outputs

70m

4K 6G over HDBaseT

Rack size

Receivers sold separatelyNo HDBaseT receivers are included. CYP design this matrix for the PUV-1830RX-AVLC or PUV-1810RX-AVLC, which use its PoH and LAN; Optical Audio Return uses the optical input on the PUV-1830RX-AVLC.

Features

10 HDMI inputs to 8 HDBaseT (AVLC) and 2 HDMI outputs

18Gbps 4K60 4:4:4 and 10/12-bit HDR including Dolby Vision

Independent scaling on every output

100BaseT Ethernet, PoH, IR and RS-232 to each HDBaseT zone

Audio matrix with DAC/ADC, audio-only zones and lip-sync delay

Audio over Cat inputs and outputs up to 150m

Optical Audio Return (OAR) and built-in test pattern generator

Control via front panel, IR, RS-232, Telnet and Web GUI

Specifications

CYP PUV-1082-PRO 10×10 HDBaseT Matrix, 4K60 AVLC with Audio Matrix specifications
Brand	CYP
Model	PUV-1082-PRO
Video inputs	10x HDMI
Video outputs	8x RJ45 HDBaseT (AVLC), 2x HDMI
Digital audio inputs	2x TOSLINK, 2x coaxial
Audio over Cat	2x bidirectional RJ45 (up to 150m at 96kHz)
Max resolution	HDMI 4096×2160@60 4:4:4; HDBaseT 4K60
HDMI / HDCP	HDMI 2.0 / HDCP 1.4 and 2.2
HDBaseT distance	1080p and 4K 3G up to 100m; 4K 6G up to 70m
Zone Ethernet	10/100Mbps
Control	Front panel, IR, RS-232 (DE-9), Telnet, Web GUI
Power	2x 24V/6.25A (main, plus second for PoH)
Power consumption	236W
Dimensions (WxHxD)	438 x 89 x 316mm (2U)
Weight	6.26kg

Full features

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant

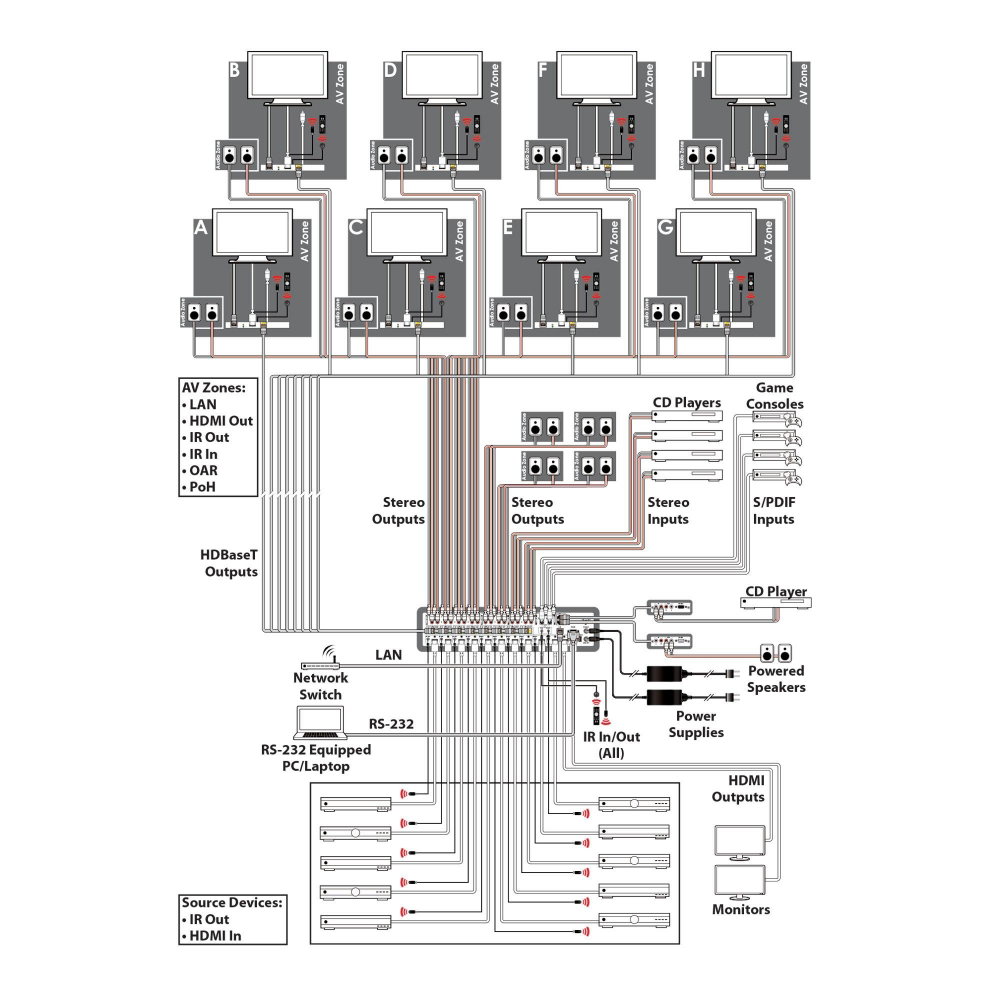

Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent HDMI outputs
HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
AVLC (Adaptive Visually Lossless Compression)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings up to 70 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, and fully independent audio only zones
Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration
Supports on-board audio over CAT inputs and outputs for transmission up to 150m
Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs
Optical Audio Return (OAR)
Advanced internal and external EDID management with 4 sets of configurable EDID settings
Internal test pattern generation for self-testing and sink device testing. (Internal test patterns up to and including 4K signals)
Supports HDCP repeating and CEC functions

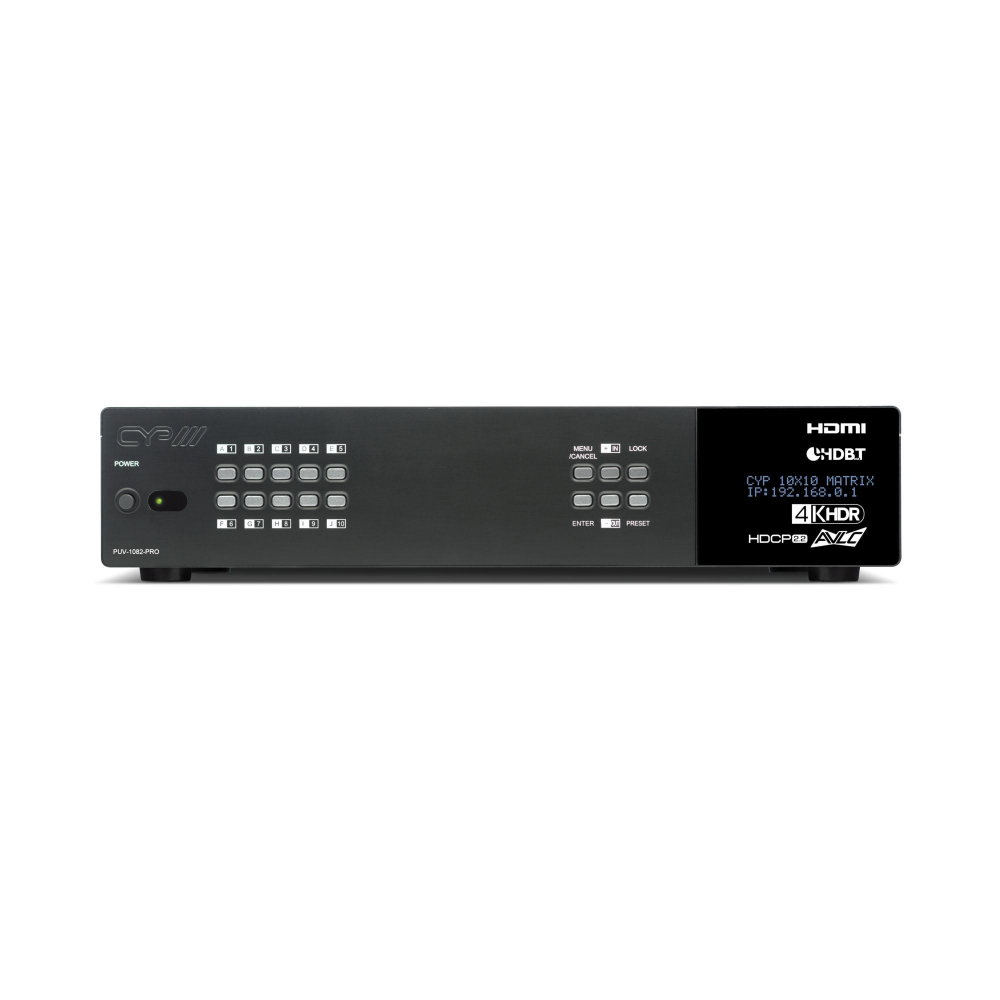

Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
2U rack mounted design

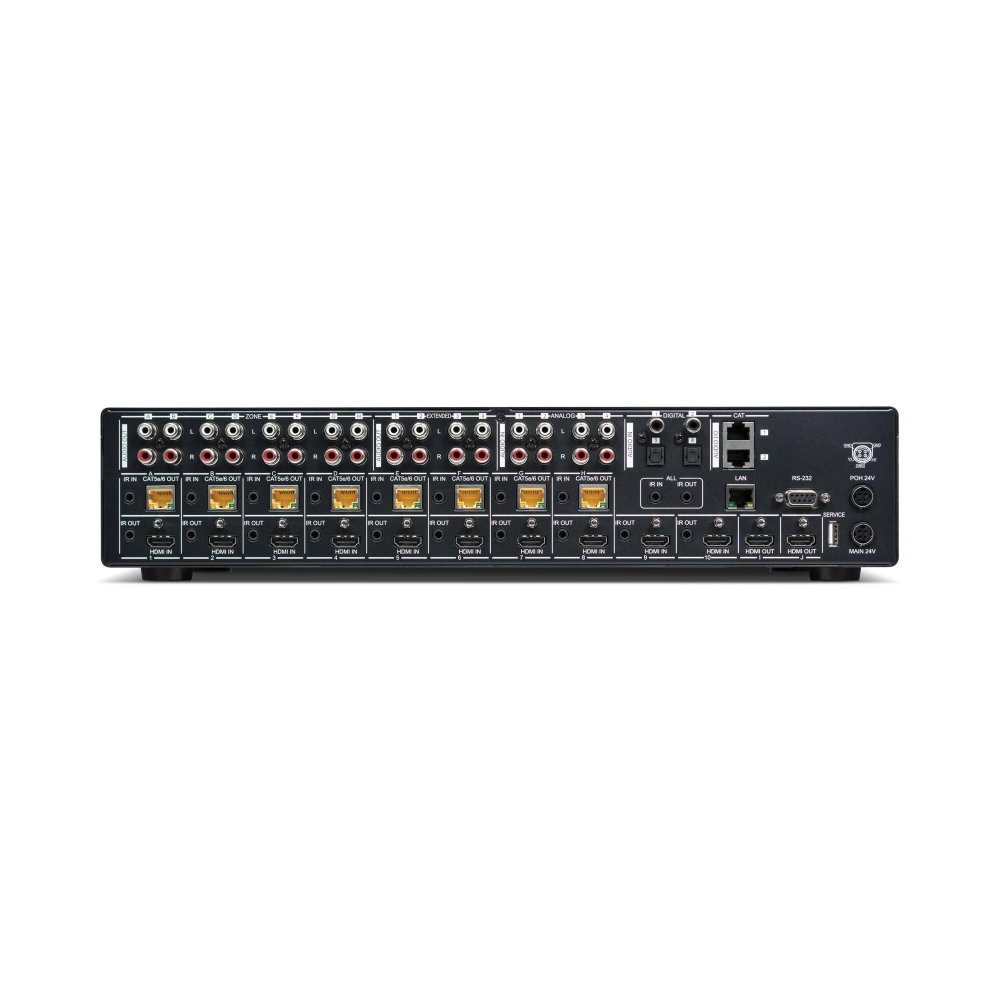

Inputs: 10 x HDMI [10 x HDMI Uncompressed AV and Data], 8 x RCA [4 x Configurable Analogue audio Stereo (L/R)], 2 x Toslink [2 x Configurable Digital Optical audio DTS / Dolby Digital / 2-channel LPCM / Dolby Digital Plus], 2 x RCA [2 x Configurable Digital Coax audio DTS / Dolby Digital / 2-channel LPCM / Dolby Digital Plus], 2 x RJ45 [2 x Digital Audio Propriety Data], 9 x 3.5mm Stereo mini-jack [9 x Infra Red Receiver], 1 x RJ45 [1 x IP Control / LAN Serving], 1 x 9pin Dsub [1 x RS-232 Data]
Outputs: 8 x RJ45 [8 x HDBaseT AVLC HDMI & Propriety Data], 2 x HDMI [2 x HDMI Uncompressed AV and Data], 24 x RCA [12 x Analogue Stereo (L/R)], 2 x RJ45 [2 x Digital Audio Propriety Data], 11 x 3.5mm Stereo mini-jack [11 x Infra Red Emitter]
POE PSU: PoH
PSU: 2 x 24V/6.25A (main and PoH)
Dimensions (H x W x D): 89 x 438 x 316mm
Net Weight: 6.26kg
Gross Weight: 10.7kg
