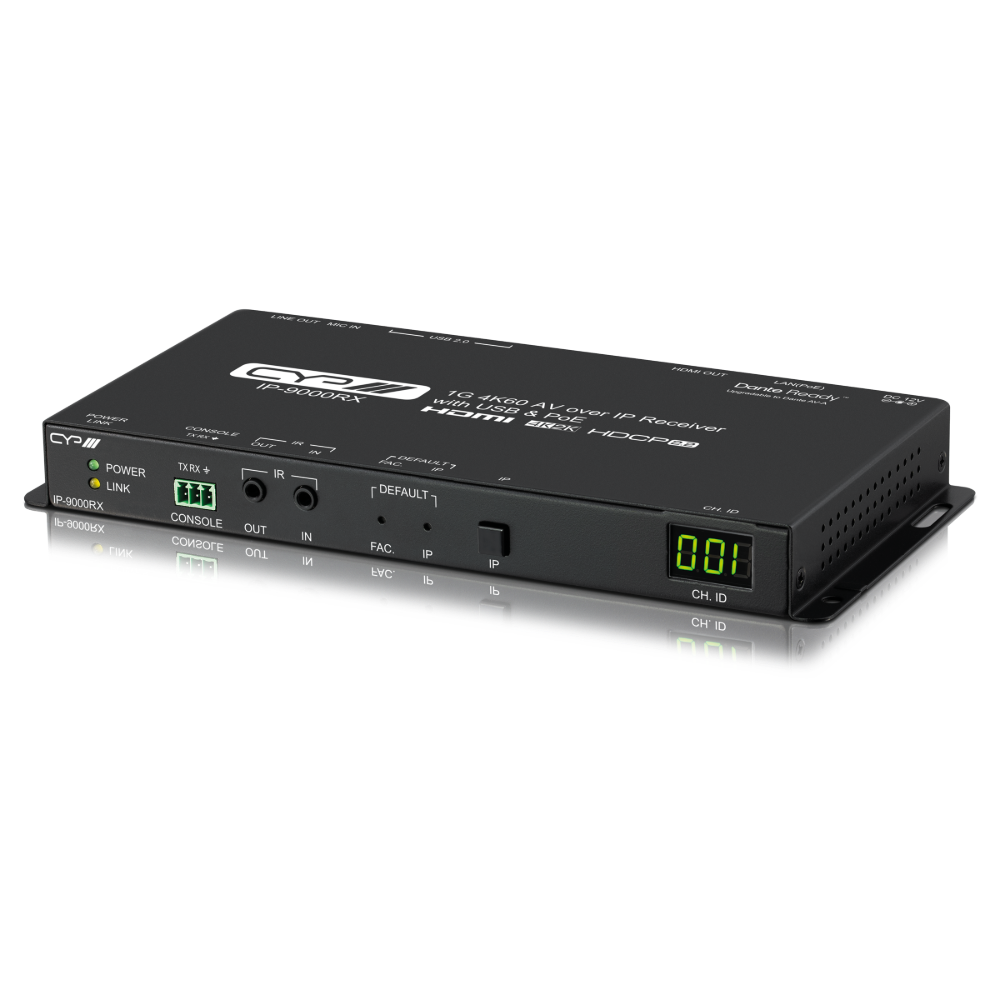

CYP IP-9000RX 1G AV over IP Receiver, 4K60 with USB and PoE

Product code: 185637

£499.00 inc VAT
£415.83 ex VAT

SKU: CYP002

8 in stock

8 available online

Optional Add-Ons

CYP IP-CS9000 AV over IP Controller for IP-9000 Series, Dual LAN

£586.00 inc VAT
£488.33 ex VAT

Add to basket

CYP IP-9000TX 1G AV over IP Transmitter, 4K60 with USB and PoE

£487.00 inc VAT
£405.83 ex VAT

Add to basket

About this Product

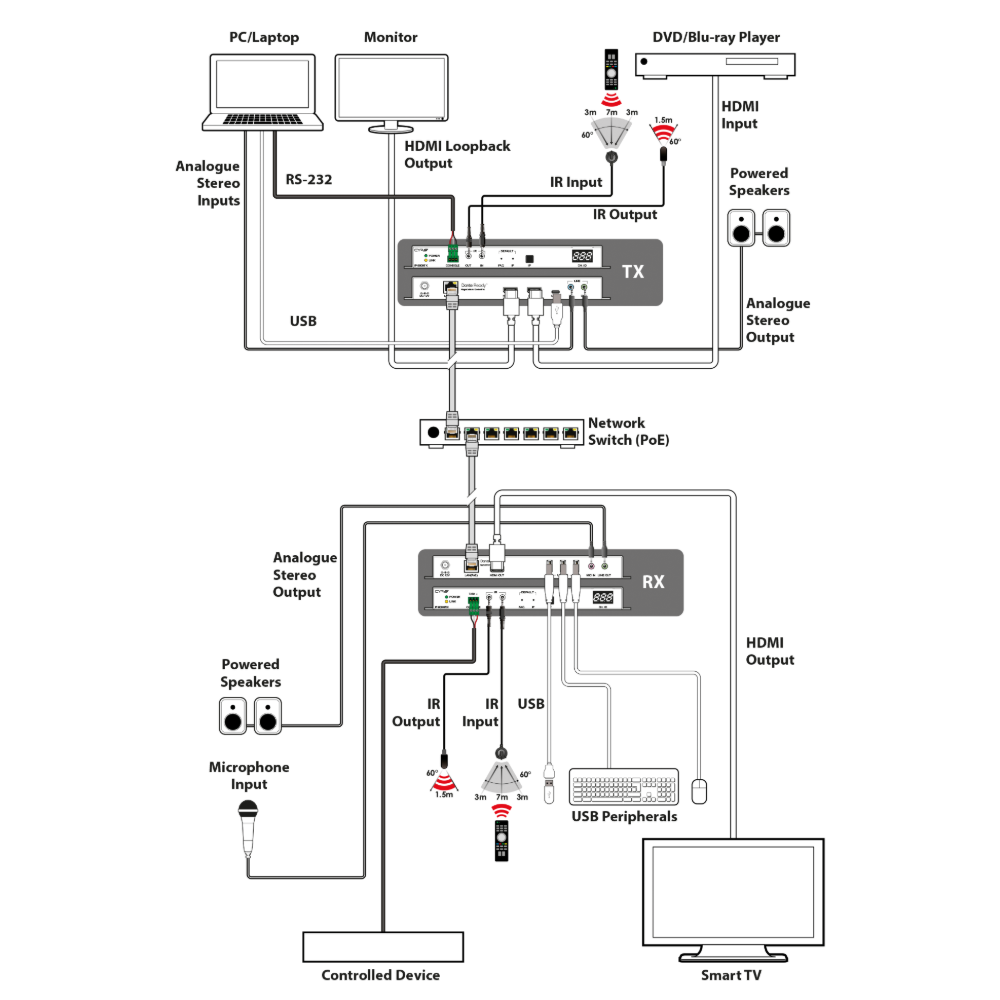

This is the receiving end of the IP-9000 system. It picks up a stream from any IP-9000TX on the network and outputs 4K60 4:4:4 HDMI with HDR, while three USB ports send keyboard, mouse and storage back to the source computer. There is also an analogue line out, a mic input and IR/RS-232 pass-through, and hotkeys on the unit allow routing without a separate controller.

4K60 4:4:4

Max output

3x USB 2.0

USB ports

100m

Per cable run

802.3af

PoE

Power supply not includedRuns from an 802.3af PoE switch port. Without PoE, the 12V/3A adaptor (CYP order code PSU-12V3A-L) is sold separately.

Features

Decodes IP-9000TX streams at up to 4K60 4:4:4 with HDR10, HDR10+, Dolby Vision and HLG

Unicast and multicast operation, including video wall use

3x USB 2.0 Type-A ports for keyboard, mouse, flash drives and webcams

Mic input sends audio to the routed transmitter’s line out (unicast only)

Analogue stereo line out (LPCM 2.0 sources)

Bi-directional IR and RS-232 pass-through

Routing via hotkeys, Web GUI, Telnet or the IP-CS9000 controller

Dante Ready

Specifications

CYP IP-9000RX 1G AV over IP Receiver, 4K60 with USB and PoE specifications
Brand	CYP
Model	IP-9000RX

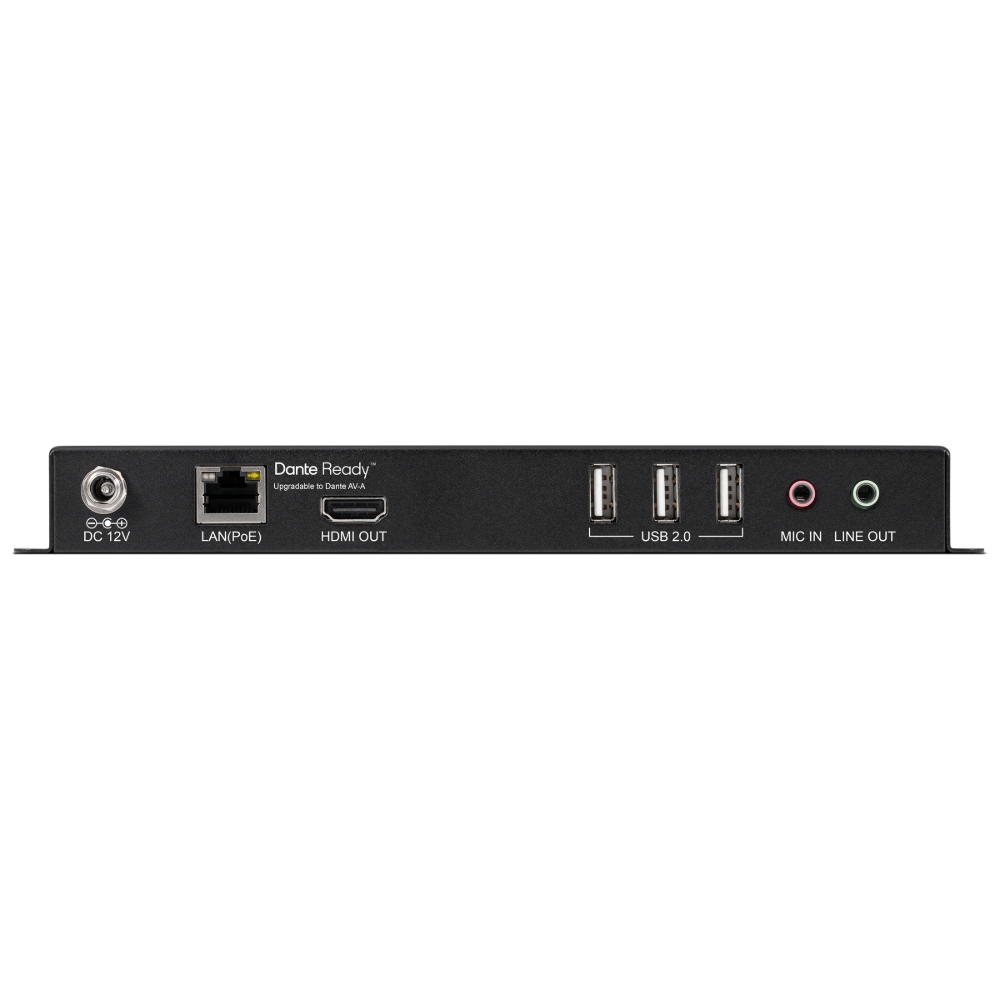

Network input	1x RJ45 Gigabit (PoE)
Video output	1x HDMI
USB	3x USB 2.0 Type-A
Audio	1x 3.5mm line out, 1x 3.5mm mic in
Max resolution	4096×2160@60, 8-bit RGB
HDMI / HDCP	HDMI 2.0 / HDCP 2.2
Audio formats	8ch LPCM, Bitstream, HD Bitstream
Distance	100m per segment via Gigabit switches
Control	Hotkeys, Web GUI, Telnet, IP-CS9000
Power	PoE 802.3af or 12V/3A (PSU not supplied)
Power consumption	17.68W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	680g

Full features

4K@60 1Gbps AV over IP Receiver in Unicast or Multicast mode
Full 4K60 4:4:4, HDR10, HDR10+, Dolby Vision & HLG compatible
Less than one frame of latency at 4K 60Hz
IP interface: RJ45 CAT cabling
Supports USB over IP (flash drive, USB web cam (isochronous/Bulk), keyboard and mouse) and seamless control of multiple PC systems
Supports PoE-PD (IEEE 802.3af)
Bi-directional IR and RS-232 pass-through
Controlled via hotkey, WebGUI, IP Master Controller, and Telnet
Supports the use of an external control system (IP Master Controller) to provide expanded functionality

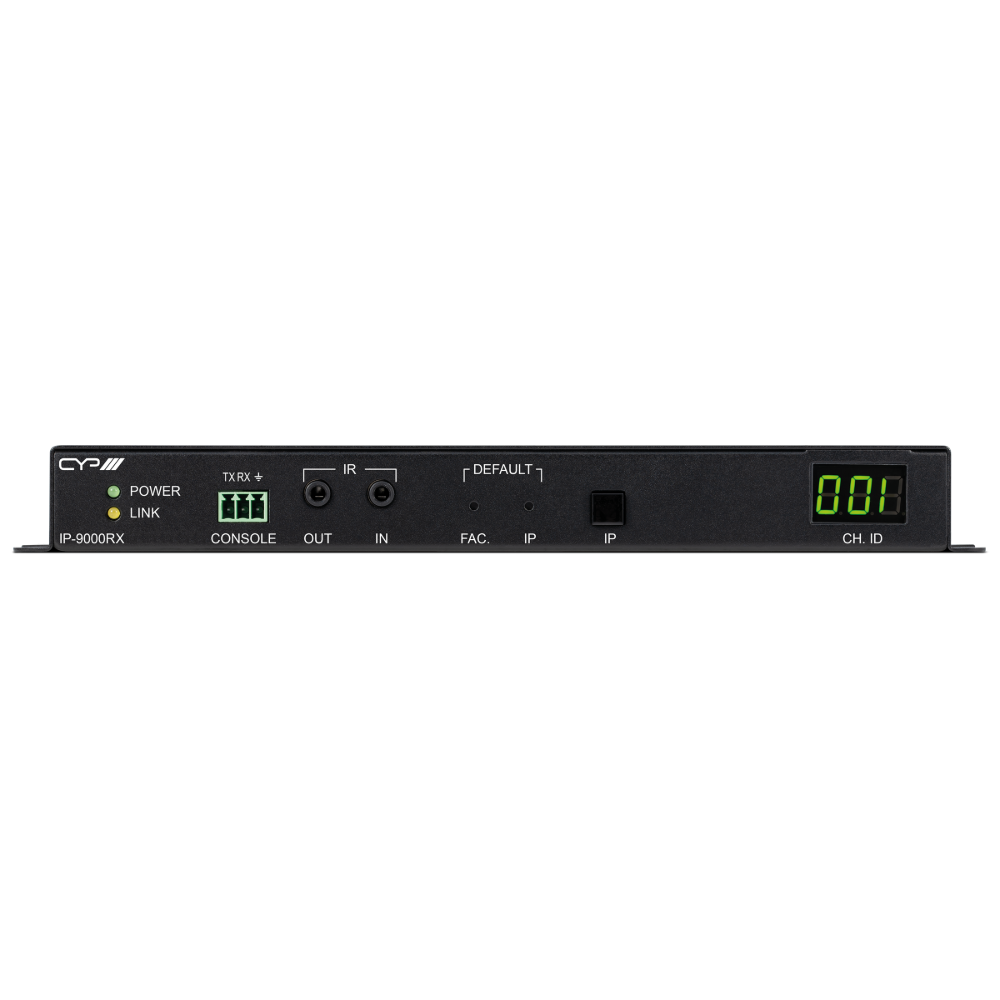

7 hotkeys dedicated to routing for transmitters and receivers, 4 hotkeys provide single functions, and 3 hotkeys for multiple functions that activates control system
Supports independent breakaway A/V and control matrix routing
Supports extension of many audio formats including 8 channel LPCM and standard Bitstream Note: The Line Out only supports LPCM 2.0 sources
The analogue Line In is automatically embedded in the streaming output and can be independently routed to any receiver
The Mic In sends audio directly to the analogue Line Out on the currently routed transmitter Note: Only available when the transmitter also has its Line In connected.
Supported in unicast mode only
Dante Ready brings Dante functionality to products already shipping and installed in sites
Channels and features can be added as an installation grows

Inputs: 1 x AV over IP HDMI & Propriety Data [1 x RJ45], 3 x USB Propriety Data [3 x USB Type A], 1 x Mono Microphone [1 x 3.5mm Stereo mini-jack], 1 x RS-232 [1 x Phoenix (3-pin)], 1 x Infra Red Receiver [1 x 3.5mm Stereo mini-jack]
Outputs: 1 x HDMI Uncompressed AV and Data [1 x HDMI], 1 x Analogue Stereo (L/R) [1 x 3.5mm Stereo mini-jack], 1 x Infra Red Emitter [1 x 3.5mm Stereo mini-jack]
PSU: PoE (802.3af) or 12V/3 A (not supplied Order Code: PSU-12V3A-L)
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 680g
Gross Weight: 980g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: IP-9000RX_PDF-Manual_v1.03.pdfPDF

Manuals & Instructions: IP-9000RX_Datasheet_v1.01.pdfPDF
