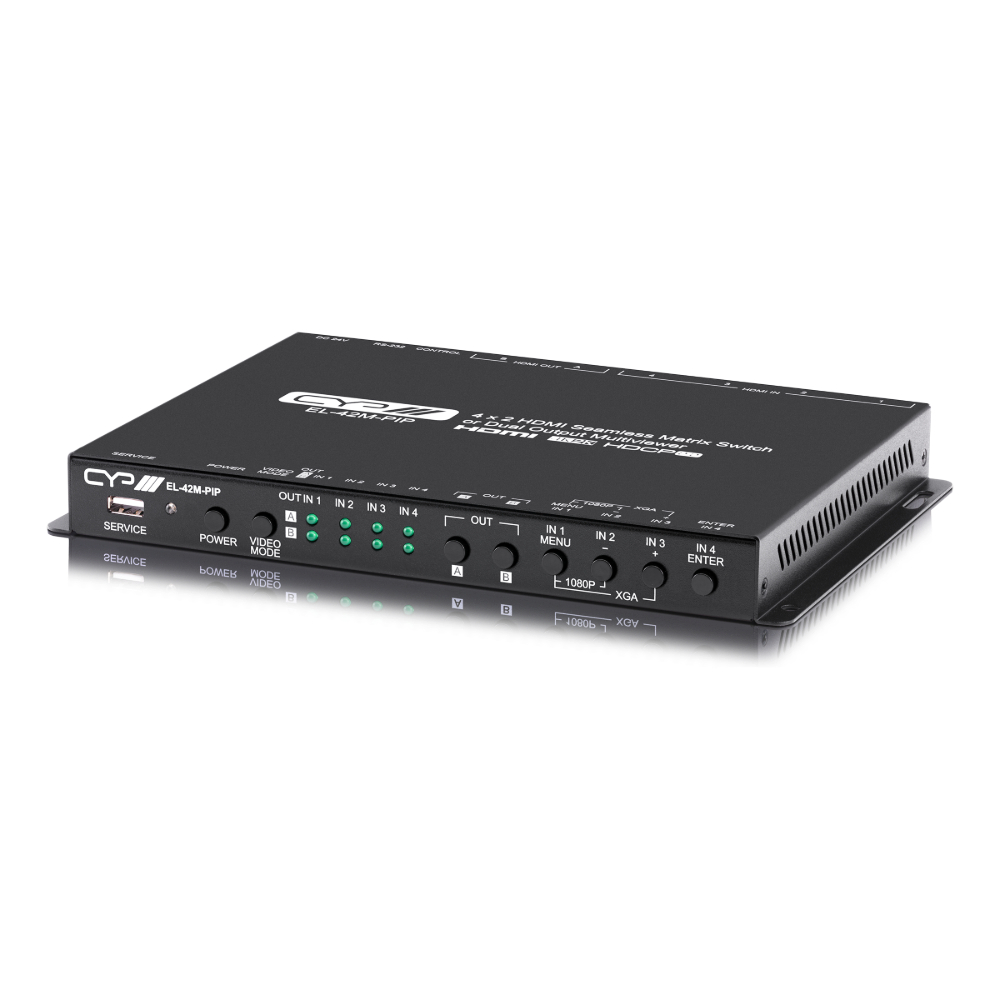

CYP EL-42M-PIP 4x2 HDMI Seamless Matrix and Multiviewer, 4K60

Product code: 185737

£1,180.00 inc VAT
£983.33 ex VAT

SKU: CYP040

2 in stock

2 available online

About this Product

Works two ways: as a 4×2 seamless matrix for glitch-free switching between sources and screens, or as a multiviewer showing up to four sources on its two mirrored HDMI outputs in custom window layouts. Inputs and outputs run at up to 4K60 4:4:4, with per-source scaling and EDID management. CYP aim it at broadcast, live event, military and medical control positions.

4×2

Matrix

4K60 4:4:4

Max resolution

PiP windows

HDCP 2.2

Copy protection

Features

Seamless source switching in matrix mode

Multiview of up to 4 sources on mirrored outputs

Custom window size, position and settings, saved as presets

Per-source scaling and internal or external EDID

Independent audio source selection in all modes

HDMI inputs 1 and 2 accept 8ch LPCM and HD Bitstream; inputs 3 and 4 accept 2ch LPCM

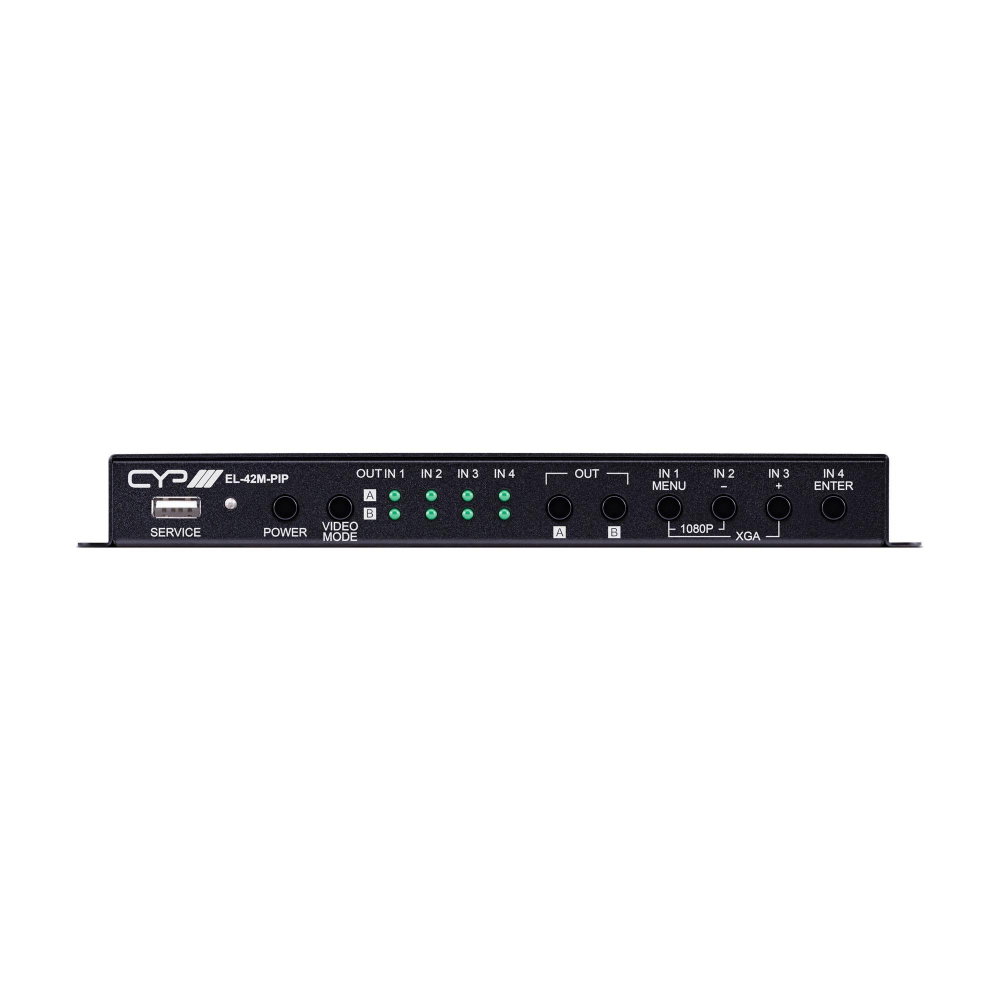

Control via front buttons, OSD, RS-232, Telnet and Web GUI

Specifications

CYP EL-42M-PIP 4×2 HDMI Seamless Matrix and Multiviewer, 4K60 specifications
Brand	CYP
Model	EL-42M-PIP
Inputs	4x HDMI
Outputs	2x HDMI
Max resolution	4096×2160@60 4:4:4, 2560×1600@60RB
HDMI / HDCP	HDMI 2.0 / HDCP 2.2
Audio	In 1-2: 8ch LPCM 192kHz, Bitstream, HD Bitstream; In 3-4: 2ch LPCM 48kHz
Control ports	RJ45 IP, RS-232 (3.5mm), USB Type-A service
Control	Front buttons, OSD, RS-232, Telnet, Web GUI
Power	24V/2.7A
Power consumption	15.29W
Dimensions (WxHxD)	231.5 x 25 x 158mm
Weight	980g

Full features

4x2 4K HDR Picture-in-Picture Multi-viewer
Seamless Source Switching in Matrix Mode
Supports Custom Size, Position and Settings of Connected Sources in PIP Window Mode
RS-232, IR, Telnet, Web GUI and push button controls
Individual source scaling and EDID management (internal or external)
Independent audio source selection and routing in all modes

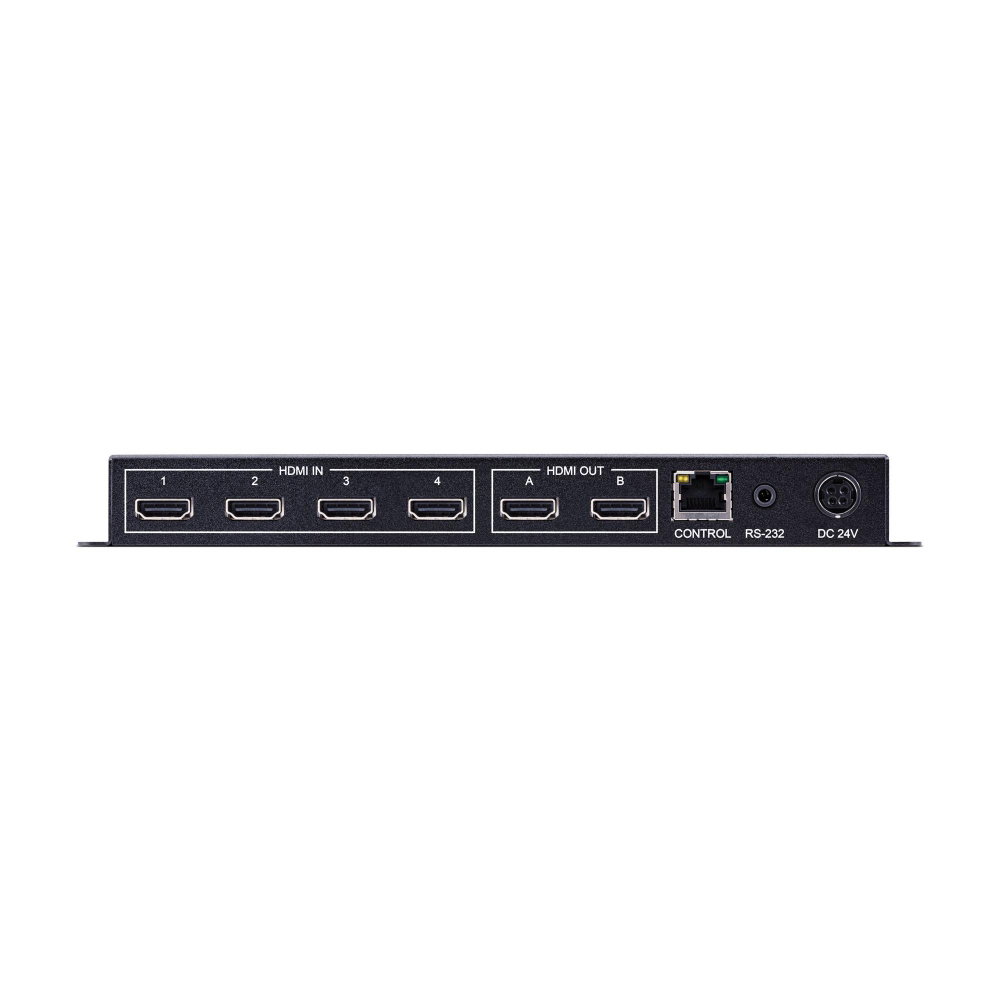

Inputs: 4 x HDMI [4 x HDMI Uncompressed AV and Data], 1 x RJ45 [1 x IP Control], 1 x 3.5mm Stereo mini-jack [1 x RS-232], 1 x USB Type A [1 x Service Port Propriety Data]
Outputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data]
PSU: 24V/2.7A
Dimensions (H x W x D): 25 x 231.5 x 158mm
Net Weight: 980g
Gross Weight: 2.04kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: EL-42M-PIP_PDF-Manual_v1.02_Web.pdfPDF

Manuals & Instructions: EL-42M-PIP_Datasheet.pdfPDF
