CYP SY-XTREAM-PIP Dual HDMI to USB 3.0 Capture with PiP, 4K Bypass

Product code: 185744

£373.00 inc VAT
£310.83 ex VAT

SKU: CYP041

2 in stock

2 available online

About this Product

A USB capture device with two HDMI inputs, so a camera and a slide feed can be combined in a picture in picture layout before reaching the computer. Capture to the PC is at 1080p over USB 3.0 using standard UVC and UAC drivers, which OBS and most streaming apps recognise, while the HDMI output passes the source through at up to 4K60. The 3.5mm input switches between mic and line level and can be mixed with HDMI audio.

2x HDMI

Inputs

1080p60

USB capture

4K60

HDMI bypass

USB

Powered

USB 2.0 needs a Y-cablePowered from a USB 3.0 port. On USB 2.0 a Y-cable is required to supply enough power; the sources do not say one is included.

Features

2 HDMI inputs: input 1 up to 4K60, input 2 up to 1080p60

USB 3.0 capture at 1080p60 via UVC/UAC, works with OBS

HDMI bypass output follows the source up to 4K60

Mode button changes the PiP layout

3.5mm input switchable between mic and line

Audio mixer combines analogue mic with HDMI audio

CYP CaptureCtrl software for detailed settings

Specifications

CYP SY-XTREAM-PIP Dual HDMI to USB 3.0 Capture with PiP, 4K Bypass specifications
Brand	CYP
Model	SY-XTREAM-PIP
Inputs	2x HDMI, 1x 3.5mm mic/line
Outputs	1x HDMI bypass, 1x USB 3.0 Type-B
Input resolution	In 1: 4K60 4:4:4; In 2: 1080p60
USB capture	1080p60
HDMI / HDCP	HDMI 2.0 / HDCP 2.2 bypass
Audio formats	8ch LPCM, Bitstream, HD Bitstream
Line in	1 Vrms
Power	USB bus powered
Dimensions (WxHxD)	180 x 25 x 108mm
Weight	360g

Full features

2 HDMI inputs: input 1 resolution up to 4K@60, input 2 up to 1080p@60
1 HDMI bypass output (Follow source up to 4K@60)
Configurable analogue audio pathway: Mic; Line
USB3.0 (Type-B to Type-A) connected to PC for data transmission.

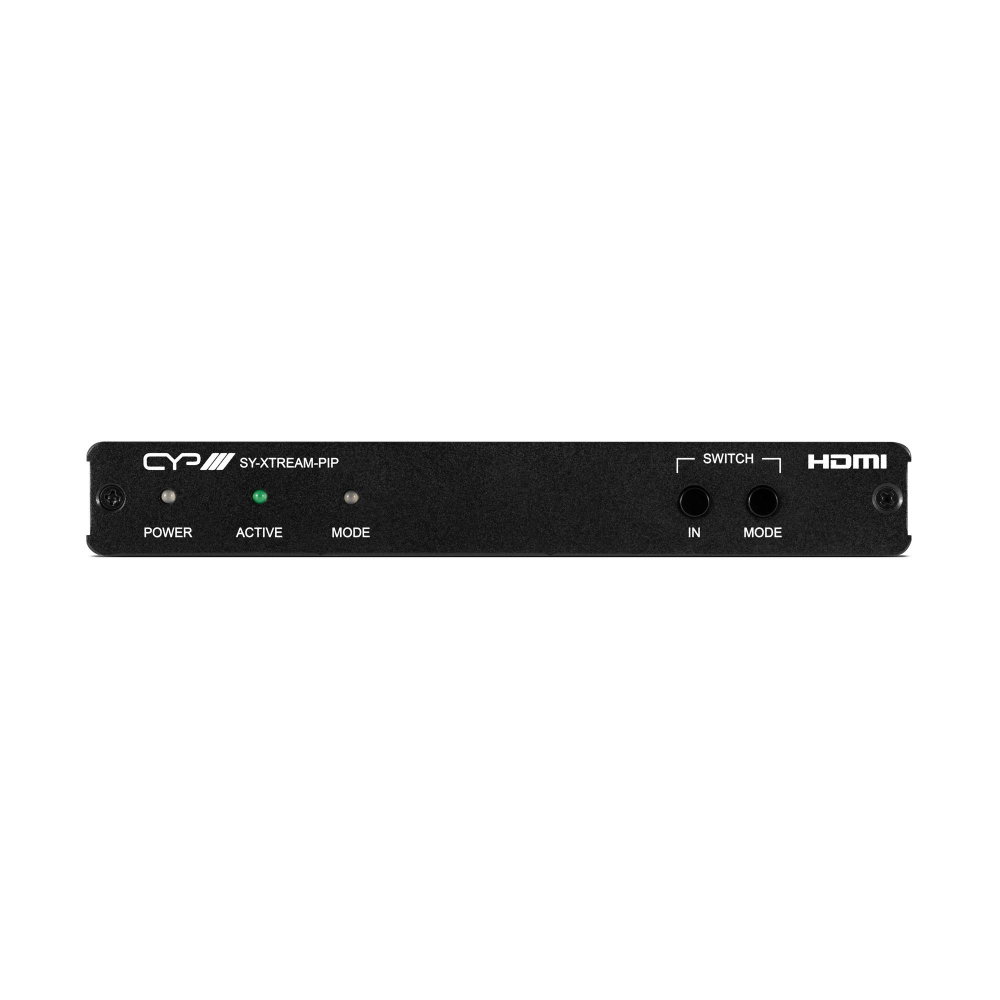

Mode select button is designed for changing the layout of video sources
Audio auto switch for priorities audio insertion or defaults
Audio Mixer for provide flexible audio feature for mixing analogue mic in with HDMI input audio
PC software available for detail control and setting

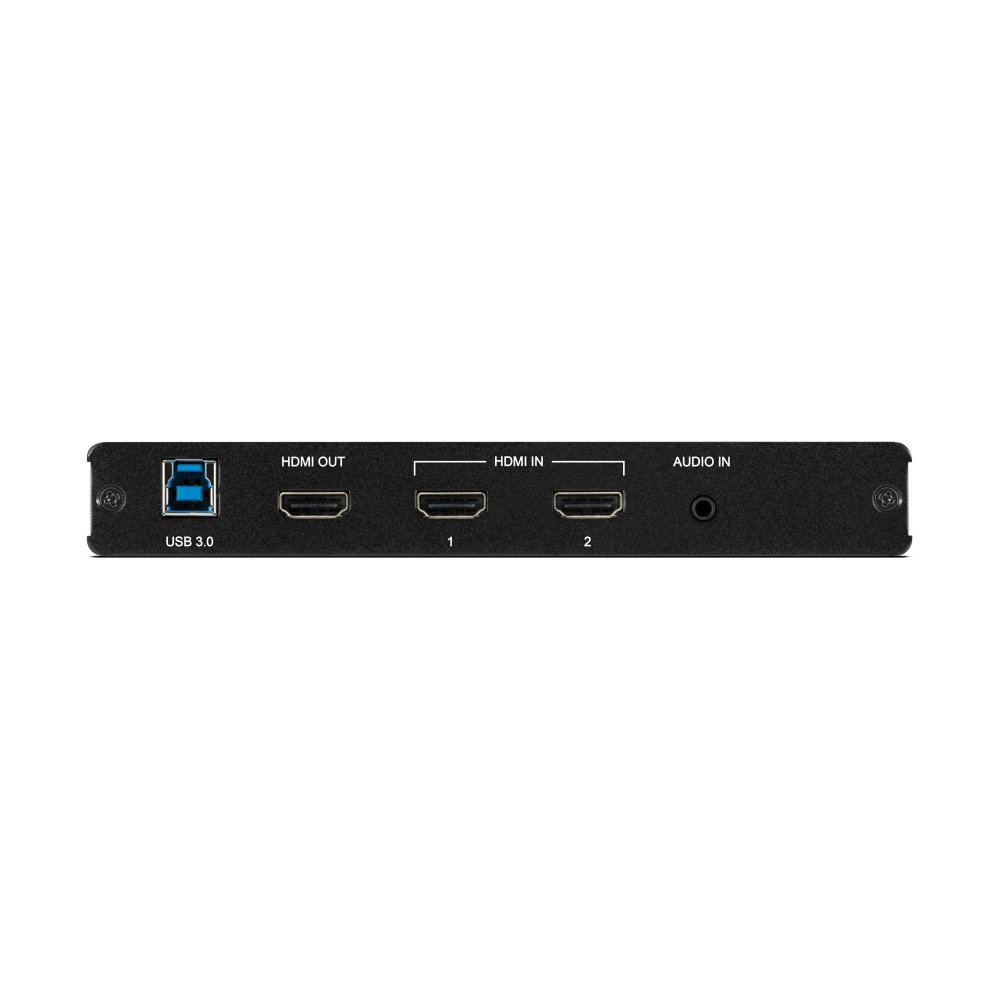

Inputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Switchable analogue audio Stereo (L/R) / Microphone]
Outputs: 1 x HDMI [1 x HDMI (bypass) Uncompressed AV and Data], 1 x USB 3 Type B [1 x Power & Data]
PSU: USB powered
Dimensions (H x W x D): 25 x 180 x 108mm
Net Weight: 360g
Gross Weight: 600g
