Ecler VEO-MXH48T 8x8 HDMI/HDBaseT Matrix

Product code: 195373

£2,628.00 inc VAT
£2,190.00 ex VAT

SKU: ECL0131

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

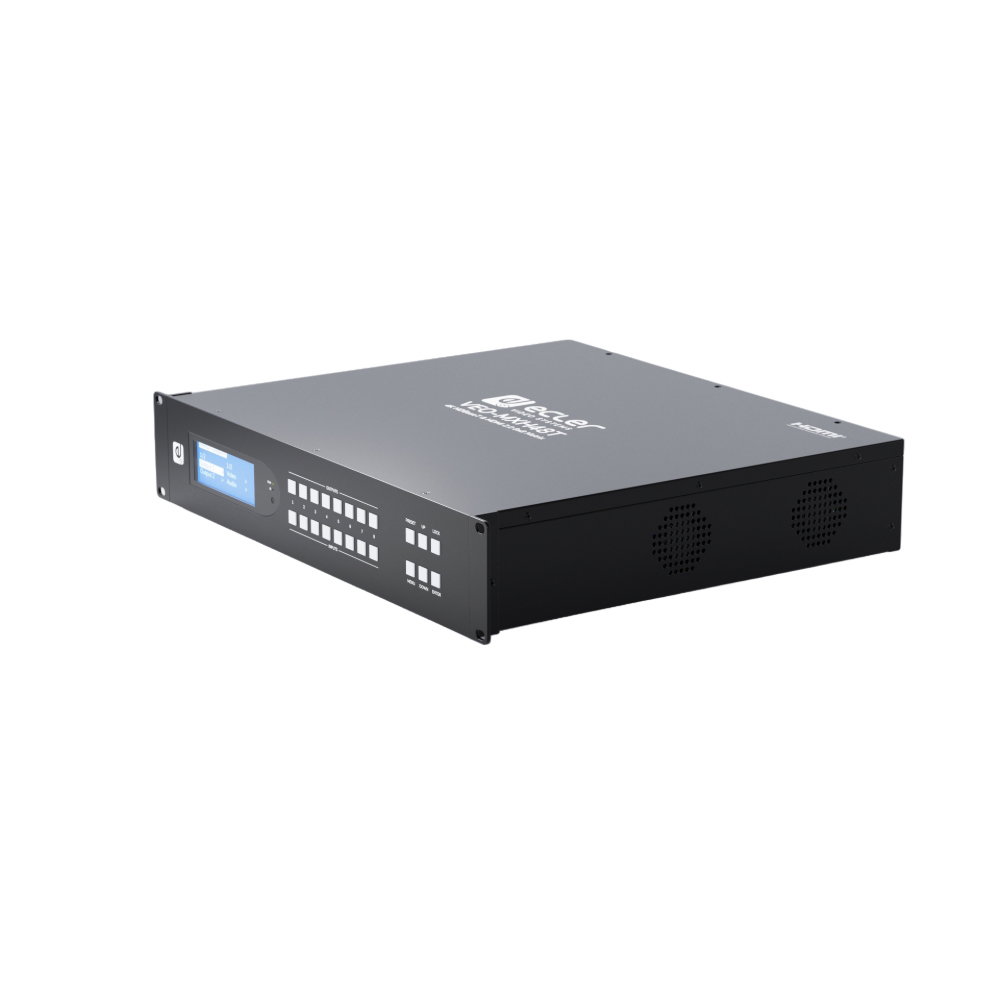

The Ecler VEO-MXH48T is an 8×8 matrix switcher with 8 HDMI inputs, 8 HDBaseT outputs and 8 mirrored HDMI outputs, in a 2U 19 inch chassis. It routes video at up to 4K 60Hz 4:4:4, sends it up to 40 m at 4K or 70 m at 1080p over CAT cable to HDBaseT receivers such as the VEO-XRT44, and powers those receivers down the cable. Typical uses are sports bars, multi-room hospitality, lecture theatre suites and conference centres.

8×8
HDMI to HDBaseT
4K60 4:4:4
Max video
40 m
4K HDBaseT range
2U
Rack height
Receivers not includedEach HDBaseT output needs a compatible receiver at the display, such as the VEO-XRT44, bought separately.

Features

8 HDMI inputs routed independently to 8 HDBaseT outputs, each mirrored on a local HDMI output
Video up to 4K at 60Hz 4:4:4 8-bit; HDR10 at 4K60 4:2:0 10-bit
HDBaseT outputs reach 40 m at 4K and 70 m at 1080p over one CAT cable
Power over the cable to HDBaseT compatible receivers
Per-output downscaling of 4K60 4:4:4 to 1080p60 or 4K60 4:2:0 for displays that cannot accept it
Independent audio matrix with stereo unbalanced Euroblock inputs and outputs, plus coaxial S/PDIF outputs

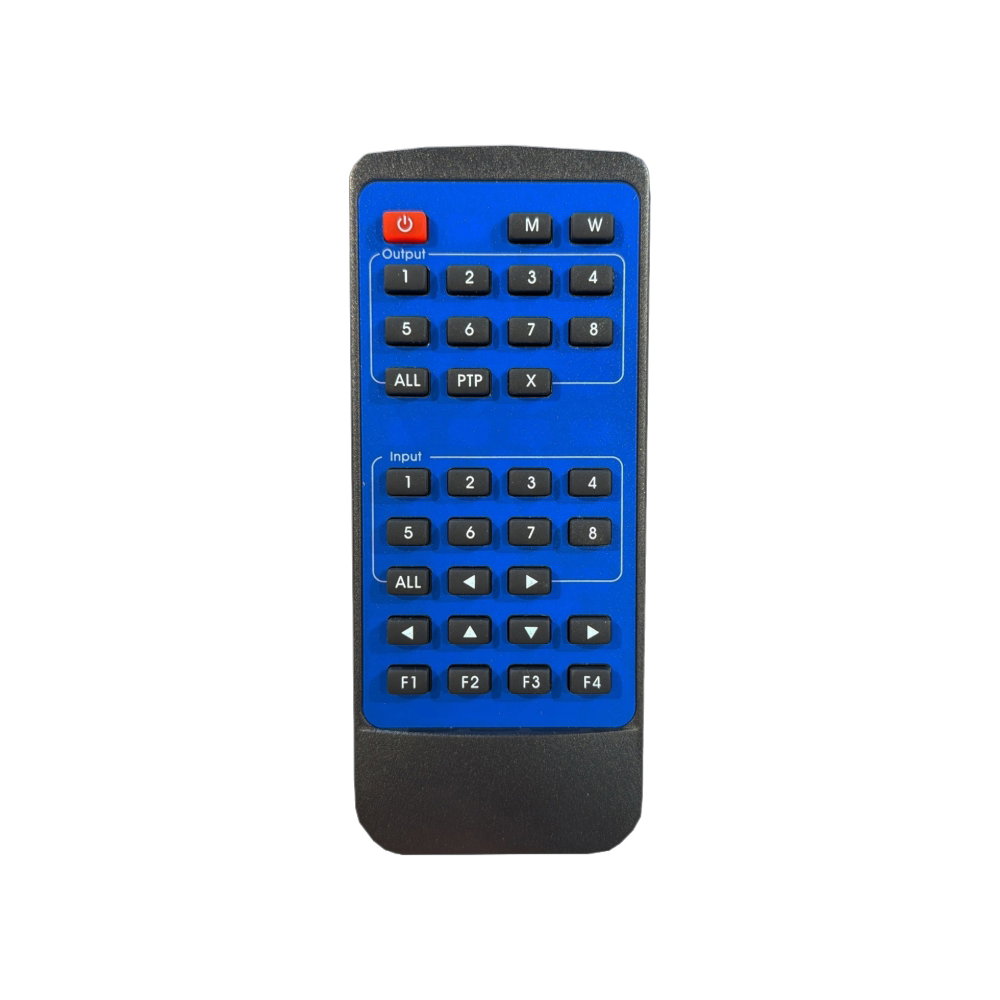

Control from front panel and LCD, IR remote, RS-232, Telnet and web GUI
Bidirectional IR and RS-232 pass-through to the remote ends
Store and recall up to 8 presets
HDCP 2.2 and 1.4

Specifications

Ecler VEO-MXH48T 8×8 HDMI/HDBaseT Matrix specifications
Video inputs 8 x HDMI Type A, 18Gbps

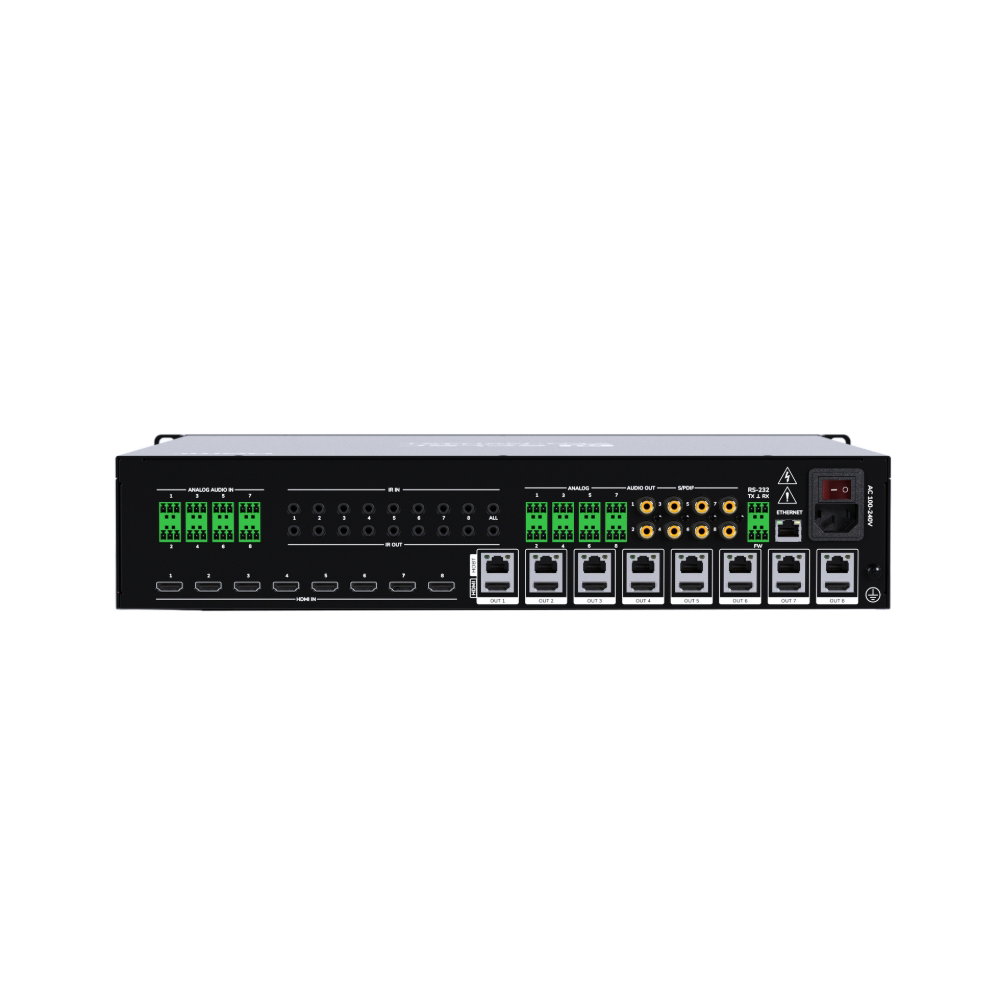

Video outputs 8 x HDBaseT (RJ-45), 8 x HDMI Type A mirror outputs
Max resolution 3840 x 2160 at 60Hz 4:4:4
HDCP 2.2 / 1.4
HDR HDR10
HDBaseT distance 4K: up to 40 m, 1080p: up to 70 m
Control Web, Telnet, RS-232, IR, front panel buttons and LCD
Mains input 90 to 264V AC, 47 to 63Hz, internal power supply

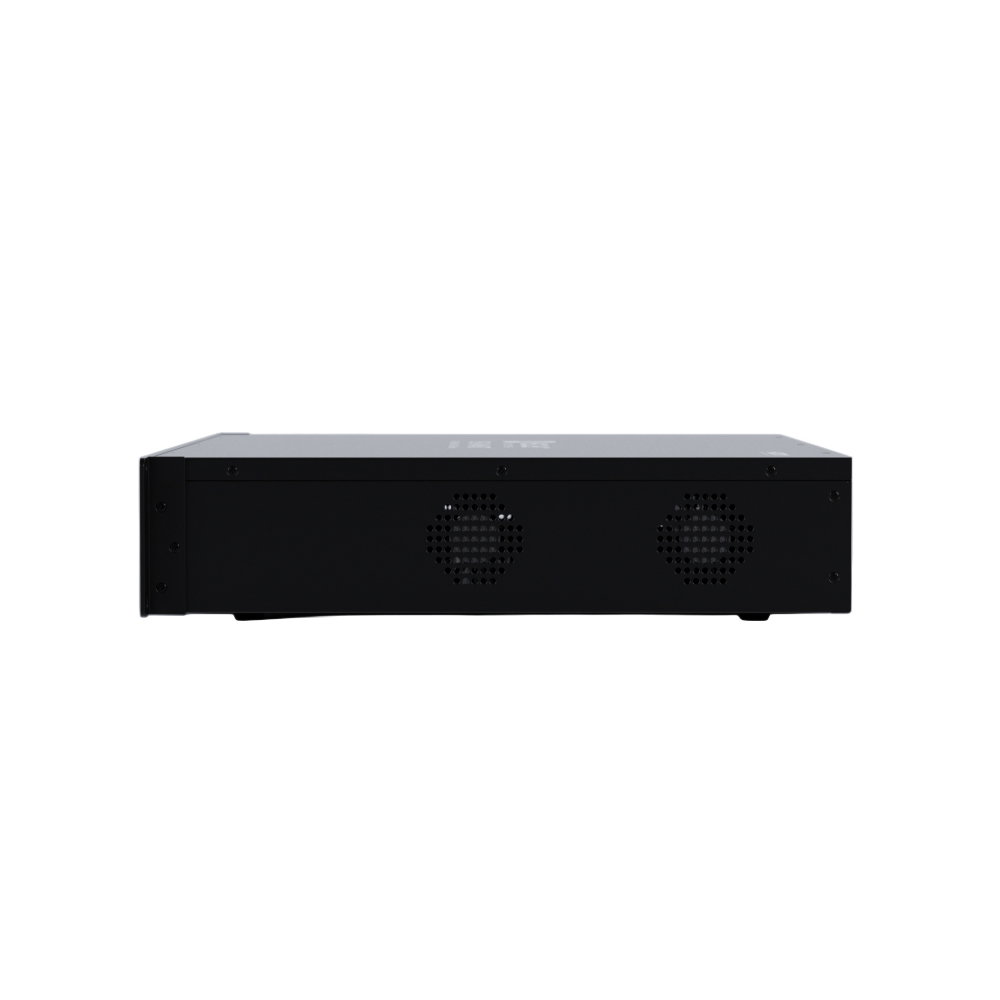

Mounting 2U 19 inch rack ears or desktop
Dimensions (W x H x D) 482.6 x 88 x 394 mm
Weight 8.3 kg
Operating temperature -5 to 40°C
Included Mains cables with UK, EU, US and AU plugs

Full features

  • 8 x HDM®I inputs which can be independently routed to 8 x HDBaseT Outputs and 8 x HDMI® outputs
  • Advanced HDBaseT technology offering distribution of video and  audio over a single CAT cable
  • Supports HDMI® up to 4K@60Hz, 4:4:4, 8 Bit. Also HDR (at 4K@60Hz 4:2:0 10 Bit)
  • Extends 4K@60Hz 4:4:4 8 bit 4K video up to 40m and Full HD up to 70m
  • Independent downscaling of 4K@60Hz 4:4:4  video input resolution to the following formats: Full HD@60Hz (for screens that do not support 4K) / 4K60Hz 4:2:0 (for screens that do not support 4K@60Hz   4:4:4)
  • Independent Audio Matrix
  • Supports audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • Analogue audio insertion and extraction on stereo unbalanced Euroblock connectors as well as stereo and surround digital audio extraction on SPDIF coaxial connector
  • Control via front panel and display, IR remote, RS-232 control, IP control and WebGUI.
  • Advanced EDID management, CEC, ARC.
  • HDCP 2.2 compliant.
  • 100-240V AC @ 50-60Hz Power Supply with 4 plugs (EU, USA, UK, AUS)
  • Compatible with VEO-XRT44 HDBaseT receiver.

Video Perfomances

  • Video Input Connectors : HDMI® Type A Female,18 Gbps
  • Video Output Connectors: HDMI® Type A Female, 18 Gbps
  • Video Input Resolutions : Input support 3840x2160/60 YUV444 HDMI
  • Video Output Resolutions: Output support 3840x2160/60 YUV444 HDMI
  • Chroma Subsampling: 4:4:4,4:2:2
  • Colour Depth: 8~12bit
  • Colour Space: RGB, YUV
  • HDCP: Support HDCP1.4/2.
  • HDR: Supports HDR10
  • Video Composing Capabilities: 8 HDMI® inputs, 8 HDBaseT outputs, 8 HDMI® mirror outputs
  • Seamless Switching: No
  • Auto Source Selection: No
  • Screen Mirroring: No
  • HDMI® Distance: 1080P60Hz (YUV444) Input 10 meters/output 15 meters
    4K2K30Hz (YUV444) Input 5 meters/output 10 meters
    4K2K60Hz (YUV444) Input 5 meters/output 3 meters

Audio Performances

  • Audio Formats: PCM2.0, Dolby  autos, DTS-X
  • Sample Rate: 192 KHz
  • Bit Depth: 16 Bit
  • Frequency Response: 20Hz-20KHz (±3dB)
  • ARC/eARC: No
  • Audio De-Embedding: Yes
  • Audio Embedding: Yes

Device Control

  • Control Connectors: RJ-45、Euroblock
  • Control Protocols: Web, Telnet, RS-232, IR

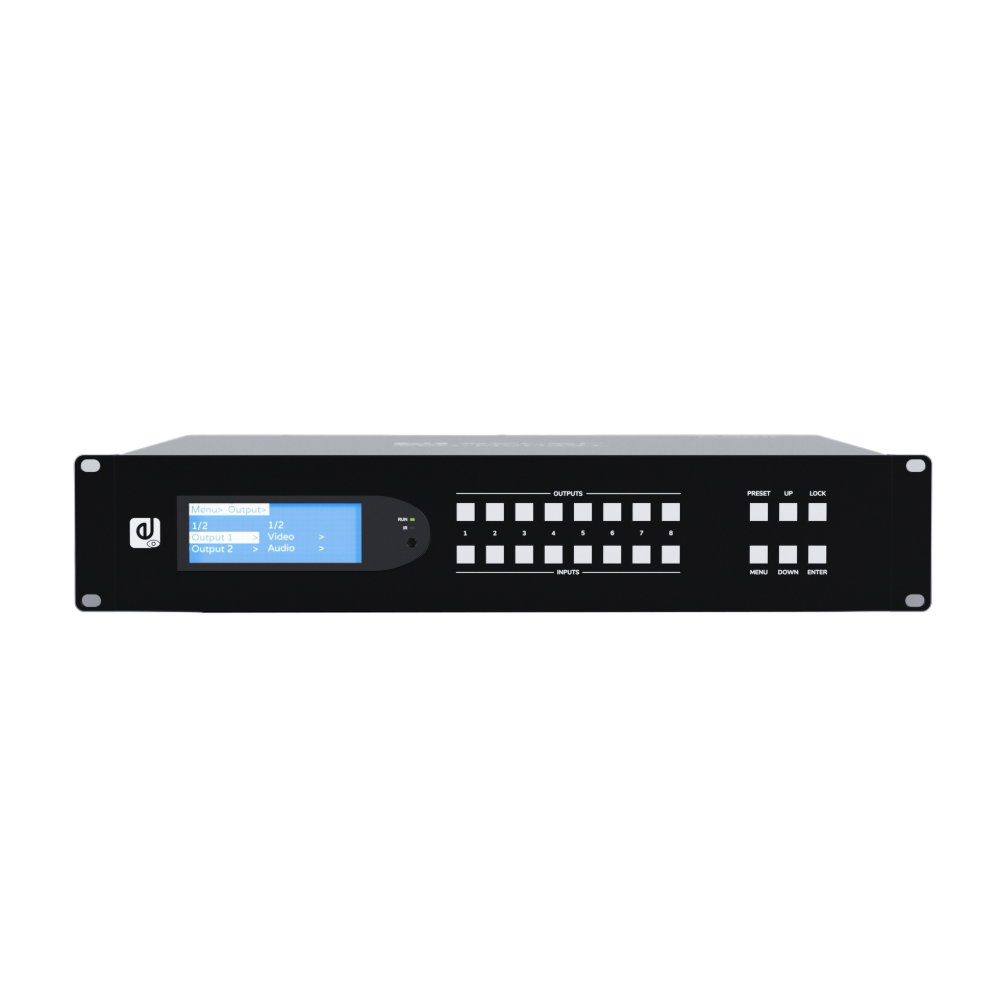

  • Control Buttons: 1xPower ON ,8xinput selection,8xoutput selection,1xpreset,
    1xright,1xleft,1xup, 1xdown,1xlock
  • EDID Management: Software, Pass-through, Auto
  • Status Indicators: 1xpower LED red,1x IR LED yellow,22xbutton LED blue

Pass-Through Control

  • Pass-through Connectors: Euroblock, Jack 3,5mm
  • Pass-through Protocols: RS-232, IR

Electrical

  • Power supply: PoC;  Input 90-264 VAC @ 47-63Hz, Output 1 x 100-240V AC @ 50-60Hz
  • AC mains connector: UK, US, AU , EU power cable plug
  • DC mains connector: Built-in AC to DC power module
  • Power consumption: Built-in 2 AC to DC power module 24Vx2.4A, the maximum output power of 216W

Physical

  • Operating temperature: Min. -5°C;  23°F
    Max. 40°C; 104°F
  • Operating humidity: <85% HR
  • Installation options: 2U chassis hanging ear or desktop display
  • Included accessories: UK, US, AU , EU cable
  • Dimensions: 482.6 x 88 x 394mm / 19 x 3.46 x 15.51 in. (WxHxD)
  • Weight: 8.3 Kg / 18.30 lb
  • Shipping dimensions: 530 x 190 x 570mm / 20.87 x 7.48 x 22.44in. (WxHxD)
  • Shipping weight: 10.9 Kg / 24.03 lb
  • Chassis material: Metal
  • Finished colour: Black
