CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp

SKU: CYP084

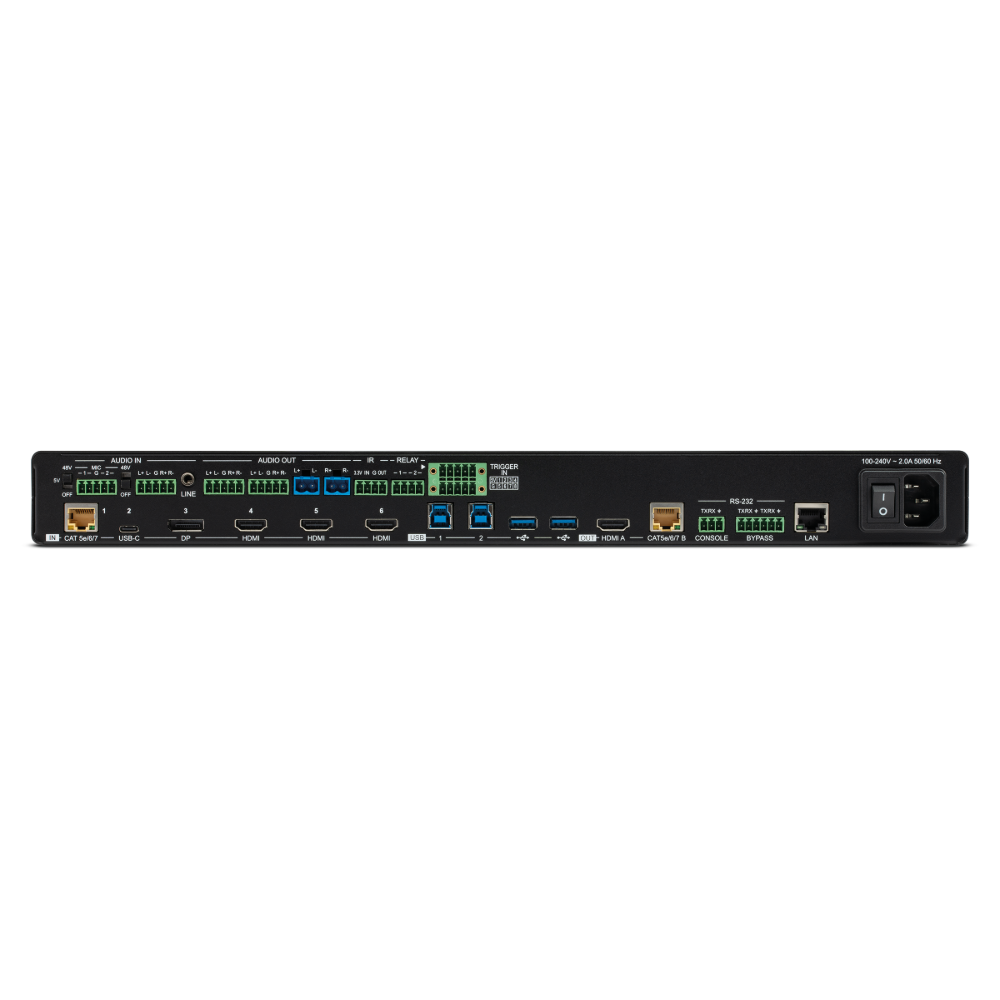

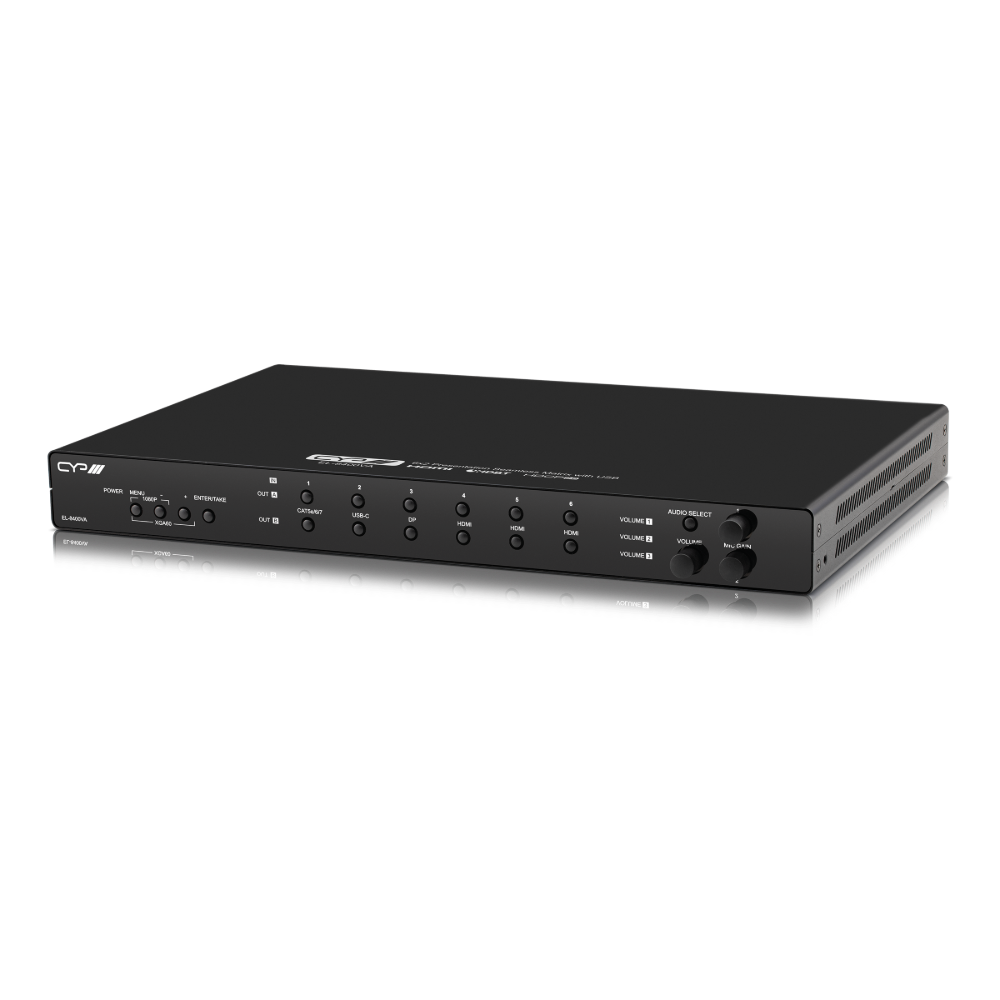

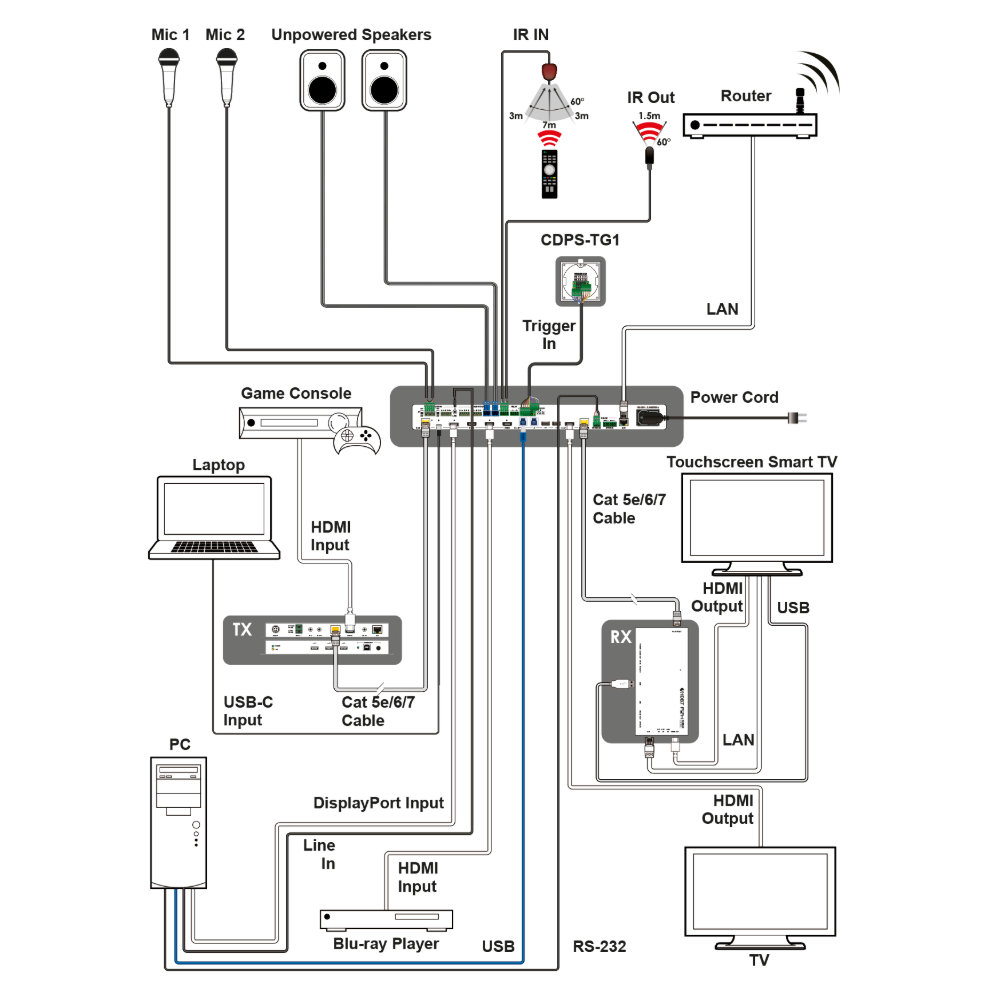

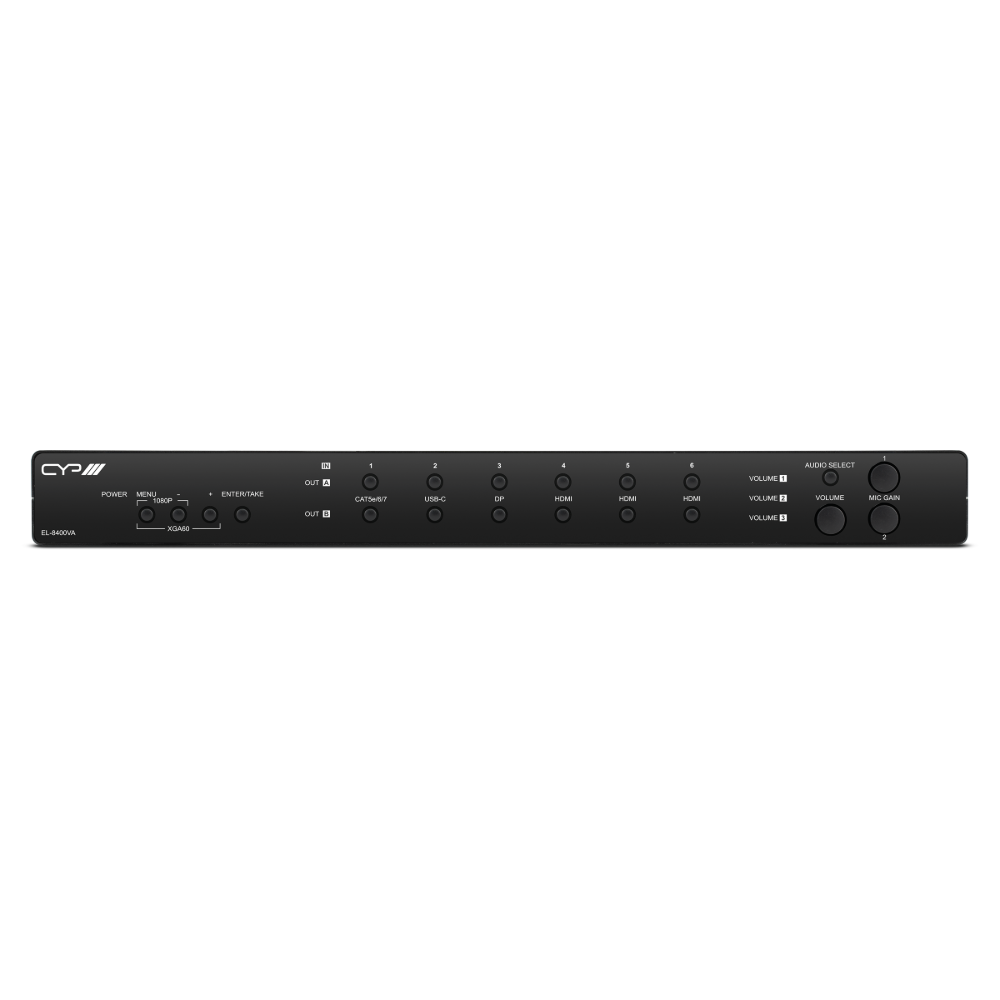

CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp - Image 1
CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp - Image 2
CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp - Image 3
CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp - Image 4
Click to enlarge

    £2,199.00 inc VAT
    £1,832.50 ex VAT

    1 in stock

    1 available online
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    A seamless 6×2 presentation matrix built around HDBaseT 2.0, with an HDBaseT input for a remote transmitter and an HDBaseT output for the display, both able to supply 48V PoH to compatible units. Local inputs are three HDMI, DisplayPort and USB-C (up to 60W charging), and USB hosts can switch automatically with the selected source. Audio covers two mic inputs with phantom power, auto-gain mixing, five routable outputs and a 20W per channel Class-D amplifier, all powered from mains via IEC.

    6×2
    Seamless matrix
    48V PoH
    HDBaseT in and out
    20W + 20W
    Class-D amp
    100m
    Cat6A at 4K30
    HDBaseT transmitter and receiver sold separatelyCYP recommend the PUV-2606TX transmitter and PUV-2010RX receiver, with the PUV-2608TX as an alternative transmitter and PUV-2200PL-TX/RX for shorter cable runs.
    Features
    Inputs: 3x HDMI, 1x DisplayPort, 1x USB-C, 1x HDBaseT 2.0
    Seamless switching with auto or manual source selection
    HDBaseT 2.0 in and out with Ethernet, IR, RS-232, USB and 48V PoH
    USB-C input provides up to 60W
    2 mic inputs with optional 48V or 5V phantom power
    15 audio sources routable to 5 outputs, mixer with auto-gain
    20W per channel Class-D amplifier
    Control via front panel, OSD, RS-232, Telnet, Web GUI and triggers
    Specifications
    Brand CYP
    Model EL-8400VA
    Video inputs 3x HDMI, 1x DisplayPort, 1x USB-C, 1x RJ45 HDBaseT 2.0
    Video outputs 1x HDMI, 1x RJ45 HDBaseT 2.0
    Audio inputs 2x mic (5-pin Phoenix), 1x stereo (5-pin Phoenix), 1x 3.5mm stereo
    Audio outputs 2x stereo line (5-pin Phoenix), 1x speaker 20W+20W
    Max resolution HDMI, DP, USB-C 4K60 4:4:4; HDBaseT 4K60 4:2:0
    HDMI / DP / HDCP HDMI 2.0, DisplayPort 1.4, HDCP 1.x and 2.2
    HDBaseT distance Cat5e 1080p: 90m input, 70m output; Cat6A 100m at 4K30
    USB 2x USB 3.0 Type-B host; USB-C up to 60W
    Control Front panel, OSD, RS-232, Telnet, Web GUI, 8 triggers
    Power 100-240V AC (IEC)
    Power consumption 156W
    Dimensions (WxHxD) 438 x 44 x 270mm
    Weight 4.1kg

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • Supports standard PoH (PSE) from both HDBaseT input and output to the connected HDBaseT (PD) transmitter and receiver (compatible transmitter/ receiver only)
    • HDBaseT output transmits video and audio over a single Cat.5e cable of 1080p up to 90m/295ft for input and 70m/230ft for output,Cat.6a cable 100m/328ft at 4K@30
    • Supports HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control(Bidirection IR/RS-232/USB pass through)
    • Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers
    • USB Type-C port provides up to 60W of power to connected device
    • High performance and efficient Class-D amplifier (20W per channel)
    • Microphone input supports optional 48V or 5V phantom power
    • 6 video inputs (1×USB-C, 1×HDBaseT, 3×HDMI, 1×DisplayPort) and 2 video outputs(HDMI & HDBaseT)
    • 15 audio sources(10 audio inputs and 5 mixers) can be routed independently to any of the 5 audio outputs
    • Audio mixer function allows the mixing of audio from any 4 LPCM 2.0 audio sources, including the microphone inputs with auto-gain functionality
    • Adjustable gain control for individual audio sources and volume control for any outputs
    • Multiple USB hosts may be connected at once (up to 4 total, between the unit and compatible Tx/Rx) with a single selected host active at a time
    • Supports manual input selection or automatic input selection for video and usb, with hot plug detection and “Last Memory” feature
    • Seamless switching (no loss of sync to display)
    • Comprehensive EDID and HDCP management
    • Trigger Control Keypad support for easy, single-button and function activation (Optional)
    • HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12- bit) sources will be automatically color space converted to fit within the available bandwidth
    • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI)
    • HDBaseT 2.0 compatible
    • HDMI 2.0, DisplayPort 1.4 compliant
    • HDCP 1.x and 2.2 compliant

    Manuals & Downloads

    PDFManuals & Instructions: EL-8400VA_PDF-Manual_v1.00.pdfPDF
    PDFManuals & Instructions: EL-8400VA_Datasheet_v1.pdfPDF
