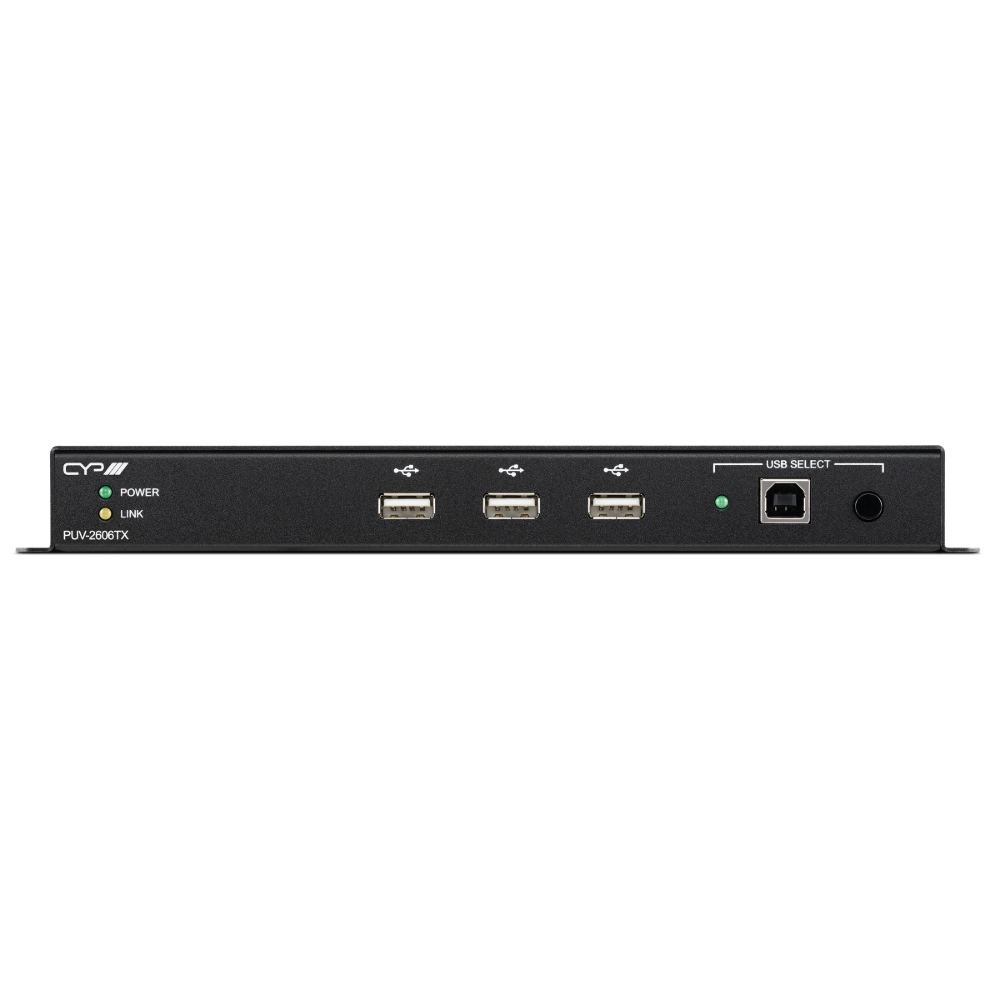

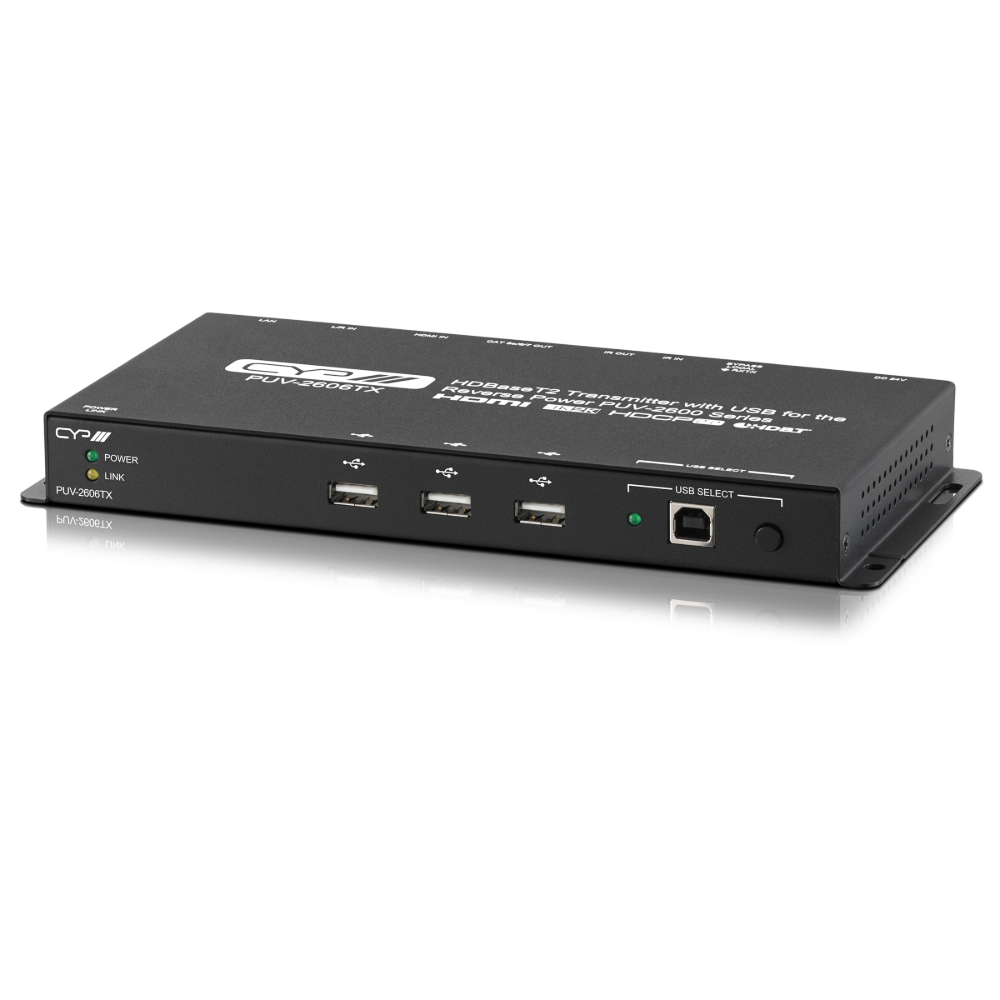

CYP PUV-2606TX HDBaseT 2.0 Transmitter USB for EL-8400VA/PUV-2606RX

Product code: 186188

£443.00 inc VAT
£369.17 ex VAT

SKU: CYP085

1 in stock

1 available online

Optional Add-Ons

CYP EL-8400VA 6x2 Presentation Matrix, HDBaseT 2.0 I/O, USB, 2x20W Amp

£2,199.00 inc VAT
£1,832.50 ex VAT

Add to basket

About this Product

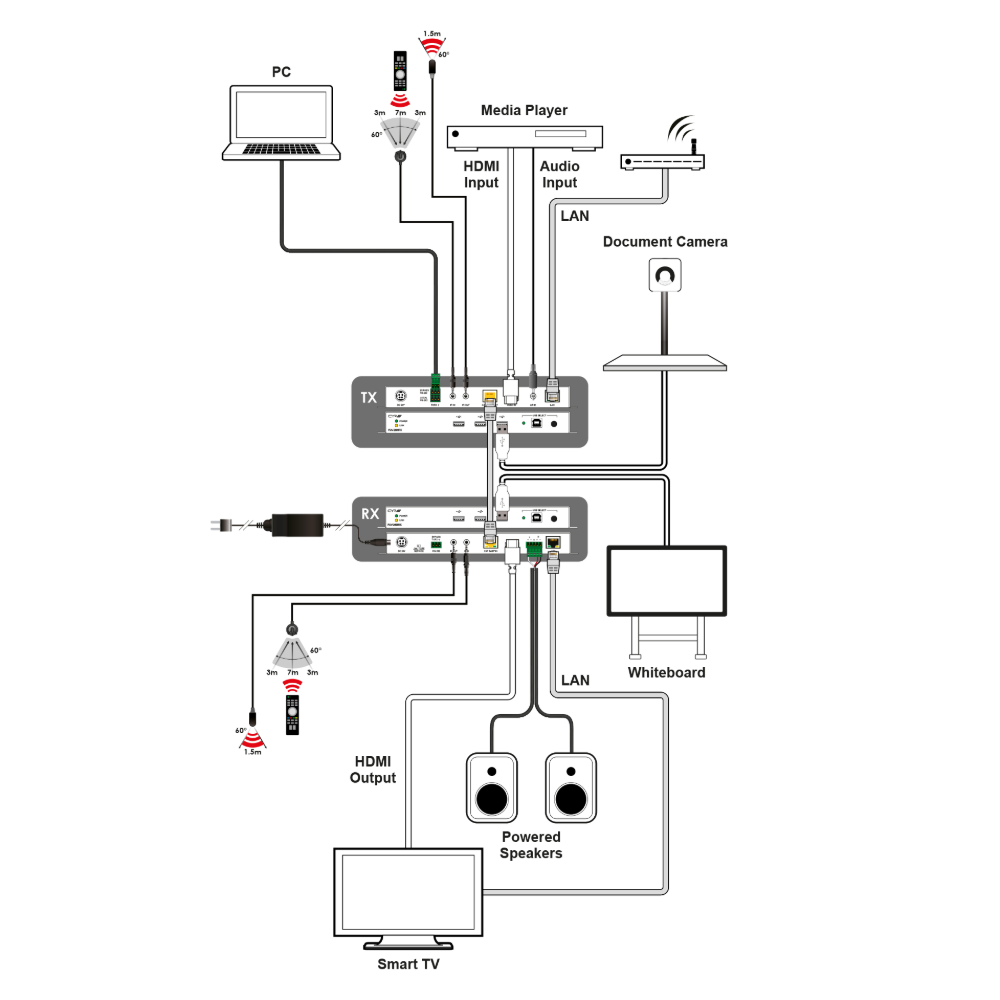

Built for the reverse-power PUV-2600 series, this transmitter can take its power from the far end: the EL-8400VA presentation matrix or a PUV-2606RX receiver supplies PoH, so a source at a lectern or wall plate needs no local socket. It sends HDMI, USB for KVM, Ethernet, IR and RS-232 over one cable up to 100m, and can embed a 3.5mm analogue audio input into the signal. EDID and HDCP management and CEC or RS-232 event automation are set by web GUI, Telnet or RS-232.

100m

Over Cat.6/7

4K60 4:2:0

HDBaseT output

USB

KVM extension

PoH (PD)

Powered from receiver

No power supply in the boxThe package contents list no adaptor. The unit is normally powered by PoH from a compatible receiver (CYP EL-8400VA or PUV-2606RX); a local 24V supply is optional and sold separately.

Features

HDBaseT 2.0 transmitter for the reverse-power PUV-2600 series and EL-8400VA

Accepts up to 4K60 4:4:4 18Gbps HDMI; outputs up to 4K60 4:2:0 over HDBaseT

Sources beyond HDBaseT bandwidth are automatically converted down

USB, Ethernet, IR and RS-232 extension on the same cable

3.5mm analogue audio input can be embedded into the HDMI signal

EDID management and basic event automation via RS-232 or CEC

Control by front panel button, web GUI, Telnet or RS-232

Specifications

CYP PUV-2606TX HDBaseT 2.0 Transmitter USB for EL-8400VA/PUV-2606RX specifications
Brand	CYP
Model	PUV-2606TX

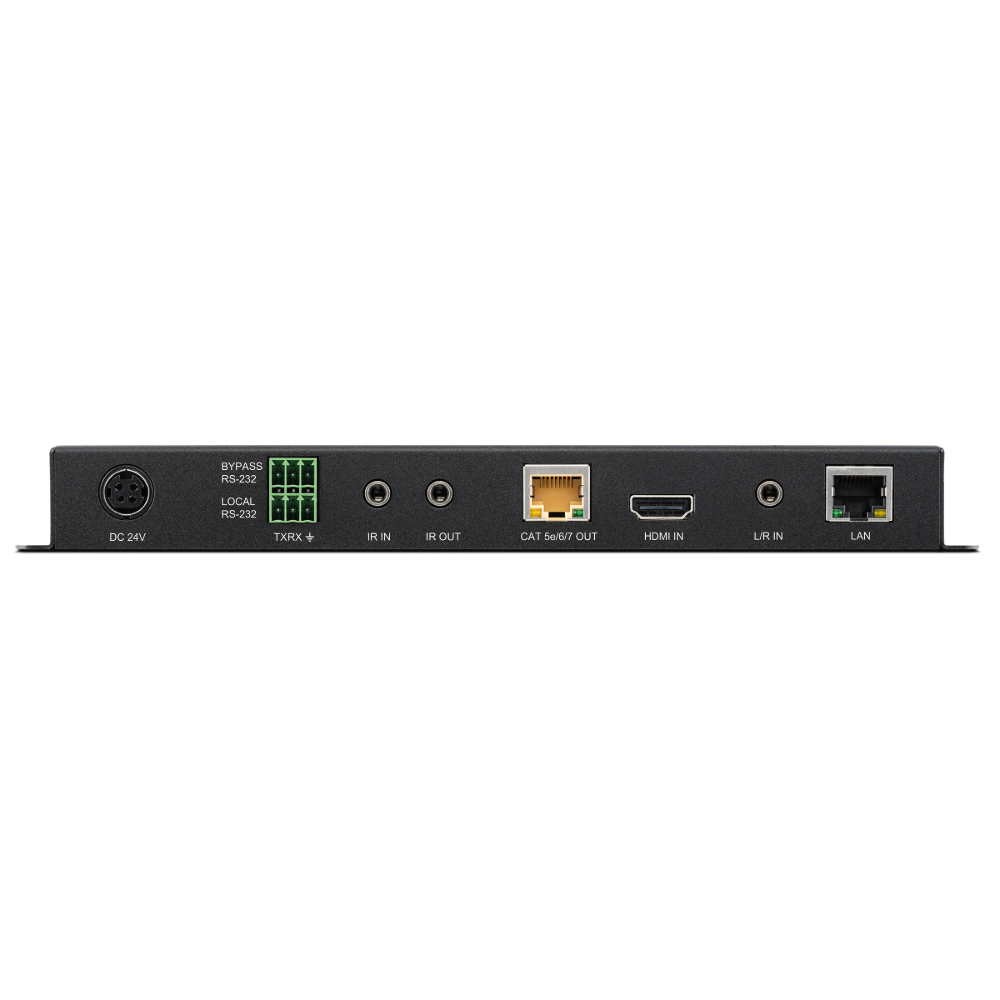

Inputs	1x HDMI, 1x 3.5mm stereo audio, 1x USB Type B, IR in
Outputs	1x HDBaseT (RJ45), 2x USB Type A, IR out
Control	2x RS-232 (3-pin Phoenix), 1x LAN (RJ45)
Max input	4096×2160@60Hz 4:4:4, 18Gbps
HDBaseT output	Up to 4K@60Hz 4:2:0 8-bit
HDMI / HDCP	HDMI 2.0, HDCP 1.x and 2.2
Distance	Up to 100m over Cat.6/7
Power	PoH from compatible receiver, or local 24V DC
Compatible with	EL-8400VA, PUV-2606RX, PUV-2600RX
In the box	Transmitter, IR blaster cable, IR extender cable, shockproof feet, manual
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	660g

Full features

HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
1 HDBaseT output
Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input
Supports Deep Colour input up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic down conversion to 1080p for any sources that exceed HDBaseT’s bandwidth limitations, such as 4K@60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources
Supported HDBaseT feature set: HD Video & Audio, PoH (PD), and Control Extension (Bi-directional IR/RS-232/USB)
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
Analogue audio may be embedded to HDMI input
EDID management with internal or external EDID options
Basic signal event automation (via RS-232 or CEC)
Supports optionally being powered via PoH from a compatible HDBaseT receiver
Controllable via front panel button, WebGUI, Telnet, or RS-232

Inputs: 1 x HDMI [2 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)], 1 x Phoenix (3-pin) [1 x Console port RS-232], 1 x Phoenix (3-pin) [1 x Bypass RS-232], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x RJ45 [1 x IP Control Propriety Data], 1 x USB 3 Type B [1 x USB Power & Data]
Outputs: 1 x RJ45 [1 x HDBaseT HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter], 2 x USB Type A [2 x USB Propriety Data]
POE PSU: PoH
PSU: 24V/3.75A
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 660g
Gross Weight: 960g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: PUV-2606TX_PDF-Manual_RDV3.pdfPDF

Manuals & Instructions: PUV-2606TX_Datasheet_v1.pdfPDF
