CYP EL-8500VA 4K Presentation Switcher, HDBaseT Inputs, 2x20W Amp

Product code: 185786

£1,836.00 inc VAT
£1,530.00 ex VAT

SKU: CYP087

1 in stock

1 available online

Optional Add-Ons

CYP PUV-1610TX HDBaseT Transmitter 100m PoH for EL-8500VA/PUV-1610RX

£261.00 inc VAT
£217.50 ex VAT

Add to basket

CYP PUV-1510RX HDBaseT Receiver 100m for EL-8300VA/EL-8500VA

£222.00 inc VAT
£185.00 ex VAT

Add to basket

About this Product

Where the EL-8300VA has DisplayPort and five HDMI inputs, this model has two HDBaseT inputs for sources at the far end of a Cat cable, alongside four HDMI, two VGA and one USB-C input. Every input is scaled to a chosen resolution on mirrored HDMI and HDBaseT outputs, and the HDBaseT output reaches 70m at 4K or 100m at 1080p while supplying 48V PoH. A mic and line mixer, 2x20W amplifier and trigger input cover classroom and lecture theatre needs.

2x HDBaseT

Remote inputs

4K60 4:4:4

HDMI in and out

70m

HDBaseT at 4K

2x20W

Amplifier

HDBaseT endpoints sold separatelyThe HDBaseT inputs and output need compatible units. CYP list the PUV-1610TX for the inputs and the PUV-1510RX or PUV-1530RX for the output.

Features

4x HDMI, 2x HDBaseT, 2x VGA and 1x USB-C inputs

Scaling to mirrored HDMI and HDBaseT outputs

HDBaseT output to 100m at 1080p, 70m at 4K, with 48V PoH

Auto down-conversion of 4K60 4:4:4 to 4:2:0 for HDBaseT

Mixer combines any analogue input with the mic

Built-in 2x20W amplifier

Trigger input for single-button keypad functions

Control via front panel, OSD, Web GUI, Telnet and RS-232

Specifications

CYP EL-8500VA 4K Presentation Switcher, HDBaseT Inputs, 2x20W Amp specifications
Brand	CYP
Model	EL-8500VA
Video inputs	4x HDMI, 2x RJ45 HDBaseT, 2x VGA, 1x USB-C
Video outputs	1x HDMI, 1x RJ45 HDBaseT (mirrored)
Audio inputs	6x 3.5mm stereo, 1x 6.35mm mic
Audio outputs	2x 3.5mm stereo
Max input	HDMI, USB-C 4096×2160@60; HDBaseT 4096×2160@30; VGA 1920×1200@60RB
Max output	HDMI 4096×2160@60; HDBaseT 4096×2160@30
HDMI / HDCP	HDMI 2.0 / HDCP 2.2
HDBaseT distance	100m at 1080p, 70m at 4K (Cat5e/6/7)
PoH	48V from HDBaseT output
Control	Front panel, OSD, Web GUI, Telnet, RS-232, triggers
Power	24V/6.25A locking
Dimensions (WxHxD)	432 x 43 x 174mm
Weight	2.6kg

Full features

Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Audio mixer function allows the mixing of audio from any analogue input with the microphone input
Built in 2 x 20 watts audio amplifier
Trigger Control Keypad support for easy, single-button, function activation (Optional)
Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT receiver (PD) (compatible receivers only)
Comprehensive EDID and HDCP management (HDCP 2.2)

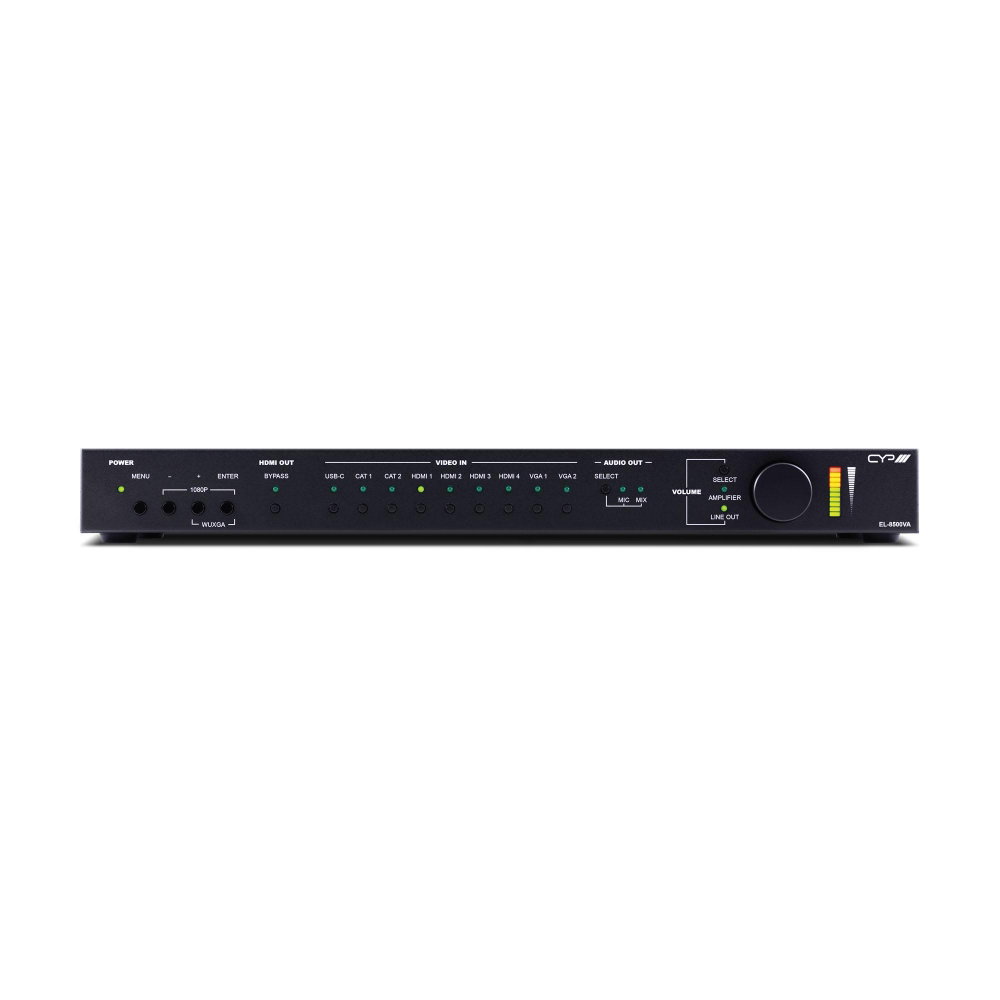

Controllable via front panel controls with OSD, RS-232, Telnet, Web GUI, and triggers
USB for service/firmware updates

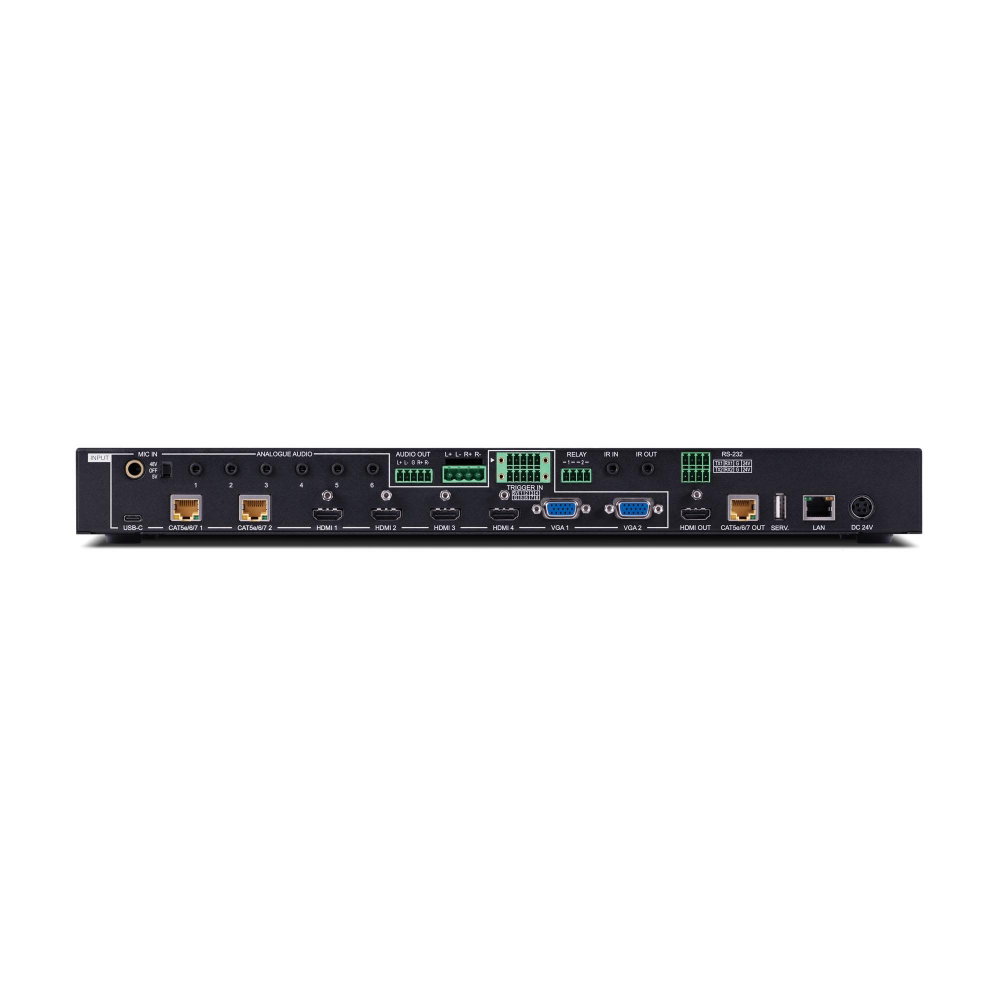

Inputs: 4 x HDMI [4 x HDMI Uncompressed AV and Data], 2 x RJ45 [2 x HDBaseT HDMI & Propriety Data], 2 x 15pin Dsub [2 x VGA RGBHV], 1 x 6.35mm Stereo Jack [1 x Microphone], 6 x 3.5mm Stereo mini-jack [6 x Stereo (L/R)], 1 x Phoenix (10-pin) [1 x Trigger In (8)], 1 x 9pin Dsub [1 x RS-232 Control RS-232 Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x RJ45 [1 x Control IP], 1 x USB-C [1 x USB-C / Thunderbolt]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x RJ45 [1 x HDBaseT HDMI & Propriety Data], 2 x 3.5mm Stereo mini-jack [2 x Stereo (L/R)], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter]
POE PSU: PoH
PSU: 24V/6.25A
Dimensions (H x W x D): 43 x 432 x 174mm
Net Weight: 2.6kg
Gross Weight: 4.24kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: EL-8500VA_PDF-Manual_v1.01.pdfPDF

Manuals & Instructions: EL-8500VA_Datasheet_v1.pdfPDF
