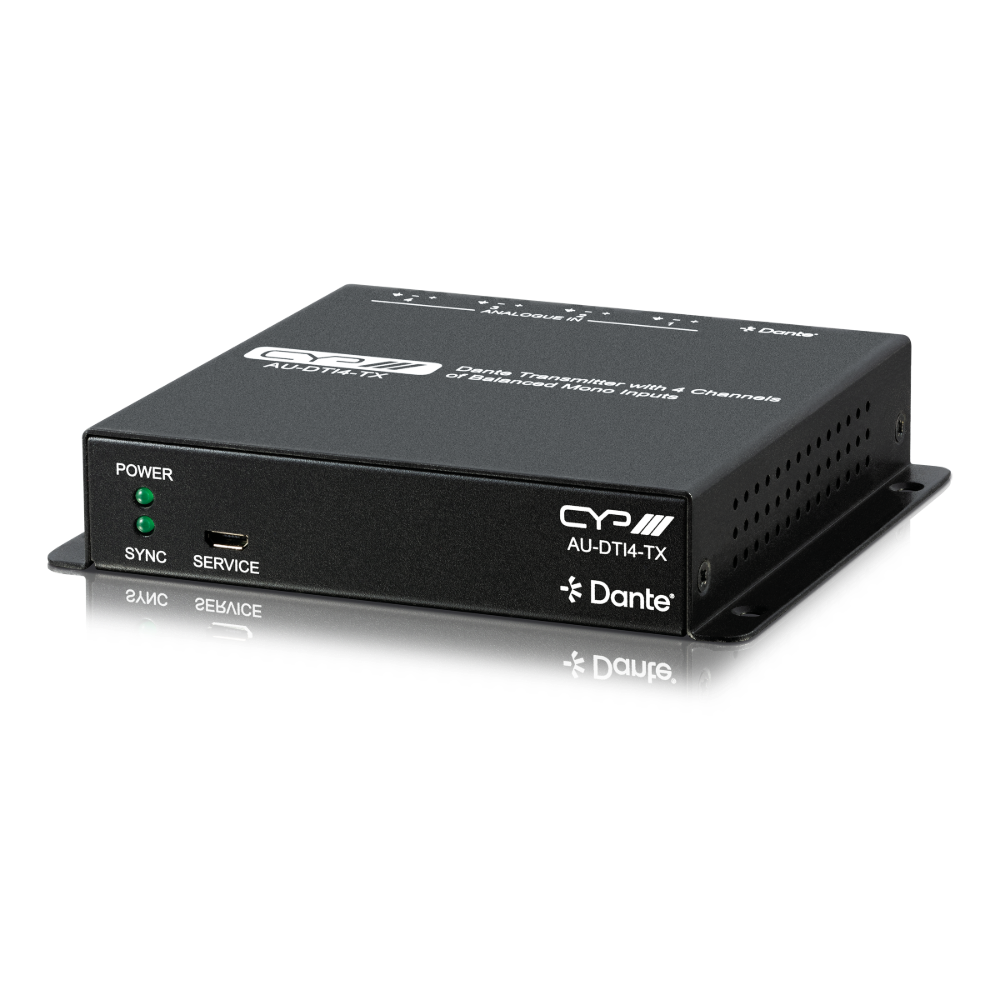

CYP AU-DTI4-TX Dante Transmitter, 4 Balanced Mono Inputs, PoE

Product code: 185869

£256.00 inc VAT
£213.33 ex VAT

SKU: CYP030

6 in stock

6 available online

About this Product

The AU-DTI4-TX puts four analogue audio channels onto a Dante network from a single PoE-powered box. Each balanced input on a 3-pin terminal block has adjustable pre-gain, a mute and switchable phantom power (off, 5V or 48V), so microphones and line sources can both be connected. It suits adding local inputs at a lectern, meeting room or stage position where one Cat5e or Cat6 run to the switch replaces analogue multicore.

Balanced inputs

48V

Phantom power

PoE

802.3af power

~1ms

Typical latency

PoE switch and Dante software neededThe AU-DTI4-TX is powered only by PoE (802.3af) from the network switch, with no local power input listed. Basic setup needs a serial over USB connection, and audio routing is done in third-party Dante control software.

Features

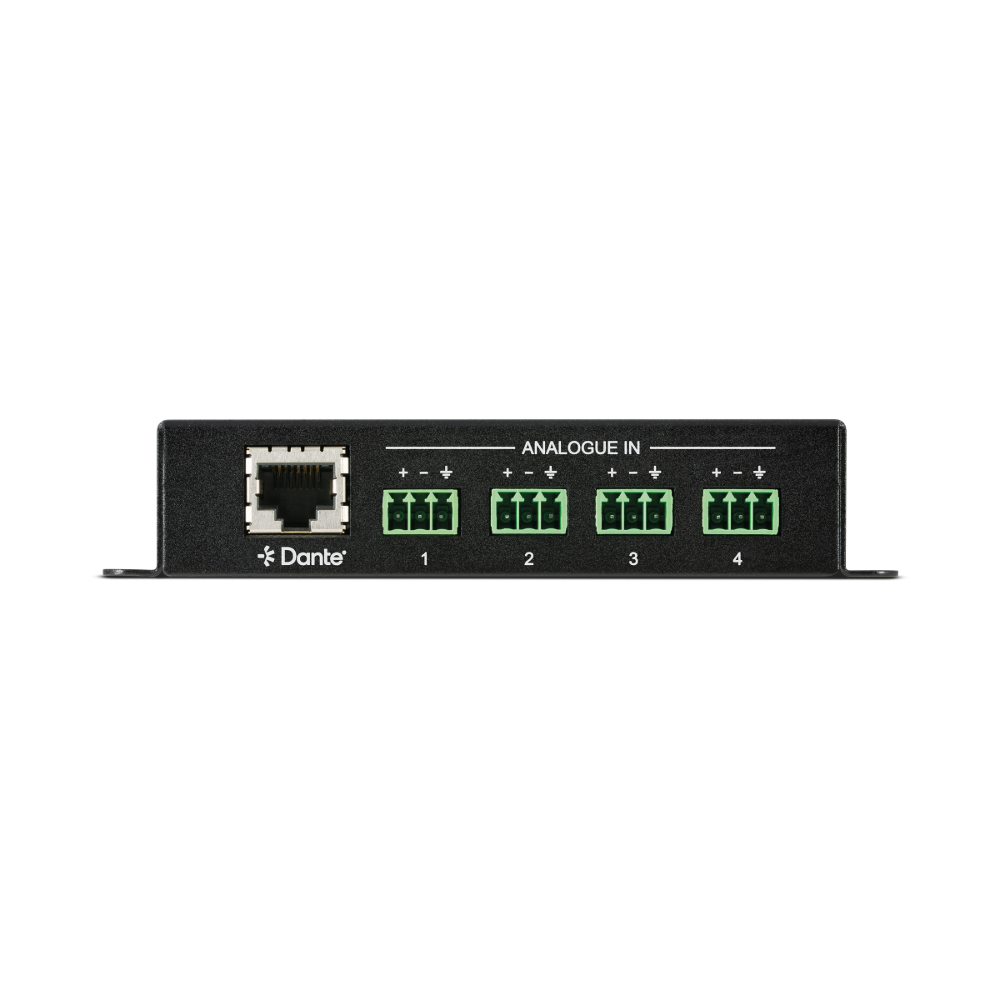

Four balanced analogue mono inputs on 3-pin terminal blocks

Adjustable pre-gain and mute on every input

Phantom power per input: off, 5V or 48V

Dante output on a standard RJ45 network port

Low latency, typically around 1ms

Setup via serial over USB, routing via Dante control software

Specifications

CYP AU-DTI4-TX Dante Transmitter, 4 Balanced Mono Inputs, PoE specifications
Brand	CYP
Model	AU-DTI4-TX
Inputs	4x balanced analogue mono (3-pin terminal block)
Network	1x RJ45 Dante
Service port	USB Micro
Max input level	4Vrms
Input impedance	42.3kΩ
Phantom power	Off, 5V or 48V
Latency	Typically around 1ms
Power	PoE (802.3af)
Power consumption	6W
Chassis	Aluminium, black
Dimensions	128 x 25 x 108mm (W x H x D)
Weight	360g

Full features

Standard Dante CAT output
4 configurable mono audio inputs
Adjustable Pre-Gain for all inputs
Optional Phantom Power (off, 5v, 48v) for all inputs
Channel Mutes
High quality ADC functionality with very low latency
Compatible with any Dante audio network
Powered directly by PoE (802.3af) provided by the network switch or router connected to the Dante port
Configuration requires Serial over USB connection
Simple network audio routing performed via 3rd party control software which is available for both Windows and macOS systems

Inputs: 4 x Phoenix (3-pin) [4 x Balanced Analogue Mono Audio], 1 x USB Micro [1 x Service Port Propriety Data]
Outputs: 1 x RJ45 [1 x Dante IP]
PSU: PoE
Dimensions (H x W x D): 25 x 128 x 108mm
Net Weight: 360g
Gross Weight: 540g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: AU-DTI4-TX_PDF-Manual_v1.00-1.pdfPDF

Manuals & Instructions: AU-DTI4-TX_Datasheet_v3.pdfPDF
