Tascam ML-4D/OUT-E 4-Channel Dante - Analogue Converter - Euroblock Outputs, DSP, PoE

Product code: 179614

£480.00 inc VAT
£400.00 ex VAT

SKU: ML-4D-OUT-E

2 in stock (more available subject to additional lead time)

2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

A half-rack Dante output converter turning four Dante channels into four balanced line outputs on Euroblock connectors, with four channels of Dante output as well so sources within the network can be picked up and re-sent. Part of the Dante Compact Processor Series, its distinguishing feature is the onboard DSP, mixing, EQ, dynamics, auto-ducking and ambient noise compensation, which lets a small system run without a separate processor. PoE powered.

4
Analogue outputs

Euroblock
Connector type

DSP
Onboard processing

PoE
Power over Ethernet

A complete small system without a DSP boxBecause each Dante Compact Processor unit carries its own DSP, mixer, EQ, limiter, delay, ducking, routing and noise compensation, a meeting room or small install can go from microphone to powered speaker without a separate processor in the chain. Configuration uses Tascam DCP Connect; end users get the simpler EZ Connect app. Both are included, for Mac, Windows, iOS and Android.
Euroblock, not XLRThis is the Euroblock (-E) variant. If your install needs XLR analogue outputs, specify the ML-4D/OUT-X instead, the units are otherwise equivalent.

Features

Converts four Dante inputs to four analogue line outputs
Four-channel Dante output as well
Euroblock connectors for analogue outputs
Onboard DSP processor
Mixing, EQ and dynamic processing
Auto-ducking, plus delay and limiter on each output
Routing and ambient noise compensation
Dante/AES67 network compatible
Tascam DCP Connect configuration software included
Tascam EZ Connect end-user app included
Mac, Windows, iOS and Android software support
Output level control via GPI
PoE powered, or optional AC adapter
Power daisy-chaining between two side-by-side units
Compact half-rack size

Specifications

Tascam ML-4D/OUT-E 4-Channel Dante – Analogue Converter – Euroblock Outputs, DSP, PoE specifications
Type Dante, analogue output converter with DSP
Series Tascam Dante Compact Processor Series
Analogue outputs 4 x line level on Euroblock
Dante outputs 4 channels
Network Dante / AES67
DSP functions Matrix mixer, 10-band EQ, delay, limiter, polarity, ducking, routing, ambient noise compensation
Control software Tascam DCP Connect and EZ Connect, Mac, Windows, iOS, Android
External control GPI output level control
Power PoE, or optional AC adapter
Power daisy-chain Two side-by-side units from one AC adapter
Chassis Half-rack size
Variant -E = Euroblock outputs (ML-4D/OUT-X is the XLR version)

Full features

Hardware features

  • Four balanced line outputs
  • Two product variants:
    • ML-4D/OUT-E: Equipped with Euroblock connectors for permanent installation
    • ML-4D/OUT-X: Equipped with XLR connectors for touring and other more flexible applications
  • Dante interface allows audio signals to be transferred over an Ethernet network
    • Two LAN connectors for Dante daisy-chaining
    • Flexible routing with “Dante Controller” software
    • AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
  • Up to 96 kHz sampling rate and 24 bit resolution

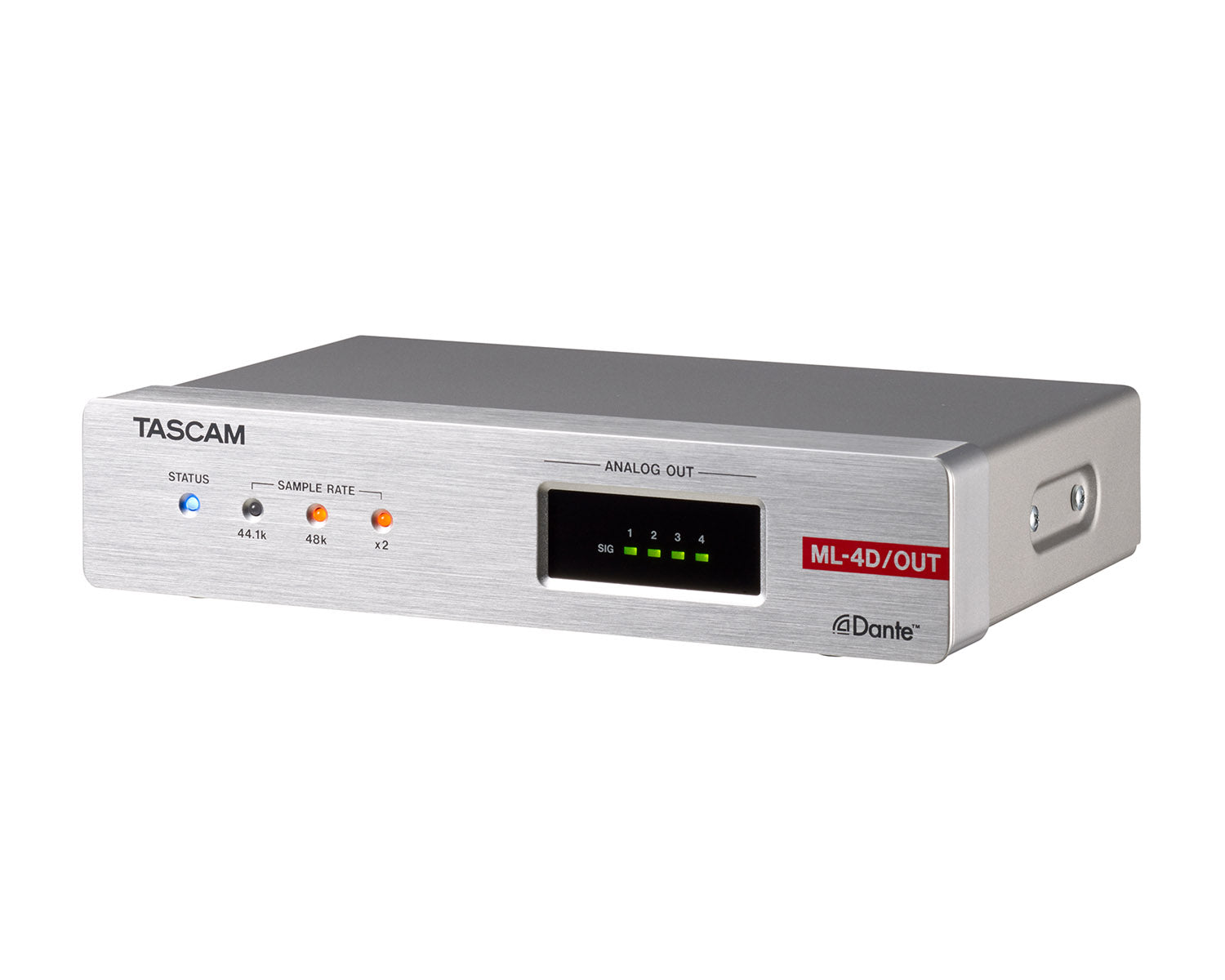

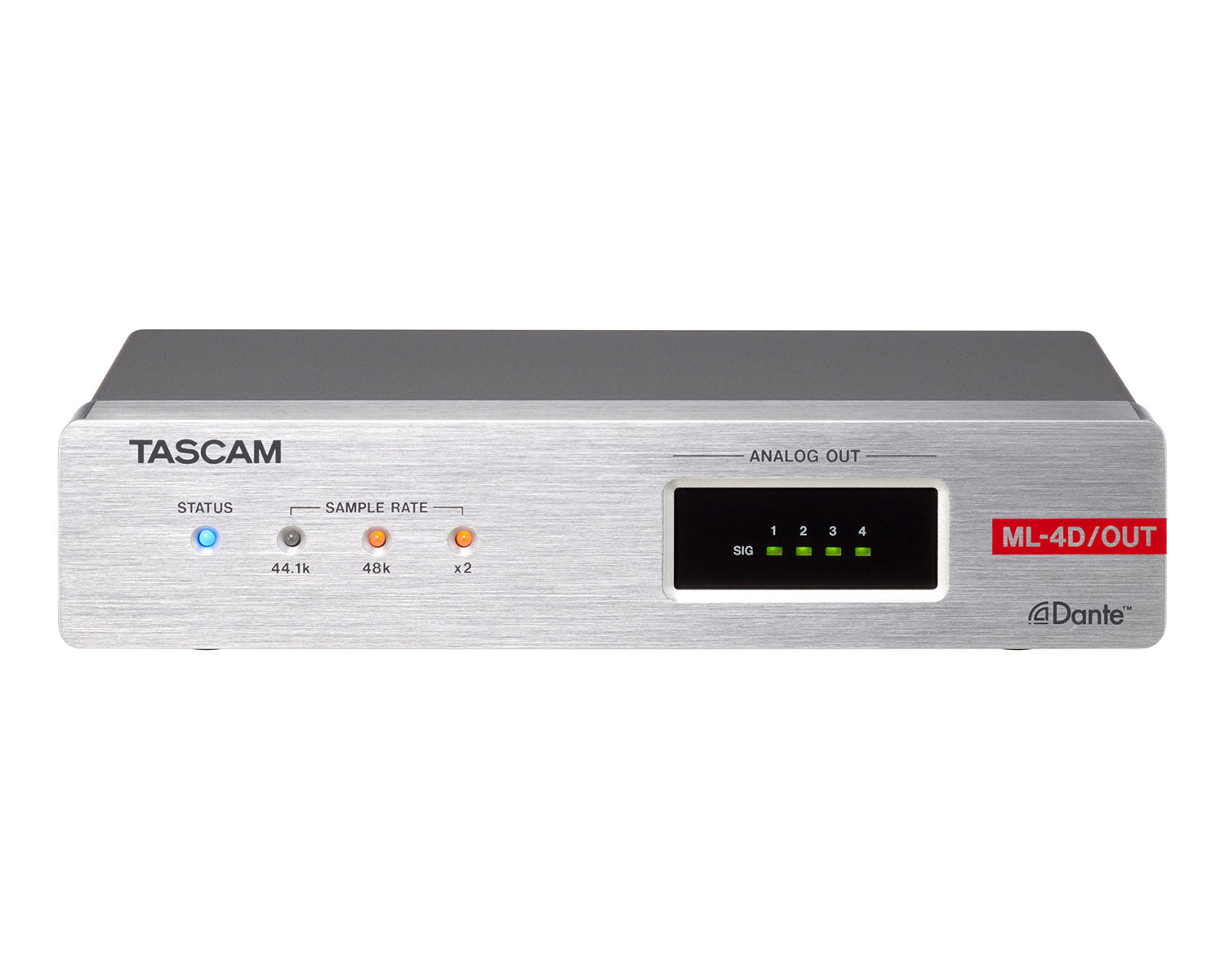

  • Front-panel indicators for operation status and current sample rate
  • Signal indicators for analogue output signals
  • Output levels can be controlled by GPI (ML-4D/OUT-E only)
  • Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
  • Power daisy-chaining allows two units to be supplied from one AC adapter
  • Half-rack size chassis (1U)
  • Attachment brackets included for mounting the unit under a table top, for example

Software features

  • Four Dante audio input and output channels
  • Powerful DSP mixer
    • Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
    • Output features: 10-band equalizer, delay, mute, fader, limiter, polarity
  • Up to 50 scene presets can be saved
  • Timer event function allows presets to be switched at specific times (planned for a future update)
  • Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments
  • Two types of control software available (compatible with Windows/Mac/iOS/Android devices):
    • Tascam DCP Connect for system integrators offers full access to virtually all settings
    • Tascam EZ Connect for end-users is a simple app for only the most necessary settings

Full specifications

General

  • Number of channels and formats: 4 channels, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bit

Audio outputs

  • Analogue outputs (ANALOG OUT):
    • ML-4D/OUT-E: Balanced Euroblock connectors, 3.81 mm pitch
    • ML-4D/OUT-X: XLR connectors
    • (XLR-3-32, 1: GND, 2: HOT, 3: COLD)
  • Nominal output level:
    • +4 dBu (Ref(D) ≠ –9 dBFS)
    • +6 dBu (Ref(D) = −9 dBFS)
  • Maximum output level (selectable):
    • +15 dBu (Ref(D): –9 dBFS)
    • +18 dBu (Ref(D): –14 dBFS)
    • +20 dBu (Ref(D): –16 dBFS)
    • +22 dBu (Ref(D): –18 dBFS)
    • +24 dBu (Ref(D): –20 dBFS)
  • Output impedance: ≤200 Ω
  • Note: 0 dBu equals 0.775 Vrms

Other inputs and outputs

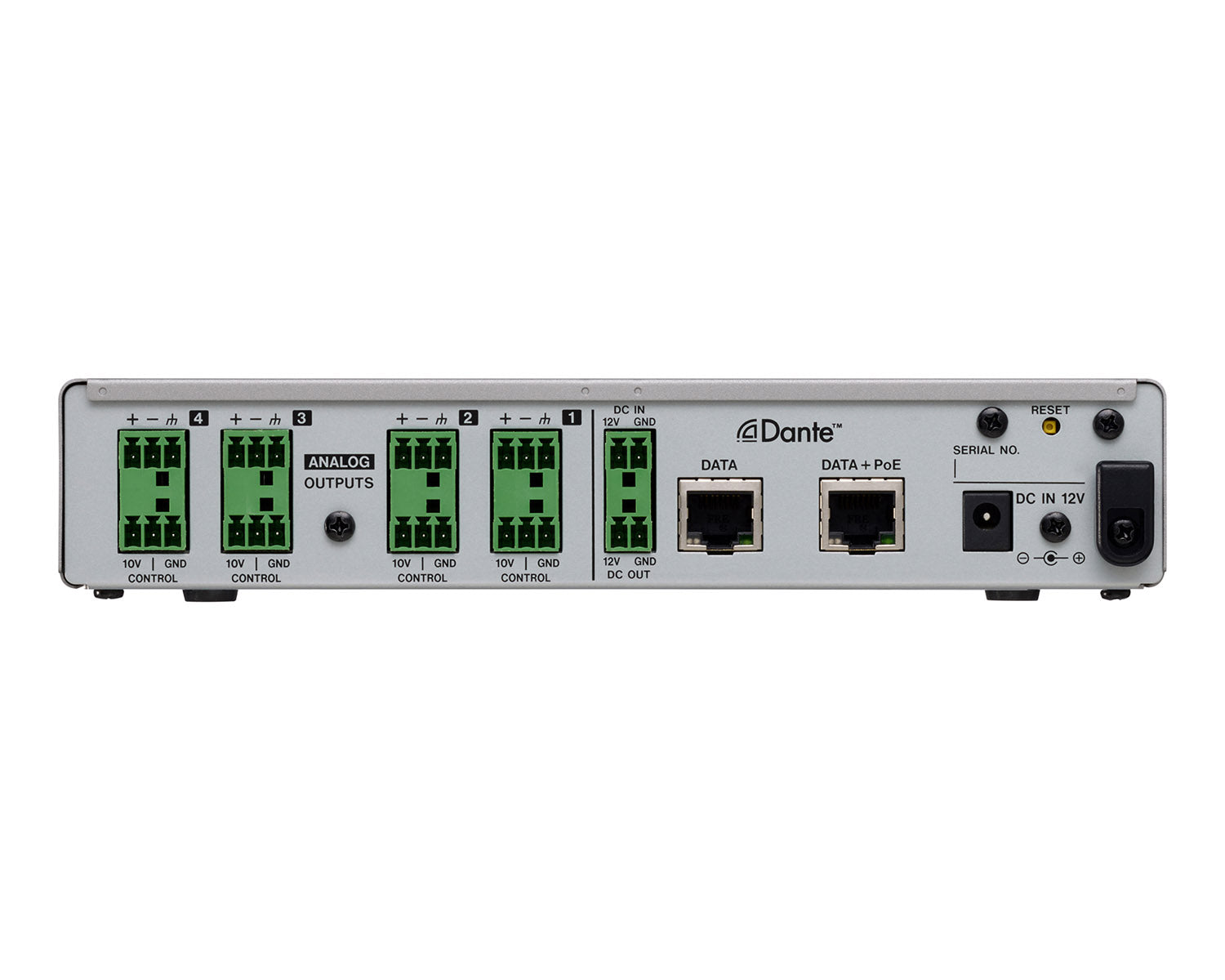

  • Dante/Ethernet connectors (DATA/DATA+PoE): RJ-45
    • Transmission protocol: Dante
    • Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
    • Cable requirements: Cat 5e or better STP cables
  • Output level control (10V/CONTROL/GND, ML-4D/OUT-E only):
    • Balanced Euroblock connectors, 3.81 mm pitch
    • Connect a variable resistor here (10 kΩ recommended)

Audio performance

  • Dante input to Line output
    • Frequency response:
      • 20 Hz – 20 kHz, ±0.5 % (sampling frequency 44,1/48 kHz, JEITA)
      • 20 Hz – 40 kHz, ±0.5 % (sampling frequency 88,2/96 kHz, JEITA)
    • Distortion (THD+N): ≤0.005 %
      • (−1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
    • S/N ratio: 108 dB
      • (44.1/48/88.2/96 kHz sampling frequency, JEITA)
    • Crosstalk: ≥100 dB
      • (44.1/48/88.2/96 kHz sampling frequency, JEITA)
    • Dynamic range: 108 dB
      • (44.1/48/88.2/96 kHz sampling frequency, JEITA)
  • Note: JEITA indicates compliance with JEITA CP-2150

Power supply and other specifications

  • Power supply: PoE class 0
  • Tascam PS-P1220E AC adapter (sold separately)
  • Power consumption: 7.5 W
  • Dimensions (W × H × D): 214 mm × 45 mm × 136 mm (including protrusions)
  • Weight: 885 g
  • Permissible operating temperature range: 0–40 ºC
