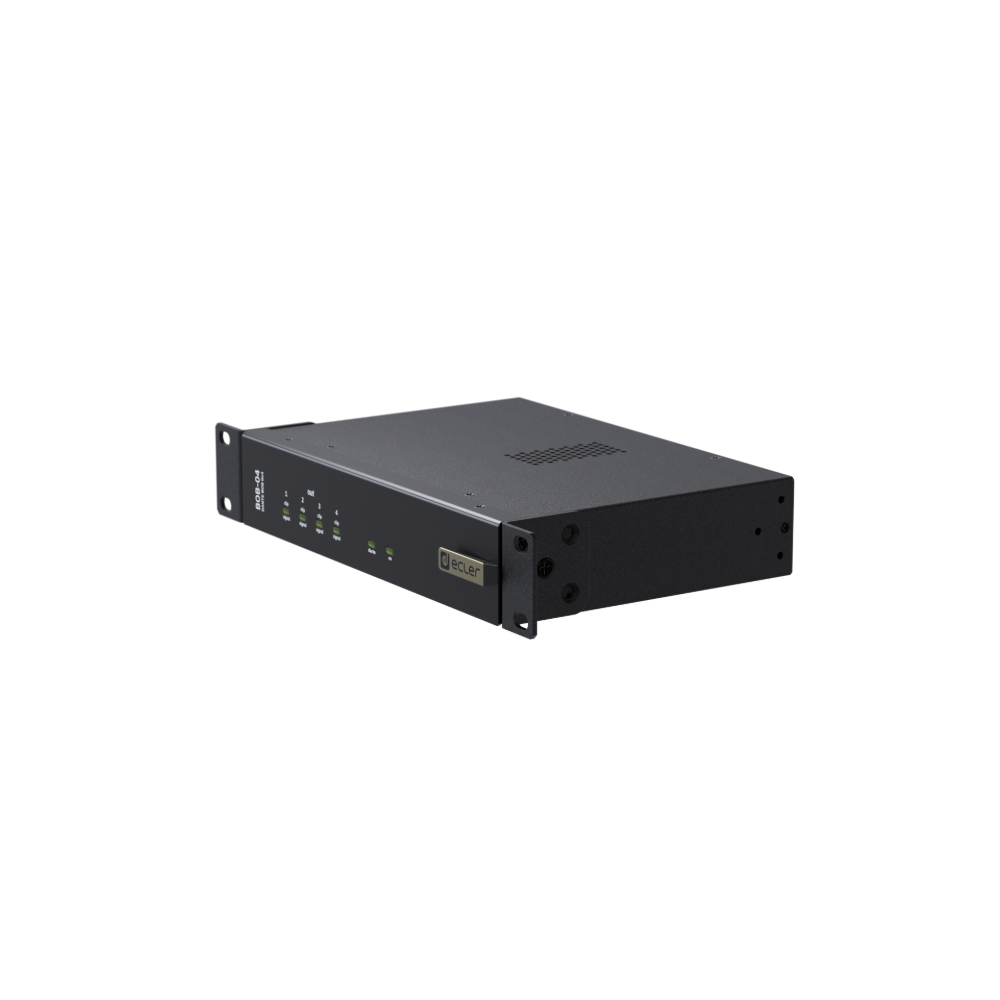

The Ecler BOB-04 is a compact Dante/AES67 break-out box that turns 4 network audio channels into 4 balanced analogue line outputs. It is powered by PoE and can sit on a desk or, with the supplied bracket, in half a 1U rack space. It is used to feed amplifiers or powered speakers from a Dante system in hotels, conference rooms, retail, places of worship and venues.
0 x 4
Dante to analogue
PoE
Powered
24-bit
48 kHz
Half 1U
Rack width
Dante deviceA generic Dante/AES67 device configured with Dante Controller. It works with Ecler and third-party Dante equipment but is not a native EclerNet or EclerPLEX unit. Power is by PoE or an optional 24V DC supply (sold separately).
Features
Receives 4 Dante/AES67 channels (2 flows)

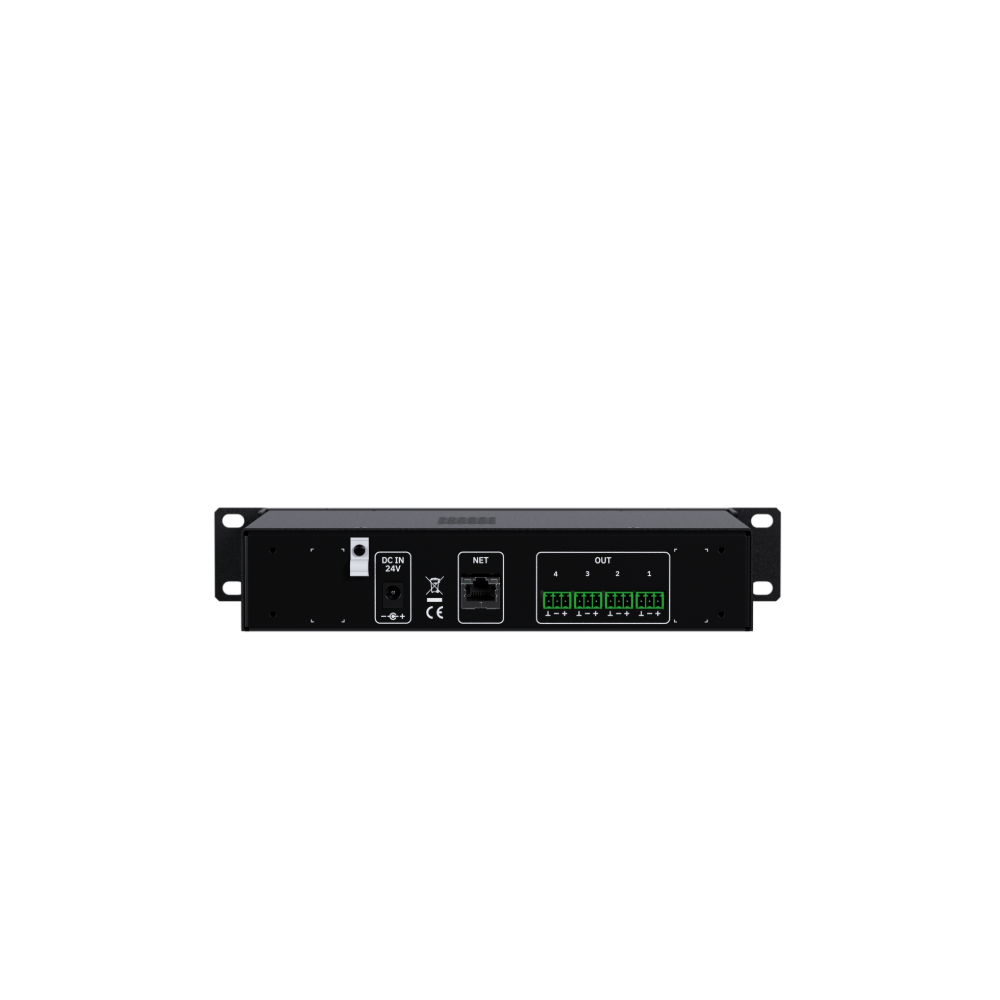

4 balanced line outputs on Euroblock
Selectable latency of 1, 2 or 5 ms
PoE (802.3af class 0) powered
Half-rack front bracket included
Specifications
| Outputs | 4 line, 3-pin Euroblock, balanced |
| Maximum output level | +18 dBV (+20 dBu) |
| Output impedance | 316 ohm |
| Converters | 24-bit, 48 kHz; dynamic range 115 dB typical |
| Frequency response | 0 to 20 kHz |
| Crosstalk | better than 95 dB |
| Network | 1x RJ-45, Dante/AES67, 2 flows |
| Power | PoE 802.3af class 0, or 24V DC external supply (sold separately); 7W |
| Dimensions (W x H x D) | 266.1 x 44 x 156.2 mm |
| Weight | 1.1 kg |
