CYP PUV-1210PL-KIT HDBaseT Lite HDMI Extender Kit 60m 4K PoH

Product code: 185969

£366.00 inc VAT
£305.00 ex VAT

SKU: CYP051

5 in stock

5 available online

About this Product

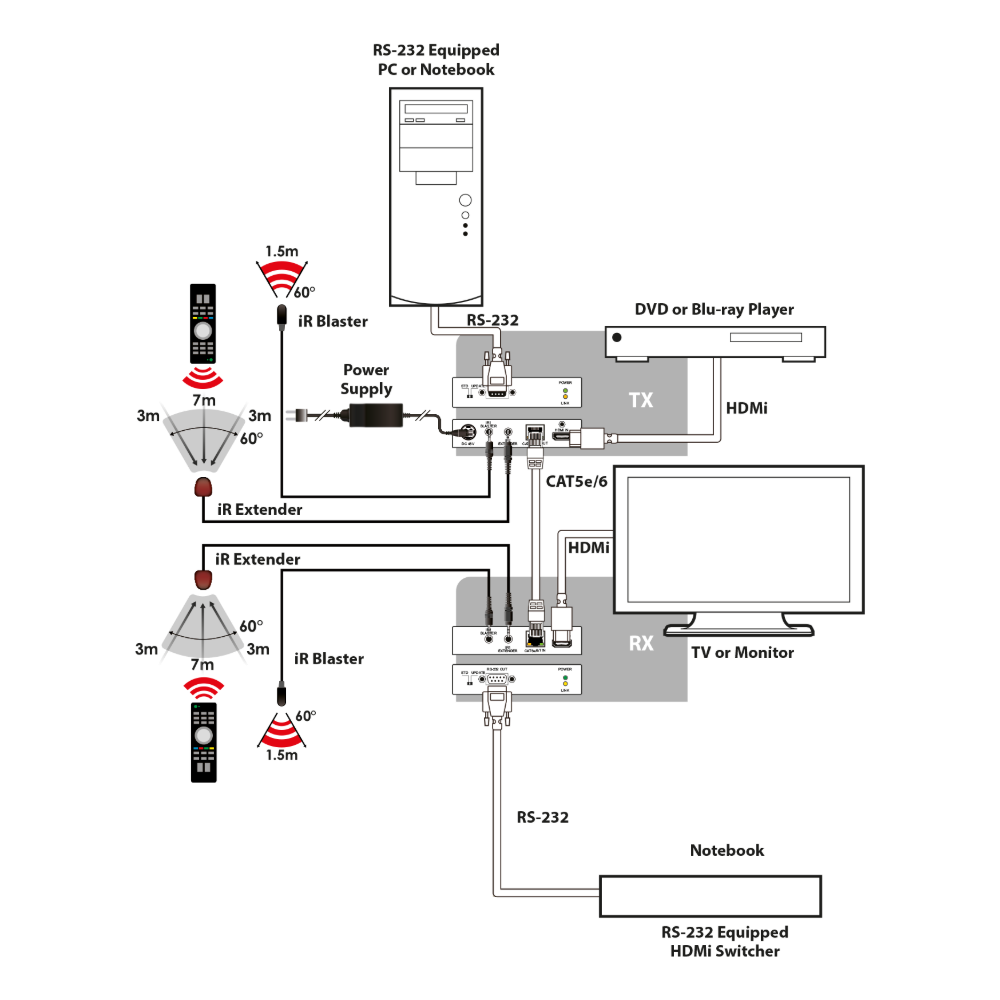

This HDBaseT Lite kit sends HDMI, HD audio, two-way IR and RS-232 down one CAT cable, with the transmitter powering the receiver by PoH. At 4K it reaches 35m over CAT5e/6 or 60m over CAT6a/7. It is the matching pair for CYP’s PUV-1210PL series, often used for a single display in a lounge, bar or classroom.

60m

4K over CAT6a/7

35m

4K over CAT5e/6

PoH

Receiver powered by TX

HDCP 2.2

Compliant

Features

HDMI, HD audio, PoH and two-way IR and RS-232 over one CAT cable

4K up to 35m over CAT5e/6 or 60m over CAT6a/7

Receiver powered from the transmitter by PoH

HDCP 2.2, HDCP repeating and CEC support

Passes Dolby Atmos, Dolby TrueHD and DTS-HD Master Audio

RS-232 on 9-pin D-sub at both ends

Specifications

CYP PUV-1210PL-KIT HDBaseT Lite HDMI Extender Kit 60m 4K PoH specifications
Brand	CYP
Model	PUV-1210PL-KIT

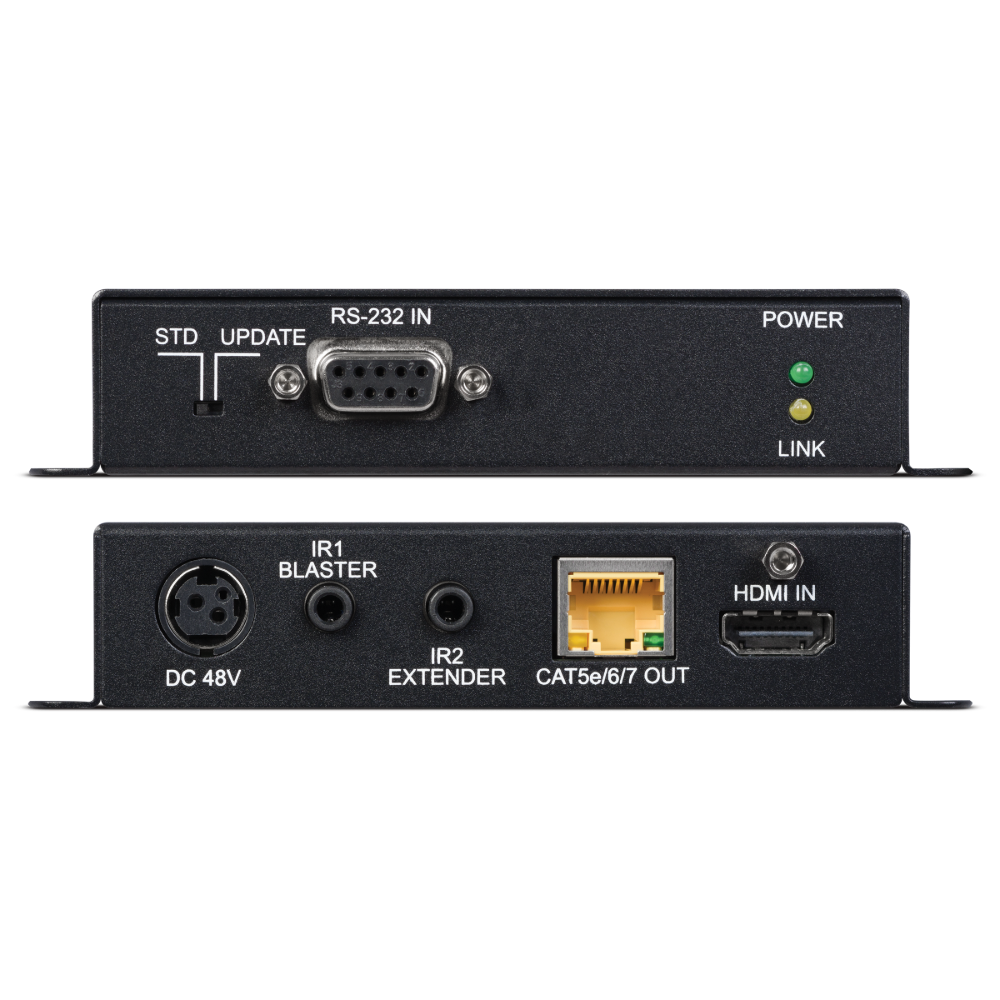

TX	1x HDMI in, 1x HDBaseT out, RS-232 (9-pin D-sub), IR in/out

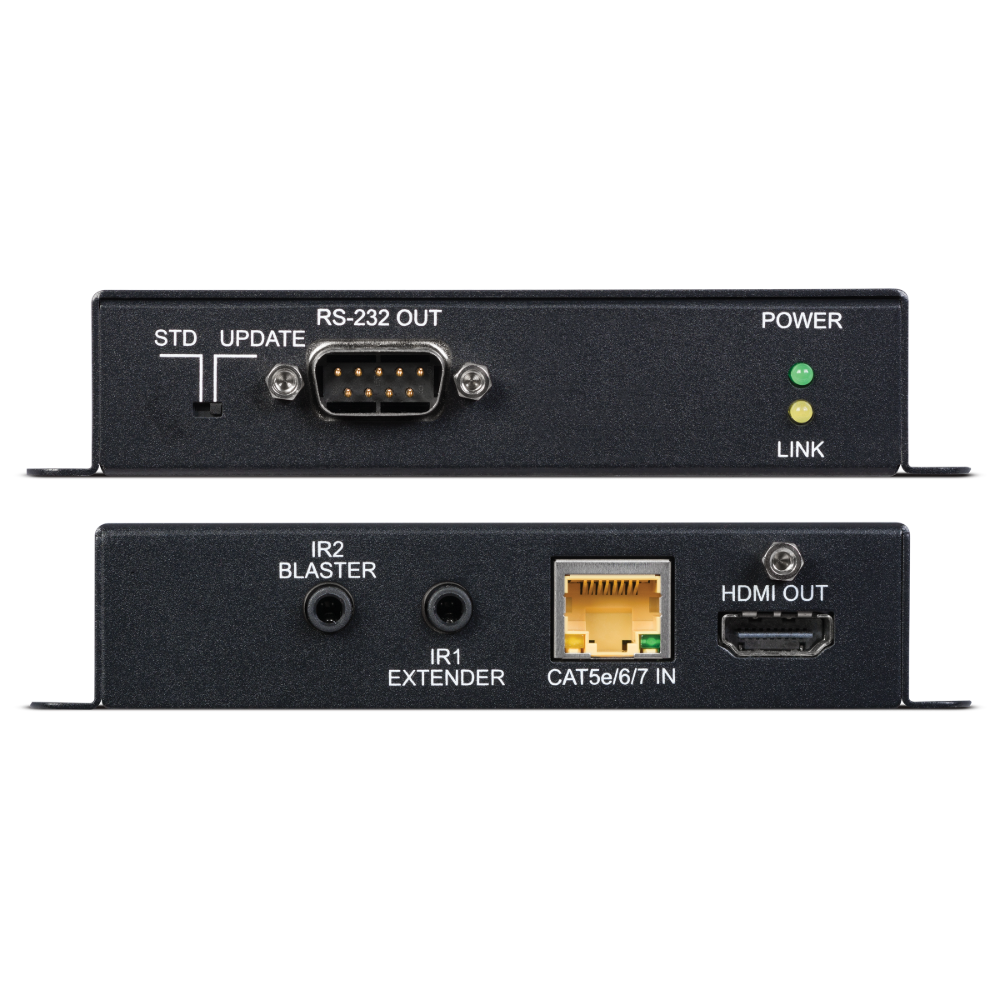

RX	1x HDBaseT in, 1x HDMI out, RS-232 (9-pin D-sub), IR in/out
Max resolution	4K UHD@60Hz 4:2:0
HDCP	HDCP 2.2
Distance (4K)	35m CAT5e/6, 60m CAT6a/7
Power	TX 48V/0.83A DC, RX by PoH
In the box	Transmitter, receiver, 48V/0.83A PSU, IR blasters, IR extenders, manuals
Dimensions (WxHxD)	128 x 25 x 108mm each
Weight	400g

Full features

HDCP2.2 Compliant
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports HDCP repeating and CEC functions

Inputs: 1 x HDMI [1 x TX HDMI Uncompressed AV and Data], 1 x 9pin Dsub [1 x TX RS-232 Data], 1 x 3.5mm Stereo mini-jack [1 x TX Infra Red Receiver], 1 x 3.5mm Stereo mini-jack [1 x RX Infra Red Receiver], 1 x RJ45 [1 x RX HDMI & Propriety Data]
Outputs: 1 x HDMI [1 x RX HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x RX Infra Red Emitter], 1 x 9pin Dsub [1 x RX RS-232 Data], 1 x RJ45 [1 x TX HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x TX Infra Red Emitter]
POE PSU: PoH
PSU: 48V/0.83A
Dimensions: 128mm [W] x 25mm [H] x 108mm [D]
Net Weight: 400g
Gross Weight: 1.48kg
Product Stock Category: Core Product

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK_PUV-1210PL-KIT_v1.00.pdfPDF

Manuals & Instructions: PUV-1210PL-KIT_Datasheet_v1.pdfPDF
