CYP PUV-3050UA-KIT HDBaseT 3.0 4K60 Extender Kit 40m USB, Audio

Product code: 185976

£711.00 inc VAT
£592.50 ex VAT

SKU: CYP055

3 in stock

3 available online

About this Product

HDBaseT 3.0 carries uncompressed 18Gbps 4K60 4:4:4 and HDR, so this kit needs no compression to reach 40m over CAT6a/7. USB 2.0 runs alongside for KVM and touch displays, together with a two-way analogue audio path, IR and RS-232, and the receiver takes PoH from the transmitter. Both ends have a local HDMI connection, which suits medical, education and conference rooms.

40m

Over CAT6a/7

18Gbps

Uncompressed 4K60 4:4:4

USB 2.0

KVM / touch

HDBaseT 3.0

Backward compatible 2.0/1.0

Features

Uncompressed 4K UHD 18Gbps, 4K@60Hz 4:4:4 8-bit, over HDBaseT 3.0

10-bit and 12-bit HDR input and output

USB 2.0 extension for keyboard, mouse and touch displays

Bi-directional analogue stereo audio pathway across the link

Local HDMI bypass output on the transmitter

IR and RS-232 pass-through; PoH powers the receiver

HDCP 2.2 and 1.x; backward compatible with HDBaseT 2.0/1.0

Specifications

CYP PUV-3050UA-KIT HDBaseT 3.0 4K60 Extender Kit 40m USB, Audio specifications
Brand	CYP
Model	PUV-3050UA-KIT

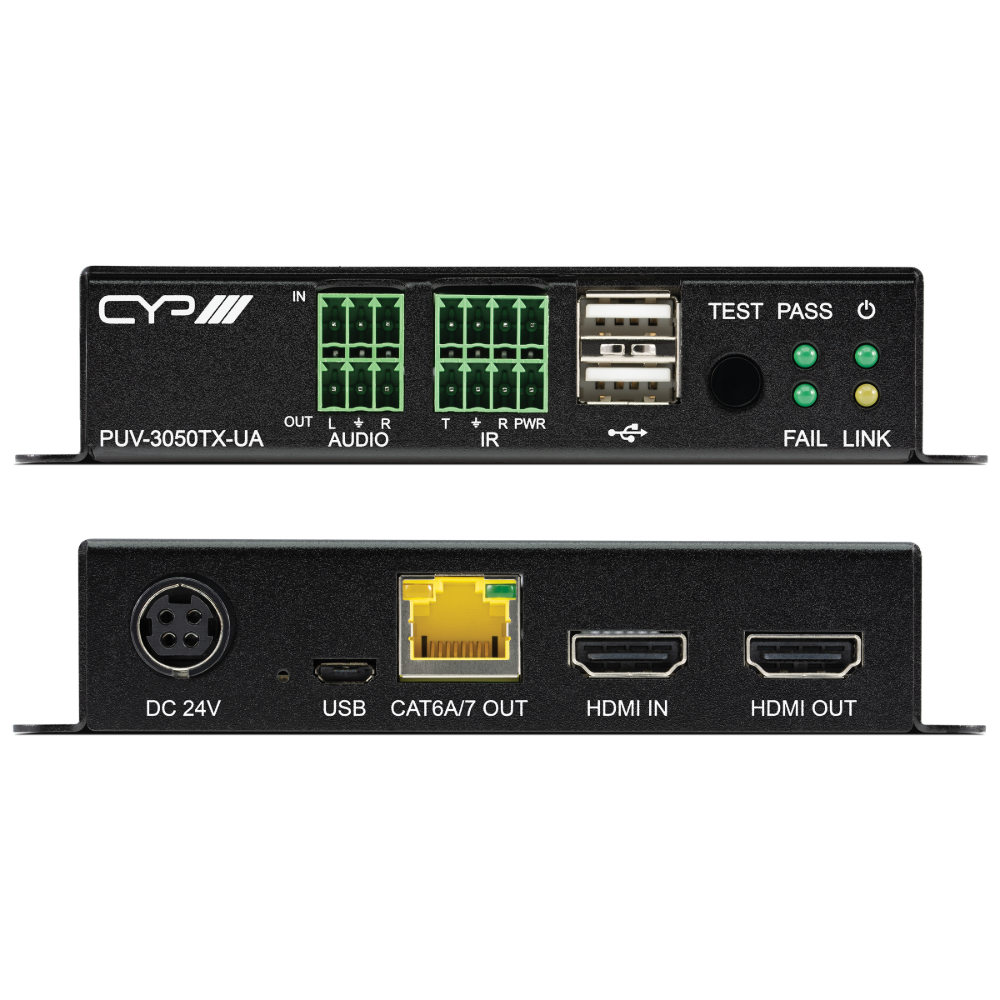

TX	1x HDMI in, 1x HDMI bypass out, 1x HDBaseT out, 2x USB-A, 1x micro USB, audio in/out, IR/RS-232

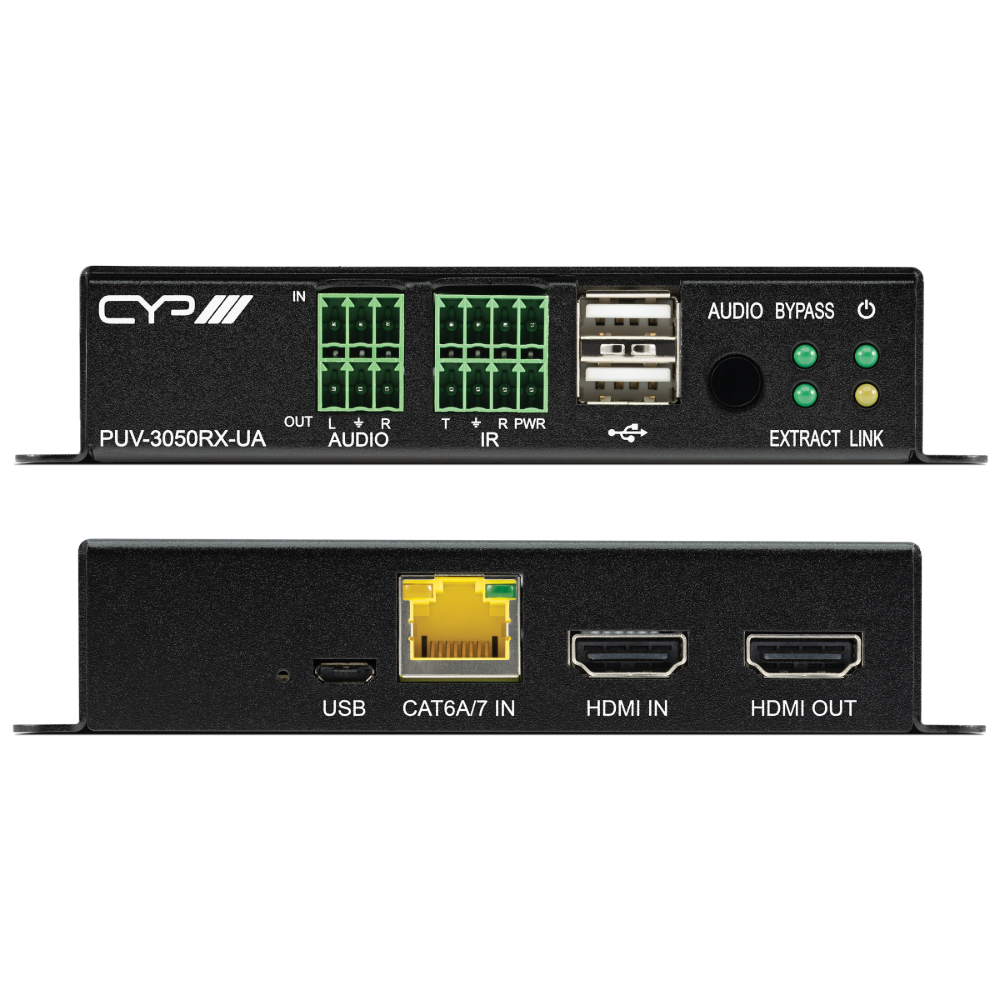

RX	1x HDBaseT in, 1x HDMI in, 1x HDMI out, 2x USB-A, 1x micro USB, audio in/out, IR/RS-232
Max resolution	4096×2160@60Hz 4:4:4 8-bit
HDMI / HDCP	HDMI 2.0, HDCP 2.2
Distance	Up to 40m over CAT6a/7
USB	USB 2.0
Analogue audio out	2Vrms, S/N > 80dB
Power	TX 24V/2.7A DC, RX by PoH
In the box	Transmitter, receiver, 24V/2.7A PSU, terminal blocks, manuals
Dimensions (WxHxD)	128 x 25 x 108mm each
Weight	TX 400g, RX 390g

Full features

Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
HDBaseT feature support: HD Video and Audio, Bi-directional analogue audio, and control (bidirectional USB/IR/RS-232 pass-through)
USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
Supports providing PoH power from Transmitter to Receiver in same HDBaseT port
Analogue audio I/O pathway across the HDBaseT link
Local HDMI output (on TX)
Local analogue audio output (from analogue line in, on TX)
Audio output is selectable (on RX) between the bypass & extraction

Inputs: 1 x HDMI (TX) Uncompressed AV and Data [1 x HDMI], 1 x Analogue (TX) Stereo (L/R) Audio Input [1 x Phoenix (3-pin)], 2 x USB Pathway (TX) Propriety Data [1 x USB Type A], 2 x Service Ports Propriety Data [1 x USB Micro], 1 x HDMI local input (RX) Uncompressed AV and Data [1 x HDMI], 1 x HDBaseT 3 (RX) HDMI & Propriety Data [1 x RJ45], 1 x Analogue (RX) Stereo (L/R) Audio Input [1 x Phoenix (3-pin)]
Outputs: 1 x HDMI local bypass (TX) Uncompressed AV and Data [1 x HDMI], 1 x HDBaseT 3 (TX) HDMI & Propriety Data [1 x RJ45], 1 x Analogue (TX) Stereo (L/R) Audio Output [1 x Phoenix (3-pin)], 1 x HDMI (RX) Uncompressed AV and Data [1 x HDMI], 1 x Analogue (RX) Stereo (L/R) Audio Output [1 x Phoenix (3-pin)], 2 x USB pathway (RX) Propriety Data [1 x USB Type A]
POE PSU: PoH
PSU: 24V/2.7A
Dimensions (H x W x D): 25 x 128 x 108mm
Net Weight: 800g
Gross Weight: 2.06kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: PUV-3050UA-KIT_PDF-Manual.pdfPDF

Manuals & Instructions: PUV-3050UA-KIT_Datasheet_v1.pdfPDF
