Ecler VEO-XPS47 4K HDMI over CAT6 Extender Kit

Product code: 195446

£177.00 inc VAT
£147.50 ex VAT

SKU: ECL0142

1 in stock

1 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

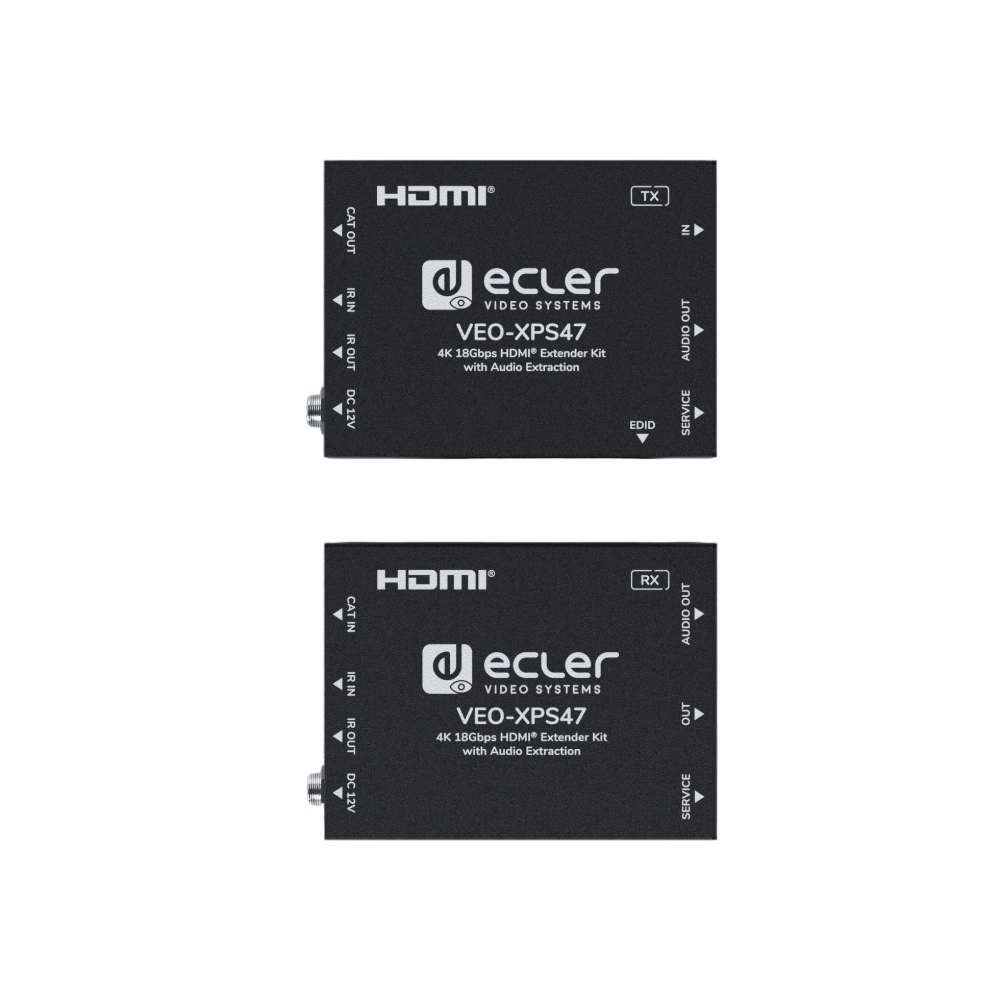

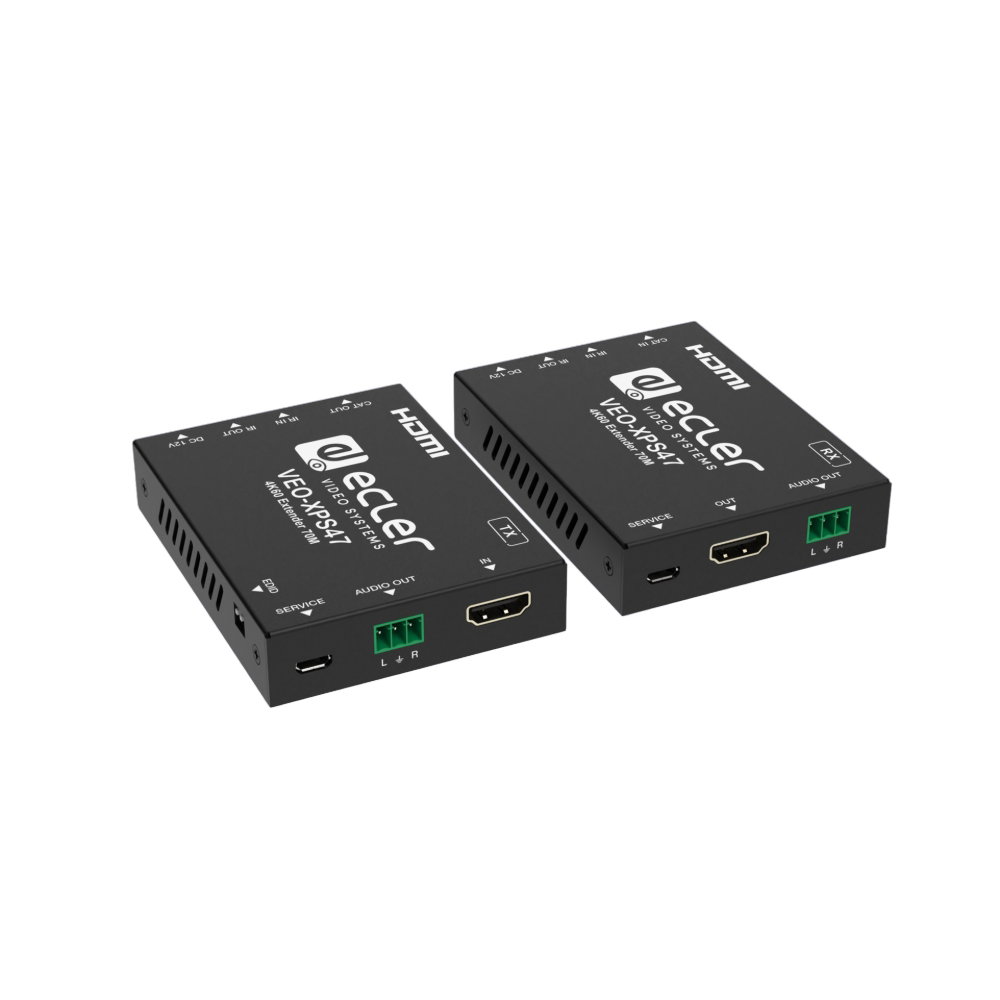

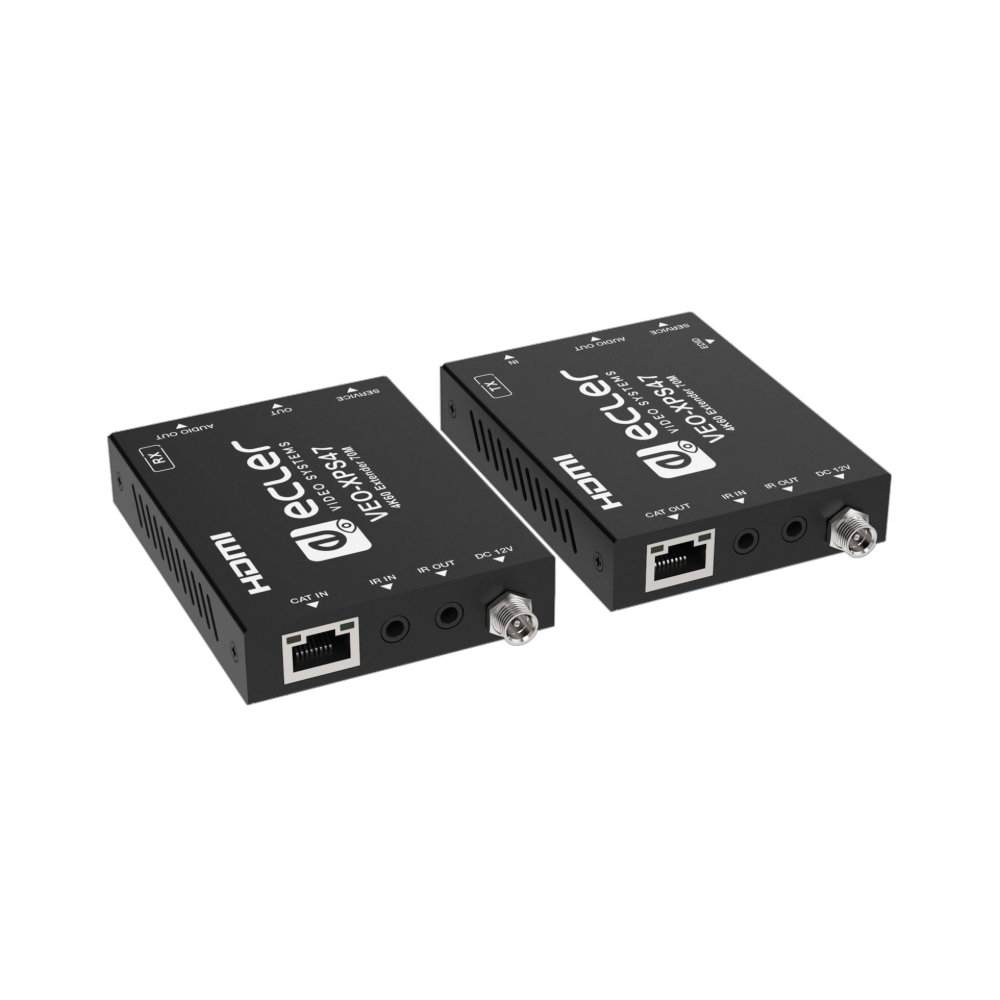

The Ecler VEO-XPS47 is an HDMI 2.0 extender kit (transmitter and receiver) that sends 18Gbps HDMI, audio and IR over a single CAT5e or better cable. Ecler quotes 4K 50Hz 4:4:4 to 70 m with zero latency, and either end can power the other over the cable. Both units have a stereo audio output on Euroblock, for meeting rooms, lecture theatres, digital signage and hospitality screens.

4K60 4:4:4
Max video
70 m
4K50 range
HDCP 2.2
Copy protection
2-way PoC
One PSU
Range depends on resolutionEcler quotes 70 m at 4K 50Hz on CAT5e or higher. The shorter limit for other 4K modes is given inconsistently in Ecler’s data (30 m), so plan 4K 60Hz runs to 30 m.

Features

Transmitter and receiver pair over a single CAT5e or higher cable, zero latency
18Gbps HDMI 2.0b, up to 4K at 60Hz 4:4:4
HDR10, HDR10+, Dolby Vision and HLG
Bidirectional power over the cable, so one power supply runs both ends
Stereo unbalanced audio de-embedding on Euroblock at both transmitter and receiver
Bidirectional IR extension
EDID copy and EDID settings by DIP switch
HDCP 2.2
Mounting ears for table or wall fixing

Specifications

Ecler VEO-XPS47 4K HDMI over CAT6 Extender Kit specifications

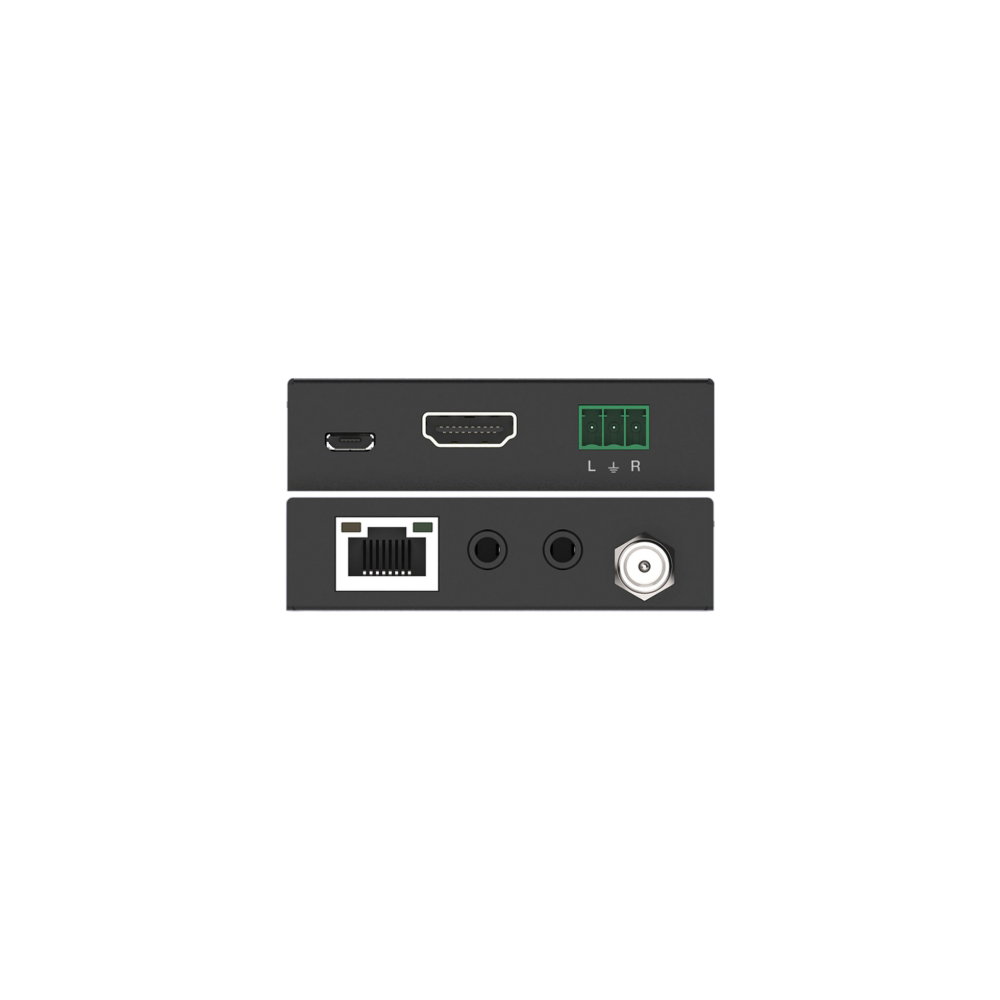

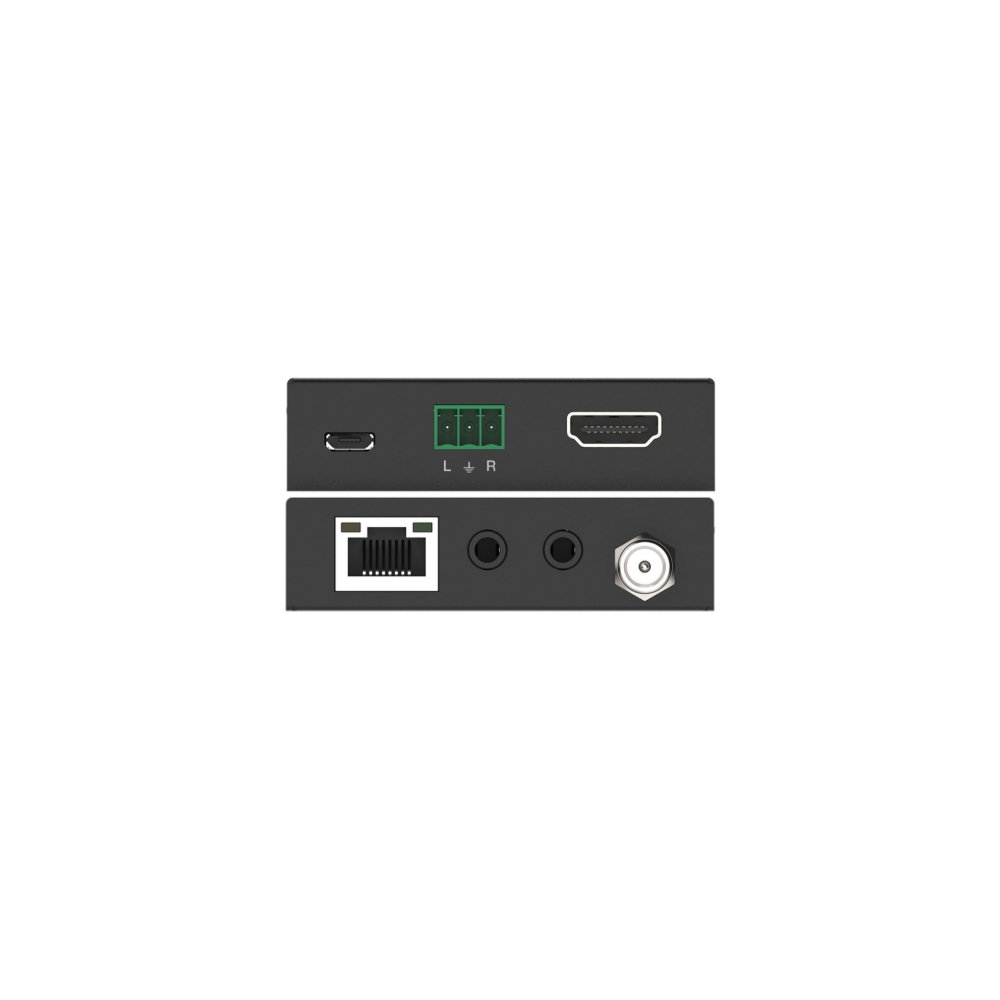

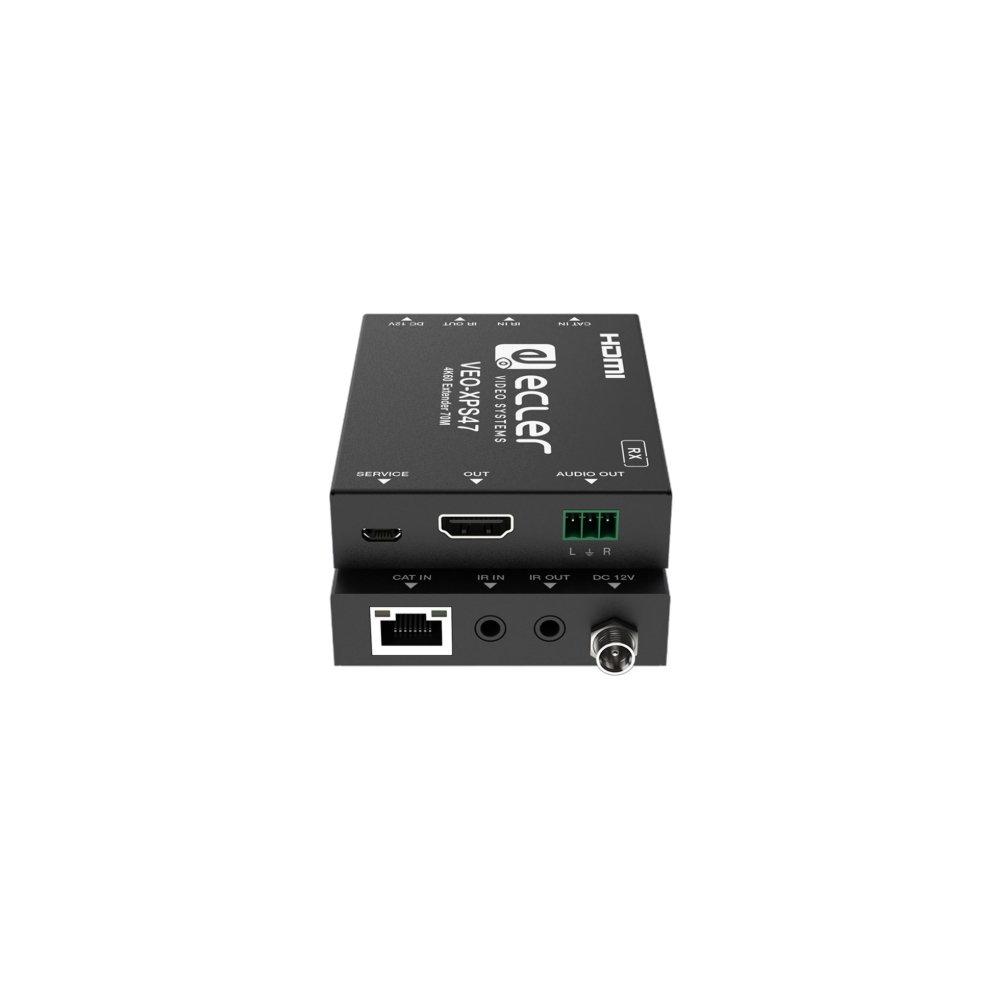

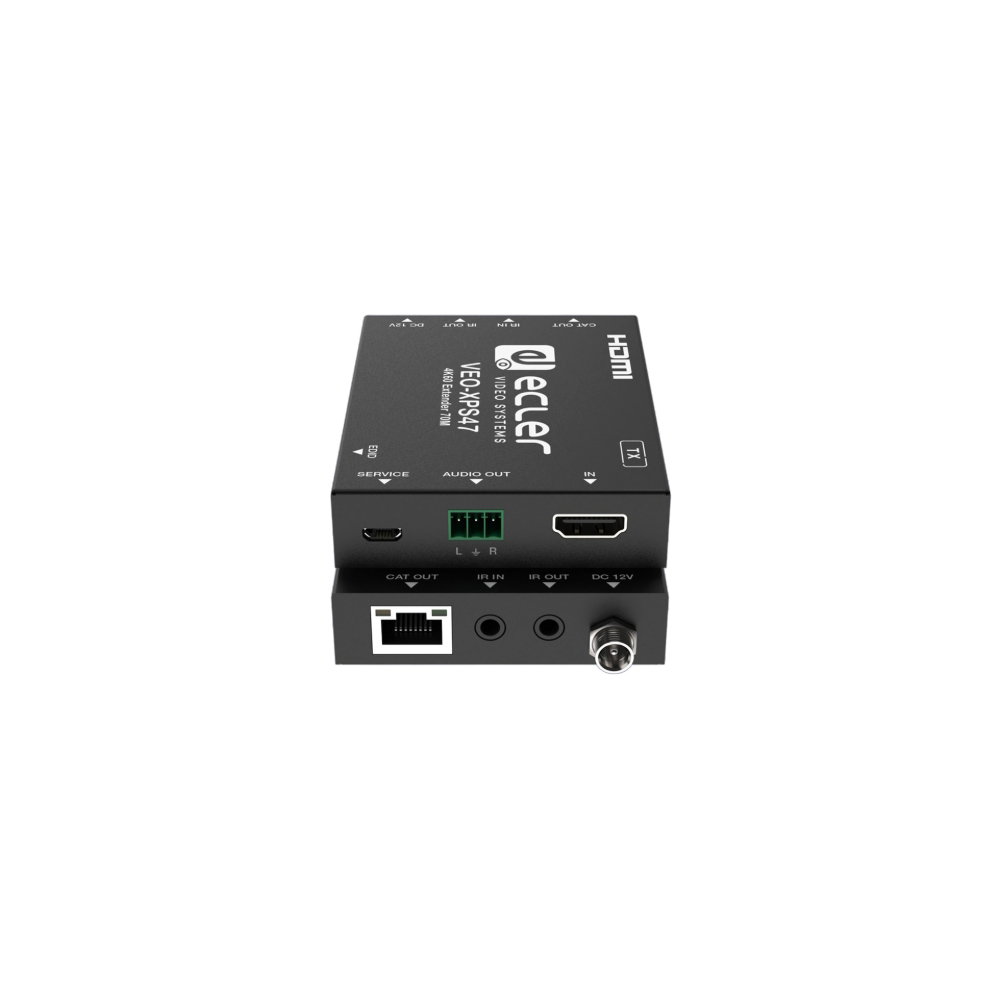

Connectors TX: HDMI 2.0 in, RJ-45; RX: HDMI 2.0 out, RJ-45
Resolutions 480i to 1080p at 60Hz, 1200p up to 30Hz, 4K up to 60Hz
Chroma subsampling 4:4:4, 4:2:2, 4:2:0
HDCP 2.2
HDR HDR10, HDR10+, Dolby Vision, HLG
Transmission distance 4K50: up to 70 m (CAT5e or higher)
Audio output 3-pin Euroblock on TX and RX
Audio formats LPCM up to 7.1, Dolby Digital, Dolby TrueHD, DD+, DTS-ES, DTS-HD Master, DTS-HD HRA, DTS:X
Power Bidirectional PoC; external 12V DC 1A, UK/EU/US/AU blades
Power consumption 3.36W
Dimensions (W x H x D) 90 x 18 x 68 mm (each unit)
Weight TX 0.160 kg, RX 0.155 kg
Operating temperature 0 to 40°C
Included IR receiver and blaster cables, 2 x Euroblock plugs, 4 mounting ears with screws, USB 2.0 cable, 12V PSU

Full features

  • Transmitter and receiver set for signal extension over a single Cat 5e or higher cable.
  • Support for HDMI® 18Gbps 4K 60Hz 4:4:4 as specified in HDMI® 2.0b.
  • Transmission distance for 4K/50Hz up to 70 meters and 4K/60Hz up to 30 meters
  • Stereo unbalanced audio extraction via Euroblock connectors on both the transmitter and receiver.
  • Support for HDR10, HDR10+, Dolby Vision, and HLG.
  • Support for audio formats LPCM 7.1, Dolby True HD, DTS HD Master.
  • Bidirectional IR control extension.
  • EDID management.
  • HDCP 2.2 compliant.
  • Bidirectional PoC function.

Video Perfomances

  • Video Input Connectors : Transmitter: 1 x HDMI® Type A Female, 2.0, 18Gbps;
    1 x RJ-45 Female
  • Video Output Connectors: Receiver: 1 x HDMI® Type A Female, 2.0, 18Gbps;
    1 x RJ-45 Female
  • Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
  • Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 60Hz
  • Chroma Subsampling: 4:4:4,4:2:2,4:2:0
  • Colour Depth: 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
  • Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • HDCP: HDCP 2.2
  • HDR: HDR10, HDR10+, Dolby Vision, HLG
  • HDMI® Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI® Cable
    Up to 1080p/60Hz: 15m with IN/OUT HDMI® Cable

Audio Performances

  • Audio Output Connectors: 1 x 3-pin Euroblock
  • Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
    Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS
    HD-HRA, DTS-X
  • Sample Rate: 48 KHz, 96 KHz, 192 KHz
  • Bit Depth: Up to 24-bit
  • Frequency Response: 20Hz-20KHz (±3dB)

Device Control

  • Control Connectors: 1 x DIP Switch
  • EDID Management: EDID Copy, EDID Setting
  • Status Indicators: Link Status LEDs

Pass-Through Control

  • Pass-through Connectors: 1 x Jack 3,5mm
  • Pass-through Protocols: IR

Connection Specification

  • HDMI® extension: Point-to-Point extension with zero latency
  • Transmission Distance: 4K/50Hz up to 70m with Cat 5e or higher
    4K/30Hz up to 30m with Cat 5e or higher

Electrical

  • Power supply: PoC bidirectional; External:Input 100-240VAC 50/60Hz  0.3A, Output DC 12VDC-1A
  • AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
  • DC mains connector: DC Locking
  • Power consumption: 3.36W

Physical

  • Operating temperature: Min: 0°C; 32°F
    Max: 40°C; 104°F
  • Operating humidity: 20 - 80% RH, non-condensing
  • Storage temperature: Min: -20°C ; -4°F
    Max: 60°C ; 140°F
  • Storage humidity: 10% - 90% RH, non-condensing
  • Installation options: Mounting ears for table, wall or screwed
  • Included accessories: 1 x IR Receiver cable (1.5 meters),1 x  IR Blaster cable (1.5 meters), 2 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x USB 2.0 Cable, 1 x PSU 12V/1A
  • Dimensions: Transmitter & Receiver: 90 x 18 x 68mm / 3.54 x 0.71 x 2.68 in (WxHxD)
  • Weight: Transmitter: 0.160 Kg / 0.35 lb
    Receiver: 0.155 Kg / 0.34 lb
  • Shipping dimensions: 215 x 75 x 135mm / 8.47 x 2.95 x 5.31 in (WxHxD)
  • Shipping weight: 0.7kg / 1.54 lb
  • Chassis material: Metal
  • Finished colour: Black
