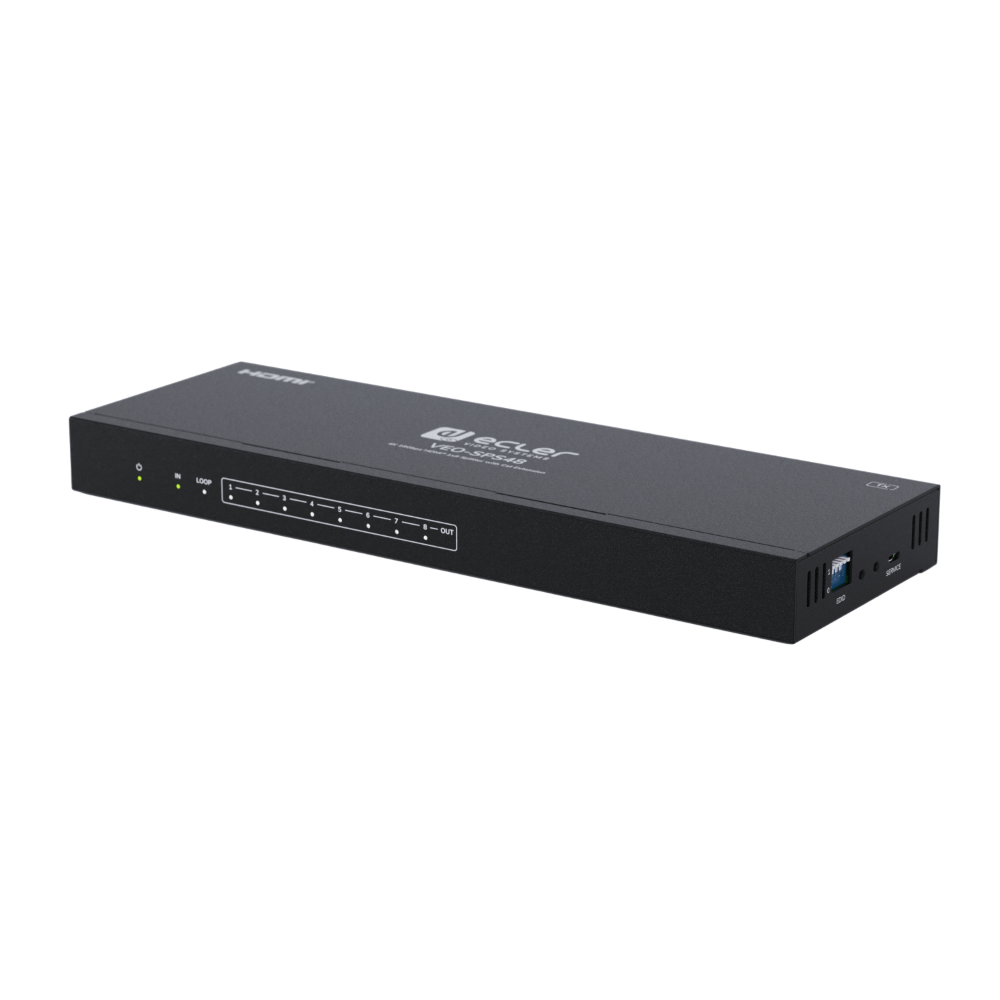

Ecler VEO-SPS48 4K 8-Way HDMI over CAT6 Splitter Extender Kit

• Signal distribution and extension over a single Cat 5e or higher cable.
• Support for HDMI® 18Gbps 4K 60Hz 4:4:4 as specified in HDMI® 2.0b.
• Transmission distance for 4K/60Hz up to 35 meters, 4K/30Hz up to 50m  and 1080p /60Hz up to 70m.
• Stereo unbalanced audio extraction via Euroblock connectors.

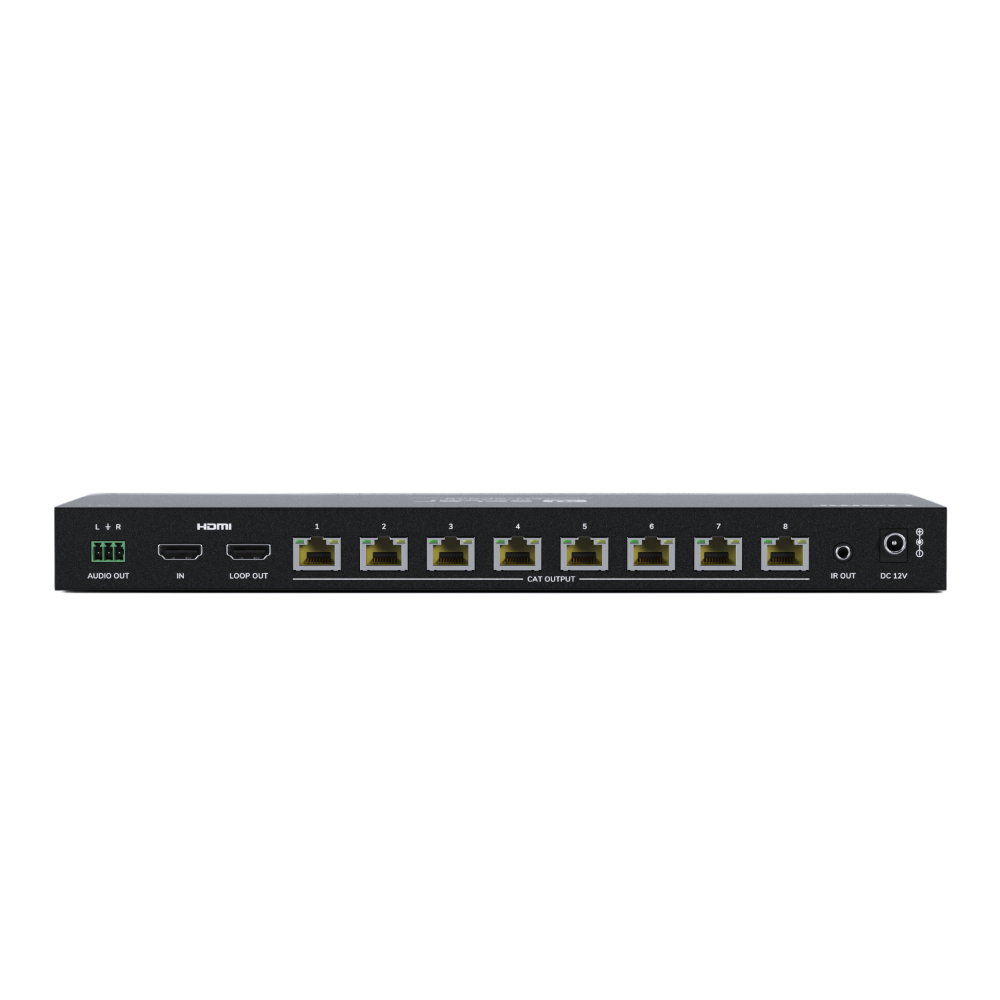

• Includes an HDMI® Loop Out and eight RJ-45 extension outputs.
• Support for HDR10, HDR10+, Dolby Vision, and HLG video signals.
• Support for audio formats LPCM 2.0, LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
• EDID Management.
• HDCP 2.2 compliant.
• IR control extension.
• Support for RS-232 remote control.
• PoC function for the included receivers.

Video Perfomances

• Video Input Connectors : 1 x HDMI® Type A Female, 2.0, 18Gbps
• Video Output Connectors: 1 x HDMI® Type A Female, 2.0, 18Gbps;
  8 x RJ-45 Female
• Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
• Video Output Resolutions: HDMI® OUT on VEO-SPS4 RX & HDMI® Loop Out: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 4K up to 60Hz
• Chroma Subsampling: 4:4:4，4:2:2，4:2:0
• Colour Depth: 8-bit (4K 60Hz 4:4:4), 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
• Colour Space: RGB, YCbCr, YUV
• HDCP: 2.2 / 1.4
• HDR: HLG，HDR 10， HDR10+，Dolby vision
• Scaling Features: No
• HDMI® Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI® Cable
  Up to 1080p/60Hz, 4K/30Hz: 10m with IN/OUT HDMI® Cable

Audio Performances

• Audio Output Connectors: 1 x 3-pin unbalanced Euroblock
• Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
• Sample Rate: 48KHz, 96KHz, 192KHz
• Bit Depth: Up to 24-bit
• Frequency Response: 20Hz-20KHz (±3dB)

Device Control

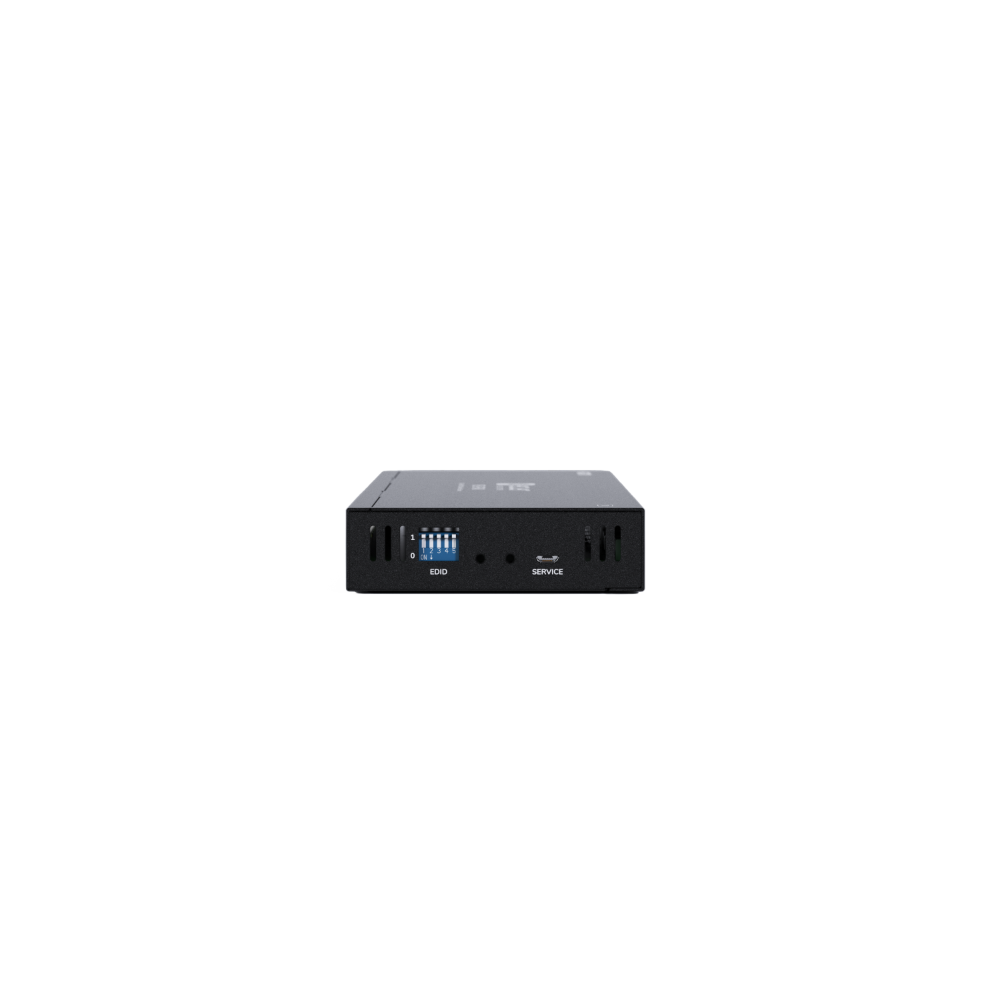

• Control Conectors: 1 x Micro USB Type B, 1 x DIP Switch
• Control Protocols: RS-232
• EDID Management: EDID Copy, Internal EDID Options
• Status Indicators: Power LED, Link Status LED

Pass-Through Control

• Pass-through Connectors: 1 x IR Jack 3,5mm
• Pass-through Protocols: IR

Connection Specification

• HDMI® extension: Point-to-Point extension with zero latency
• Transmission Distance: 4K/60Hz up to 35m with Cat 5e or higher (600Mhz)
  4K/30Hz up to 50m with Cat 5e or higher (300Mhz)
  1080p/60Hz up to 70m with Cat 5e or higher (148,5Mhz)

Electrical

• Power supply: External: Input 100-240VAC 50-60Hz  0.3A, Output 12VDC-2.5A
• AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
• DC mains connector: DC Locking
• Power consumption: 25.44W

Physical

• Operating temperature: Min: 0°C ; 32°F
  Max: 40°C ; 104°F
• Operating humidity: 20% to 90% HR, non-condensing
• Storage temperature: Min: -20°C; -4°F
  Max: 60°C; 140°F
• Storage humidity: 40% to 60% HR, non-condensing
• Included accessories: 8 x VEO-SPS4 Receiver, 8 x IR Receiver cable (1.5 meters),1 x  IR Blaster cable (1.5 meters), 1 x 3-pin 3.5mm Euroblock connector, 16 x Mounting ears (Receiver), 2 x Mounting ears (Splitter),  36 x Mounting screw, 1 x PSU 12V/2.5A

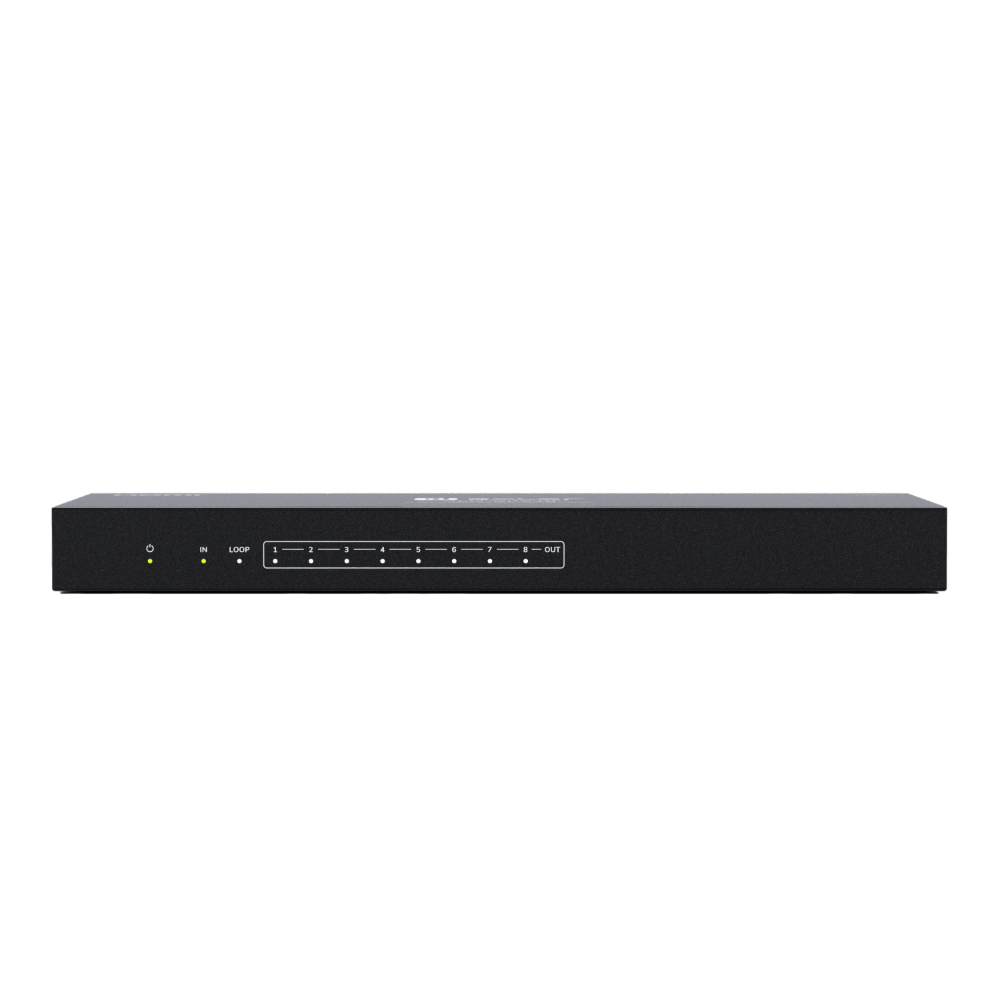

• Dimensions: - VEO-SPS48 (Splitter TX): 300 x 28 x 100mm / 11.81 x 1.1 x 3.94 in. (WxHxD)

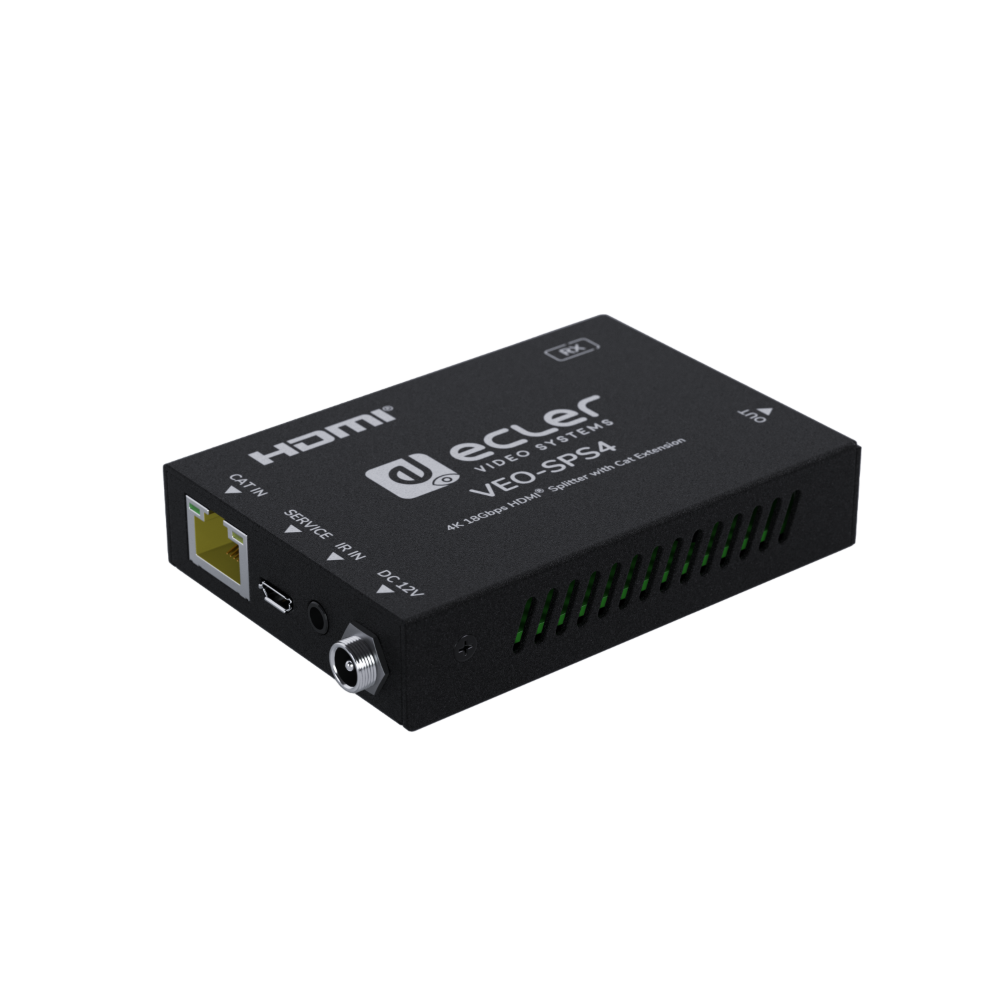

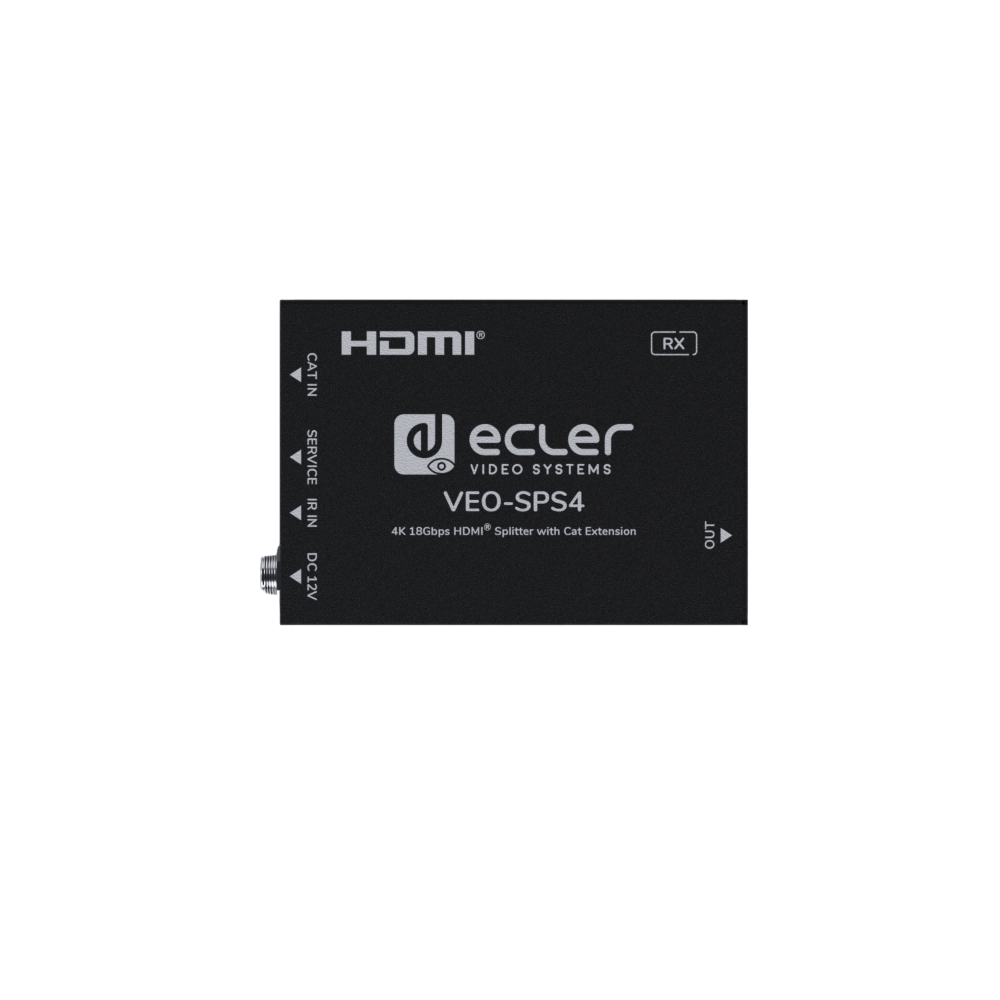

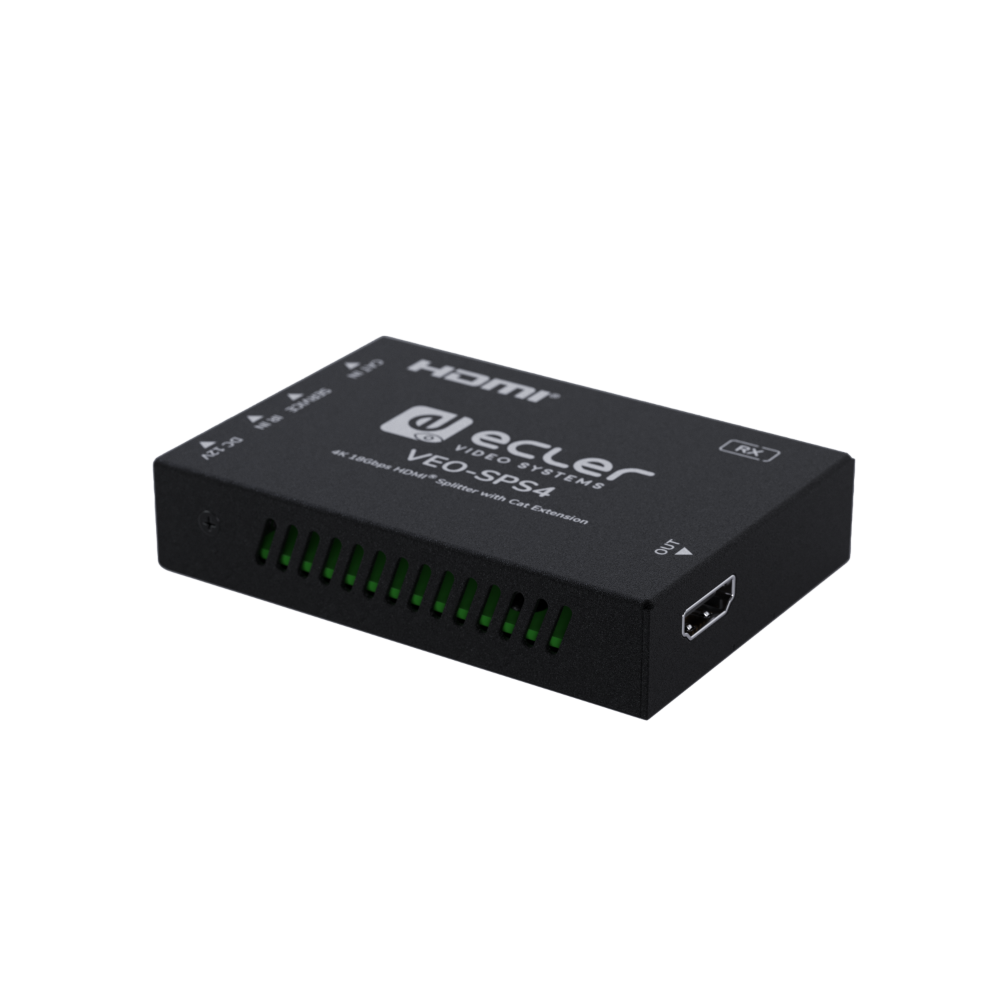

  - VEO-SPS4 (Receiver RX): 88 x 18 x 61mm / 3.46 x 0.71 x 2.4 in. (WxHxD)

• Weight: - VEO-SPS48 (Splitter TX):  0.823 Kg  /  1.81 lb
  - VEO-SPS4 (Receiver RX):  0.155 Kg  /  0.34 lb
• Shipping dimensions: 412 x 88 x 317mm / 16.22 x 3.46 x 12.48 in. (WxHxD)
• Shipping weight: 3.10kg / 6.83 lb
• Chassis material: Metal
• Finished colour: Black
