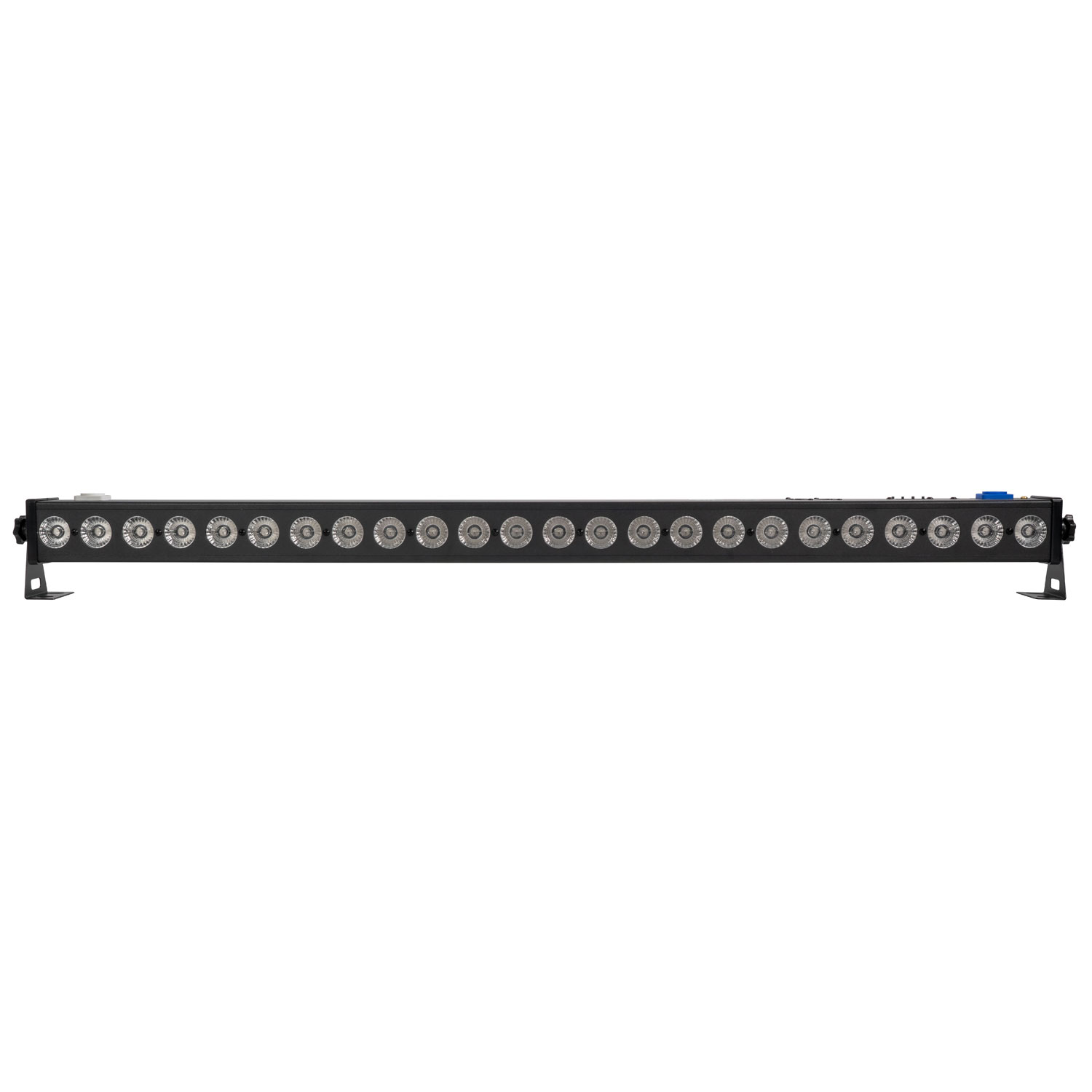

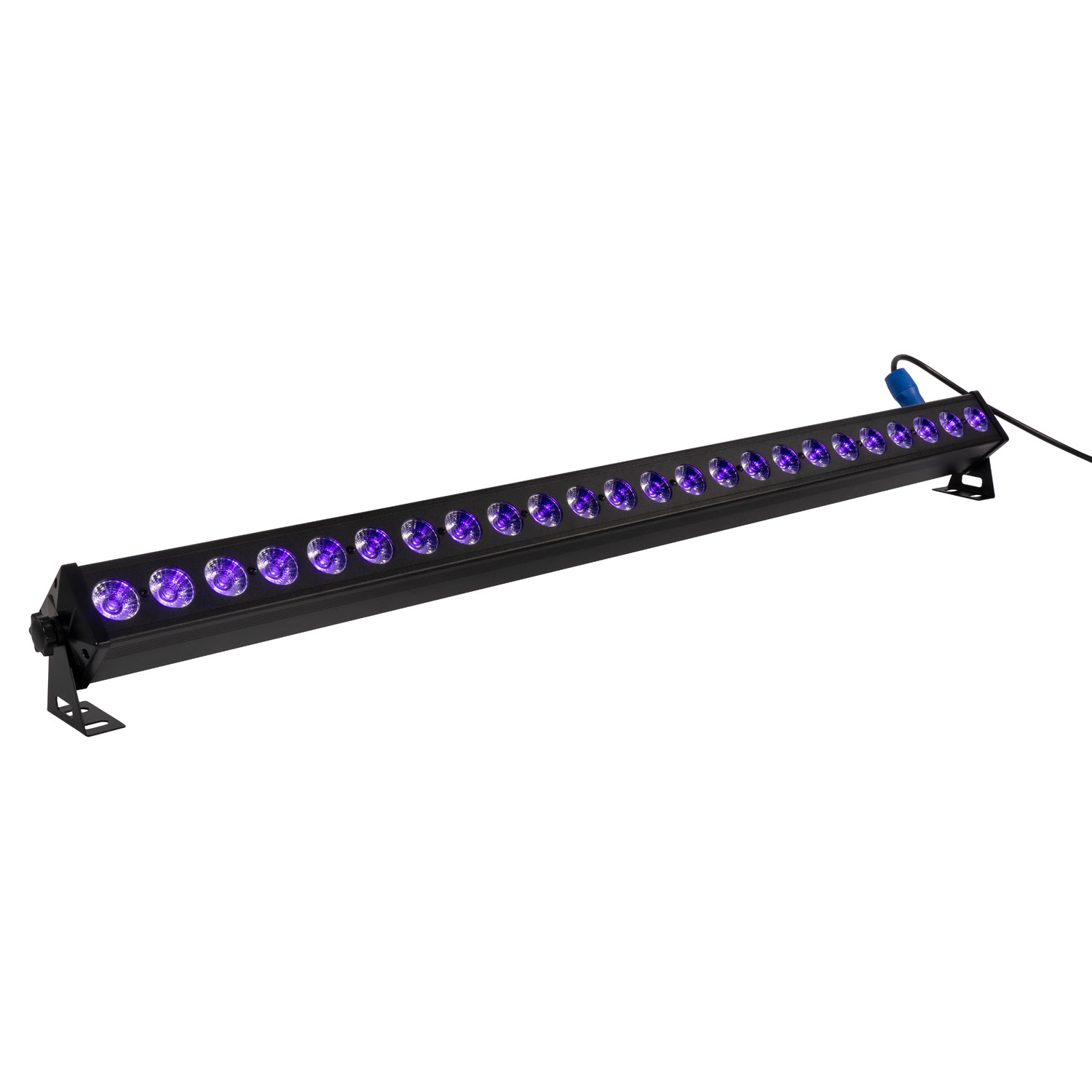

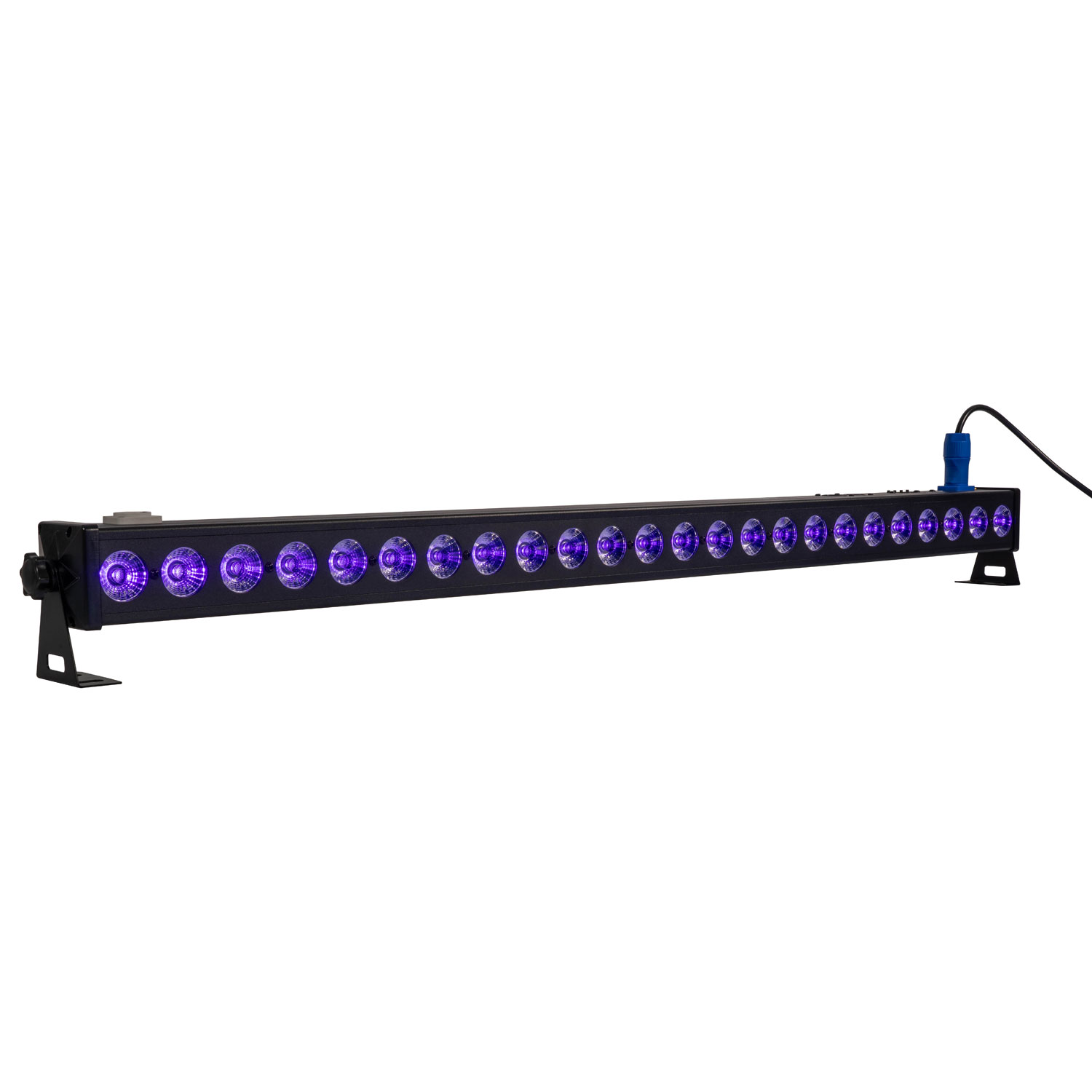

The QTX UVB-24X is a one-metre ultraviolet LED bar built around 24 x 3W UV LEDs at 398nm. The 60° beam angle spreads an even blacklight wash across a backdrop, dance floor or bar front, bringing out fluorescent paint, white clothing and UV-reactive décor in clubs, bars, theatres, schools and mobile disco rigs. Run it stand-alone in auto or sound-active mode, chain units together in master/slave, or take full control over DMX512 in 4 or 8 channel modes with RDM support. The 8 channel mode splits the bar into four pixel zones for chase effects along its length. Power and DMX both link in and out on twist-lock and 3-pin XLR connections, so a run of bars needs one feed. The slim 60mm-deep housing and supplied tilt bracket suit wall, ceiling, floor or truss mounting.
Features
24 x 3W UV LEDs at 398nm
Wide 60° beam for an even blacklight wash
DMX512 control in 4 or 8 channel modes with RDM
4 LED zones of pixel control in 8 channel mode
Auto, sound-active and master/slave modes

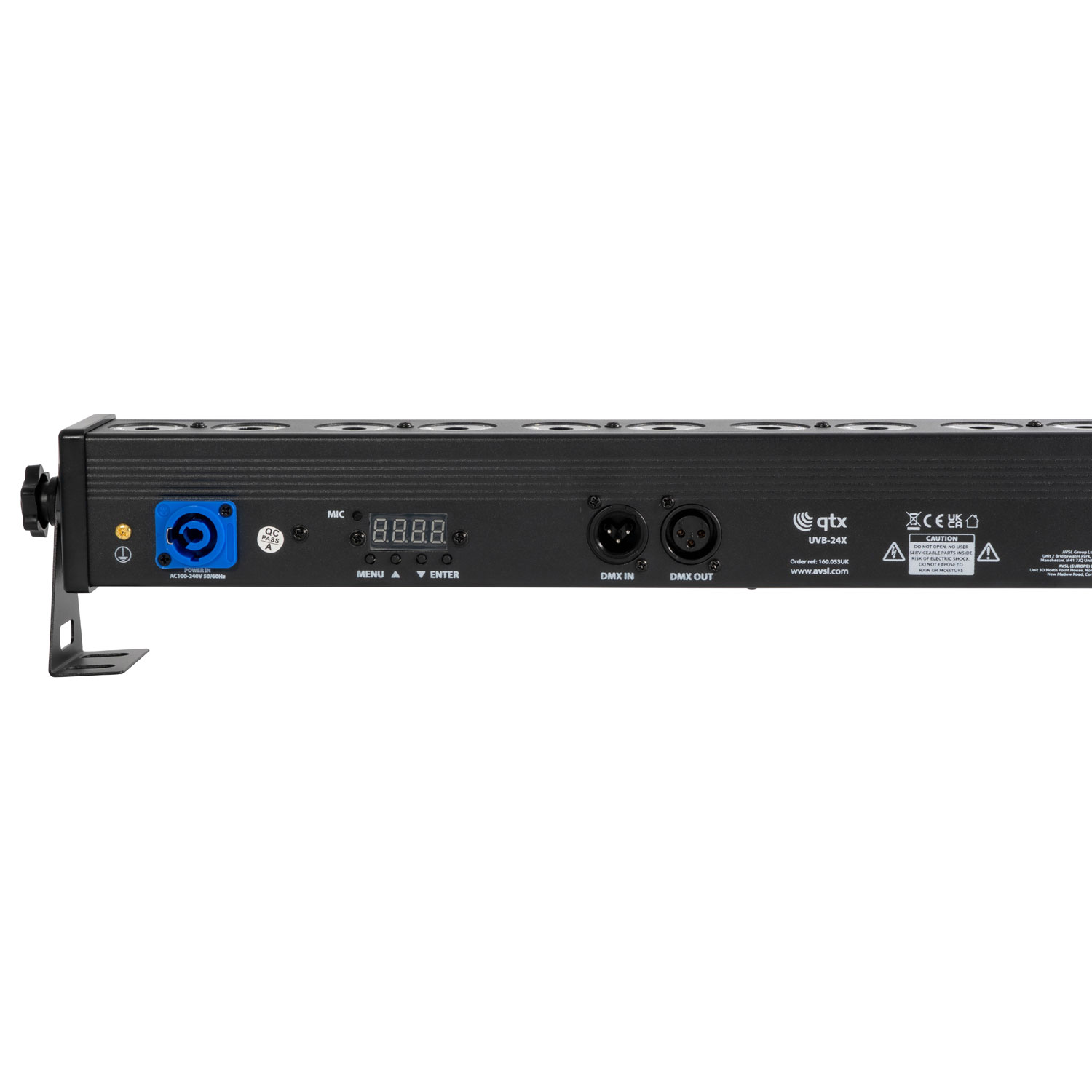

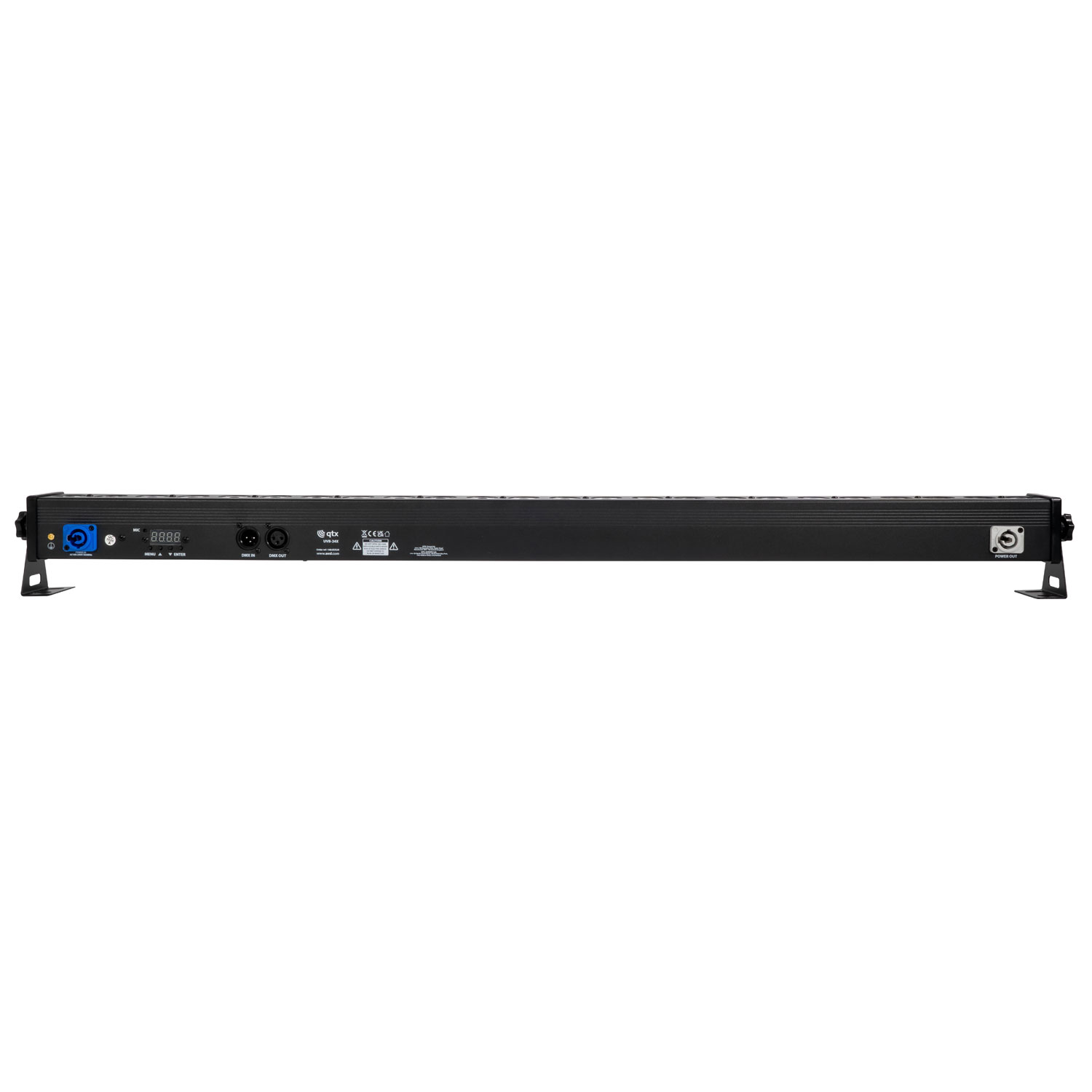

Twist-lock power in/out and 3-pin XLR DMX in/out for linking

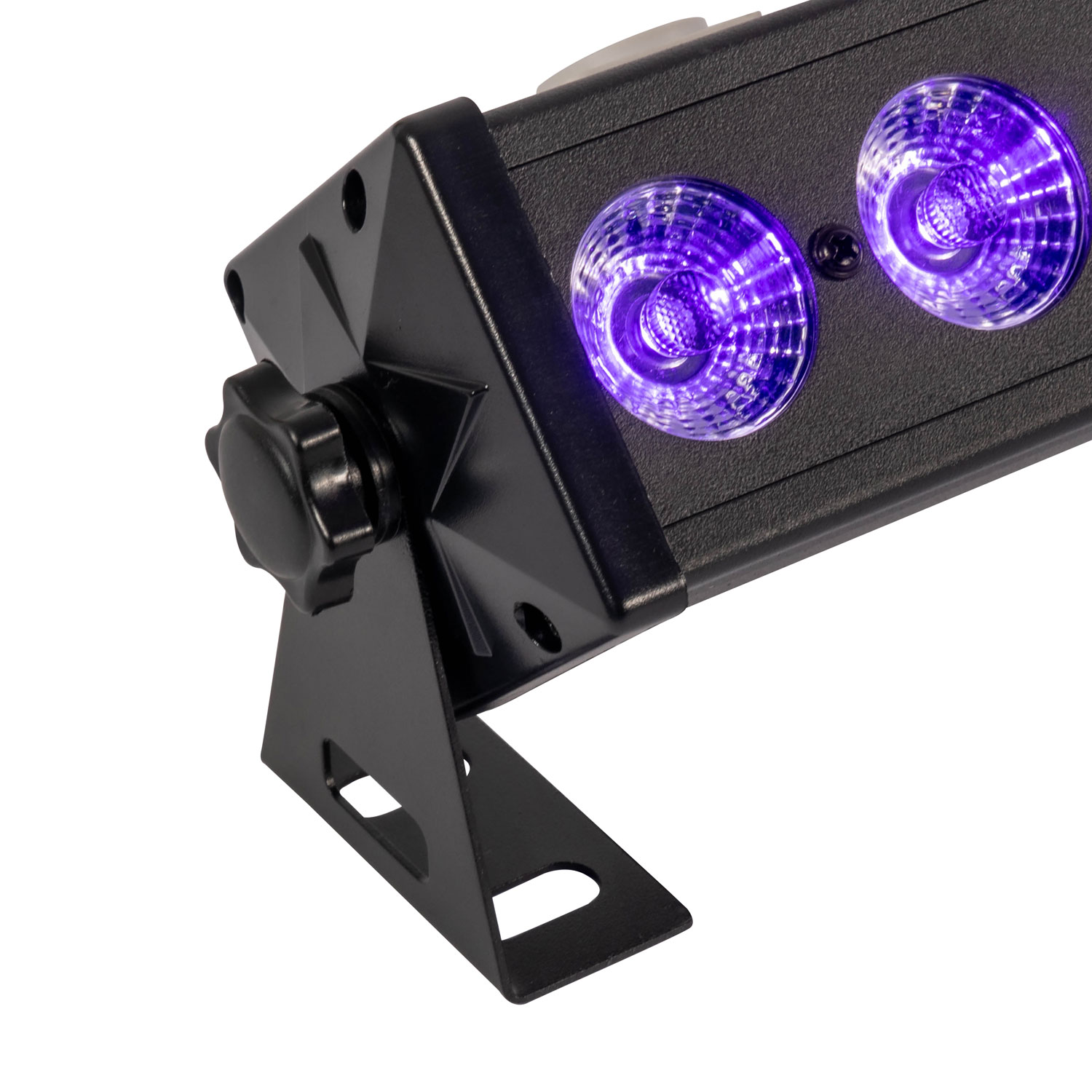

Slim, lightweight housing with tilt-adjustable mounting bracket
Specifications
| LED type | 24 x 3W UV LEDs |
| UV wavelength | 398nm |
| Beam angle | 60° |
| DMX channels | 4 or 8 |
| Modes | Auto, Sound, Master/Slave, DMX512, RDM |
| Power consumption | 54W |
| Power input | AC 100-240V 50/60Hz |
| Power connection | Twist and lock in/out |
| DMX connection | 3-pin XLR in/out |
| Dimensions | 1065 x 86 x 60mm (with bracket) |
| Weight | 2kg |
| Packed dimensions | 1040 x 90 x 90mm |
| Packed weight | 2.38kg |
| Country of origin | China |
| Model | UVB-24X |
| Barcode | 5015972240786 |
| AVSL code | 160.053UK |
