Seetronic SE8FDNH-42 RJ45 Chassis Socket D-Shape Female Chrome CAT6A (CONN1471)

SKU: CONN1471
Seetronic SE8FDNH-42 RJ45 Chassis Socket D-Shape Female Chrome CAT6A (CONN1471)
Seetronic SE8FDNH-42 RJ45 Chassis Socket D-Shape Female Chrome CAT6A (CONN1471)
Seetronic SE8FDNH-42 RJ45 Chassis Socket D-Shape Female Chrome CAT6A (CONN1471)
Click to enlarge

    £8.00 inc VAT
    £6.67 ex VAT

    250 in stock

    Order in 15h 58m 2s for delivery by Monday
    Click & collect available Friday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

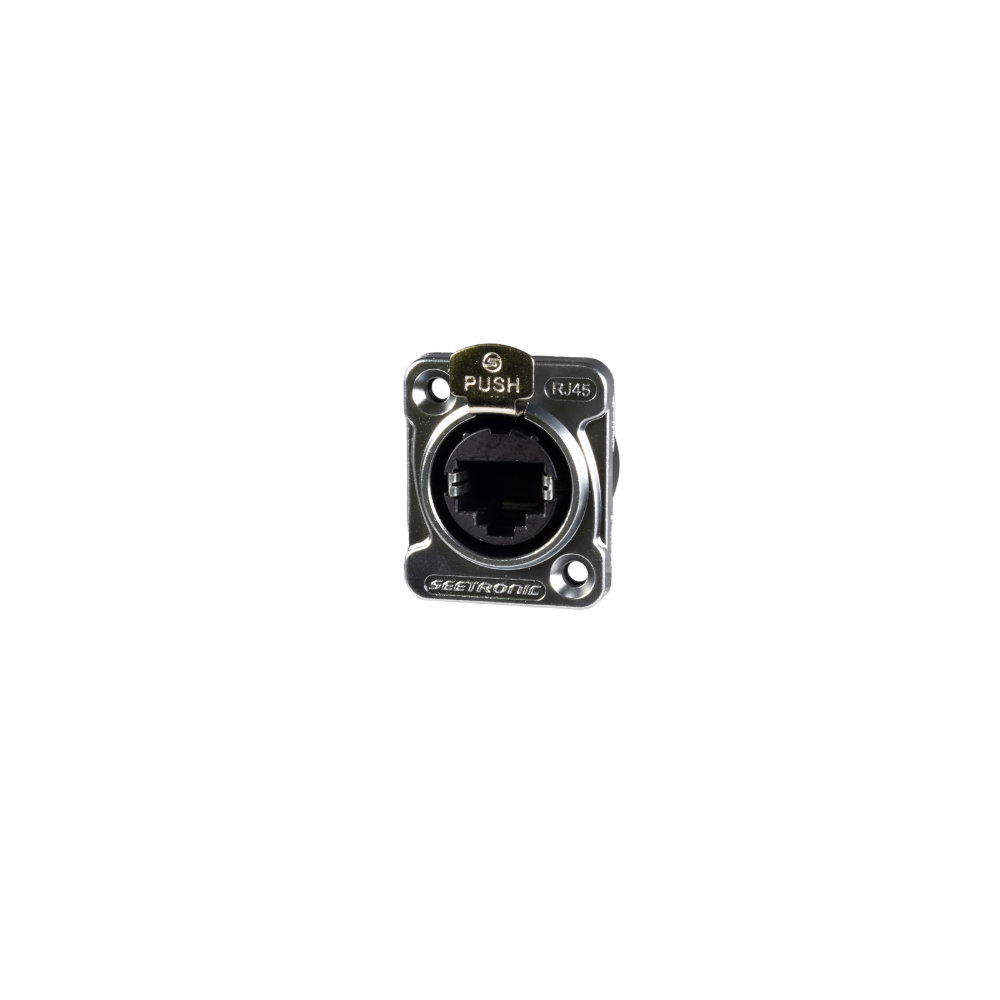

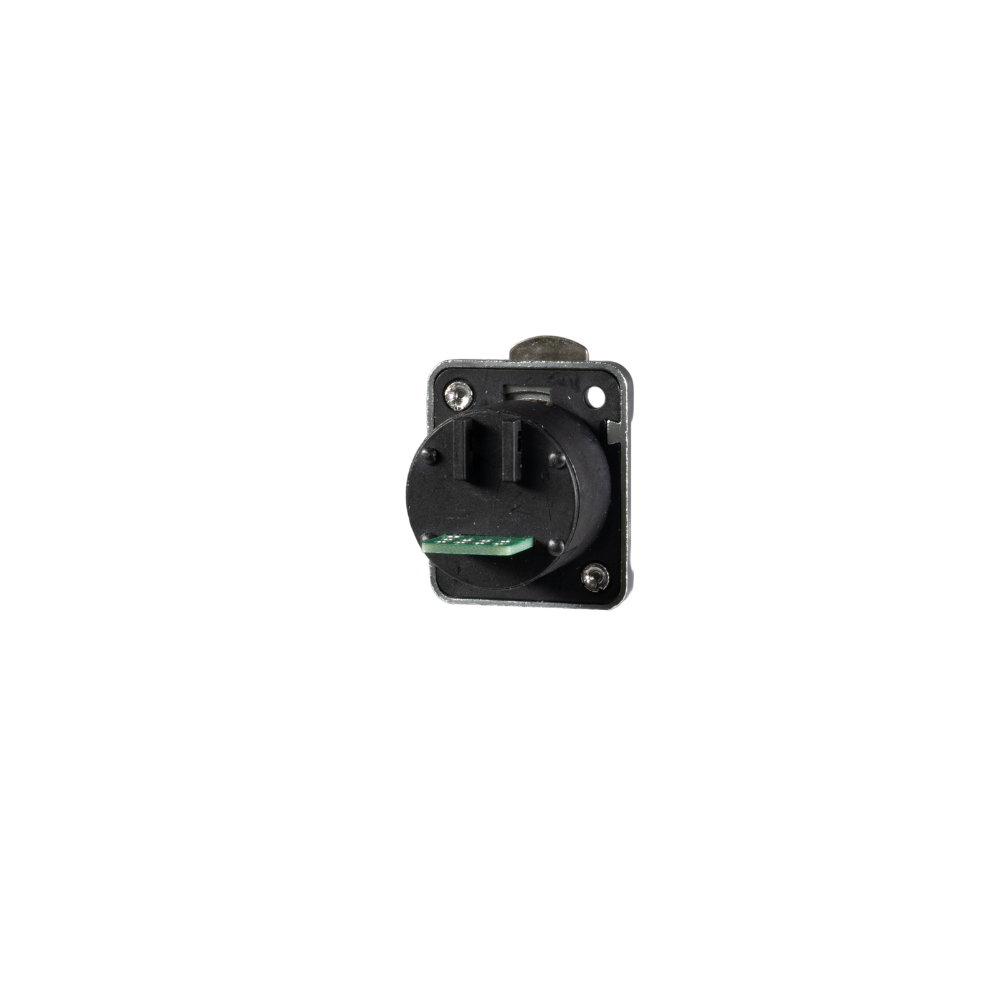

    The Seetronic SE8FDNH-42 is a front-mount D-shape female RJ45 panel socket for building Ethernet connections into racks, stage boxes, wall plates and equipment panels. It uses the standard D-series cut-out so it drops straight into any panel already punched for XLR-style connectors, with solder-pad termination and a chrome-plated zinc alloy flange.

    Connection
    RJ45
    Female

    Chassis
    D-shape
    Front mount

    Performance
    Class D
    TIA/EIA-568B

    Temp range
    -30 to +80°C
    Operating

    Features
    ✓
    Uniform metal flange, standard D-shape install size
    ✓
    Chrome-plated housing for a clean finish and durability
    ✓
    Front-mountable, fits from the panel face
    ✓
    Class D transmission to TIA/EIA-568B and IEC11801
    ✓

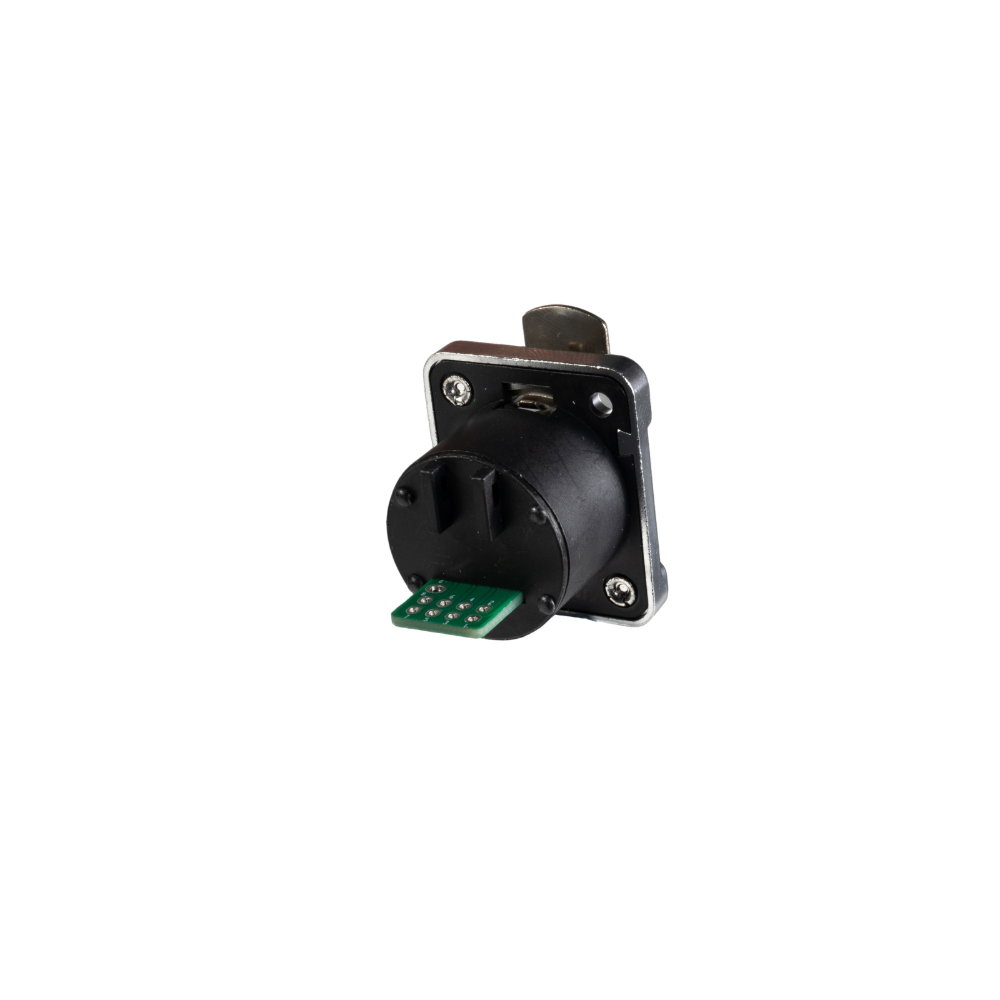

    Solder pad termination for straightforward wiring
    ✓
    Latch lock retains a standard RJ45 connector
    ✓
    Gold-plated copper alloy contacts
    ✓
    UL94-V0 flame-retardant materials

    Note

    This is a panel socket that takes a standard RJ45 plug and retains it with a latch lock. It is not a cable-mount connector and does not include a mating plug.

    Specifications
    Model SE8FDNH-42
    Part code CONN1471
    Connection type RJ45
    Gender Female
    Chassis shape D
    Contacts Copper alloy, gold contact surface
    Insert PBT
    Panel / flange Zinc alloy with chrome plating
    Flame-retardant grade UL94-V0
    Transmission performance Class D
    Standards TIA/EIA-568B, IEC11801
    Locking device Latch lock
    Operating temperature -30°C to +80°C

    More Information

    • Uniform metal flange and standard D-shape installation size
    • Chrome plated housing provides a sleek finish and enhanced durability
    • Front-mountable design for easy installation from the panel face
    • Class D transmission performance according to TIA/EIA-568B and IEC11801
    • Solder pad termination allows for secure and straightforward wiring connections
    • Latch locking device for standard RJ45 connector retention

    Manuals & Downloads

    PDFManuals & Instructions: CONN1471_DatasheetPDF
