Seetronic SE8FDYH-44 IP65 RJ45 CAT6A Chassis Socket D-Shape Chrome (CONN1470)

SKU: CONN1470
Seetronic SE8FDYH-44 IP65 RJ45 CAT6A Chassis Socket D-Shape Chrome (CONN1470)
Seetronic SE8FDYH-44 IP65 RJ45 CAT6A Chassis Socket D-Shape Chrome (CONN1470)
Seetronic SE8FDYH-44 IP65 RJ45 CAT6A Chassis Socket D-Shape Chrome (CONN1470)
Seetronic SE8FDYH-44 IP65 RJ45 CAT6A Chassis Socket D-Shape Chrome (CONN1470)
Click to enlarge

    £9.00 inc VAT
    £7.50 ex VAT

    250 in stock

    Order in 14h 48m 12s for delivery by Monday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

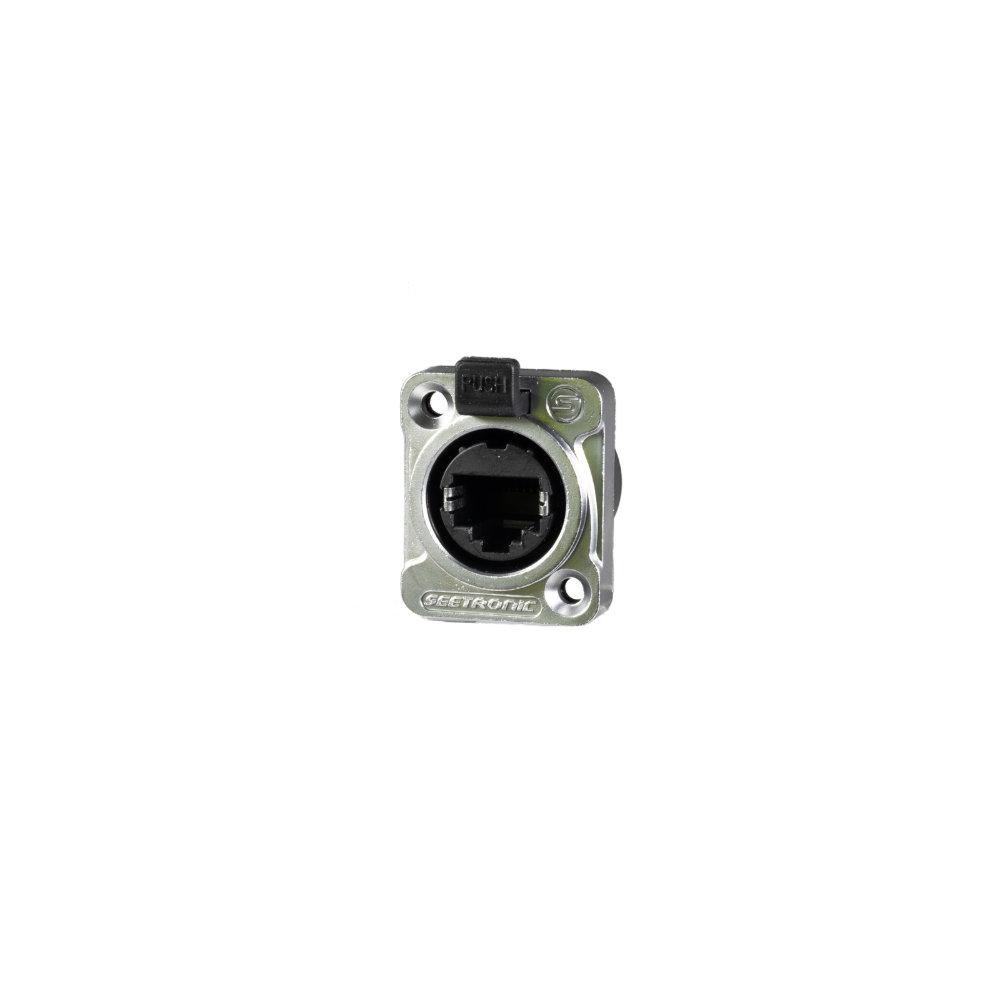

    The Seetronic SE8FDYH-44 is a female RJ45 chassis socket in the standard D-shape panel format, built for network and data runs that live outdoors or in wet backstage areas. It carries an IP65 rating when the supplied waterproof cover is fitted, and terminates by solder pad rather than punch-down, so it suits custom panel builds, stage boxes and touring racks.

    PROTECTION
    IP65
    with cover fitted

    PERFORMANCE
    Class D
    TIA/EIA568B

    CHASSIS SHAPE
    D
    front panel mount

    TEMPERATURE
    -30°C to +80°C
    operating range

    Weather sealing

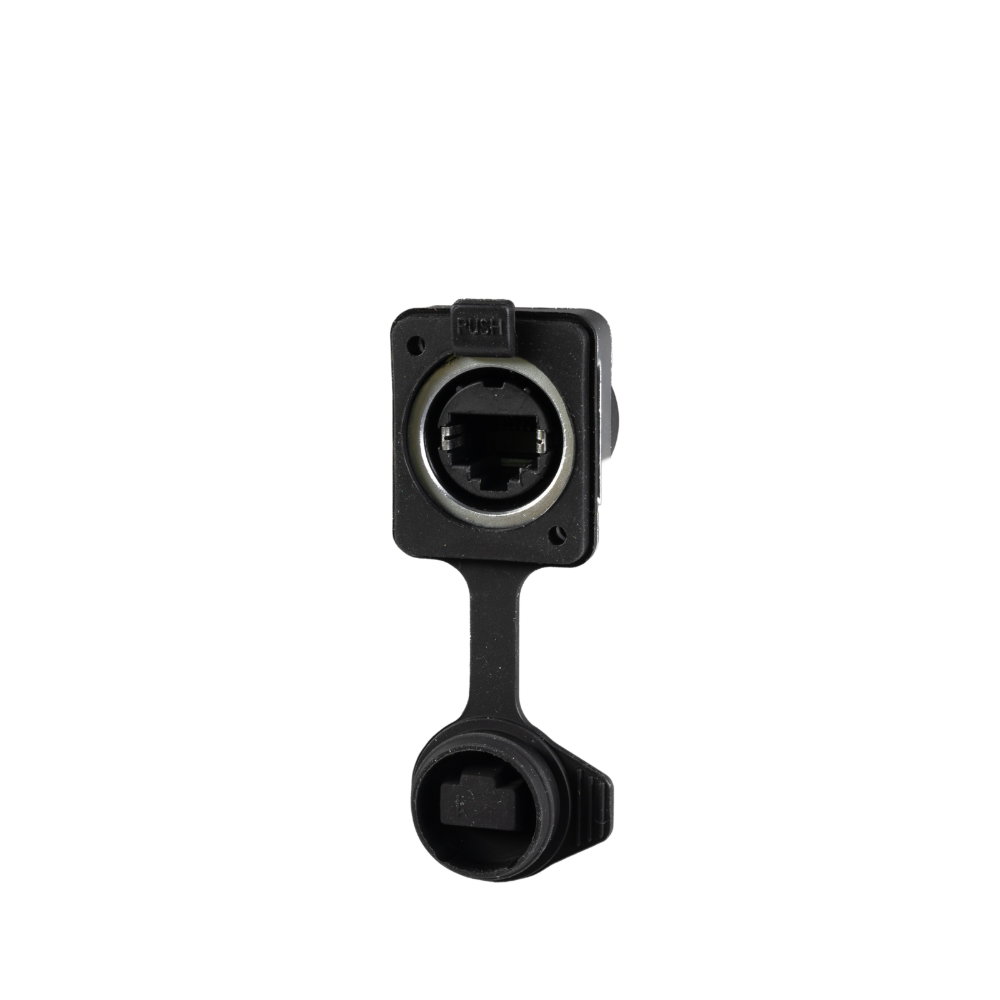

    The IP65 rating applies when the socket is used with its waterproof cover. With the cover open and a patch lead connected, treat the connection as unsealed and protect it accordingly on outdoor jobs.

    Features
    ✓
    Uniform metal flange with standard D-shape installation size
    ✓
    Chrome plated housing for a clean finish and added durability
    ✓
    Front panel installation simplifies assembly and later maintenance
    ✓
    Complies with Class D to TIA/EIA568B and ISO/IEC11801
    ✓

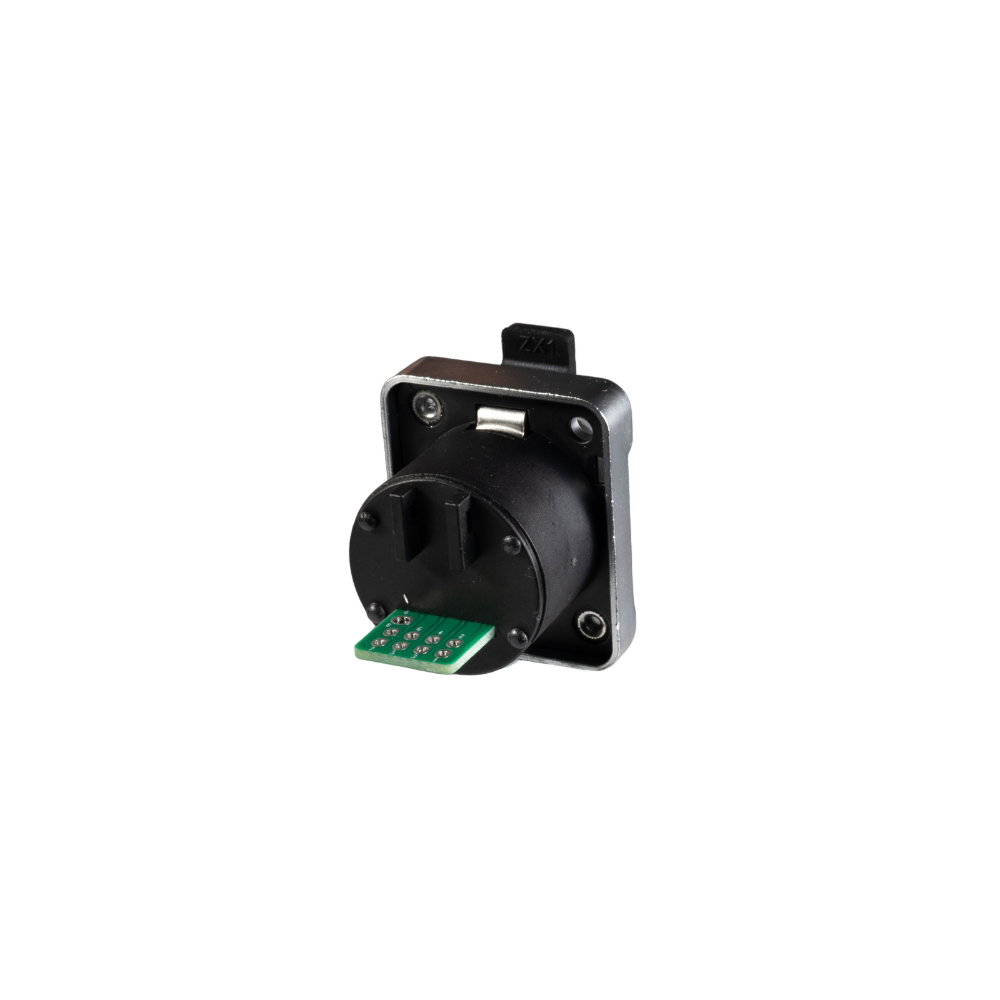

    Solder pad termination for secure, straightforward wiring
    ✓
    IP65 rated when paired with the supplied waterproof cover
    ✓
    Copper alloy contacts with gold-plated contact surface
    ✓
    PBT insert and wide -30°C to +80°C operating range

    Specifications
    Model SE8FDYH-44
    Part code CONN1470
    Connection type RJ45
    Gender Female
    Chassis shape D
    Contacts Copper alloy, gold-plated contact surface
    Insert PBT
    Housing plating Chrome
    Transmission performance Class D
    Protection rating IP65 when paired with waterproof cover
    Temperature range -30°C to +80°C

    More Information

    • Uniform metal flange and standard D-shape installation size
    • Chrome plated housing provides a sleek finish and enhanced durability
    • Front panel installation simplifies the assembly and maintenance process
    • Complies with Class D according to TIA/EIA568B and ISO/IEC11801 standard
    • Solder pad termination allows for secure and straightforward wiring connections
    • IP65 rating when paired with the supplied waterproof cover

    Manuals & Downloads

    PDFDatasheets & Technical Docs: CONN1470_DatasheetPDF
