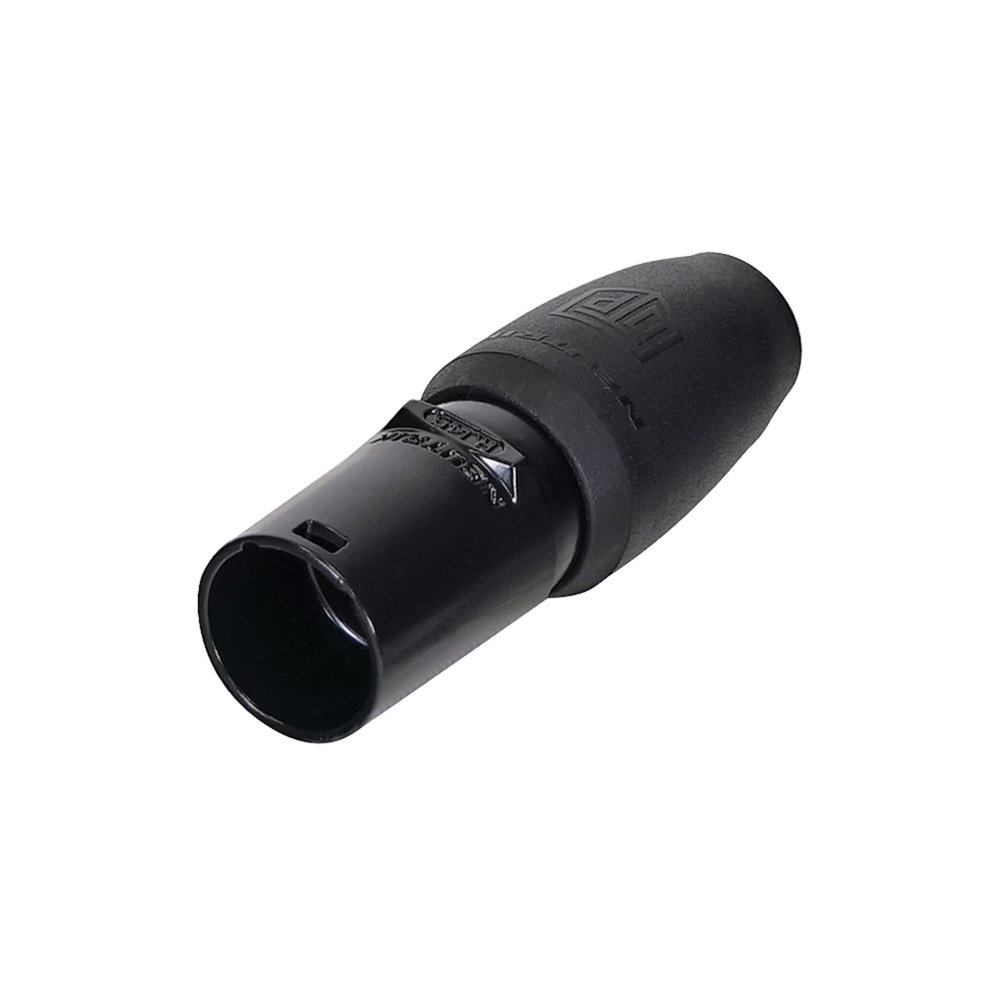

The Neutrik NE8MX-B-TOP is a rugged etherCON cable connector that turns a standard RJ45 plug into a locking, industrial-grade network connector for live audio, broadcast and AV installations. It houses a user-supplied RJ45 plug (not included) inside a robust die-cast shell with chuck-type strain relief, latch-locking into etherCON chassis connectors and sealed to IP65 when mated with a TOP-series receptacle, protecting fragile Ethernet links from the stresses of touring and permanent install use.
CompatibilityMates with Neutrik etherCON chassis connectors (not the CAT6 NE8FDY-C6 types) and standard RJ45 ports. Takes 5 to 8 mm cable. The etherCON system is widely used for Dante, AVB, AES50 and general network audio transport on stage boxes, mixing consoles and processors.
Features
Rugged TOP-series die-cast housing for touring and install
Accepts a standard RJ45 plug (not supplied)
Latch-locks into etherCON chassis; IP65 when mated to TOP types
Fits etherCON chassis connectors (not CAT6 NE8FDY-C6)
Strain relief protects the RJ45 termination under load
Ideal for Dante, AES50, AVB and general network audio
Specifications
| Manufacturer | Neutrik |
| Model | NE8MX-B-TOP |
| Type | etherCON RJ45 cable connector (carrier) |
| Series | etherCON TOP |
| Housing colour | Black |
| Locking | etherCON latch lock |
