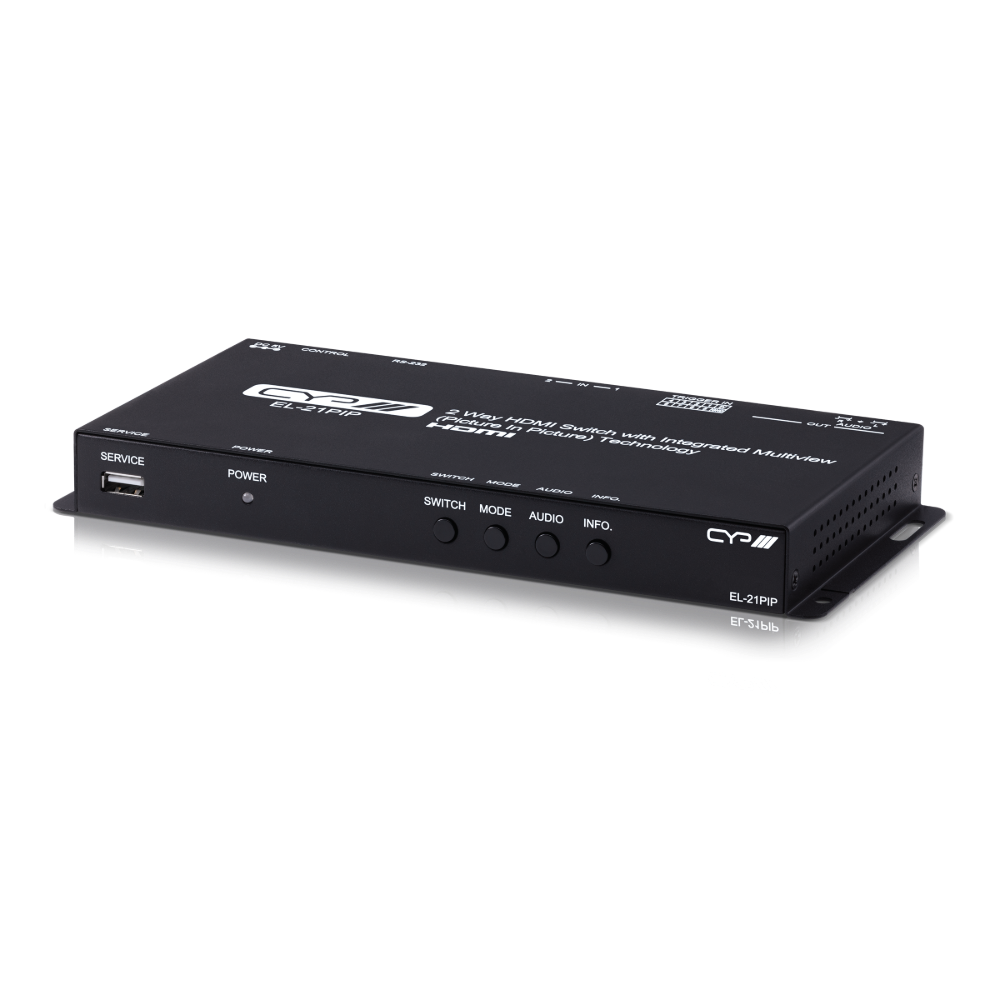

CYP EL-21PIP 2x1 HDMI Switcher with Picture in Picture, 1080p

Product code: 185680

£435.00 inc VAT
£362.50 ex VAT

SKU: CYP039

3 in stock

3 available online

About this Product

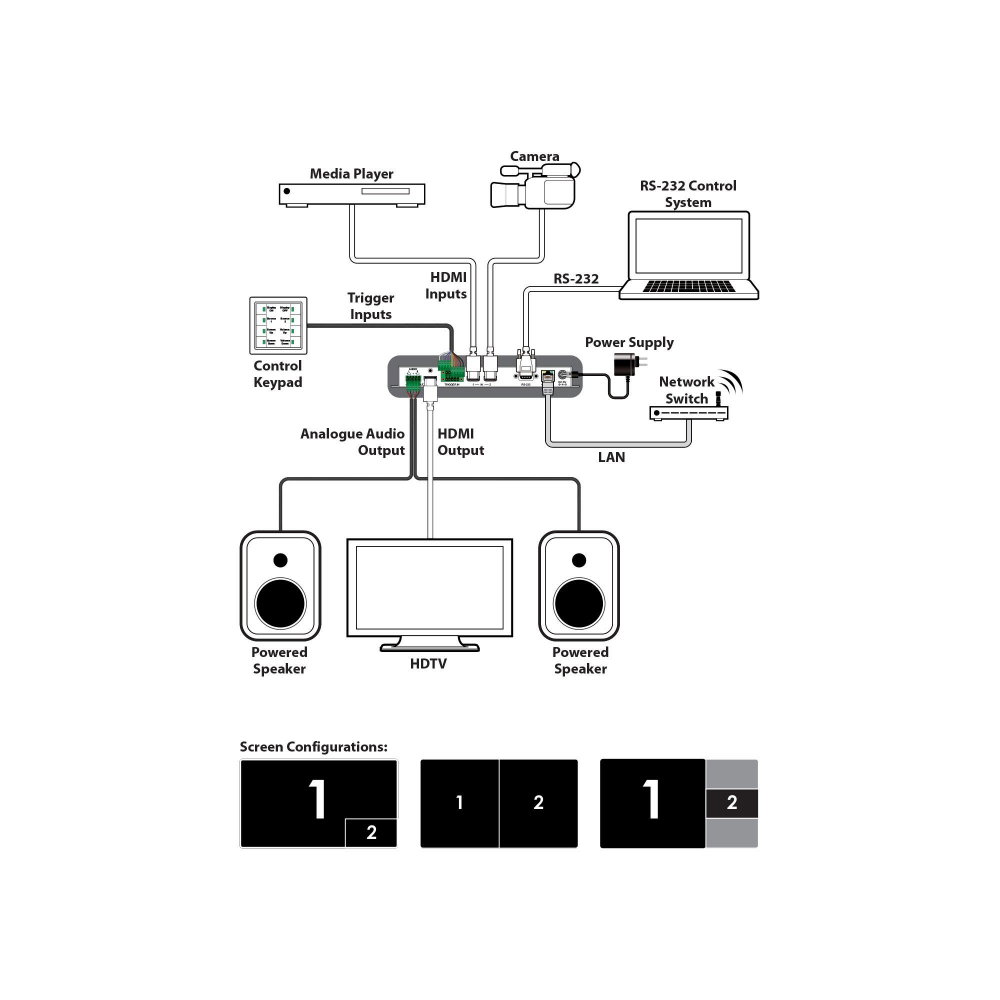

Two HDMI sources, one display: this switcher shows either source full screen or both together as picture in picture, including a free positioning mode. It also offers chromakey, a bitmap logo overlay and de-embedded analogue audio on a balanced or unbalanced terminal. Control options are Web GUI, Telnet, RS-232, IR and a trigger input compatible with the CR-TG1 keypad.

2×1

Inputs x outputs

1080p60

Max output

PiP

Multiview

5.1W

Consumption

Features

2 HDMI inputs to 1 HDMI output with picture in picture

Free positioning mode for windows

Chromakey and bitmap logo overlay

De-embedded analogue audio output, balanced or unbalanced

Direct trigger input, compatible with CR-TG1

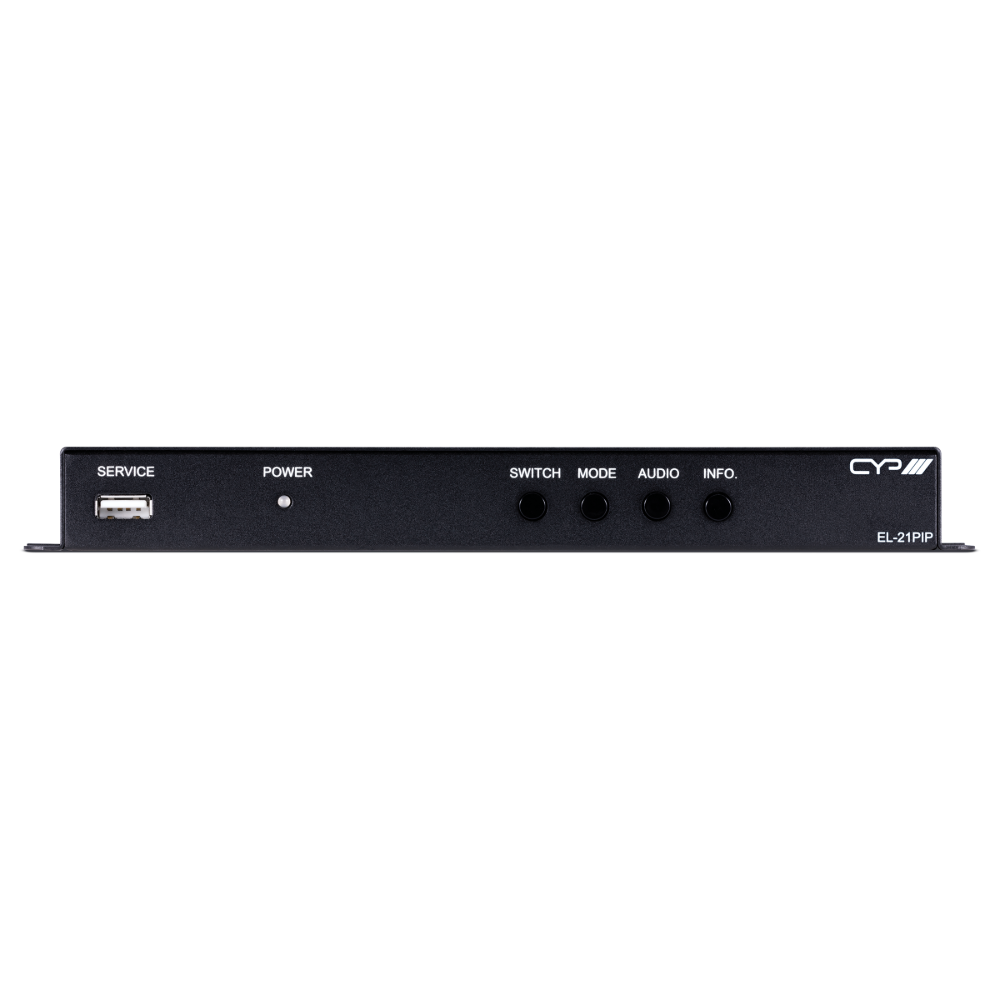

Control via OSD, Web GUI, Telnet, RS-232 and IR remote

RAX-600 rack kit compatible

Specifications

CYP EL-21PIP 2×1 HDMI Switcher with Picture in Picture, 1080p specifications
Brand	CYP
Model	EL-21PIP
Inputs	2x HDMI
Output	1x HDMI
Audio output	1x analogue stereo (5-pin Phoenix)
Max output	1920×1080@60, 1920×1200@60RB
HDMI / HDCP	HDMI 1.3 / HDCP 1.3 (datasheet)
Audio formats	8ch LPCM, Bitstream, HD Bitstream
Line out	2 Vrms
Control ports	RS-232 (DE-9), RJ45, IR in (3.5mm), 8x trigger (10-pin Phoenix)
Power	5V/2.6A locking
Power consumption	5.1W
Dimensions (WxHxD)	231.5 x 25 x 108mm
Weight	620g

Full features

3 Way multiview window configuration
Free positioning mode
Bitmap logo upload and display
Inputs support resolutions up to 1080p @60Hz and 1920x1200 @60Hz (RB)
Output supports HD resolutions up to 1080p @60Hz
Chromakey support
OSD, Web GUI, Telnet, RS-232 and IR remote control
Direct Trigger Input (Compatible with CR-TG1)
De-embedded audio output
RAX-600 Compatible

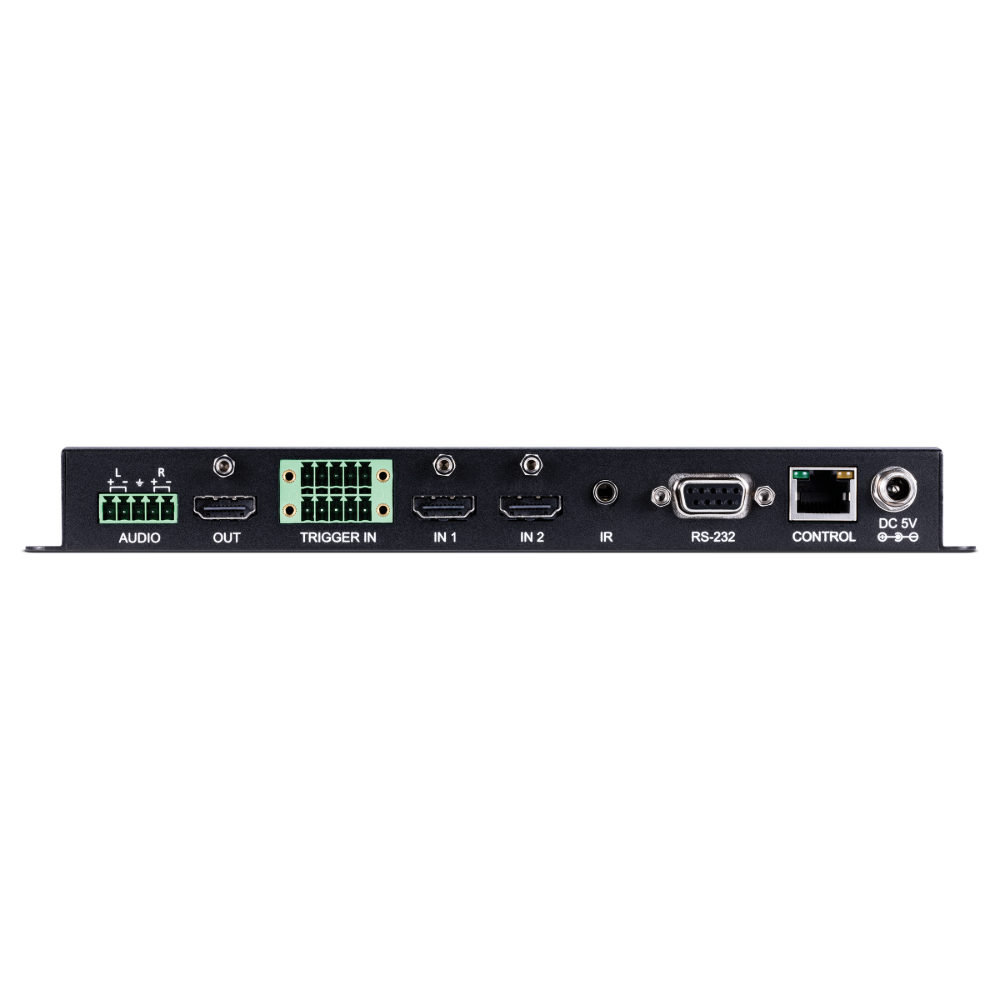

Inputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data], 1 x Phoenix (10-pin) [1 x Trigger In (8)], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x 9pin Dsub [1 x RS-232 Data], 1 x RJ45 [1 x IP Control]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x Phoenix (5-pin) [1 x Analogue Stereo (Balanced or Unbalanced)]
PSU: 5V/2.6A
Dimensions (H x W x D): 25 x 231.5 x 108mm
Net Weight: 620g
Gross Weight: 1.18kg
