CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass

Product code: 186005

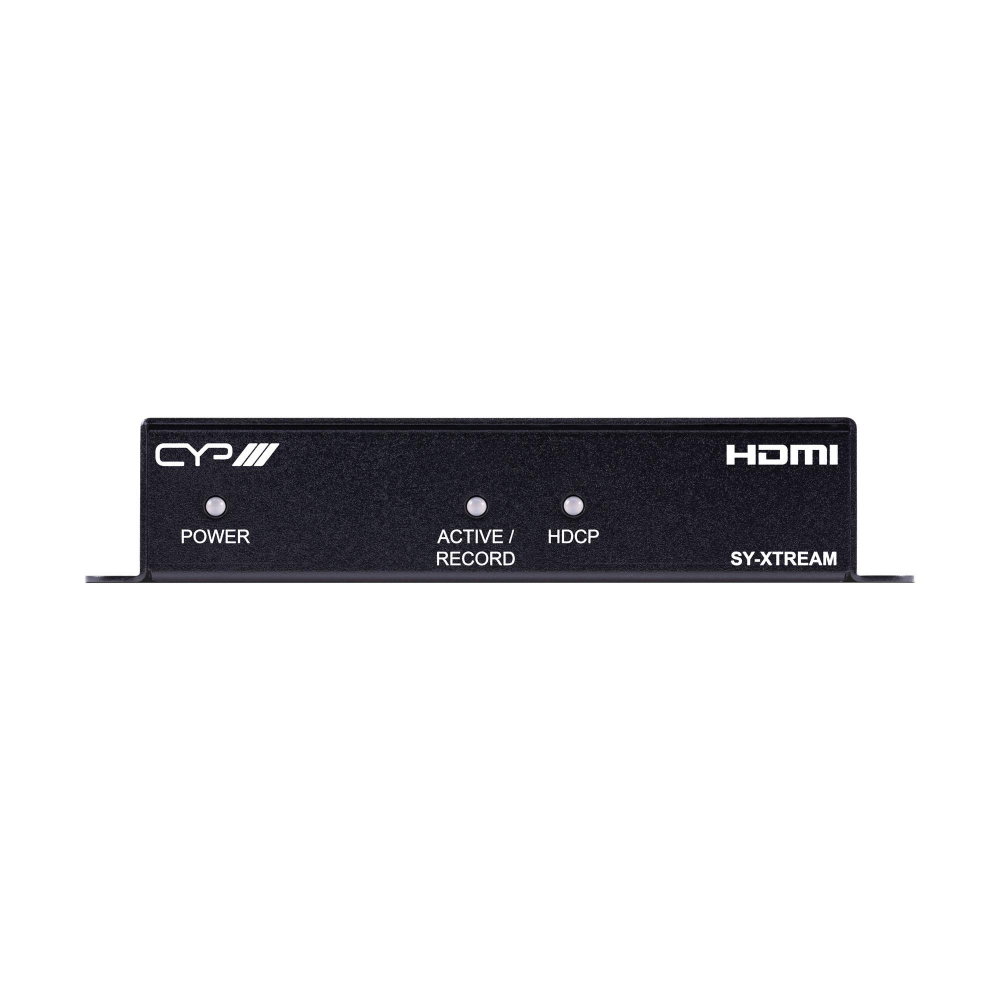

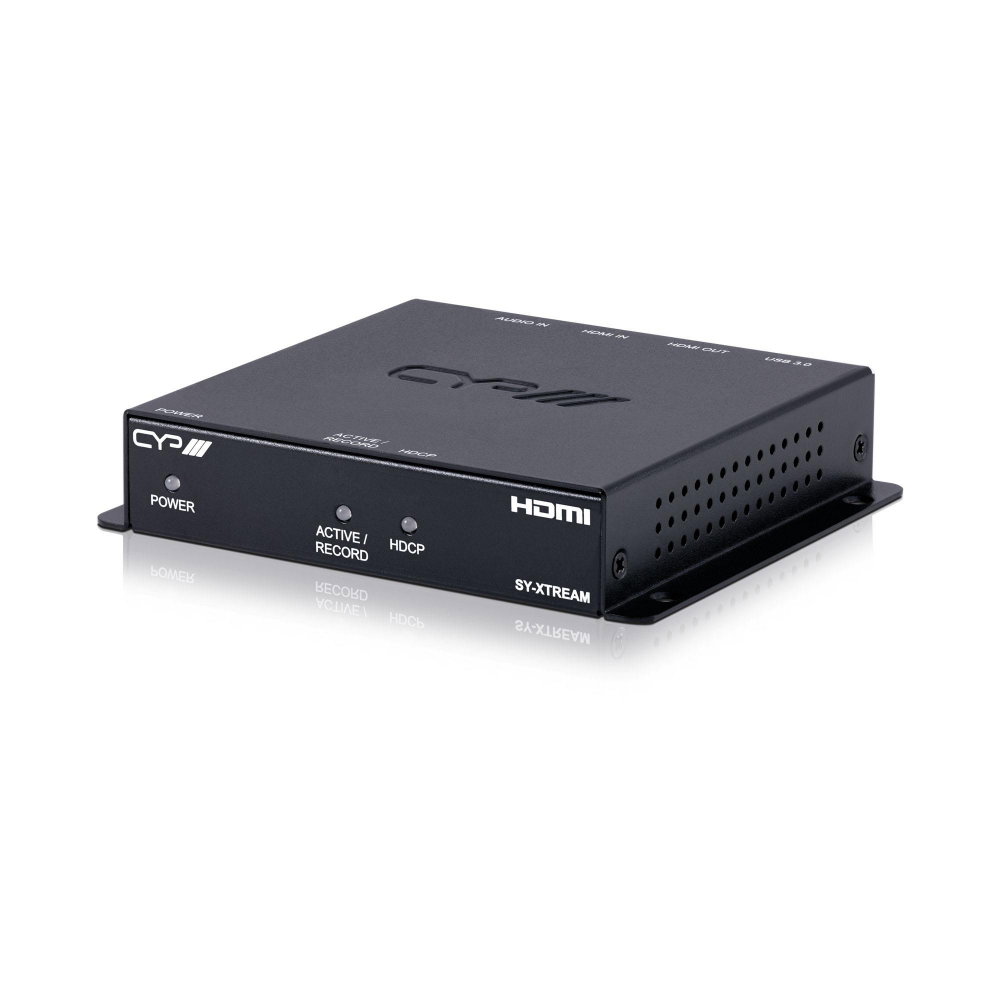

CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass - Image 1
CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass - Image 2
CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass - Image 3
CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass - Image 4
Click to enlarge

    £343.00 inc VAT
    £285.83 ex VAT

    SKU: CYP042

    2 in stock

    2 available online
    FREE delivery by WednesdayOrder by 3pm
    Click & Collect tomorrow ›Collect from us in Wembley
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

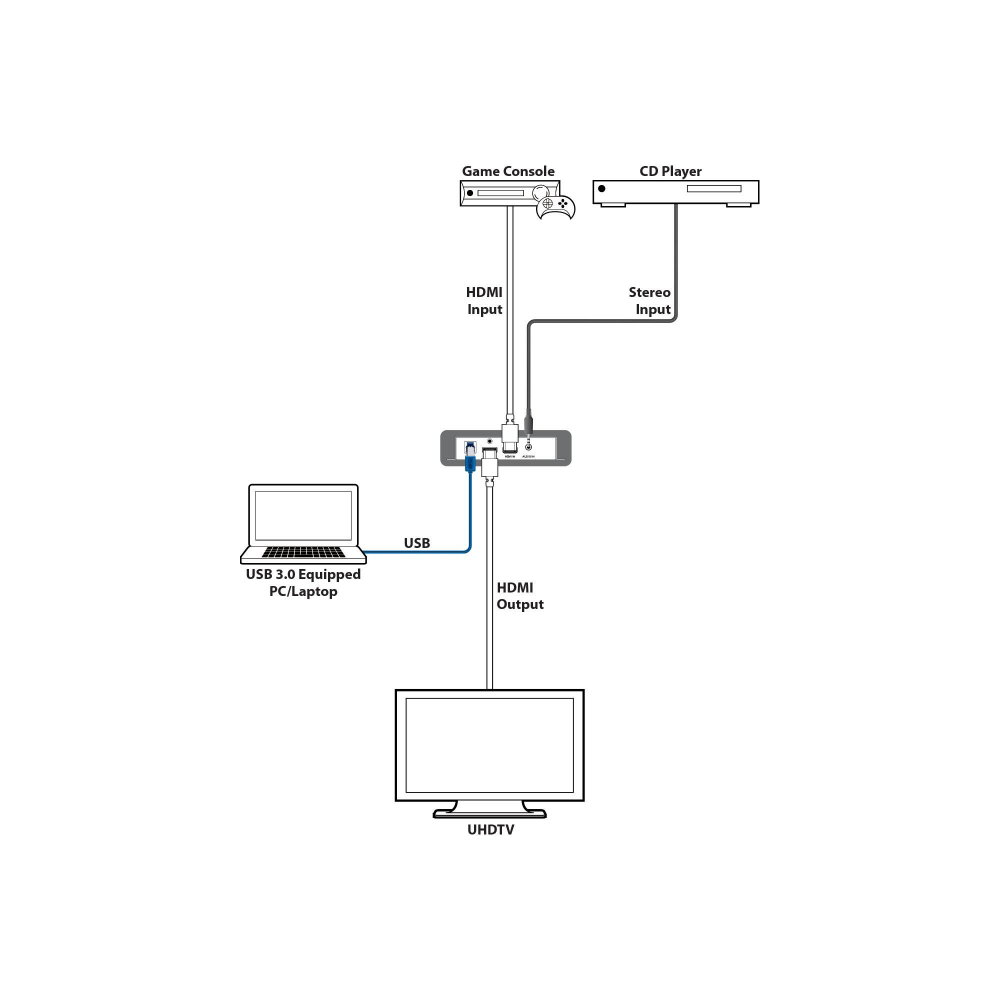

    Connected to a computer’s USB 3.0 port, this single-input capture box records or streams an HDMI source at up to 1080p while passing the original signal, up to 4K60 with HDR, through to a local display. 4K sources are scaled down to 1080p for capture automatically. Stereo audio is taken from either the HDMI signal or the 3.5mm analogue input.

    1080p
    USB capture
    4K60 HDR
    HDMI bypass
    USB 3.0
    Connection
    USB
    Powered
    HDCP content cannot be capturedCYP note that HDCP-protected content cannot be streamed. On USB 2.0 a Y-cable is needed for power and MJPEG compression is applied.

    Features

    HDMI input and bypass output up to 4K60 4:4:4 8-bit, with 10/12-bit HDR support
    Automatic 4K to 1080p scaling for capture
    Uncompressed 1080p capture over USB 3.0
    Stereo audio from HDMI (LPCM 2.0) or 3.5mm analogue input
    UVC/UAC compliant, supports OBS on Windows, macOS and Linux
    Video timing stabilisation keeps the capture stream stable
    Windows and Mac control software available

    Specifications

    CYP SY-XTREAM HDMI to USB 3.0 Capture, 1080p with 4K60 Bypass specifications
    Brand CYP
    Model SY-XTREAM
    Inputs 1x HDMI, 1x 3.5mm stereo
    Outputs 1x HDMI bypass, 1x USB 3.0 Type-B
    USB capture Up to 1080p, LPCM 2.0
    Bypass resolution 4096×2160@60 4:4:4, HDR
    HDMI / HDCP HDMI 2.0 / HDCP 2.2 bypass
    Deep colour Up to 12-bit
    Power USB bus powered
    Power consumption 7.15W
    Dimensions (WxHxD) 128 x 25 x 108mm
    Weight 360g

    Full features

    • HDMI input and output with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
    • HDCP 2.2 and HDCP 1.x compliant
    • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
    • Supports Deep Colour input and output up to 12-bit
    • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
    • Automatically scales 4K sources to 1080p for USB capture
    • Unit may be powered directly via USB 3.0 (When using USB 2.0, a Y-cable is required to provide additional power)
    • Supports video timing stabilization to help ensure a reliable and stable USB capture stream
    • Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 1080p, LPCM 2.0)
    • Capturing over USB 2.0 requires the application of minimal MJPEG compression to the video and audio data (up to 1080p, LPCM 2.0)
    • Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via configuration software)
    • Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming software
    • Note: Availability and access to the controllable features of the unit depend on the capture software used
    • Support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux

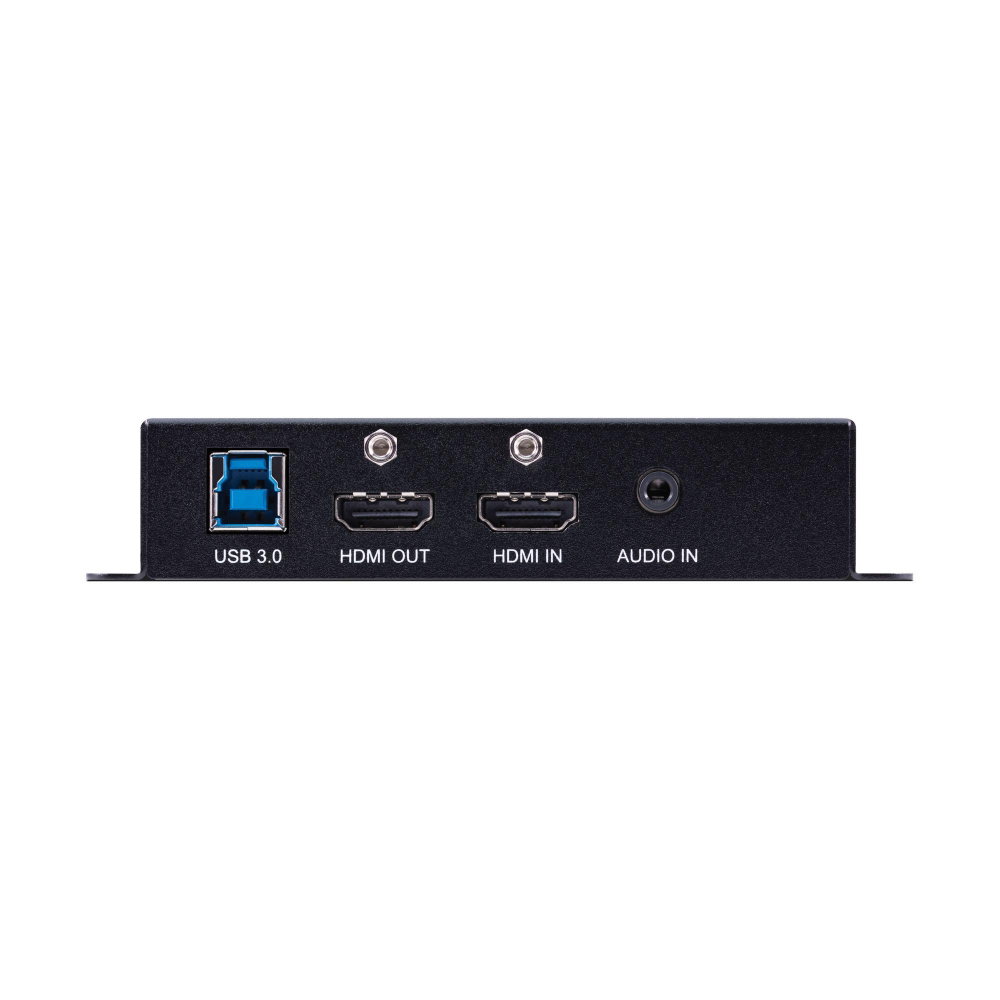

    • Inputs: 1 x USB 3 Type B [1 x Power & Data], 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)]
    • Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x USB 3 Type B [1 x Stream data Power & Data]
    • PSU: USB powered
    • Dimensions (H x W x D): 25 x 128 x 108mm
    • Net Weight: 360g
    • Gross Weight: 600g
