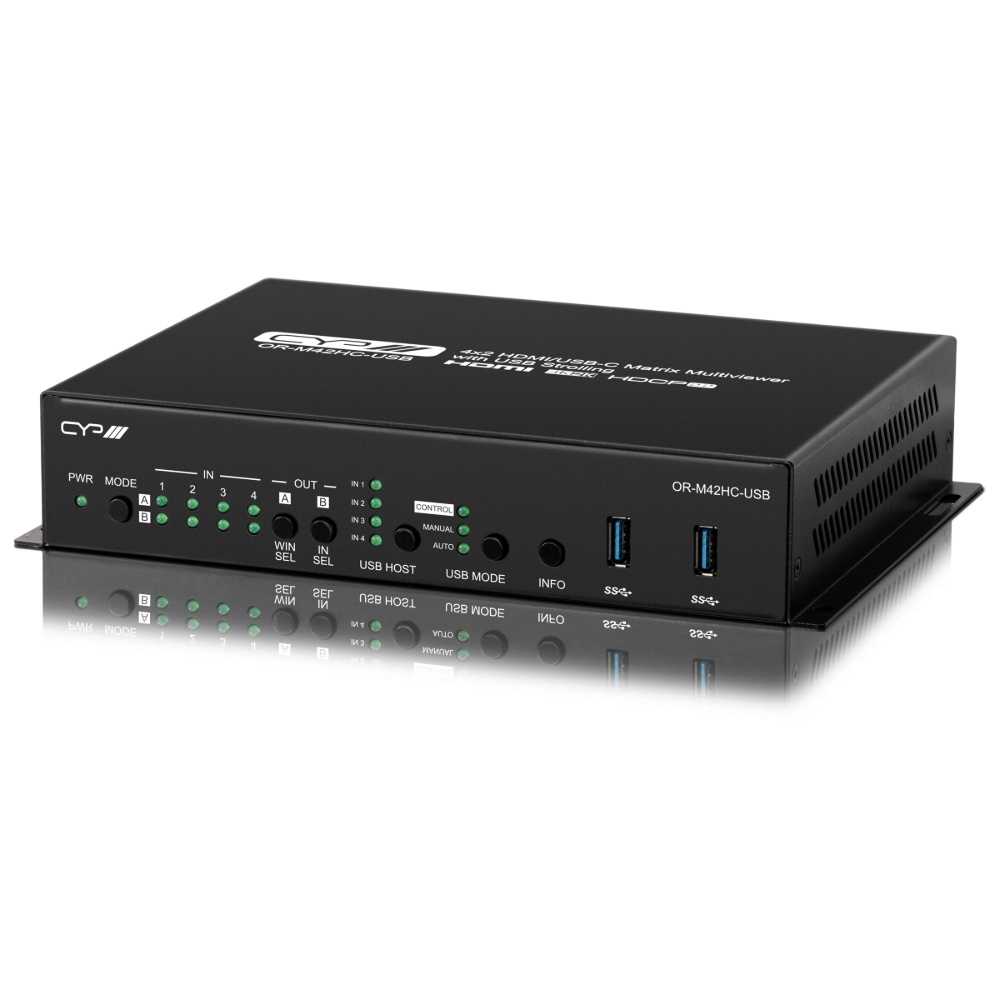

CYP OR-M42HC-USB 4x2 HDMI and USB-C Multiviewer Matrix, 4K60, KVM

Product code: 185758

£974.00 inc VAT
£811.67 ex VAT

SKU: CYP074

2 in stock

2 available online

About this Product

Four sources, two HDMI with USB and two USB-C, can be shown full screen or in quad, PiP and PoP layouts across two HDMI outputs at up to 4K60 4:4:4, with seamless switching in both matrix and multiview modes. One keyboard and mouse can move across all four computers (CYP call this USB strolling), and window size and position are set with the mouse. The USB-C inputs supply 45W and 30W to connected laptops.

4×2

Matrix

4K60 4:4:4

Max resolution

Quad, PiP, PoP

Layouts

45W + 30W

USB-C power

Features

2 HDMI and 2 USB-C inputs to 2 HDMI outputs at 4K60 4:4:4

Seamless switching in matrix and multiview modes

Quad, PiP and PoP layouts saved as presets

Control 4 computers from one keyboard and mouse

USB-C inputs carry DisplayPort video, USB 3.2 Gen1 and Ethernet

USB-C charging at 45W and 30W

Window layout adjusted with a USB mouse via OSD

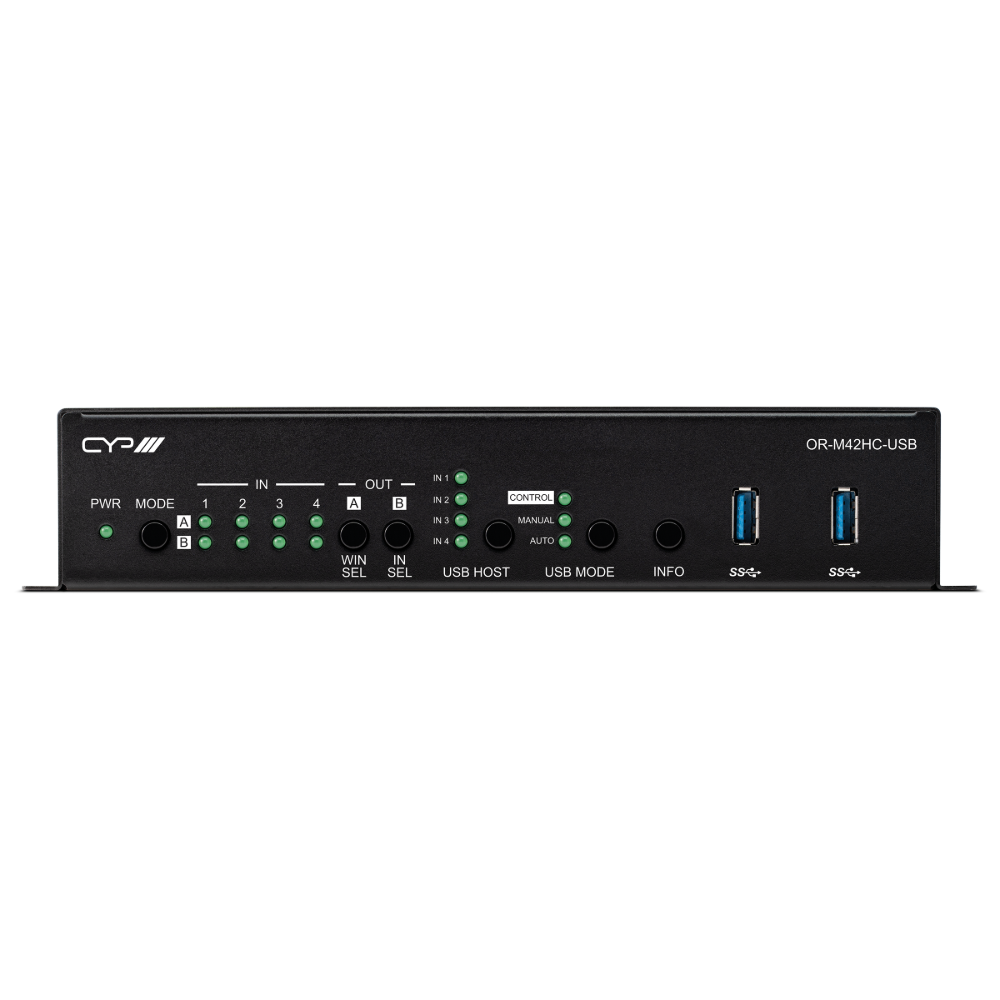

Control via front panel, Telnet, RS-232 and OSD

Specifications

CYP OR-M42HC-USB 4×2 HDMI and USB-C Multiviewer Matrix, 4K60, KVM specifications
Brand	CYP
Model	OR-M42HC-USB
Video inputs	2x HDMI, 2x USB-C
USB host inputs	2x USB Type-B (for HDMI sources)
Outputs	2x HDMI, 2x 3.5mm stereo
USB device ports	4x Type-A (2x USB 3.2 Gen1, 2x USB 2.0)
Network	1x RJ45
Max resolution	4096×2160@60 4:4:4
HDMI / HDCP	HDMI 2.0 / HDCP 1.x and 2.2
Audio	2ch LPCM 48kHz
Control	Front panel, Telnet, RS-232 (3-pin Phoenix), OSD
Power	24V/7.5A
Power consumption	140W
Dimensions (WxHxD)	231.5 x 44 x 158mm
Weight	1.26kg

Full features

2 HDMI inputs, 2 USB (Type-C) inputs and 2 HDMI outputs up to 4K@60 4:4:4
Controllable via front panel buttons, Telnet, RS-232, and OSD via USB mouse and keyboard
2 USB Type-C Inputs support USB3.1 Gen1 to Ethernet and DP video
Two USB Type-C ports respectively provide 45W and 30W of power to each connected device
Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection or auto audio switch by following USB control function
Seamless switching (no loss of sync to display) when switching sources in both matrix and multi-view modes
Supports easy adjustment of window size, position and settings in the window mode via USB mouse
Supports the ability to store a multi-window arrangement as a preset that can be recalled later
Selected window will have a border to highlight the window that is being operated
DVI 1.0 compatible with the use of an HDMI-DVI adaptor
HDCP 1.x and 2.2 compliant

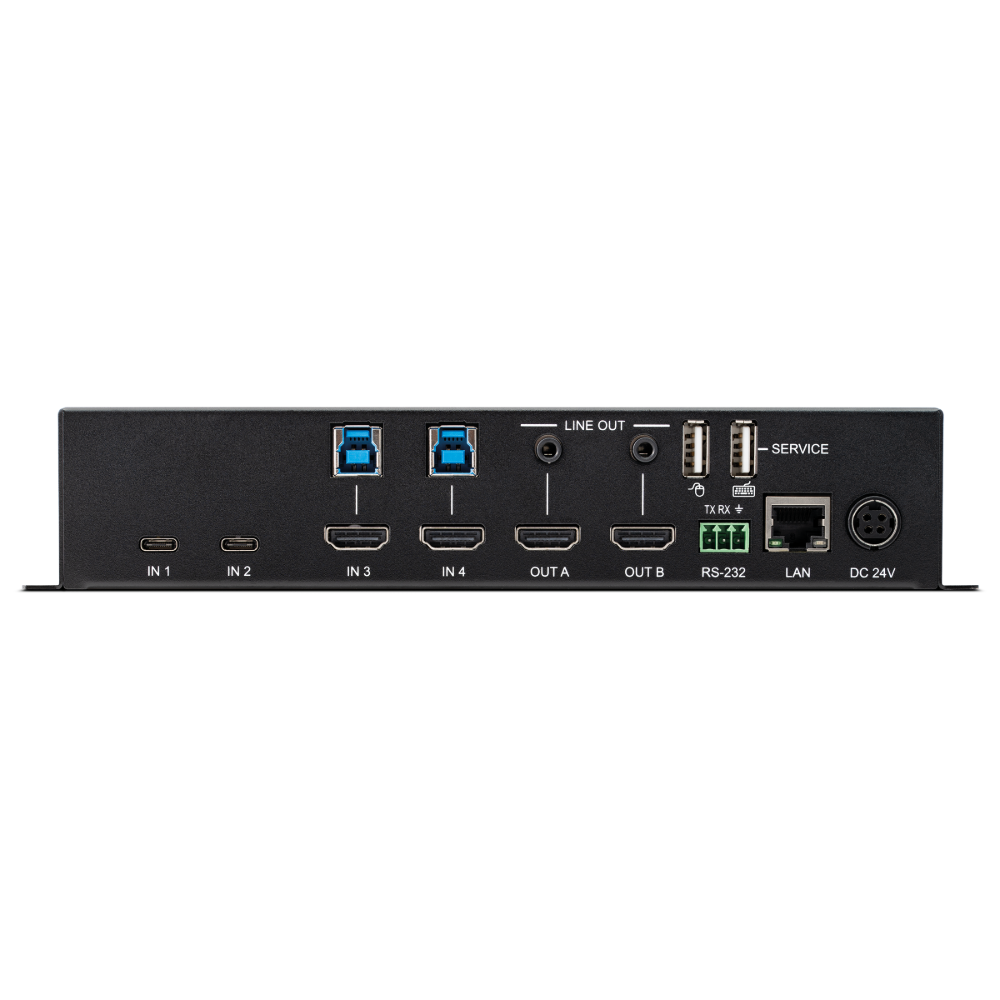

Inputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data], 2 x USB Type B [1 x USB Data Propriety Data], 2 x USB-C [2 x USB AV and Data USB-C / Thunderbolt], 1 x Phoenix (3-pin) [1 x RS-232], 1 x RJ45 [1 x LAN and Telnet Propriety Data]
Outputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data], 2 x 3.5mm Stereo mini-jack [2 x Analogue Stereo (L/R)], 4 x USB Type A [4 x Propriety Data]
PSU: 24V/7.5A
Dimensions (H x W x D): 44 x 231.5 x 158mm
Net Weight: 1.26kg
Gross Weight: 2.78kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: OR-M42HC-USB_PDF-Manual_v1.01.pdfPDF

Manuals & Instructions: OR-M42HC-USB_Datasheet_v1.pdfPDF
