CYP EL-41S-4K22 4x1 HDMI Switcher, 4K60 4:4:4 HDR with Auto Switching

SKU: CYP089

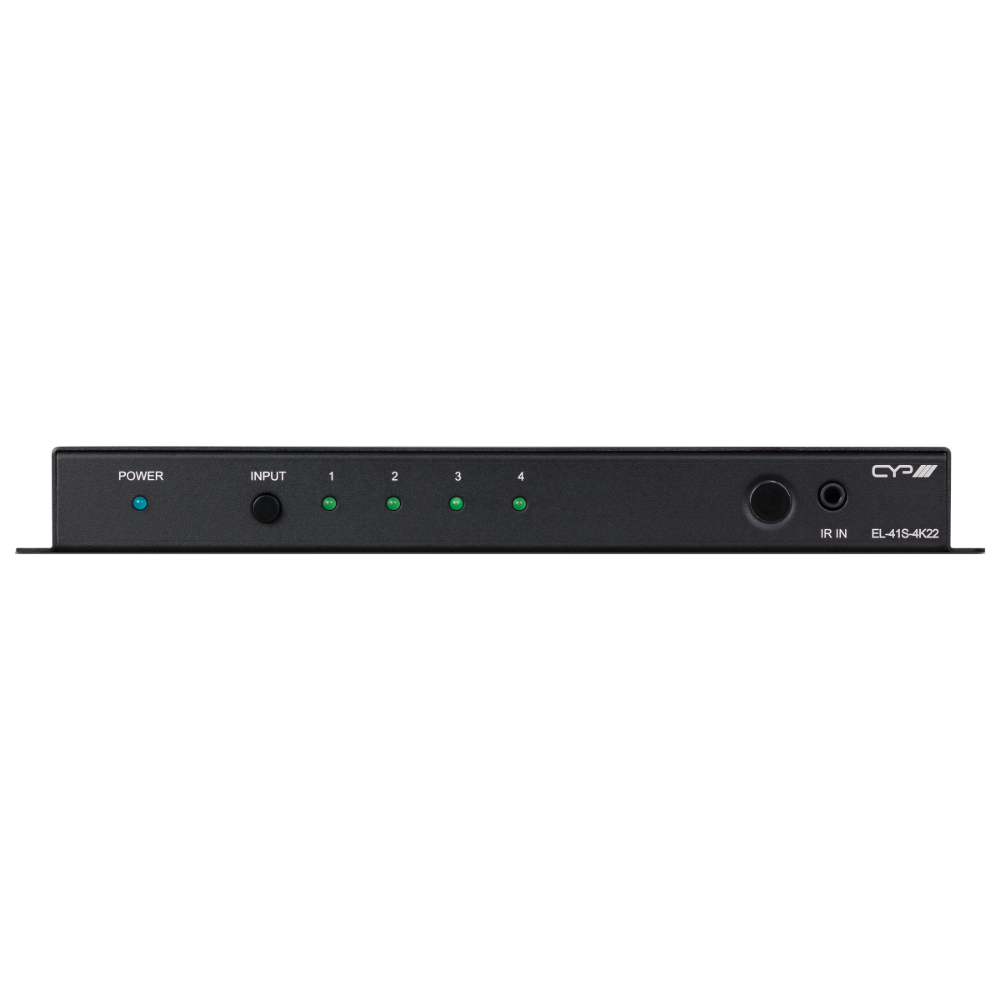

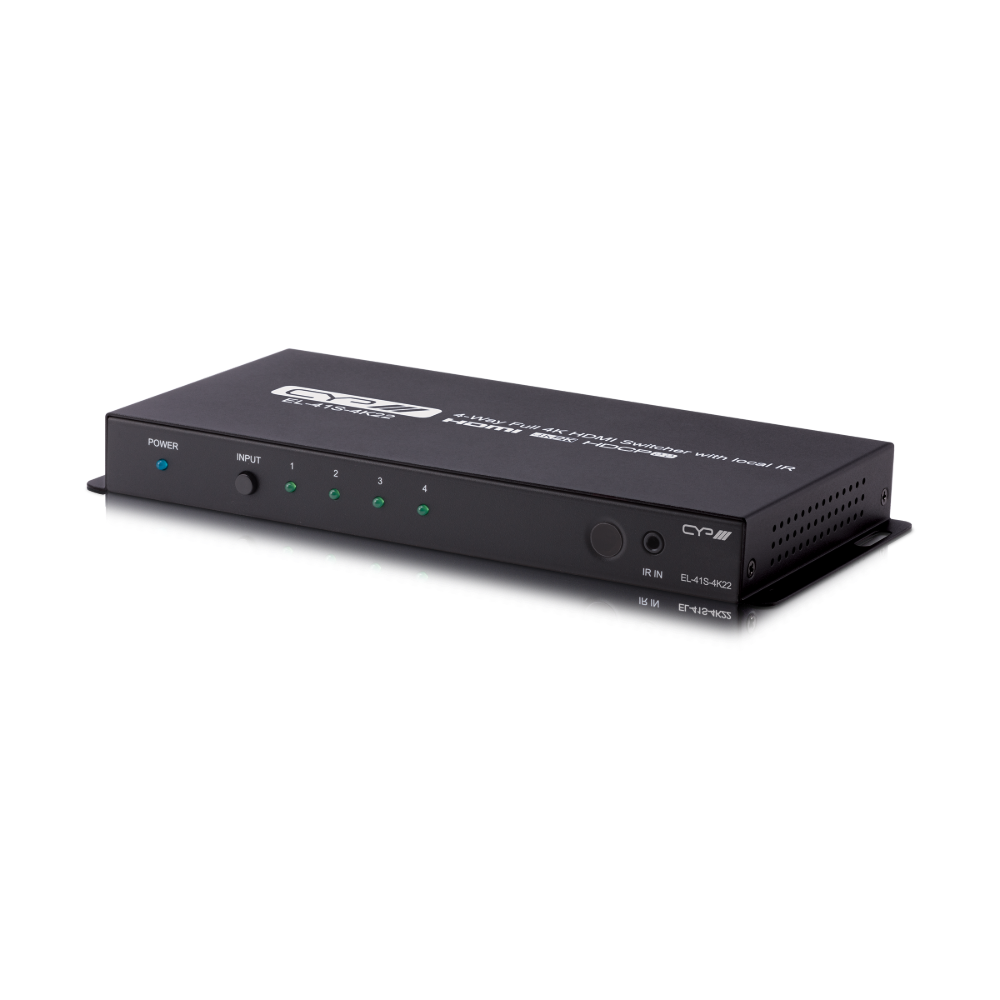

CYP EL-41S-4K22 4x1 HDMI Switcher, 4K60 4:4:4 HDR with Auto Switching - Image 1
CYP EL-41S-4K22 4x1 HDMI Switcher, 4K60 4:4:4 HDR with Auto Switching - Image 2
CYP EL-41S-4K22 4x1 HDMI Switcher, 4K60 4:4:4 HDR with Auto Switching - Image 3
CYP EL-41S-4K22 4x1 HDMI Switcher, 4K60 4:4:4 HDR with Auto Switching - Image 4
Click to enlarge

    £174.00 inc VAT
    £145.00 ex VAT

    10 in stock

    10 available online
    Delivered by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

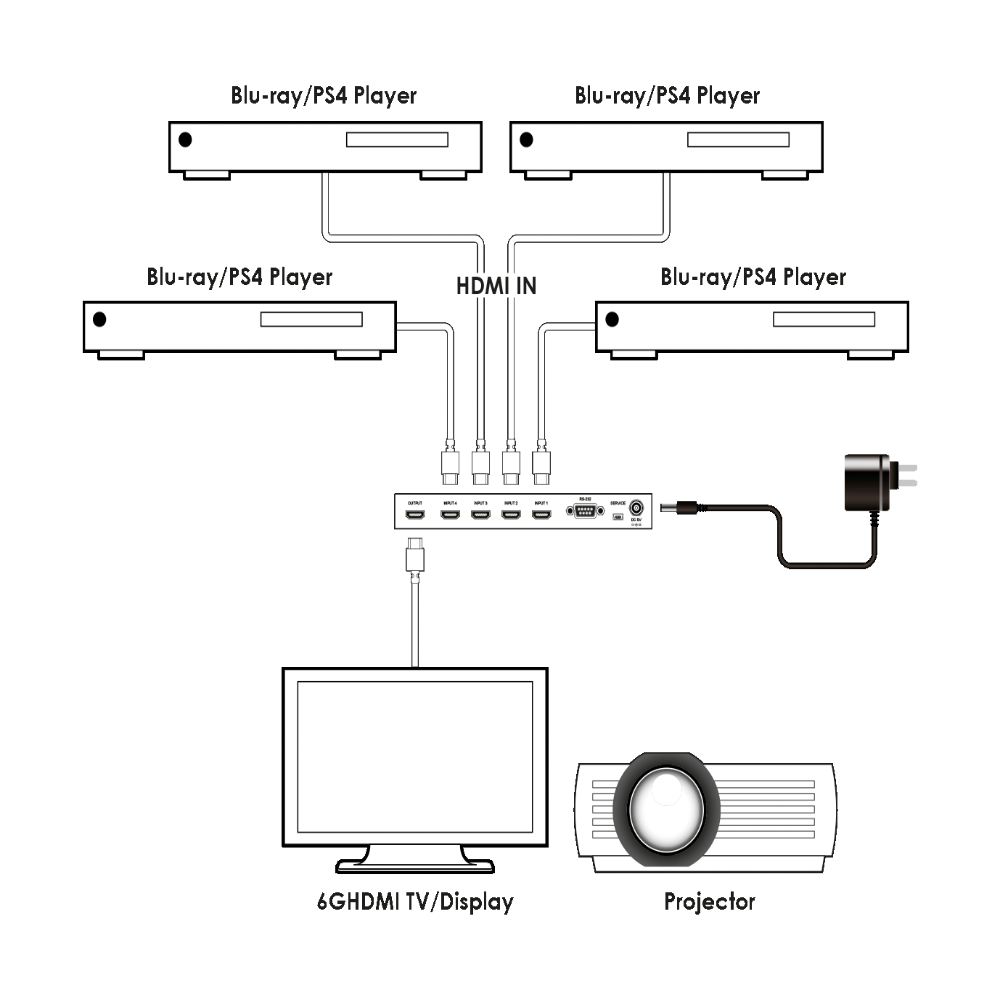

    A straightforward four-input HDMI switcher for a single display, passing 4K60 4:4:4 with HDR plus HD audio formats including Dolby Atmos and DTS-HD Master Audio. Auto-switching jumps to the most recent active source, or inputs can be picked by IR remote or RS-232. Typical jobs are a TV with several sources in a meeting room, bar or home cinema.

    4×1
    Inputs x outputs
    4K60 4:4:4
    Max resolution
    HDCP 2.2
    Copy protection
    6.6W
    Consumption
    Features
    4 HDMI inputs to 1 HDMI output
    4K60 4:4:4 (3840×2160 and 4096×2160) with HDR
    HDMI 2.0 and HDCP 2.2 compliant
    HD audio pass-through: PCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD MA
    Auto-switching to the latest active input
    Control via IR remote and RS-232
    Specifications
    Brand CYP
    Model EL-41S-4K22
    Inputs 4x HDMI
    Output 1x HDMI
    Max resolution 4096×2160@60 4:4:4, HDR
    HDMI / HDCP HDMI 2.0 / HDCP 2.2
    Audio formats LPCM 8ch, Bitstream, HD Bitstream

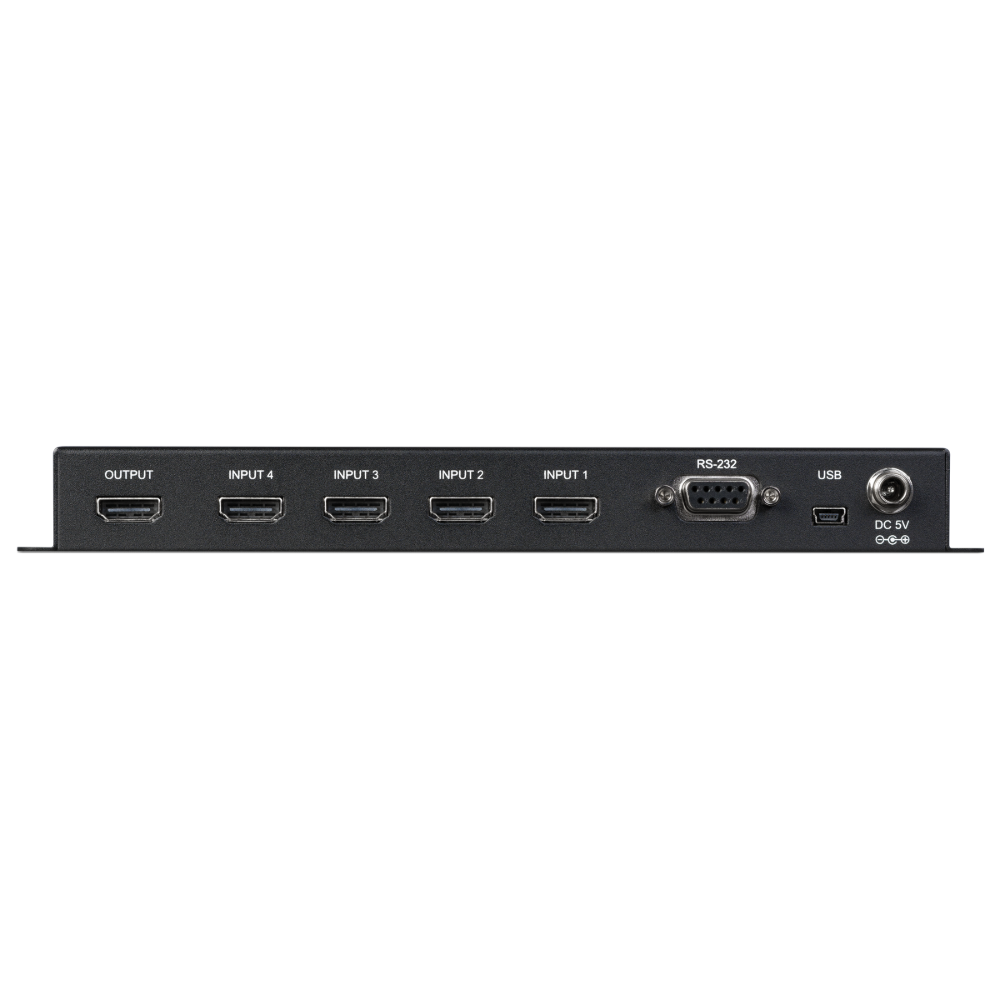

    Control ports IR in (3.5mm), RS-232 (DB-9), USB service
    Control IR remote, RS-232, auto-switching
    Power 5V/2.6A
    Power consumption 6.6W
    Dimensions (WxHxD) 231.5 x 25 x 108mm
    Weight 620g

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • HDMI2.0, HDCP 2.2 and DVI compatible
    • Supports 4 HDMI inputs and 1 HDMI output
    • Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz) including HDR
    • Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
    • Supports control via IR remote and RS-232
    • Supports Auto-switching which can send the signal of the latest active HDMI input source to output port

    Manuals & Downloads

    PDFManuals & Instructions: EL-41S-4K22_PDF-Manual_v1.00.pdfPDF
    PDFManuals & Instructions: EL-41S-4K22-Datasheet-v1.00.pdfPDF
