CYP OR-88U-4K22 8x8 HDMI Matrix Switcher, 4K60 with USB Power Ports

Product code: 185772

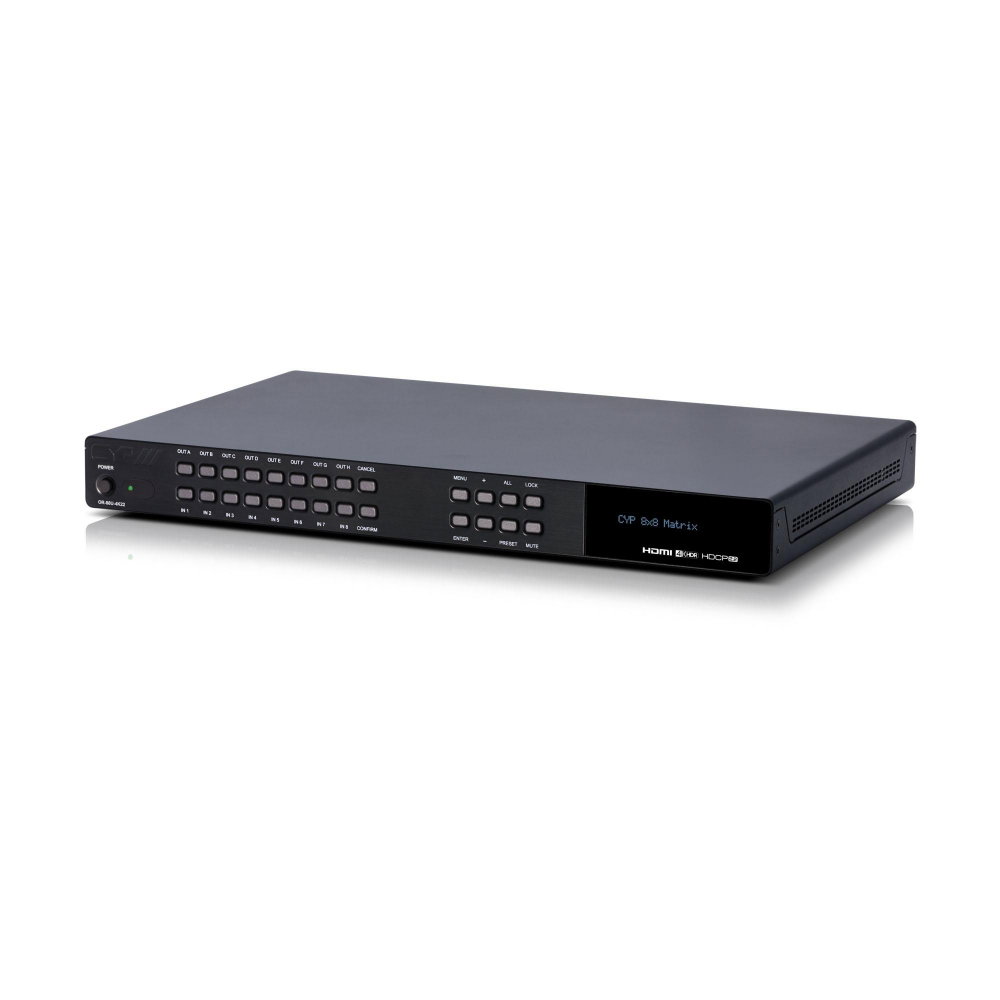

CYP OR-88U-4K22 8x8 HDMI Matrix Switcher, 4K60 with USB Power Ports - Image 1

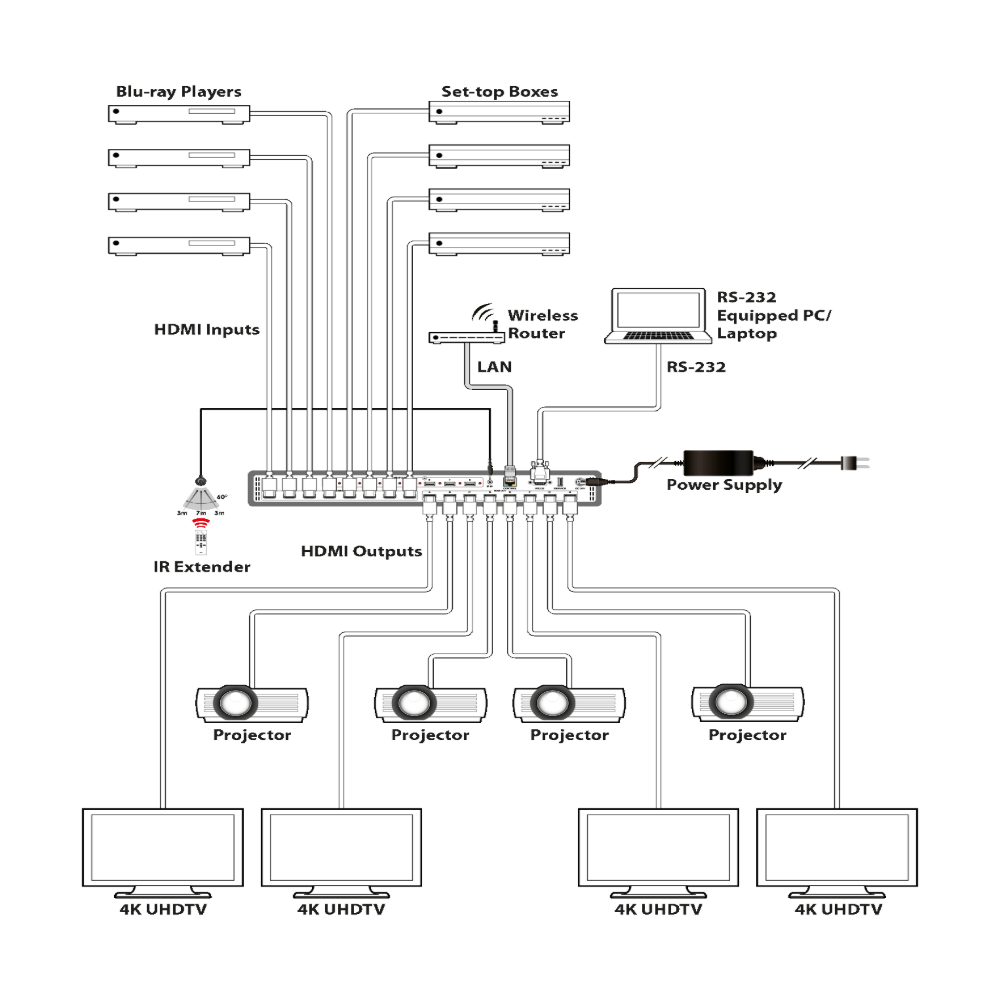

CYP OR-88U-4K22 8x8 HDMI Matrix Switcher, 4K60 with USB Power Ports - Image 2

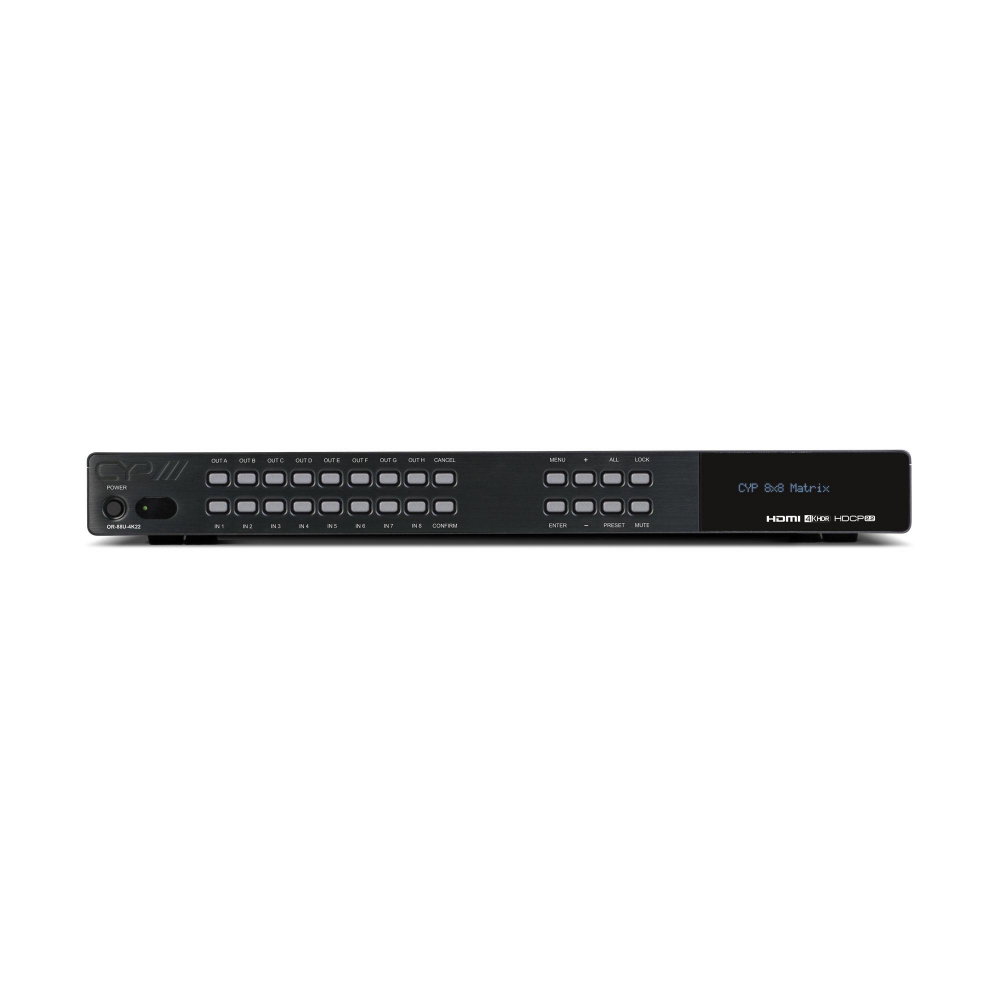

CYP OR-88U-4K22 8x8 HDMI Matrix Switcher, 4K60 with USB Power Ports - Image 3

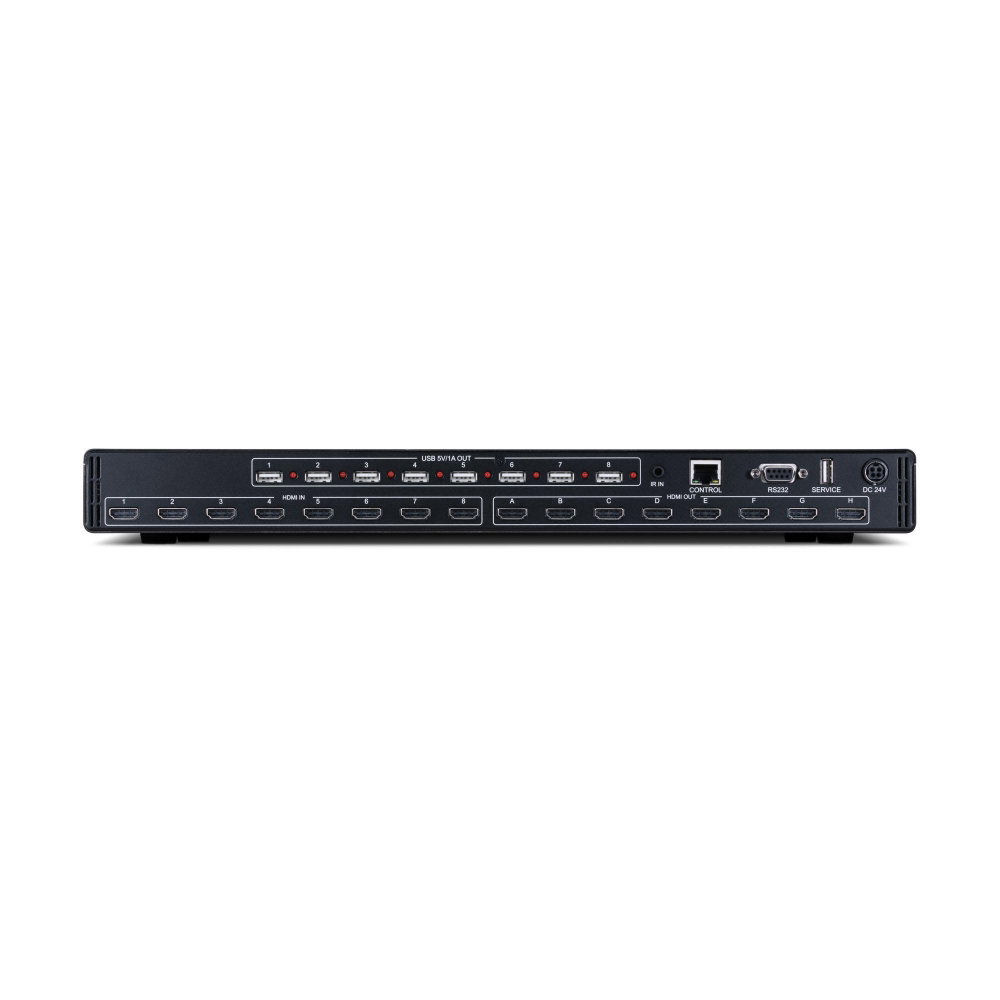

CYP OR-88U-4K22 8x8 HDMI Matrix Switcher, 4K60 with USB Power Ports - Image 4
Click to enlarge

    £1,875.00 inc VAT
    £1,562.50 ex VAT

    SKU: CYP071

    1 in stock

    1 available online
    FREE delivery by WednesdayOrder by 3pm
    Click & Collect tomorrow ›Collect from us in Wembley
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    An 8×8 HDMI matrix with 18Gbps support for 4K60 4:4:4 and HDR, sized for larger multi-display installs such as sports bars and control rooms. Eight USB-A ports each supply 5V/1A to power active optical (AOC) HDMI cables for runs longer than standard HDMI allows. EDID can be internal, copied or user-supplied, and the OSD can overlay two lines of custom text on each output.

    8×8
    Matrix
    4K60 4:4:4
    18Gbps
    8x 5V/1A
    USB power
    110W
    Consumption

    Features

    8 HDMI inputs to 8 HDMI outputs with 18Gbps 4K60 4:4:4 and HDR
    16-bit Deep Colour up to 1080p60
    8 USB-A ports supply 5V/1A for AOC fibre HDMI cables
    6 internal, 8 copied and 4 user EDIDs
    OSD overlay of 2 lines of custom text per output
    LPCM 7.1, Bitstream and HD Bitstream pass-through
    Control via front panel with LCD, Web GUI, Telnet, RS-232 and IR

    Specifications

    CYP OR-88U-4K22 8×8 HDMI Matrix Switcher, 4K60 with USB Power Ports specifications
    Brand CYP
    Model OR-88U-4K22
    Inputs 8x HDMI
    Outputs 8x HDMI
    USB power 8x USB Type-A, 5V/1A (power only)
    Max resolution 4096×2160@60 4:4:4
    HDMI / HDCP HDMI 2.0a / HDCP 2.2
    Audio formats LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
    Control ports IR in (3.5mm), RS-232 (DB-9), RJ45 IP
    Control Front panel LCD, Web GUI, Telnet, RS-232, IR
    Power 24V/6.25A
    Power consumption 110W
    Dimensions (WxHxD) 438 x 44.5 x 270mm
    Weight 3.68kg

    Full features

    • HDMI 2.0a and DVI 1.0 compliant
    • HDCP 2.2 Compliant
    • Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (6G) 4K UHD support
    • Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) plus HDR
    • Supports 16-bit Deep Colour up to 1080p@60Hz
    • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
    • Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs
    • Eight USB ports to supply 5V/1A power to AOC (Active Optical Cable) fiber extension cables
    • OSD with user definable information text
    • Controllable via front-panel buttons with LCD, Web GUI, Telnet, RS-232, and IR remote
    • Inputs: 8 x HDMI [8 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x 9pin Dsub [1 x RS-232 Data]
    • Outputs: 8 x HDMI [8 x HDMI Uncompressed AV and Data], 8 x USB Type A [8 x 5V 1amp USB power output]
    • PSU: 24V/6.25A
    • Dimensions (H x W x D): 44.5 x 438 x 270mm
    • Net Weight: 3.68kg
    • Gross Weight: 6kg

    Product Reviews

    No reviews yet — be the first to review this product.

    Manuals & Downloads

    PDFManuals & Instructions: OR-88U-4K22_PDF-Manual_V1.03.pdfPDF
    PDFManuals & Instructions: OR-88U-4K22_Datasheet_v1.0.pdfPDF
