CYP EL-8300VA 8x2 4K Presentation Switcher with HDBaseT and 2x20W Amp

Product code: 185779

£1,836.00 inc VAT
£1,530.00 ex VAT

SKU: CYP082

1 in stock

1 available online

Optional Add-Ons

CYP PUV-1510RX HDBaseT Receiver 100m for EL-8300VA/EL-8500VA

£222.00 inc VAT
£185.00 ex VAT

Add to basket

About this Product

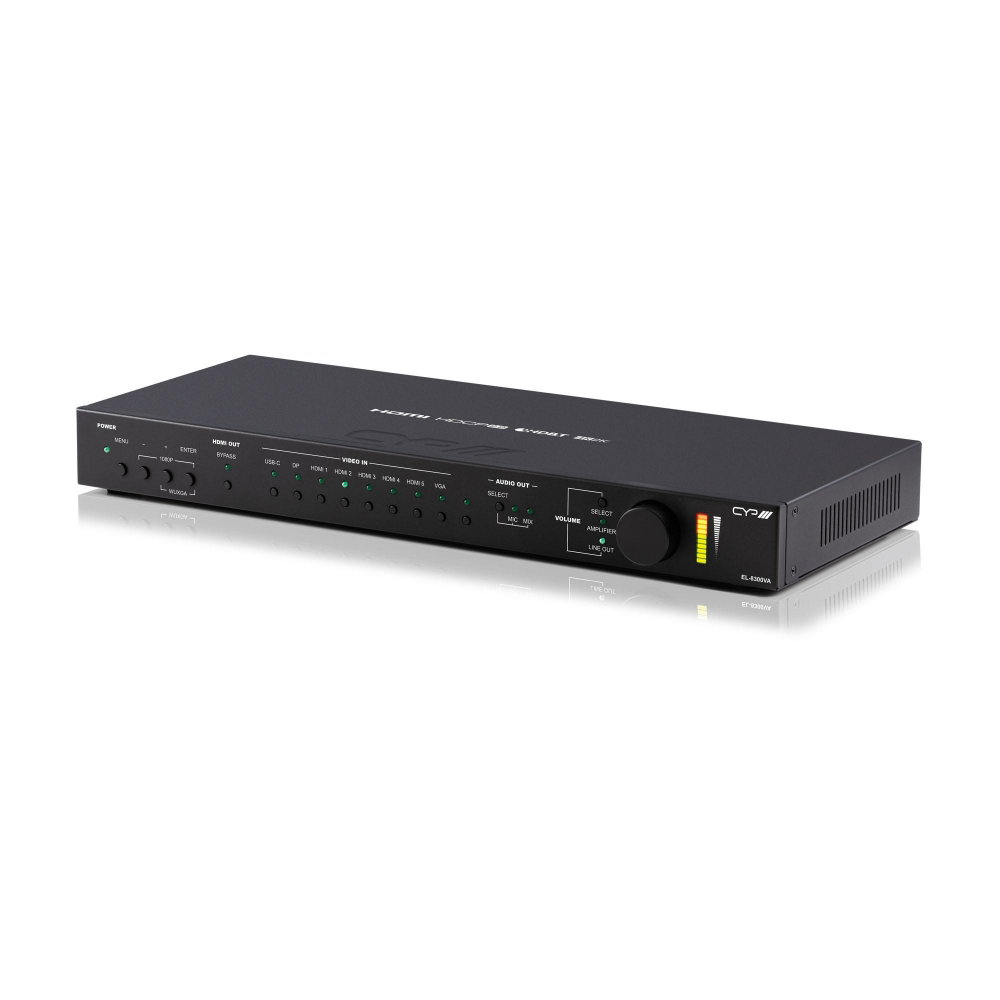

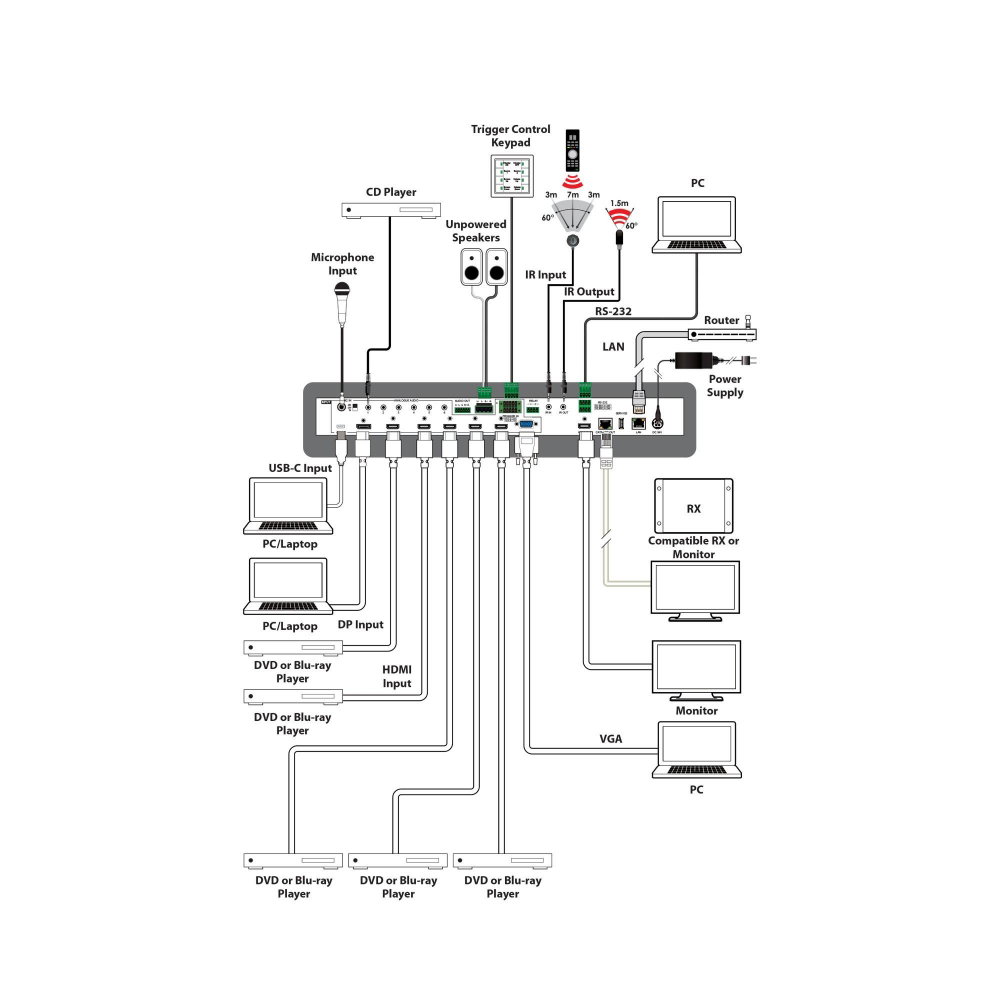

An all-in-one lectern or meeting room switcher with eight video inputs (five HDMI, DisplayPort, USB-C and VGA), all scaled to mirrored HDMI and HDBaseT outputs. HDBaseT reaches 100m at 1080p or 70m at 4K and can power a compatible receiver, while the USB-C input supplies up to 60W to a laptop. Audio is handled by six stereo inputs, a mic input with mixing, a line output and a built-in 2x20W amplifier.

Video inputs

4K60 4:4:4

HDMI in and out

70m

HDBaseT at 4K

2x20W

Amplifier

HDBaseT receiver not includedThe HDBaseT output needs a compatible receiver at the display; CYP list the PUV-1510RX. PoH is only supplied to compatible receivers.

Features

5x HDMI, 1x DisplayPort, 1x USB-C and 1x VGA inputs

Mirrored HDMI and HDBaseT outputs with up and down scaling

HDBaseT to 100m at 1080p, 70m at 4K, with PoH

USB-C input supplies up to 60W

Audio DSP mixes mic with any LPCM 2.0 source

Built-in 2x20W amplifier plus balanced or unbalanced line out

2 relay outputs and trigger input for keypad control

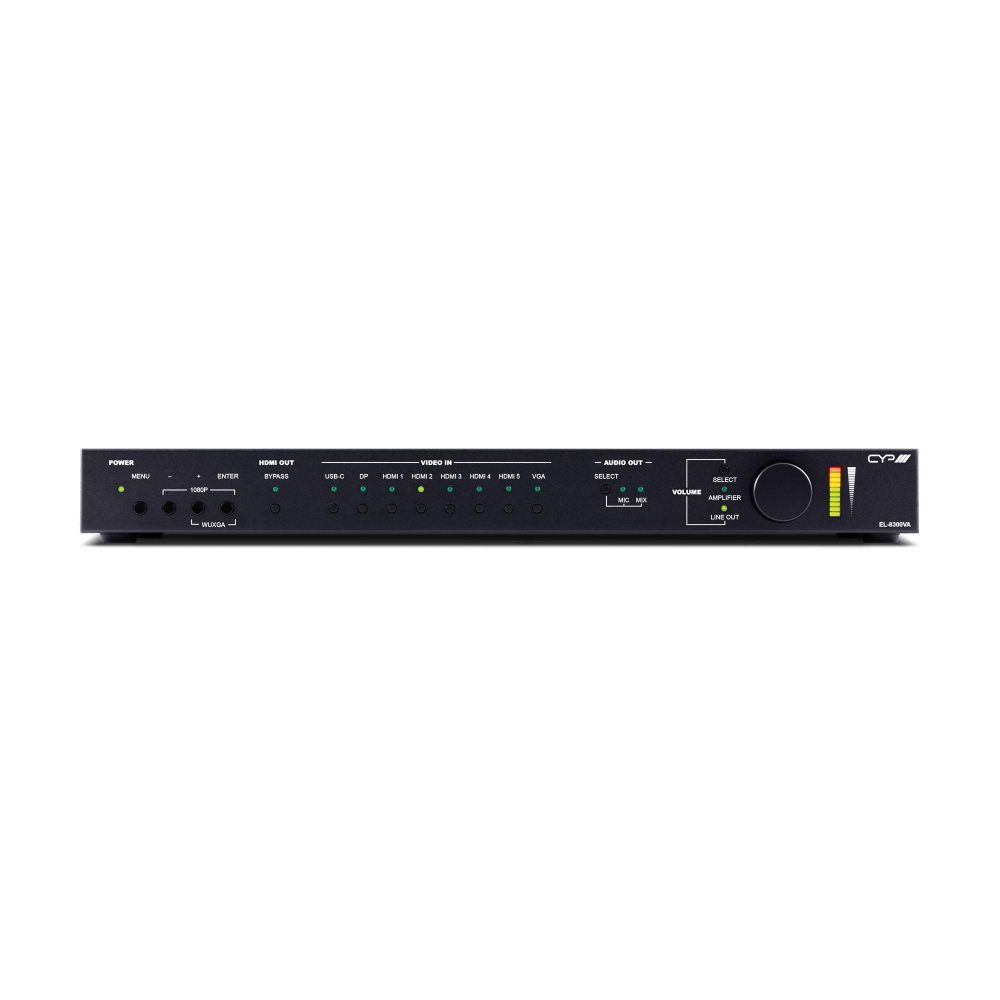

Control via front panel, OSD, Web GUI, Telnet, RS-232 and triggers

Specifications

CYP EL-8300VA 8×2 4K Presentation Switcher with HDBaseT and 2x20W Amp specifications
Brand	CYP
Model	EL-8300VA
Video inputs	5x HDMI, 1x DisplayPort, 1x USB-C, 1x VGA
Video outputs	1x HDMI, 1x RJ45 HDBaseT (mirrored)
Audio inputs	6x 3.5mm stereo, 1x 6.35mm mic
Audio outputs	1x line (5-pin Phoenix), 1x speaker 2x20W
Max input	HDMI, DP, USB-C 4096×2160@60; VGA 1920×1200@60RB
Max output	HDMI 4096×2160@60; HDBaseT 4096×2160@30
HDMI / HDCP	HDMI 2.0 / HDCP 2.2
HDBaseT distance	100m at 1080p, 70m at 4K (Cat5e/6/7)
USB-C power	Up to 60W
Control	Front panel, OSD, Web GUI, Telnet, RS-232, triggers; 2x relay outputs
Power	24V/6.25A locking
Power consumption	143W
Dimensions (WxHxD)	432 x 43 x 174mm
Weight	2.56kg

Full features

8x2 Presentation switcher with HDMI, DisplayPort, VGA and USB-C inputs
HDMI 2.0, DVI 1.0 and HDCP 2.2 compliant
HDBaseT and HDMI mirrored outputs with scaling functionality
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output (HDMI)
HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K; Auto conversion of 6G signals for HDBaseT output compatibility
Audio DSP function allows the mixing of audio from different audio input types plus microphone input balancing
Built in 2 x 20 watts audio amplifier
Trigger Control Keypad support for easy single-button control, function activation (Optional)
Control is via OSD, RS-232, Telnet, Web GUI and triggers
Comprehensive EDID and HDCP management
Supports standard PoH from the unit to connected HDBaseT Receivers (compatible receivers only)
USB Type-C port provides up to 60W of power to connected devices

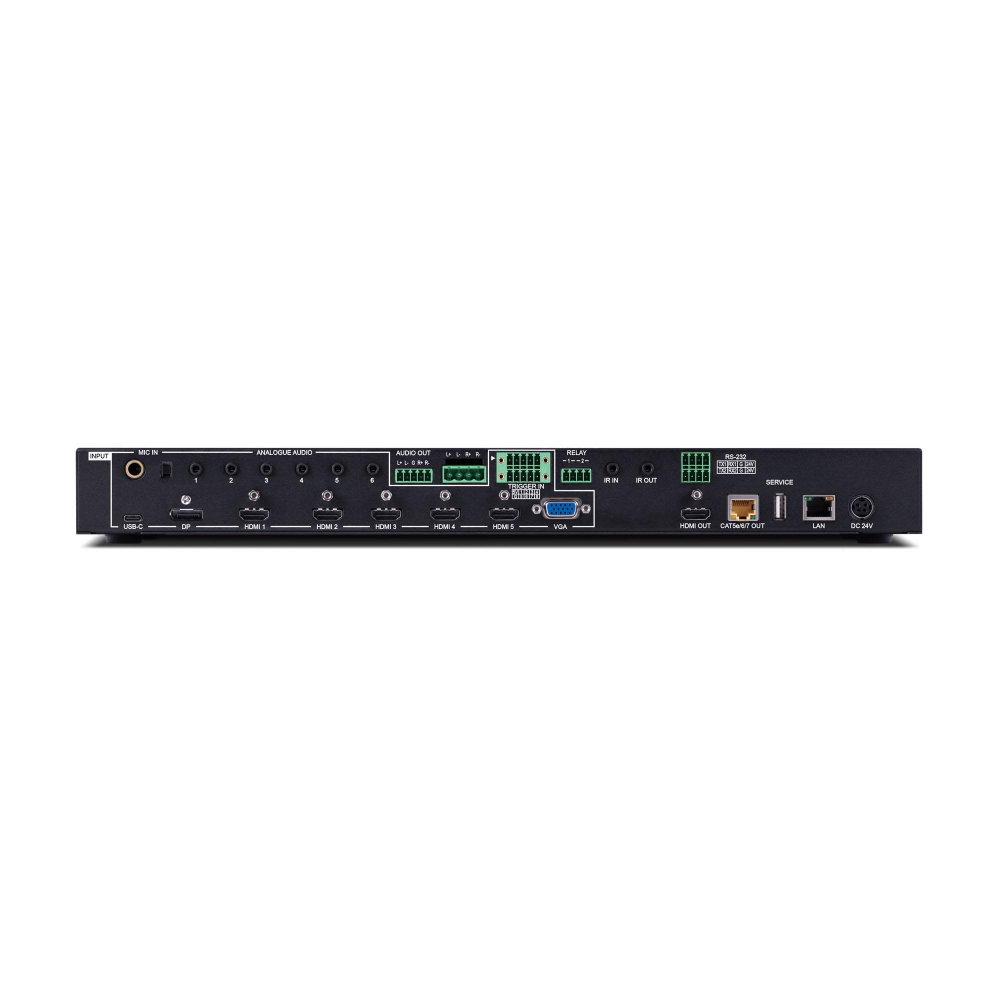

Inputs: 1 x USB-C [1 x USB-C / Thunderbolt], 5 x HDMI [5 x HDMI Uncompressed AV and Data], 1 x Display Port [1 x Display Port Uncompressed AV], 1 x 15pin Dsub [1 x VGA RGBHV], 1 x 6.35mm Stereo Jack [1 x Microphone], 6 x 3.5mm Stereo mini-jack [6 x Analogue Stereo (L/R)], 2 x Phoenix (2-pin) [2 x Contact Closure Relay Outputs], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x Phoenix (4-pin) [1 x RS-232 local control], 1 x Phoenix (4-pin) [1 x RS-232 HDBaseT pathway]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x RJ45 [1 x HDBaseT HDMI & Propriety Data], 1 x Phoenix (5-pin) [1 x Analogue Stereo (Balanced or Unbalanced)], 2 x Phoenix (2-pin) [1 x Speaker Level Stereo Output]
PSU: 24V/6.25A
Dimensions (H x W x D): 43 x 432 x 174mm
Net Weight: 2.56kg
Gross Weight: 4.18kg
