CYP PUV-1230PL-RX HDBaseT Lite Receiver OAR for PUV-1082PL-4K22N

Product code: 186056

£192.00 inc VAT
£160.00 ex VAT

SKU: CYP068

2 in stock

2 available online

Optional Add-Ons

CYP PUV-1082PL-4K22N 10x10 HDBaseT Lite Matrix, 4K with Audio Matrix

£3,675.00 inc VAT
£3,062.50 ex VAT

Add to basket

About this Product

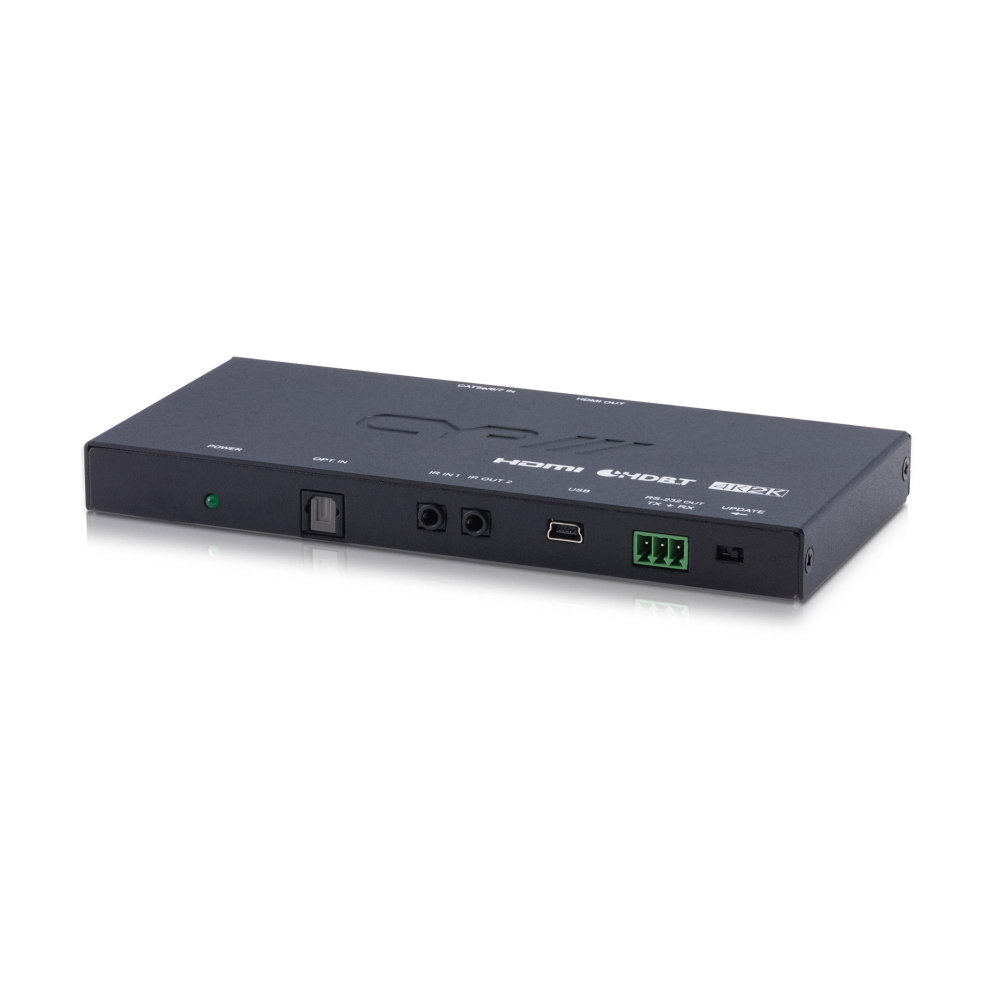

Paired with the PUV-1082PL-4K22N matrix, this slimline receiver adds an optical input so audio from the TV end can be routed back into the matrix’s audio section. It also delivers HDMI, two-way IR and RS-232, and is powered over the cable by PoH. 4K runs reach 35m on CAT5e/6 or 60m on CAT6a/7, in a 16mm-high case for fitting behind a screen.

OAR

Optical audio return

60m

4K over CAT6a/7

PoH

Cable powered

16mm

Slimline height

Needs a PoH sourceReceiver only, with no power supply. It is powered by PoH from the CYP PUV-1082PL-4K22N matrix or a PUV-1230PL-TX transmitter. This is HDBaseT Lite, not an AVLC receiver.

Features

Receives HDMI and HD audio over HDBaseT Lite

Optical Audio Return input routes display-end audio back to the matrix

4K up to 35m over CAT5e/6 or 60m over CAT6a/7

Bi-directional IR and RS-232 pass-through

HDCP 2.2, HDCP repeating, CEC and 3D support

Specifications

CYP PUV-1230PL-RX HDBaseT Lite Receiver OAR for PUV-1082PL-4K22N specifications
Brand	CYP
Model	PUV-1230PL-RX

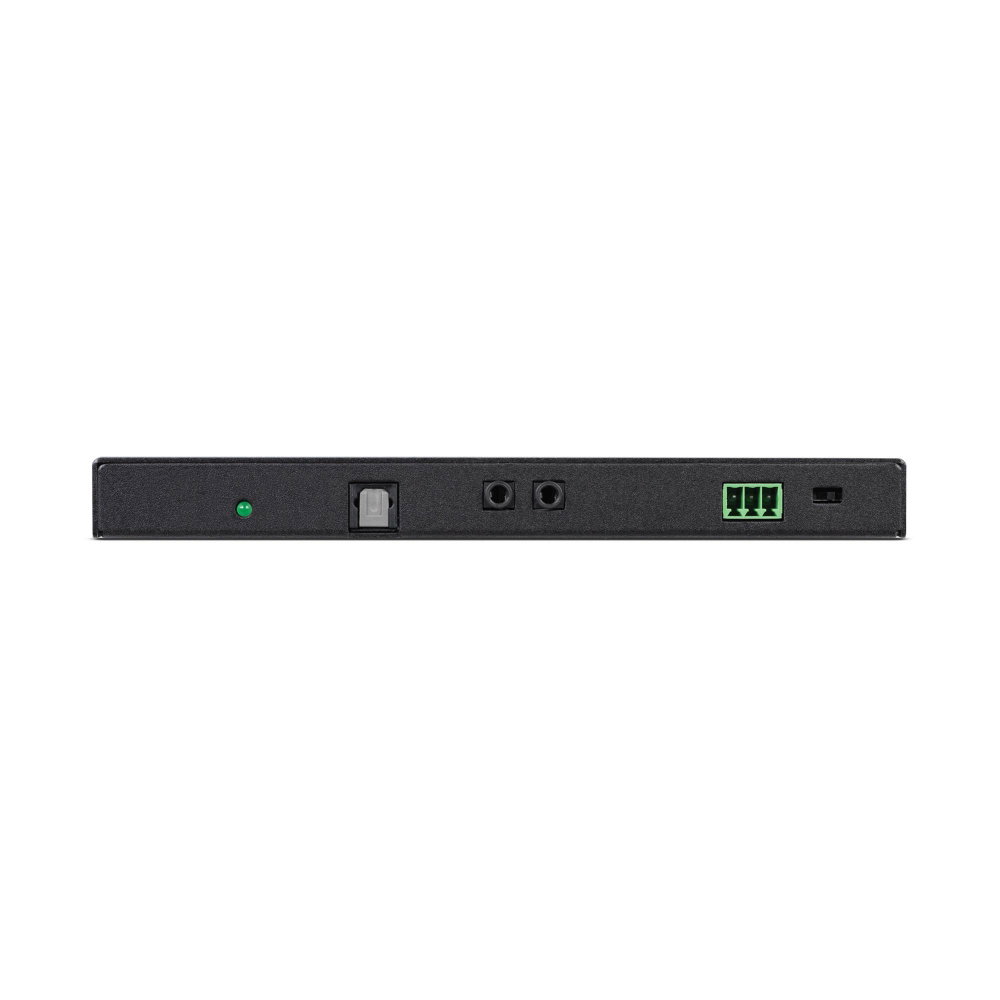

Inputs	1x HDBaseT (RJ45), 1x optical OAR (Toslink), 1x IR in (3.5mm)

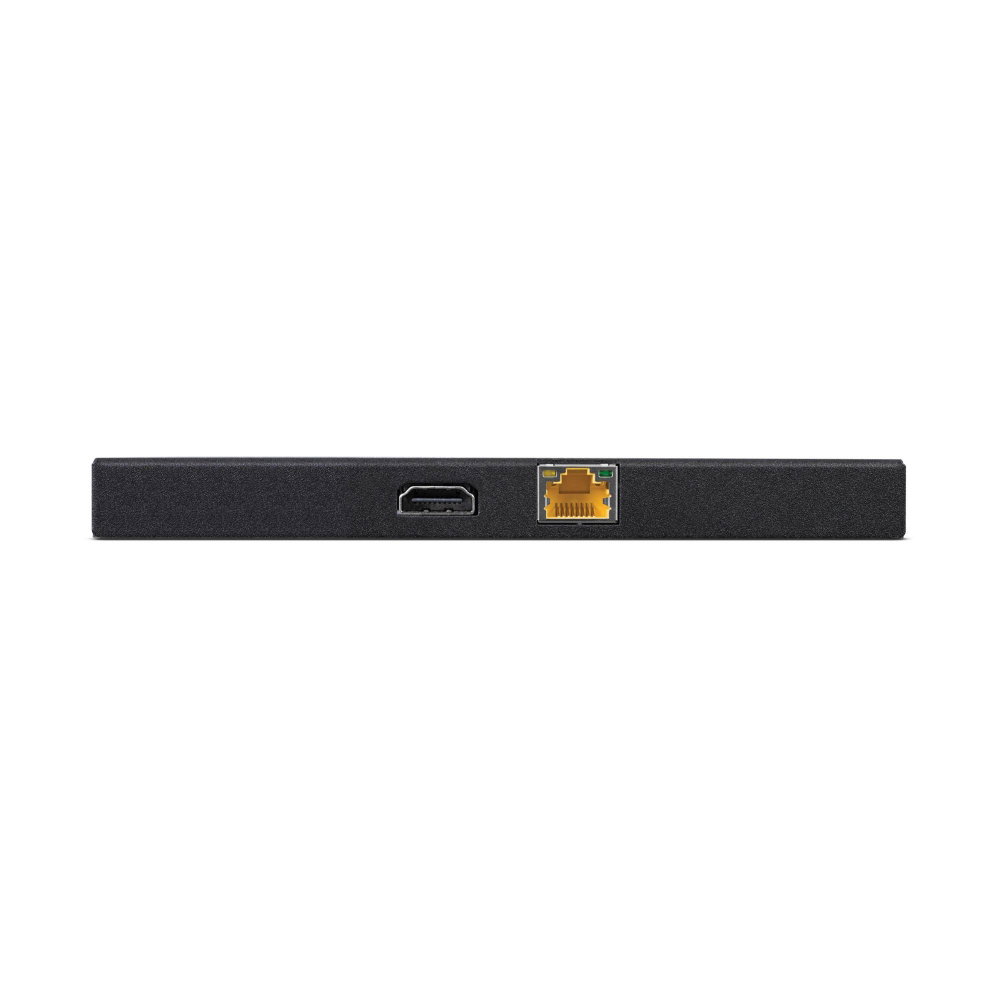

Outputs	1x HDMI, 1x IR out (3.5mm), 1x RS-232 (3-pin Phoenix)
OAR formats	DTS, Dolby Digital, 2CH LPCM
Max resolution	4K UHD@60Hz 4:2:0
HDCP	HDCP 2.2
Distance (4K)	35m CAT5e/6, 60m CAT6a/7
Power	PoH
Compatible with	PUV-1082PL-4K22N, PUV-1230PL-TX
Dimensions (WxHxD)	163 x 16 x 78mm
Weight	200g

Full features

HDCP2.2 Compliant
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical Audio Return (OAR)
Supports HDCP repeating and CEC functions
Supports 3D signals

Inputs: 1 x RJ45 [1 x HDBaseT HDMI & Propriety Data], 1 x Toslink [1 x Optical DTS / Dolby Digital / 2-channel LPCM], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter], 1 x Phoenix (3-pin) [1 x RS-232]
PSU: PoH
Dimensions: 163mm [W] x 16mm [H] x 78mm [D]
Net Weight: 200g
Gross Weight: 520g
Product Stock Category: Core Product

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: PU-1230PL-KIT_PDF-Manual_v1.00.pdfPDF

Manuals & Instructions: PUV-1230PL-RX_Catalogue_Page.pdfPDF
