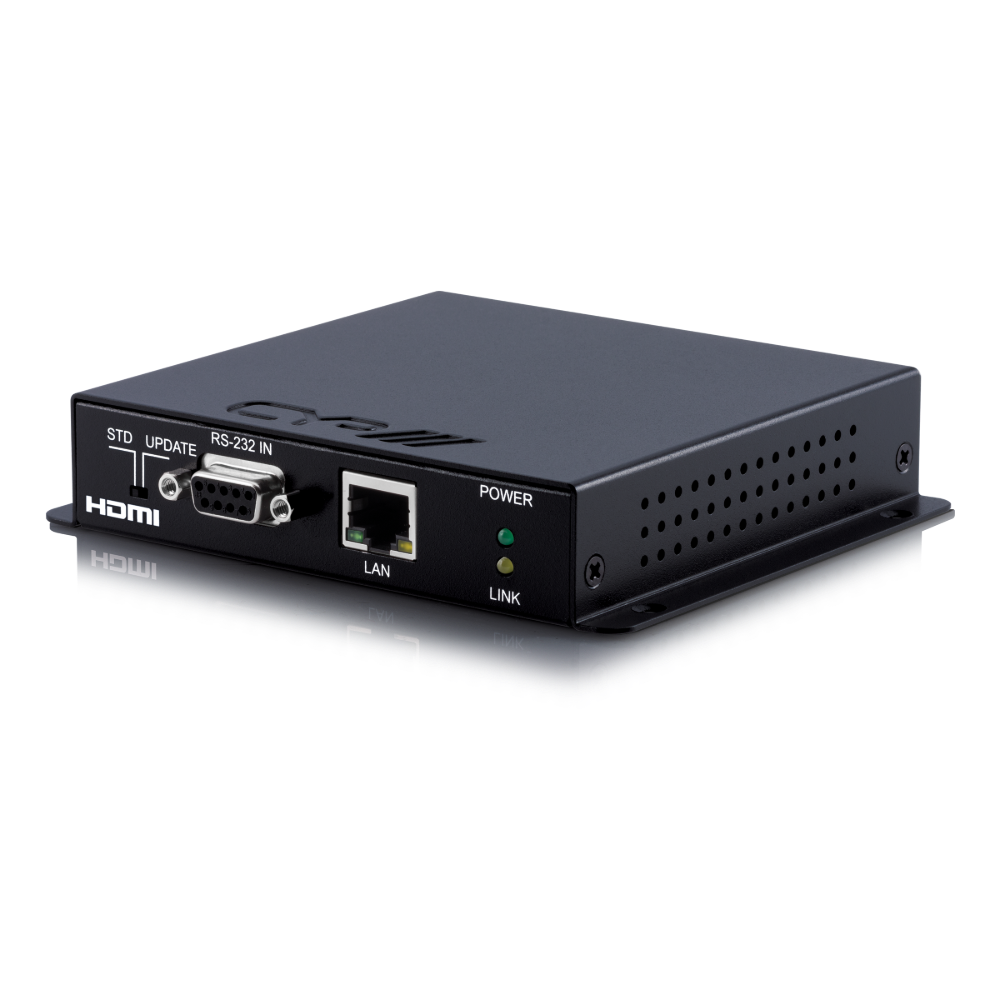

A reverse-power HDBaseT transmitter: the mains-powered end supplies it with 48V PoH, so a source at a desk, floor box or lectern needs no power supply of its own. CYP lists it for the HDBaseT inputs on the EL-8500VA presentation switch, and it partners the PUV-1610RX receiver. It carries HDMI, Ethernet, RS-232 and two-way IR up to 100m over CAT6a/7.
100m
4K over CAT6a/7
70m
4K over CAT5e/6
Reverse PoH
Powered by receiver
LAN
Ethernet pass-through

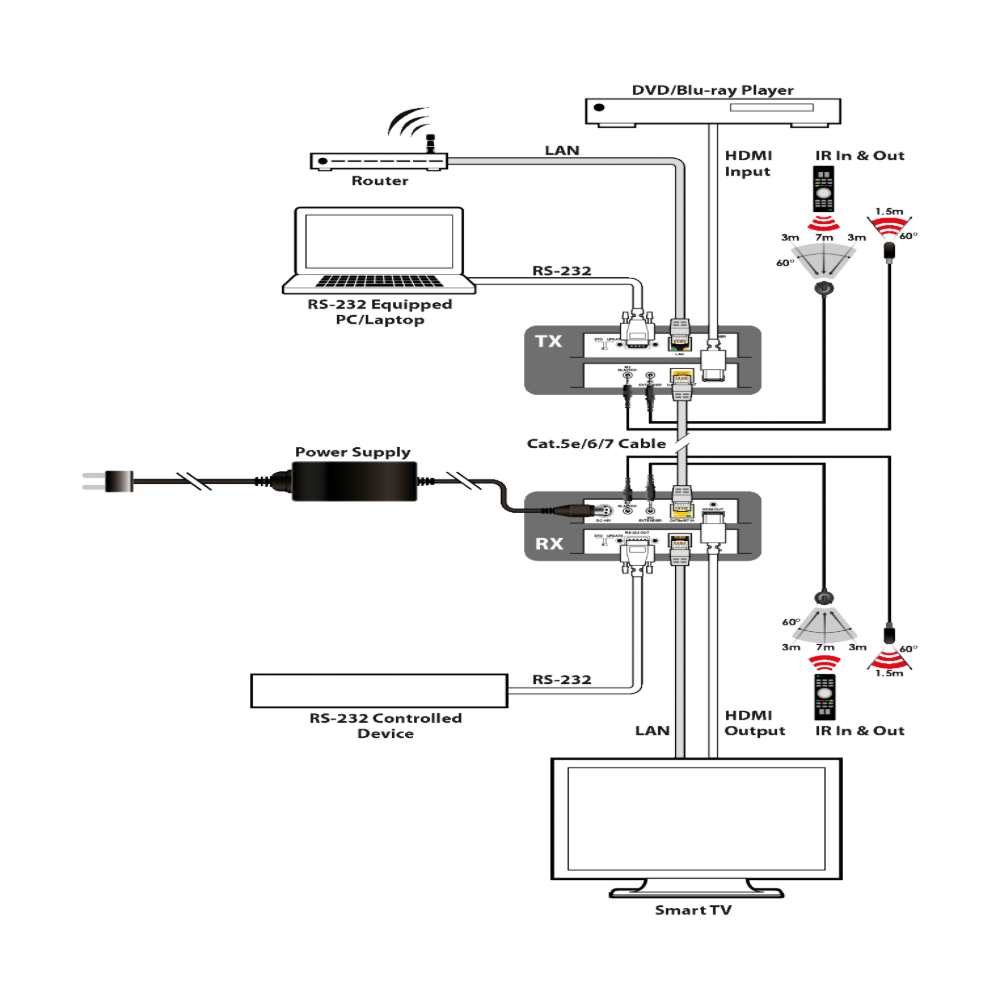

Powered from the far endNo power supply is included. This transmitter must be powered by 48V PoH from a compatible receiver or switcher, such as the CYP PUV-1610RX or the HDBaseT inputs of the EL-8500VA.
Features
Receives 48V PoH from the mains-powered receiver end
5-Play HDBaseT: HDMI, LAN, PoH, IR and RS-232 on one cable
1080p up to 100m over CAT5e/6/6a/7
4K up to 70m over CAT5e/6 or 100m over CAT6a/7
HDCP 2.2, 3D and audio up to 7.1CH with Dolby TrueHD and DTS-HD
RS-232 on 9-pin D-sub, plus Ethernet port
Specifications
| Brand | CYP |
| Model | PUV-1610TX |

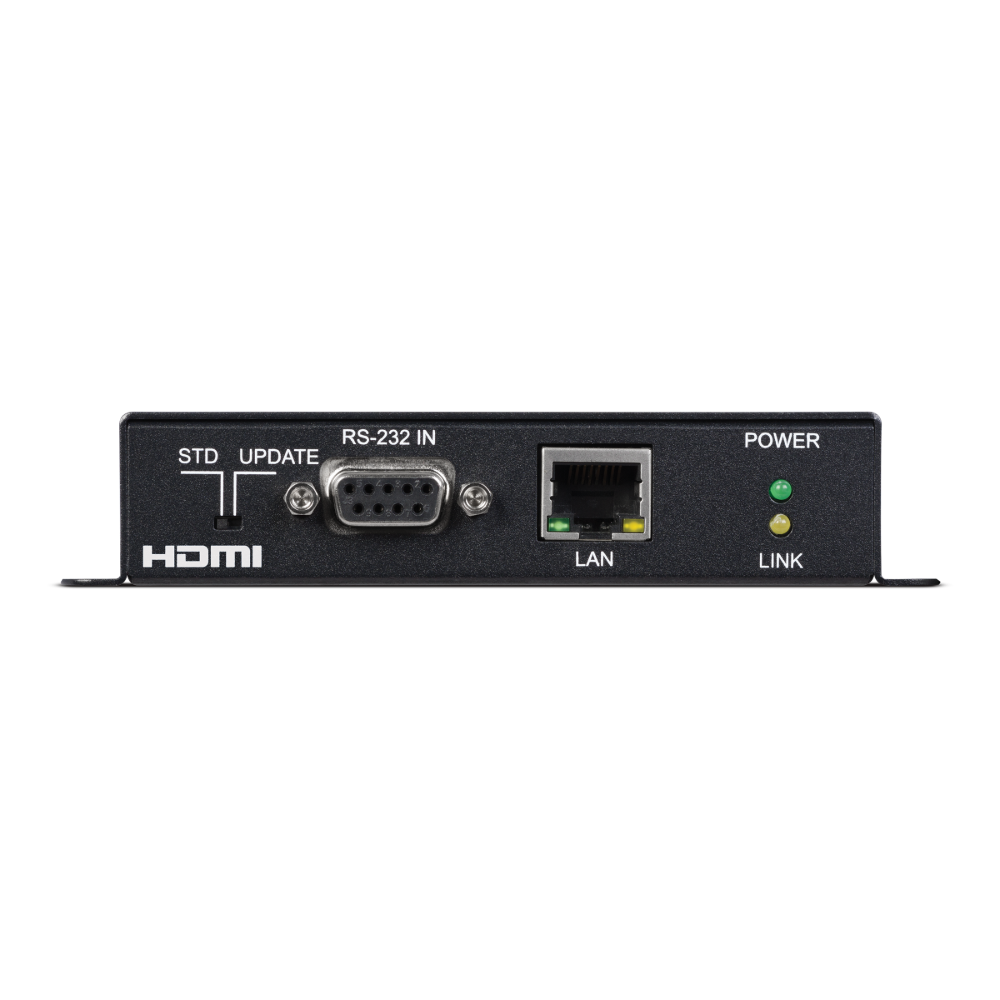

| Inputs | 1x HDMI, 1x RS-232 (9-pin D-sub), 1x IR in (3.5mm) |

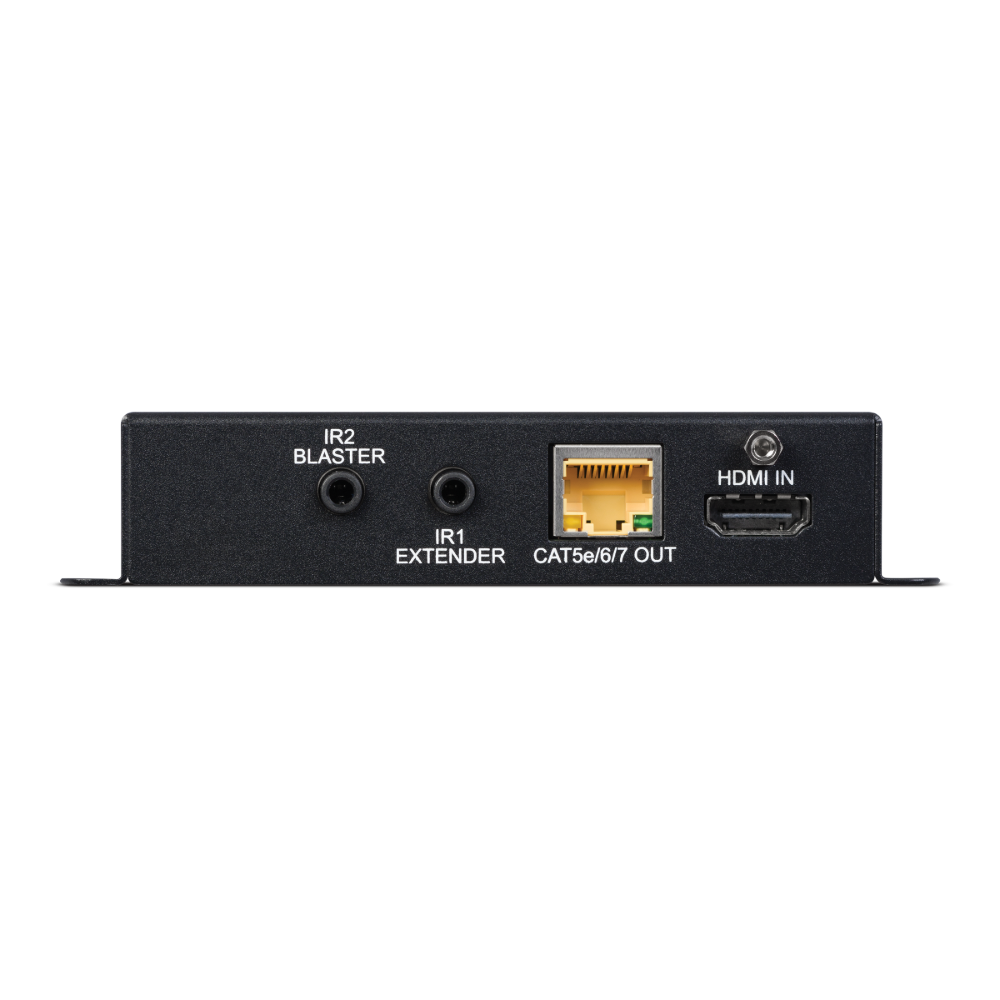

| Outputs | 1x HDBaseT (RJ45), 1x IR out (3.5mm), 1x LAN (RJ45) |
| Max resolution | 4096×2160@60Hz 4:2:0 |
| Bandwidth | 10.2Gbps |
| HDCP | HDCP 2.2 |
| Distance (1080p) | 100m over CAT5e/6/6a/7 |
| Distance (4K) | 70m CAT5e/6, 100m CAT6a/7 |
| Power | 48V PoH from receiver (PD) |
| Compatible with | EL-8500VA, PUV-1610RX |
| In the box | Transmitter, IR blaster cable, manual |
| Dimensions (WxHxD) | 128 x 25 x 108mm |
| Weight | 320g |
