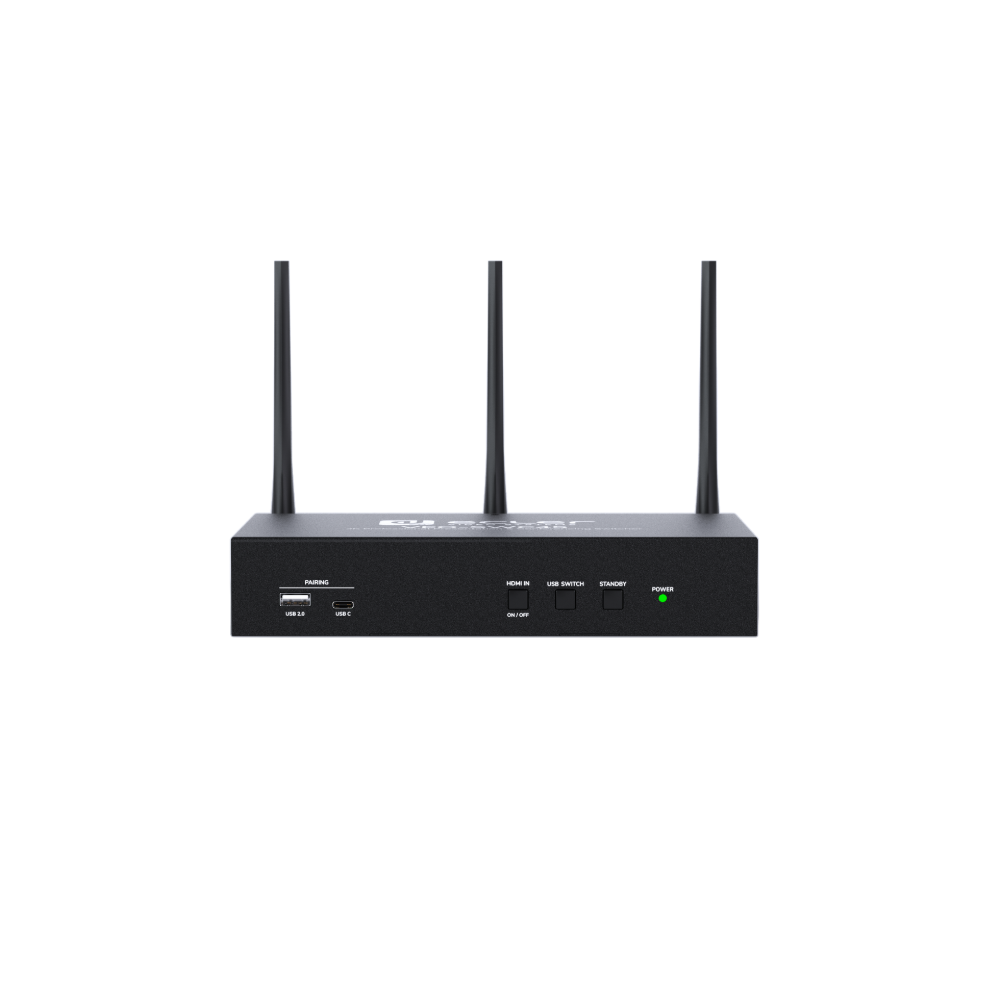

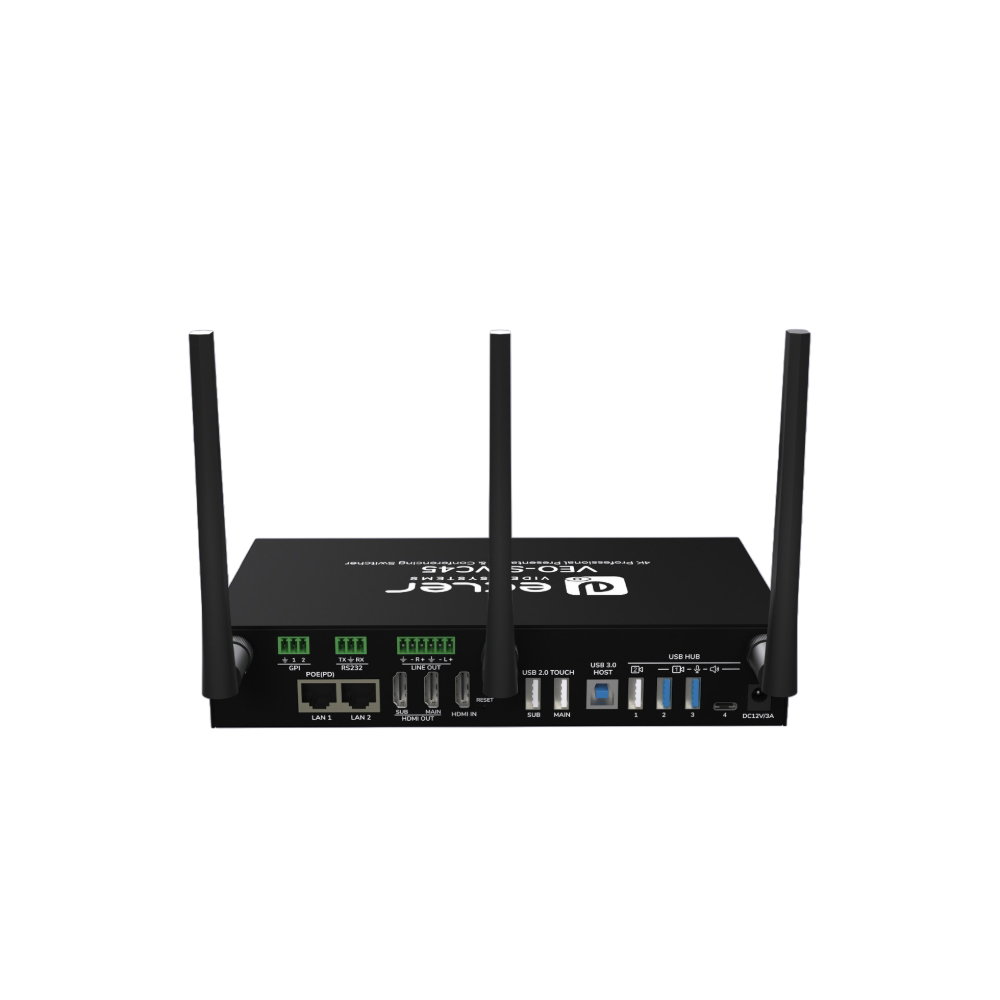

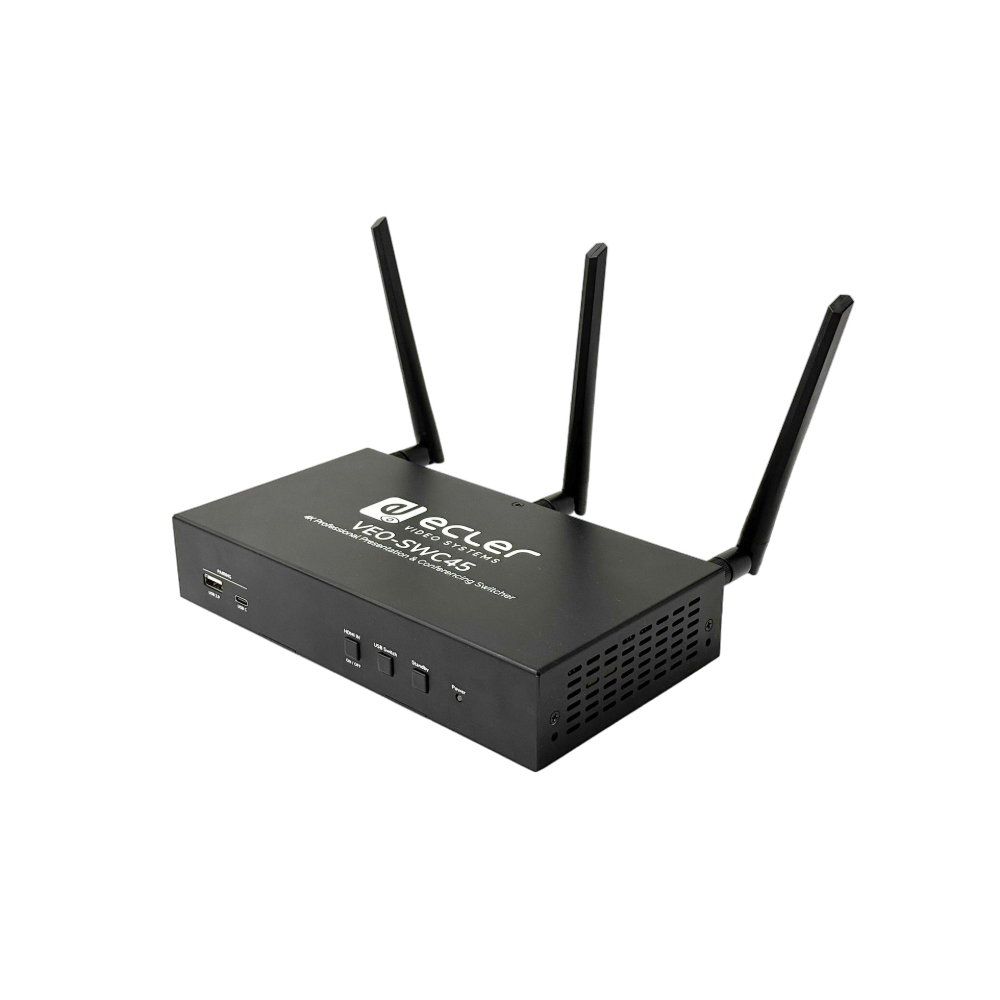

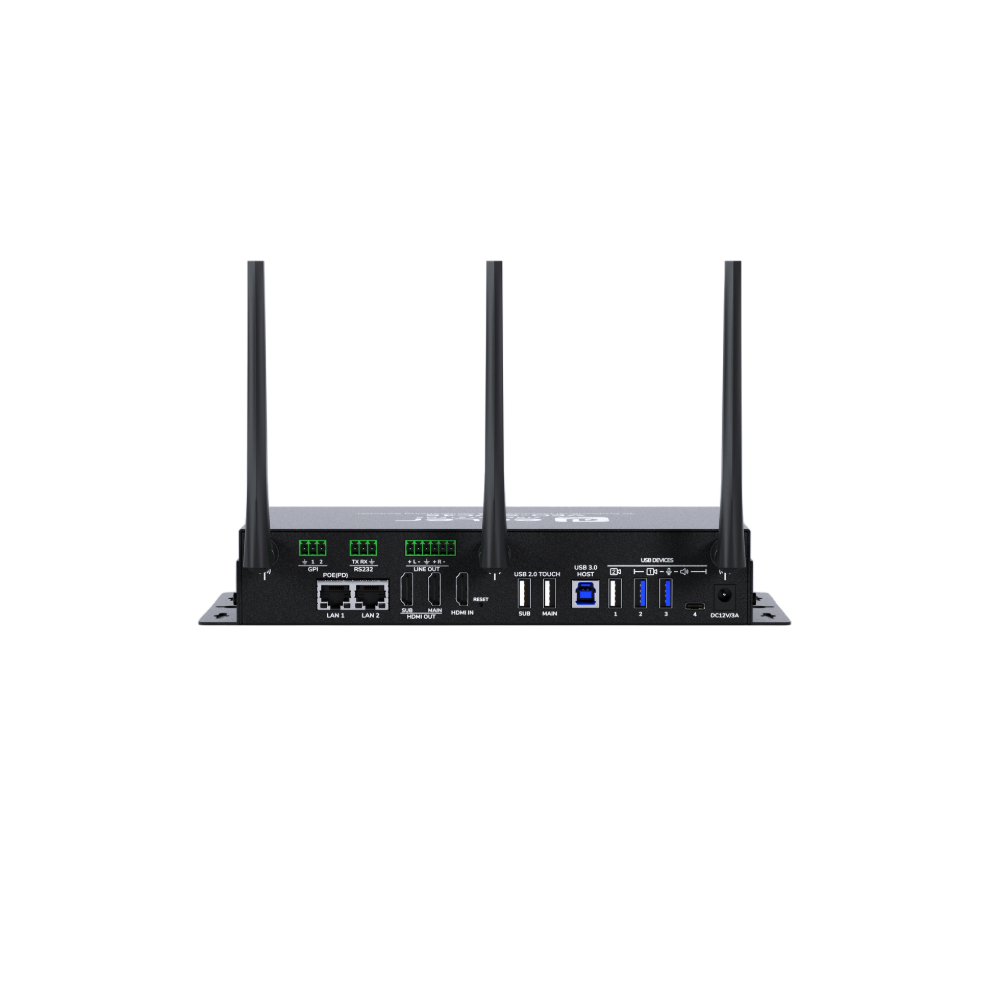

Ecler VEO-SWC45 Hybrid Wireless/Wired BYOD Presentation Switcher

Product code: 195422

£1,082.00 inc VAT
£901.67 ex VAT

SKU: ECL0138

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler VEO-SWC45 is a hybrid wireless and wired presentation and conferencing switcher with a 4K60 main HDMI output, a second HDMI output and a wired HDMI input. Devices share over AirPlay, Chromecast, Miracast or the VEOShare app at 1080p, or at up to 4K30 through the optional VEO-SWC45TH and VEO-SWC45TU dongles, with up to five shown at once. USB ports switch up to two room cameras between the local and wireless host, for meeting rooms, boardrooms, classrooms and lecture spaces.

4K60
Main HDMI out
4K30
Dongle / HDMI in
5
On screen at once
PoE+
Or 12V PSU
Dongles sold separatelyThe VEO-SWC45TH (HDMI) and VEO-SWC45TU (USB-C) are optional. The SWC44 dongles are not listed as compatible.
Wireless resolutionAirPlay, Chromecast, Miracast and VEOShare share at up to 1080p30. 4K at 30Hz needs a SWC45 dongle or the wired HDMI input.

Features

Main HDMI 2.0 output at up to 4K60 4:4:4 (HDCP 2.2), plus a second HDMI output at up to 1080p60
Wired HDMI input alongside wireless sources
AirPlay, Chromecast, Miracast and VEOShare app
Optional HDMI and USB-C dongles with customisable buttons, up to 4K30
Up to 5 sources on screen at once, up to 15 participants on hold
Up to two USB conference cameras, switched between local and wireless hosts
Touchback on wired and wireless connections for interactive displays and annotation
Balanced stereo audio de-embedding on Euroblock
Two 1Gbps RJ-45 ports on independent networks, encrypted wireless
Control by front panel, GPI, RS-232, Telnet and web GUI; powered by PoE+ or 12V supply

Specifications

Ecler VEO-SWC45 Hybrid Wireless/Wired BYOD Presentation Switcher specifications
Video inputs 1 x HDMI (10.2Gbps), 2 x USB 3.0, 1 x USB-C, 1 x USB 2.0 (UVC)
Video outputs MAIN: HDMI 2.0, 18Gbps; SUB: HDMI 1.4, 10.2Gbps
Main output resolution Up to 4K at 60Hz
Sub output resolution Up to 1080p at 60Hz
Wireless input 1080p up to 30Hz (AirPlay, Chromecast, Miracast, VEOShare); 4K up to 30Hz (dongles and HDMI in)
Transmission delay 80 to 120 ms
HDCP Main out 2.2; sub out and HDMI in 1.4
Audio output 6-pin balanced Euroblock, PCM
Wi-Fi IEEE 802.11 a/g/n/ac/ax, 2.4 and 5 GHz, about 35 m coverage (environment dependent)
Network 2 x RJ-45, 1Gbps
Control Web, Telnet, RS-232, GPI
Power PoE+ IEEE 802.3at or 12V DC 3A external supply
Power consumption 30W
Dimensions (W x H x D) 222 x 42 x 120 mm (222 x 155 x 120 mm with antennas)
Weight 0.93 kg
Included 3 antennas, Euroblock plug, 12V 3A power supply

Full features

  • BYOM presentation switcher with wireless multi-format connectivity.
  • Support for HDMI®. 18Gbps 4K UHD 60Hz 4:4:4 video output as specified in HDMI® 2.0b.
  • Support for standard wireless mirroring protocols like Airplay, Chromecast, Miracast, and VEOShare app for a Full HD video content sharing.
  • Plug-and-play VEO-SWC45TH and VEO-SWC45TU HDMI® and USB-C wireless transmitters for up to 4K UHD video content sharing, including customizable auxiliary function buttons.
  • Support for up to two USB video conferencing cameras with smart switching feature between local and wireless host devices via USB Type-A and Type-C connectors.
  • Support for interactive touchback function on both wired and wireless connections for interactive screens, whiteboards, and live annotation tools.
  • Dual HDMI® video outputs with dedicated screen management for mirrored screen sharing or assigning local and remote video conference participants.
  • Support for up to 5 simultaneous split-screen presentations and up to 15 participants on hold.
  • Support for main screen content sharing to other user’s local displays.
  • Customizable background and font color for the home screen page.
  • Dual RJ-45 ports for independent network connections with extra security layers for an encrypted wireless transmission.
  • Stereo analog audio extraction via a balanced Euroblock connector.
  • HDCP 2.2 compliant.
  • Control options include front panel buttons, GPI, RS-232, TCP/IP Remote Control, and WebGUI.
  • Support for PoE+ function.

Video Perfomances

  • Video Input Connectors : 2 x USB 3.0, 1 x USB-C, 1 x USB 2.0 (UVC)
    1 x HDMI® Type A Female, 10.2Gbps
  • Video Output Connectors: 1 x HDMI® Type A Female, 1.4, 10.2Gbps (SUB)
    1 x HDMI® Type A Female, 2.0, 18Gbps (MAIN)
  • Video Input Resolutions : 1080p up to 30Hz (Airplay, Miracast, Chromecast, "VEOShare" application),
    4K up to 30Hz (HDMI® and USB-C Transmitters, HDMI® IN), 80-120ms Transmission Delay
  • Video Output Resolutions: MAIN: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz,  4K up to 60Hz
    SUB: 720p, 1280x800/60Hz, 1080p up to 60Hz, 1900x1200/60Hz
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Colour Depth: 8-bit (4K 60Hz 4:4:4)
  • Colour Space: RGB, YCbCr, YUV
  • HDCP: MAIN OUT: 2.2
    SUB OUT/HDMI® IN: 1.4
  • Video Composing Capabilities: Multiviewing up to 5 windows; 15 participants on hold
  • Screen Mirroring: Airplay, Chromecast, Miracast, VEOShare application, Wireless Transmitter
  • Wireless Conferencing: Yes (Video Playback Frame Rate: 20-60fps)
  • Other Features: Whiteboard annotation tool, Wireless Touchback, Customizable background, CEC compliant
  • HDMI® Distance: 5m with Ecler VEO Cables

Audio Performances

  • Audio Output Connectors: 1 x 6-pin balanced Euroblock
  • Audio Formats: PCM
  • Sample Rate: Wireless Transmitter: 44.1 KHz, 48khz
    HDMI® out: 48KHz
    USB speakerphone for video conference: 16KHz
    USB speakerphone for audio out: 48KHz
  • Bit Depth: Up to 24-bit
  • Frequency Response: 20Hz-20KHz (±3dB)
  • Audio De-Embedding: Yes

Device Control

  • Control Connectors: 1 x USB Type A, 1 x 3-pin Euroblock, 2 x RJ-45
  • Control Protocols: Web, Telnet, RS-232, GPI
  • Control Buttons: 1 x Standby button, 1 x Reset button, 1 x HDMI® IN on/off, 1 x USB Switch
  • Status Indicators: Power LED

Network

  • Network Connectors: 2 x RJ-45 (1Gbps), WIFI IEEE 802.11 a/g/n/ac/ax (Antennas MIMO 2x2, MIMO 1x1)
  • Network Requirements: Compatible with 2.4GHz and 5GHz frequency bands with 35m coverage (environment dependant), Security: AES, WPA PSK, WPA2 PSK, HTTPS
  • Average Streaming Bitrate: Up to 1200Mbps
  • Transmission Distance: 100m via Ethernet Network

Electrical

  • Power supply: PoE+ (IEEE802.3at.); External: Input 100-240 VAC 50/60Hz, Output: 12VDC-3A
  • AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
  • DC mains connector: 12VDC-3A with coaxial DC connector
  • Power consumption: 30W

Physical

  • Operating temperature: Min: -20°C ; -4°F
    Max: 60°C ; 140°F
  • Operating humidity: 20% - 90% RH, no condensing
  • Storage temperature: Min: -20°C ; -4°F
    Max: 60°C ; 140°F
  • Storage humidity: 20% - 90% RH, no condensing
  • Included accessories: 1 x 3-pin 3.5mm Euroblock connector, 3 x antennas, 1 x PSU 12V/3A
  • Optional accessories: VEO-SWC45TH, VEO-SWC45TU
  • Dimensions: 222 x 42 x 120mm / 8.74 x 1.65 x 4.72 in.
    222 x 155 x 120mm / 8.74 x 6.1 x 4.72 in. (including antenna)
  • Weight: 0.930 Kg / 2.05 lb
  • Shipping dimensions: 345 x 75 x 205mm  /  13.58 x 2.95 x 8.07 in    (WxHxD)
  • Shipping weight: 1.5 Kg / 3.31 lb
  • Chassis material: Metal
  • Finished colour: Black
