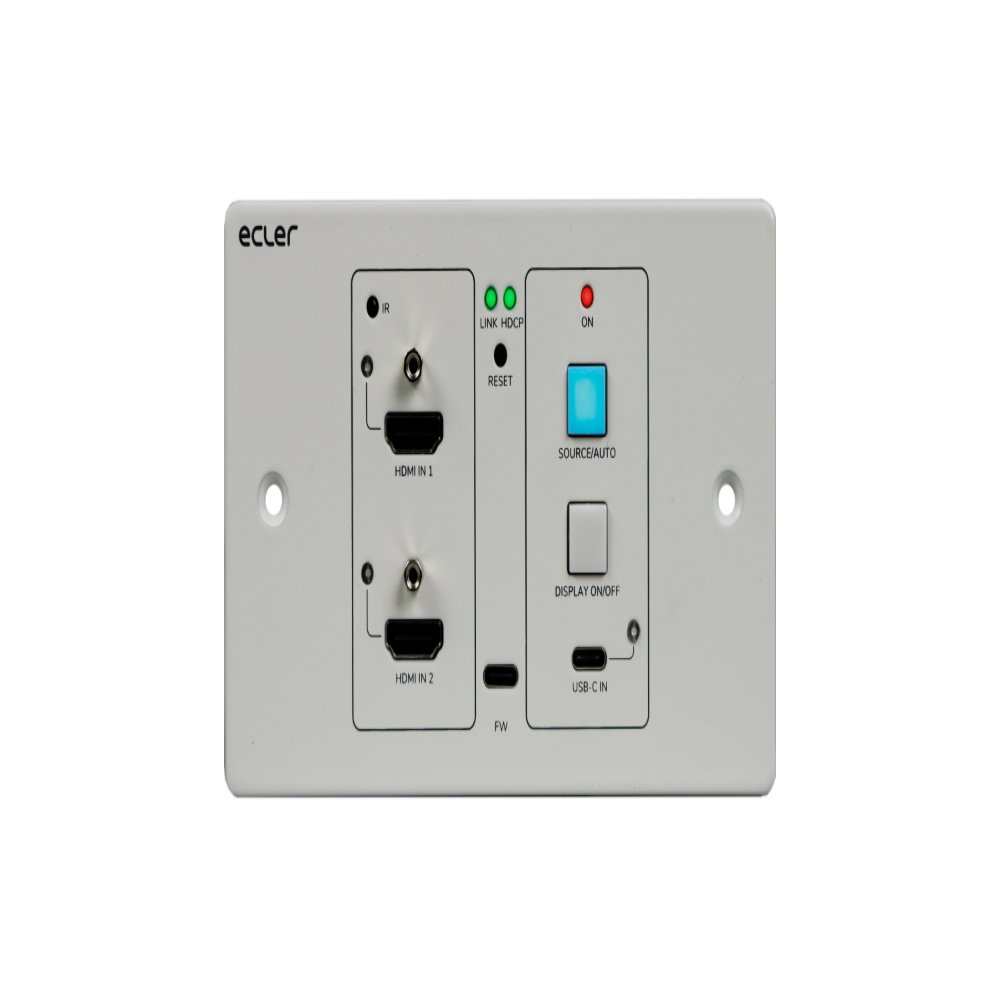

Ecler VEO-XWT44E 4K HDMI Wall-Plate Transmitter 2x HDMI and USB-C

Product code: 195467

£565.00 inc VAT
£470.83 ex VAT

SKU: ECL0145

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler VEO-XWT44E is an HDBaseT wall-plate transmitter with two HDMI inputs and one USB-C input, sending the selected source over a single CAT cable to the VEO-XRT44 receiver. It carries 4K 60Hz 4:4:4 HDR10 from HDMI and 4K 30Hz from USB-C, up to 40 m at 4K or 70 m at 1080p. It suits lecterns, meeting room tables and classroom walls where presenters plug in a laptop.

2x HDMI + USB-C
Inputs
4K60 4:4:4
HDMI max
40 m
4K range
HDCP 2.2
Copy protection

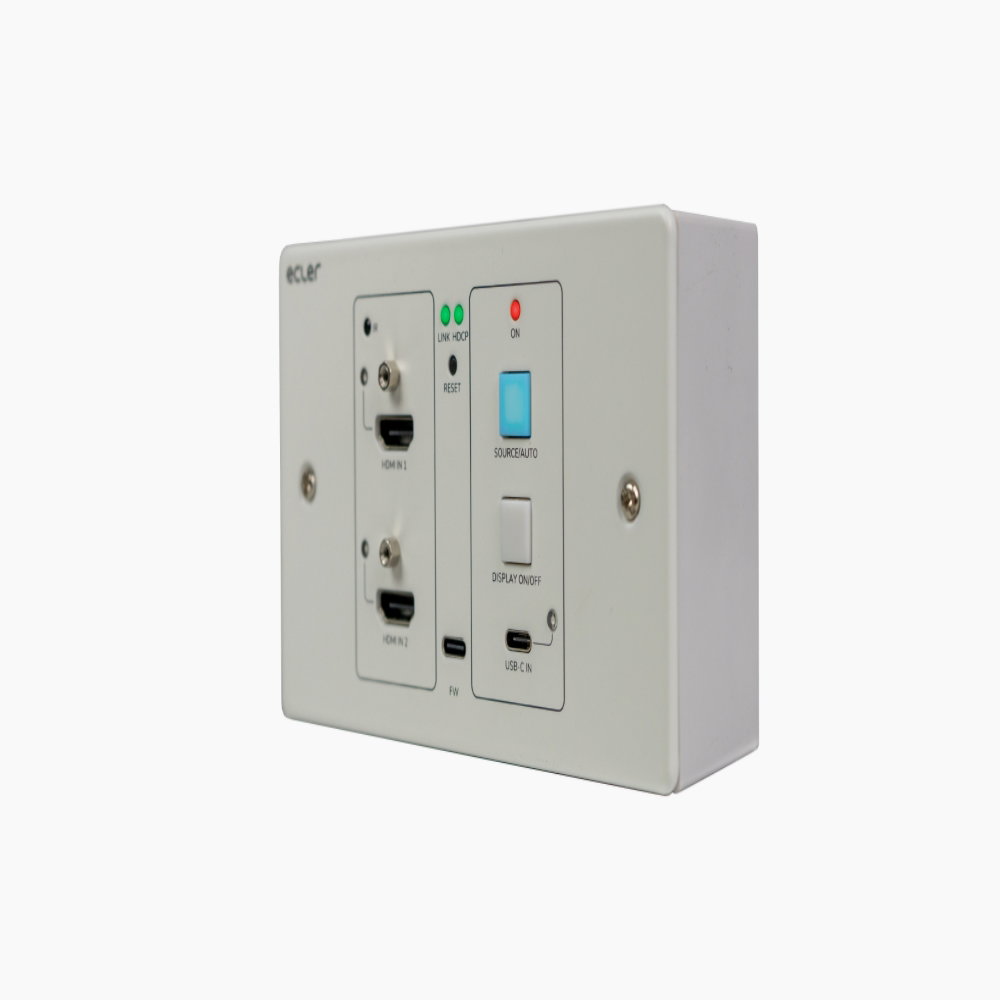

European 2-gang formatThe plate is sized for a European 2-gang box, not a UK back box. A surface-mount EU box is included.
Pair with VEO-XRT44Ecler quotes the 40 m (4K) and 70 m (1080p) distances on CAT6a/7 with the VEO-XRT44 receiver. On CAT5e/6 the limits are 35 m and 60 m.

Features

Two HDMI inputs and one USB-C input in a wall plate
4K60 4:4:4 8-bit HDR10 via HDMI, 4K30 4:4:4 via USB-C, 18Gbps
Source selection by front button, auto-switching or RS-232
Display On/Off button sends CEC, or two RS-232 commands programmed by IR learning or RS-232
Bidirectional RS-232 and IR pass-through, CEC pass-through
Bidirectional power over the cable, so the transmitter can be powered from the receiver
EDID pass-through and smart EDID management
HDCP 2.2
Firmware updates via USB-C

Specifications

Ecler VEO-XWT44E 4K HDMI Wall-Plate Transmitter 2x HDMI and USB-C specifications
Video inputs 2 x HDMI Type A (18Gbps), 1 x USB-C
Resolutions HDMI: up to 4K60 4:4:4 8-bit HDR10; USB-C: up to 4K30 4:4:4
HDCP 2.2
Transmission distance, CAT5e/6 4K: 35 m, 1080p: 60 m
Transmission distance, CAT6a/7 4K: 40 m, 1080p: 70 m

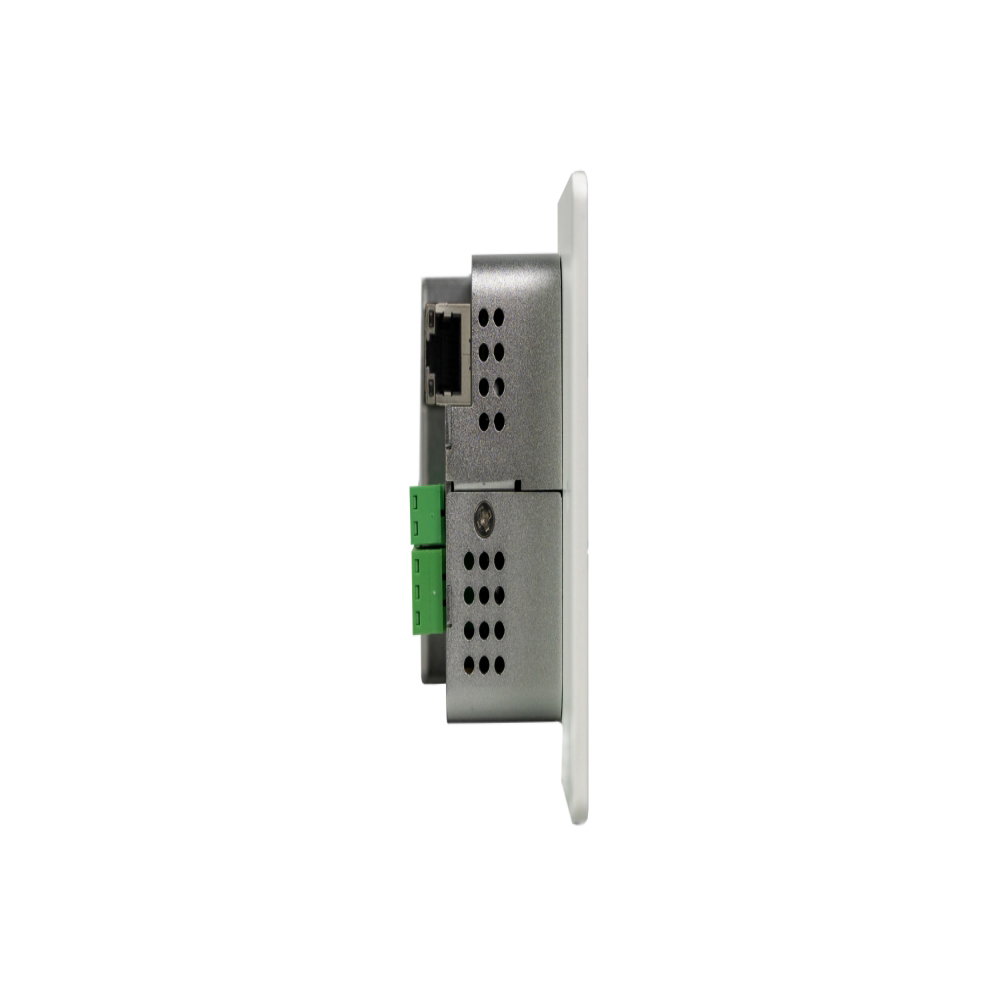

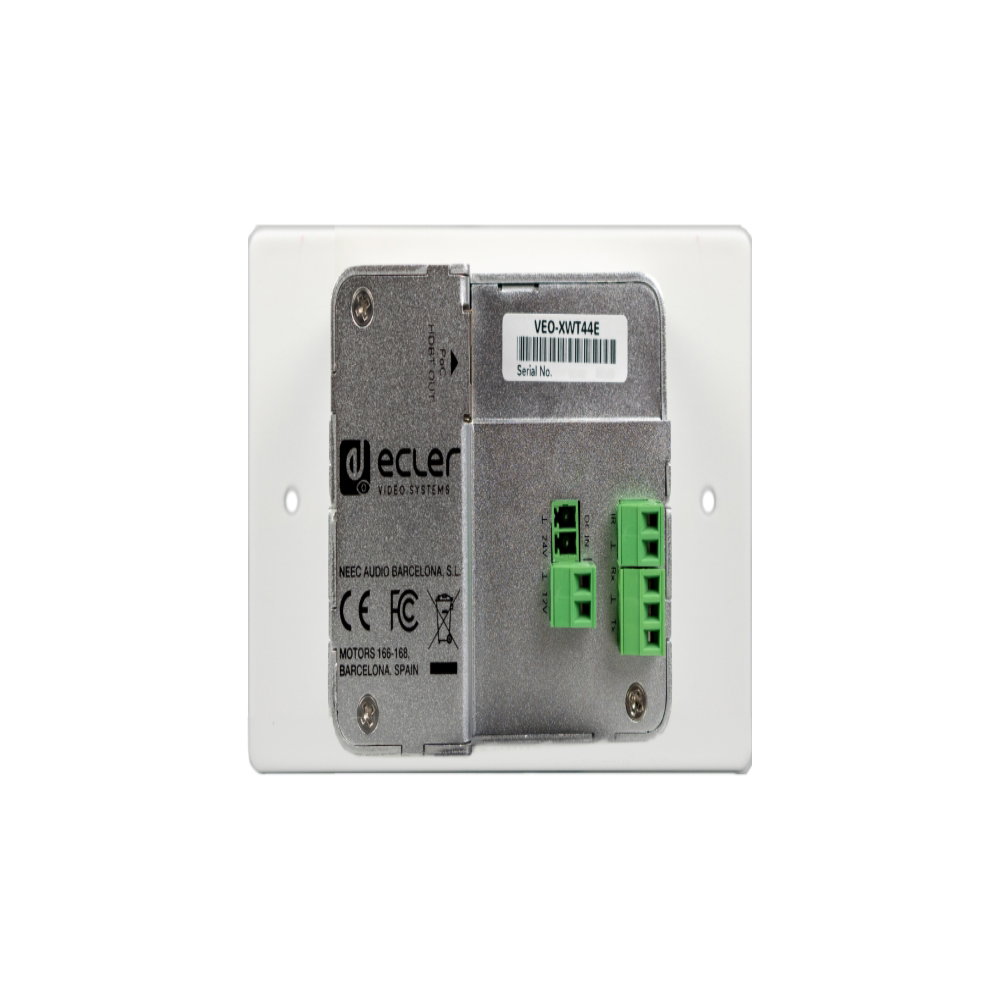

Control IR and RS-232 via 2-pin and 3-pin Euroblock
Buttons Source/Auto, Display On/Off, reset
Power Bidirectional PoC; 24V DC 1.25A adapter included
Power consumption 22W maximum
Dimensions (W x H x D) 146 x 86 x 42 mm
Weight 294 g
Finish White plastic
Operating temperature -10 to 55°C
Included Surface-mount EU box, screws, Euroblock plugs, 24V power adapter

Full features

  • Supports resolutions up to 4K@60Hz 4:4:4 HDR via HDMI® and up to 4K@30Hz 4:4:4 via USB-C
  • HDCP 2.2 supported
  • Extends 4K signals up to 40m and 1080p signals up to 70m over a single CATx cable
  • 18Gbps high bandwidth
  • Advanced EDID management with multiple built-in EDID settings or customised EDID selection
  • Auto-switching function
  • Bidirectional RS-232 pass-through and bidirectional 24V PoH
  • Supports CEC pass-through
  • Display On/Off button can be programmed to send CEC and RS-232 commands
  • LEDs indicate the current operating status
  • Firmware upgrade via USB-C port
  • ESD protection
  • Reference: CVEOXWT44E
  • Video input connectors: 2 x HDMI® Type A female, 18Gbps; 1 x USB Type-C
  • Supported resolutions: Up to 4K@60Hz 4:4:4 8-bit HDR10 via HDMI®; up to 4K@30Hz 4:4:4 via USB-C
  • Chroma subsampling: 4:4:4
  • Colour depth: 8-bit
  • Colour space: YUV
  • HDCP: 2.2 compliant
  • HDR: HDR10
  • Scaling: No
  • HDMI® distance: Up to 10m with Ecler VEO cables
  • Audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1 and PCM
  • Sample rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
  • Bit depth: Up to 24-bit
  • Frequency response: 20Hz-20kHz, ±3dB
  • Maximum output level: 2.0Vrms ±0.5dB
  • SNR: >85dB, 20Hz-20kHz bandwidth
  • Control connectors: 2-pin Euroblock, 3-pin Euroblock and USB Type-C female for firmware updates
  • Control protocols: IR and RS-232
  • Control buttons: Reset button, Display On/Off button and Source/Auto button
  • EDID management: Pass-through and smart management
  • Status indicators: Link LED, HDCP LED, power LED, HDMI® input 1/2 LEDs and USB-C LED
  • Pass-through connectors: 2-pin Euroblock and 3-pin Euroblock
  • Pass-through protocols: IR, RS-232 and CEC
  • Transmission standard: HDBaseT®
  • CAT5e/6 transmission distance at 4K: Up to 35m
  • CAT6a/7 transmission distance at 4K: Up to 40m
  • CAT5e/6 transmission distance at 1080p: Up to 60m
  • CAT6a/7 transmission distance at 1080p: Up to 70m
  • Power supply: Bidirectional PoC; AC 100V-240V, 50/60Hz; output: DC 24V, 1.25A
  • DC mains connector: 2-pin Euroblock for connecting the 24V DC adapter
  • Power consumption: 22W maximum
  • Operating temperature: -10°C to +55°C
  • Operating humidity: 10-90% RH, non-condensing
  • Installation options: Wall
  • Included accessories: Surface-mount EU box, 2 x mounting screws, 1 x 3-pin Euroblock, 3 x 2-pin Euroblock, 24V DC 1.25A power adapter, quick guide and warranty
  • Dimensions (W x H x D): 146 x 86 x 42mm
  • Weight: 294g
  • Shipping dimensions (W x H x D): 183 x 105 x 133mm
  • Shipping weight: 0.8kg
  • Chassis material: Plastic
  • Finish colour: White
