Ecler VEO-XPS43 4K HDMI over CAT6 Extender Kit

Product code: 194717

£112.00 inc VAT
£93.33 ex VAT

SKU: ECL0141

4 in stock

4 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

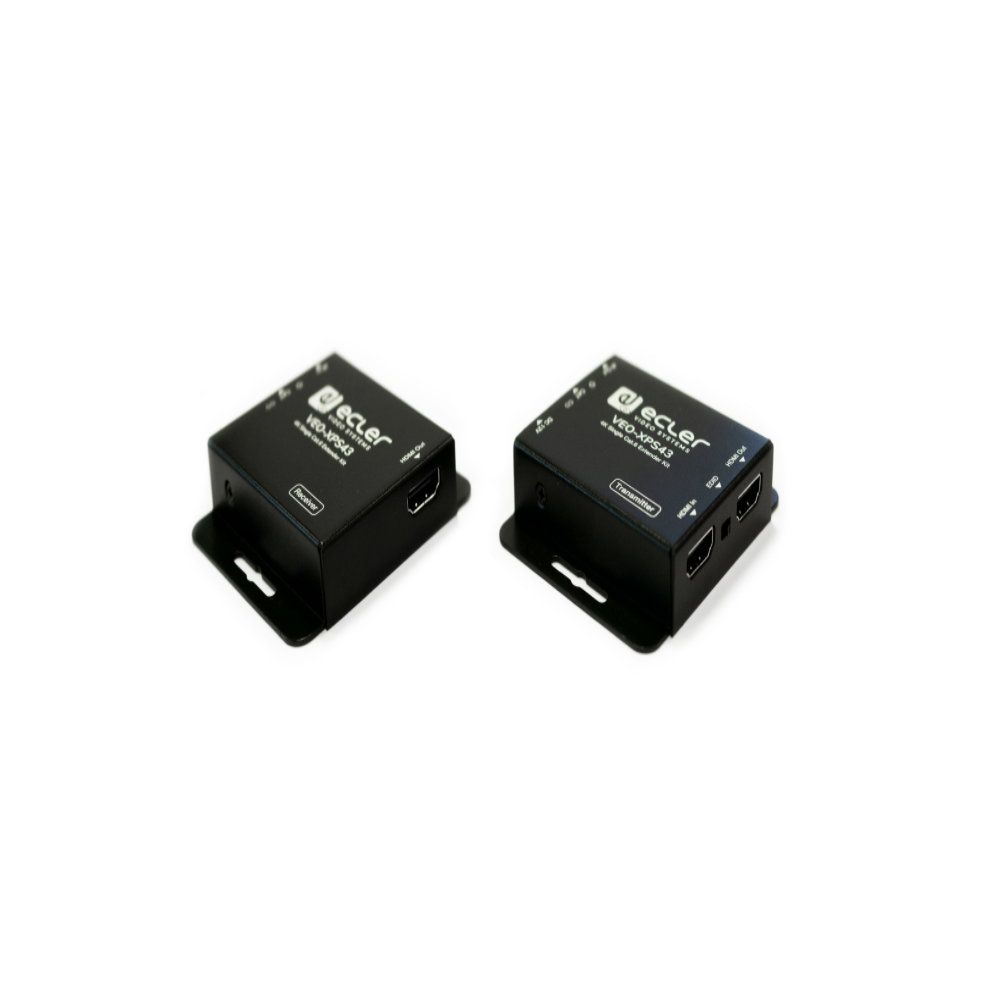

The Ecler VEO-XPS43 is an HDMI extender kit (transmitter and receiver) that sends HDMI video, audio and IR over a single CAT cable. It carries 4K at up to 30Hz to 30 m, and 1080p to 60 m, with the receiver powered down the cable from the transmitter. Typical uses are running a source to a meeting room or classroom display, digital signage screens, and bar or restaurant TVs.

4K30
Max resolution
60 m
1080p range
30 m
4K range
HDCP 1.4
Copy protection
Range depends on resolution and cableThe 60 m figure is for 1080p. 4K is limited to 30 Hz and 30 m. Ecler quotes both distances on CAT6a or CAT7 cable.
4K60 sourcesThis kit does not pass 4K at 60Hz. For 4K60 look at the VEO-XPS47 or the HDBaseT VEO-XPT412.

Features

Transmitter and receiver pair for HDMI, audio and IR over one CAT cable
Video up to 4K at 30Hz, and up to 1080p at 60Hz
Point-to-point link with zero latency

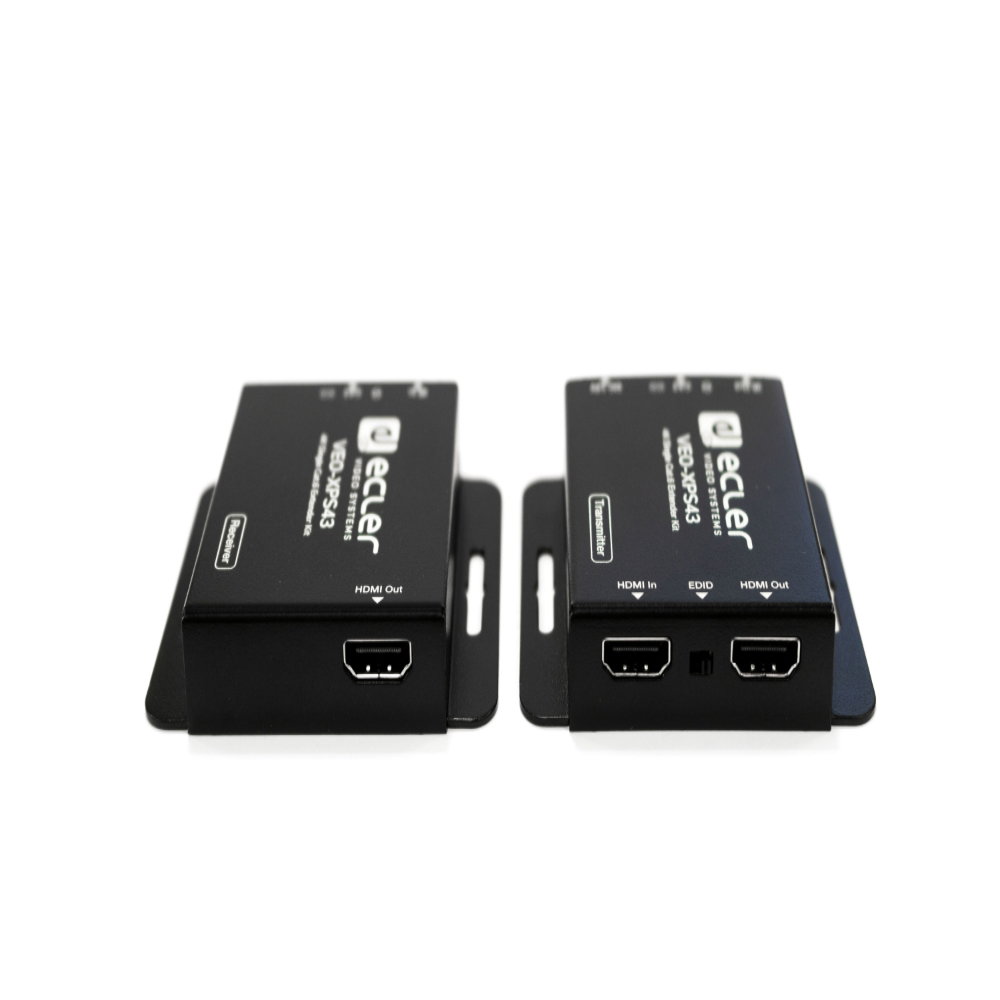

HDMI loop out on the transmitter for a local display or cascading
EDID copy from the remote or loop-out display, set by a selector switch
Receiver powered over the cable from the transmitter, so one power supply runs both ends
IR pass-through, with IR blaster and IR receiver included
HDCP 1.4 compliant
Compact metal housings for surface mounting, or rack mounting with the VEO-RACK19

Specifications

Ecler VEO-XPS43 4K HDMI over CAT6 Extender Kit specifications

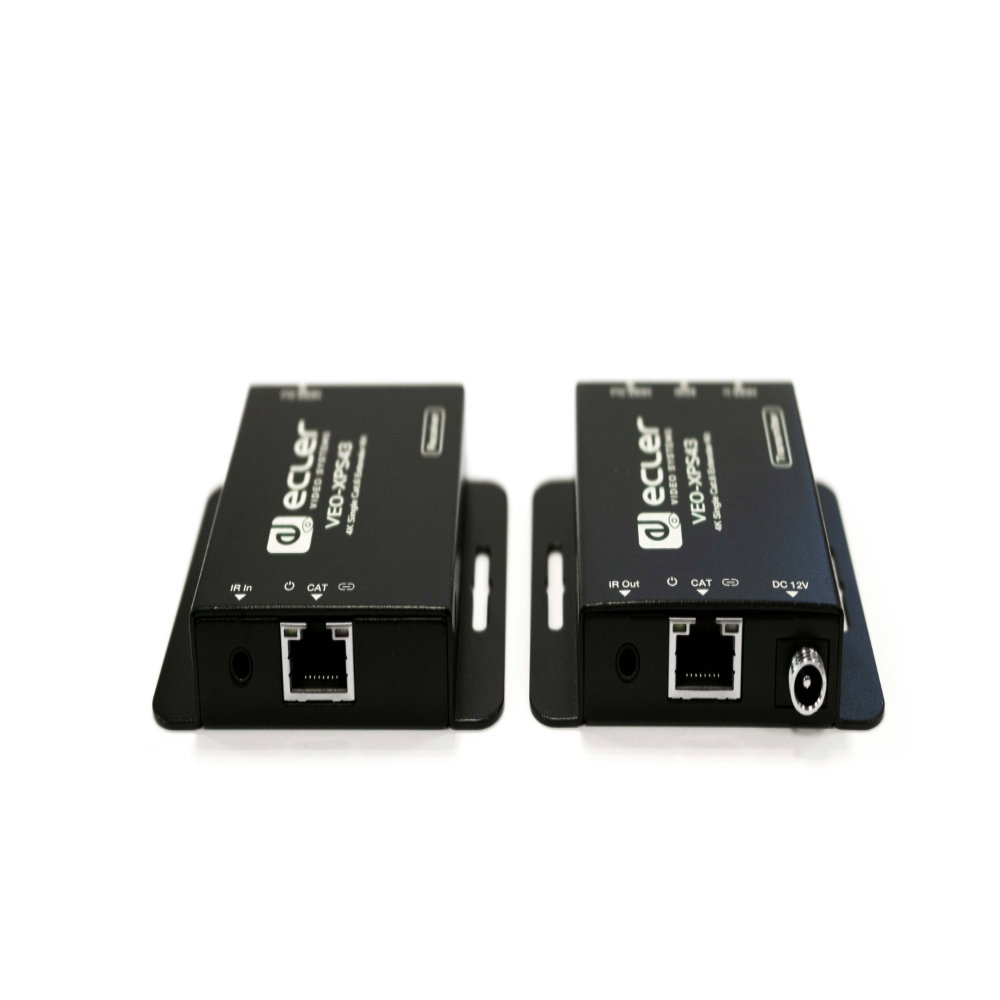

Connectors HDMI Type A in (TX), HDMI Type A out (RX), RJ-45 link, 3.5 mm IR jack
Resolutions 480i to 1080p at up to 60Hz, 1200p at up to 30Hz, 4K at up to 30Hz
Chroma subsampling 4:4:4 / 4:2:2
Colour depth 8, 10 and 12-bit
HDCP 1.4
Transmission distance 4K: up to 30 m, 1080p: up to 60 m (CAT6a/7)
Audio formats Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS 5.1, PCM
Audio sample rate Up to 192 kHz, 24-bit
Power supply External 12V DC 1A, one PSU for both units, UK/EU/US/AU blades
Power consumption TX 1.86W, RX 0.87W
Dimensions (W x H x D) 79.5 x 69 x 16.5 mm (each unit)
Weight TX 0.132 kg, RX 0.130 kg
Operating temperature 0 to 40°C
Included IR blaster, IR receiver, 12V DC power supply

Full features

  • Complete HDMI® extender kit for HDMI® Audio Video and IR signals extension over single Cat.6 cable or higher
  • Supports up to 4K@30Hz video resolution
  • Compact design for easy and flexible installation
  • Allows for cascading via additional HDMI® loop out port
  • Supports EDID copying from receiver display or loop out display
  • Support Power over cable function (receiver is powered by transmitter)
  • HDCP compliant

Video Perfomances

  • Video Input Connectors : HDMI® Type A Female
  • Video Output Connectors: HDMI® Type A Female
  • Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 30Hz
  • Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1200p up to 25/30Hz, 4K up to 30Hz
  • Chroma Subsampling: 4:4:4 / 4:2:2
  • Colour Depth: 8-bit, 10-bit, 12-bit
  • Colour Space: RGB, YCbCr
  • HDCP: 1.4 compliant
  • HDMI® Distance: 10m with Ecler VEO Cables

Audio Performances

  • Audio Formats: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS 5.1, PCM;
  • Sample Rate: up to 192KHz
  • Bit Depth: up to 24-bit
  • Frequency Response: 20Hz-20KHz (±3dB)

Device Control

  • EDID Management: EDID Switch Selector
  • Status Indicators: Power ON LED
    Status Connection LED

Pass-Through Control

  • Pass-through Connectors: 3.5mm Minijack connector
  • Pass-through Protocols: IR Pass-through

Connection Specification

  • HDMI® extension: Point-to-Point extension with zero latency
  • Transmission Distance: CAT6a/7  @4K          up to 30m / up to 98ft
    CAT6a/7  @1080p up to 60m / up to 197ft

Electrical

  • Power supply: External: AC 100V ~ 240V 50/60Hz
    Output: DC 12V---1A
  • AC mains connector: External PSU. Included 4 region power blades
  • DC mains connector: DC coaxial
  • Power consumption: Transmitter: 1.86W, Receiver: 0.87W

Physical

  • Operating temperature: 0 to +40°C (32 to +104°F)
  • Operating humidity: 20 - 90% RH (no condensation)
  • Installation options: Surface mount, VEO-RACK19
  • Included accessories: 1 x IR Blaster unit
    1 x IR Receiver unit
    1 x 12VDC 1A International Power Supply (One PSU for both units)
  • Optional accessories: VEO-RACK19
  • Dimensions: 79.5 x 69 x 16.5mm / 3.13 x 2.71 x 0.65 in. (WxHxD)
  • Weight: TX: 0.132kg / 0.291 lb
    RX: 0.130kg / 0.286 lb
  • Shipping dimensions: 205 x 75 x 115mm / 8.07 x 2.95 x 4.53 in. (WxHxD)
  • Shipping weight: 0.6kg / 1.32 lb
  • Chassis material: Metal
  • Finished colour: Black
