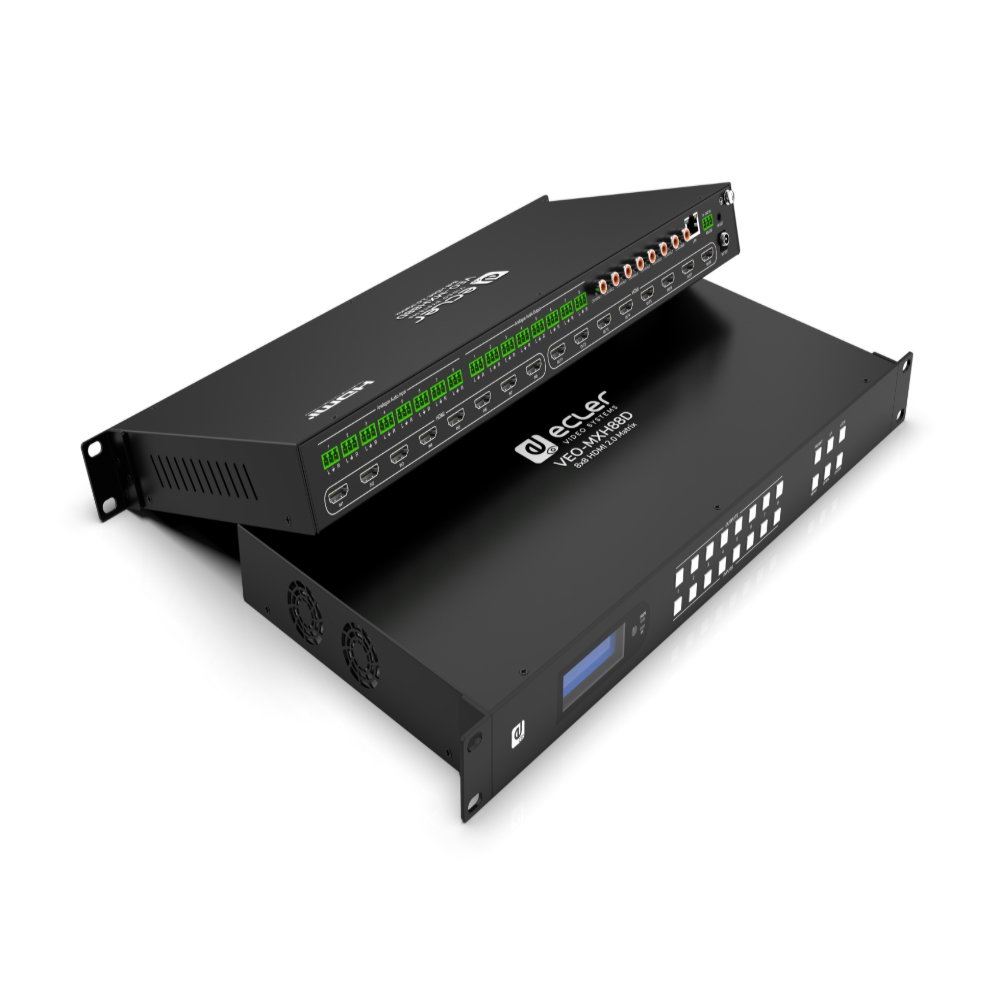

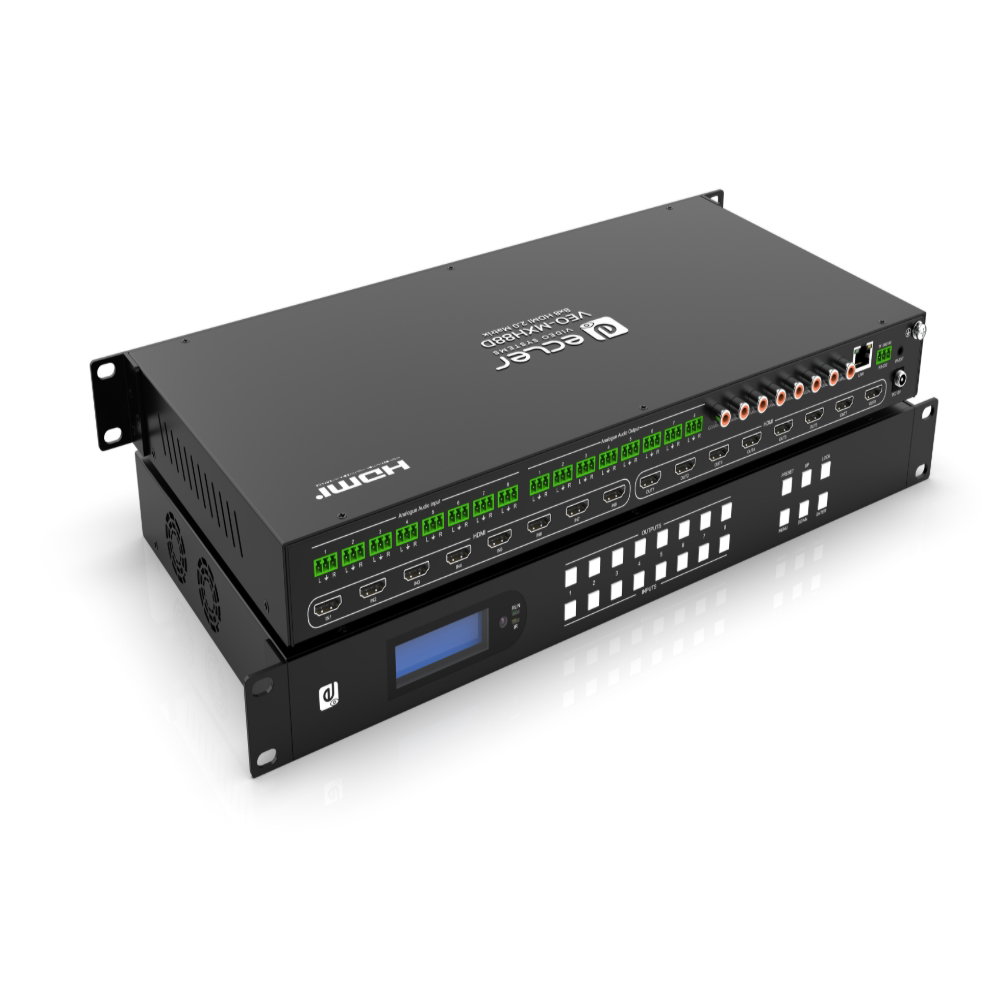

The Ecler VEO-MXH88D is an 8×8 HDMI matrix switcher that routes any of eight sources to any of eight displays at up to 4K 60Hz 4:4:4. It has an audio de-embedder on every output with stereo unbalanced Euroblock and coaxial S/PDIF connections, plus eight Euroblock audio inputs for inserting external audio. Typical uses are sports bars, pubs, multi-screen meeting suites and AV control rooms.
8×8
HDMI routing
4K60 4:4:4
Max video
16
Audio outputs
8
Presets
Features
8 HDMI inputs routed independently to 8 HDMI outputs, 18Gbps
Video up to 4K at 60Hz 4:4:4; HDR at 4K60 4:2:0 10-bit
HDR10, Dolby Vision and HLG
8 Euroblock audio inputs for analogue audio insertion
Audio de-embedding on every output: 8 stereo Euroblock and 8 coaxial digital outputs
Passes Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
ARC and CEC support

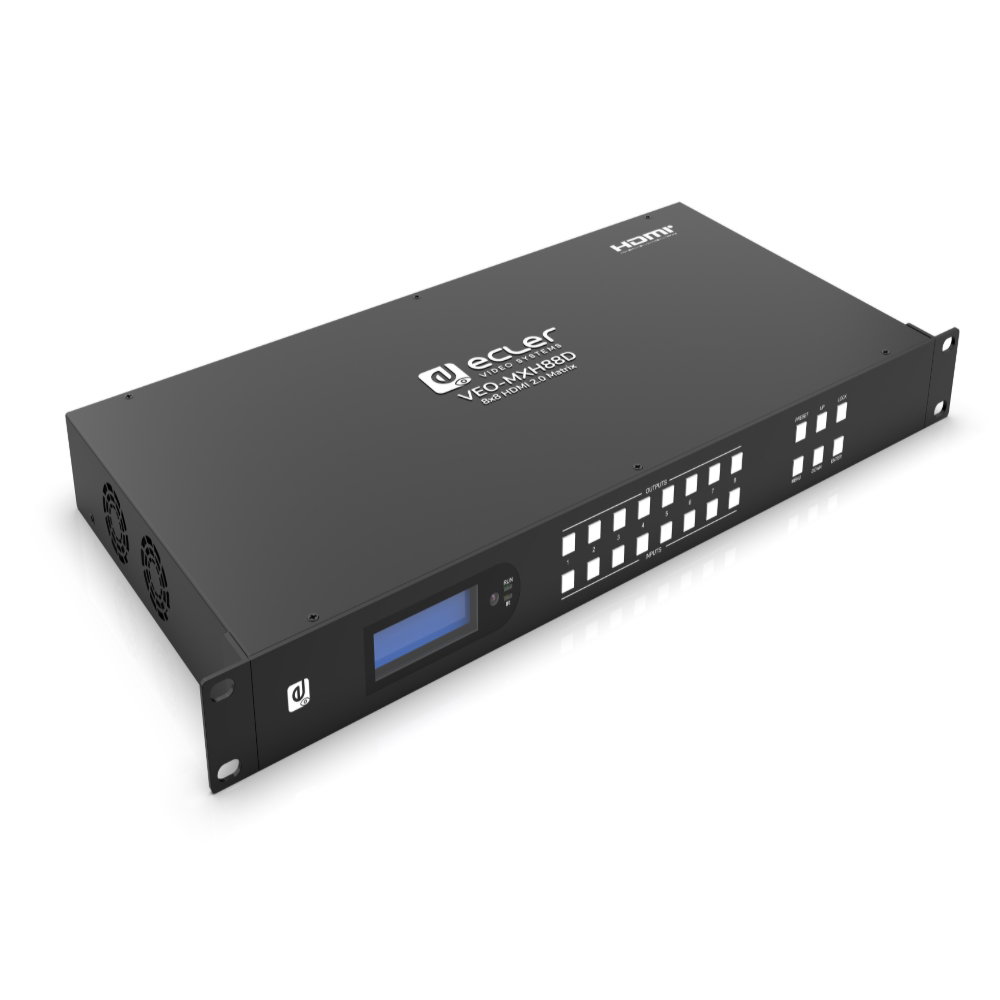

Control from front panel buttons and LCD, IR remote, RS-232, Telnet and web GUI
Store and recall up to 8 presets
HDCP 2.2
Specifications
| Video inputs | 8 x HDMI Type A, 18Gbps |
| Video outputs | 8 x HDMI Type A, 18Gbps |
| Resolutions | 480p to 4K at 60Hz (4:4:4 and 4:2:0) |
| Colour depth | 8, 10, 12-bit |
| HDCP | 2.2 |
| HDR | HDR10, Dolby Vision, HLG |
| Audio inputs | 8 x 3-pin Euroblock |
| Audio outputs | 8 x 3-pin Euroblock, 8 x coaxial digital |
| Audio sample rate | Up to 192 kHz |

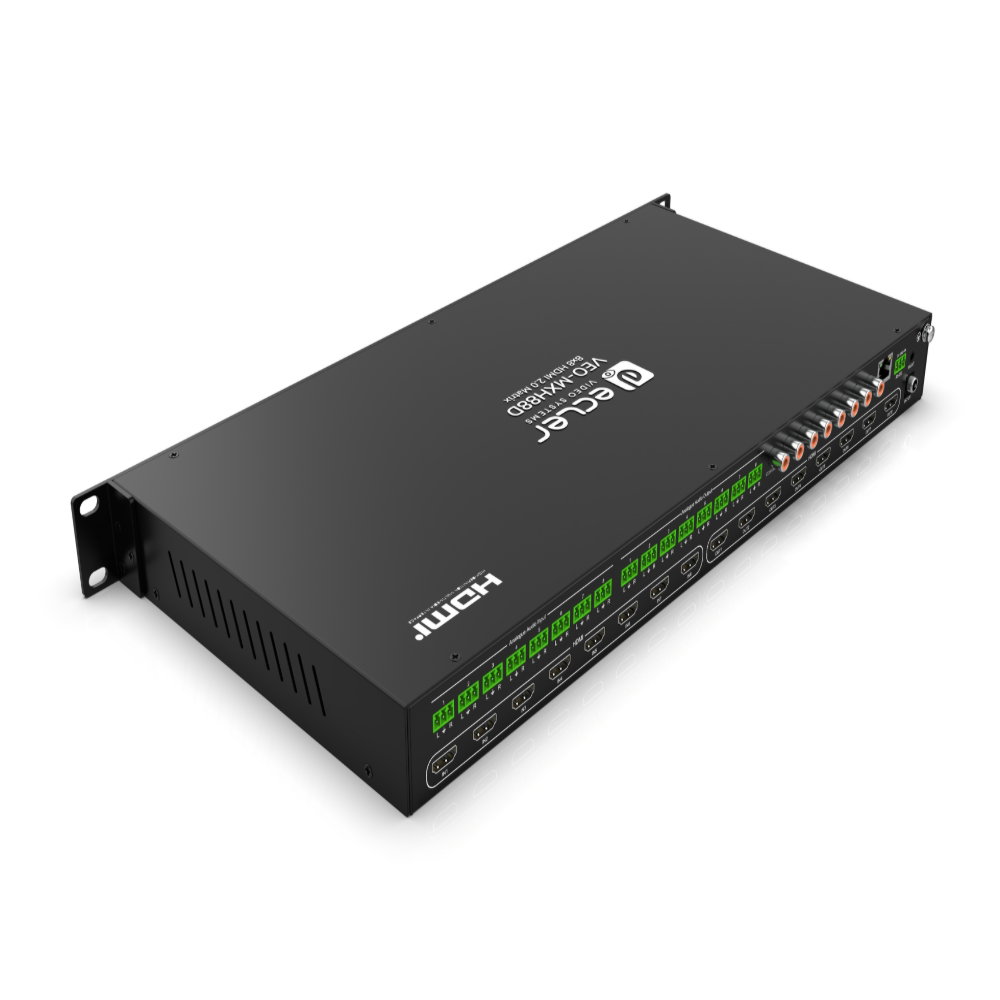

| Control | RJ-45 (web, Telnet), RS-232 Euroblock, 3.5 mm IR jack, front panel |
| HDMI cable length | 10 m up to 1080p, 5 m at 4K (Ecler VEO cables) |
| Power supply | External 12V DC 3A, UK/EU/US/AU blades |
| Power consumption | 28W |
| Dimensions (W x H x D) | 482.3 x 44 x 217.5 mm |
| Weight | 2.8 kg |
| Operating temperature | 0 to 40°C |

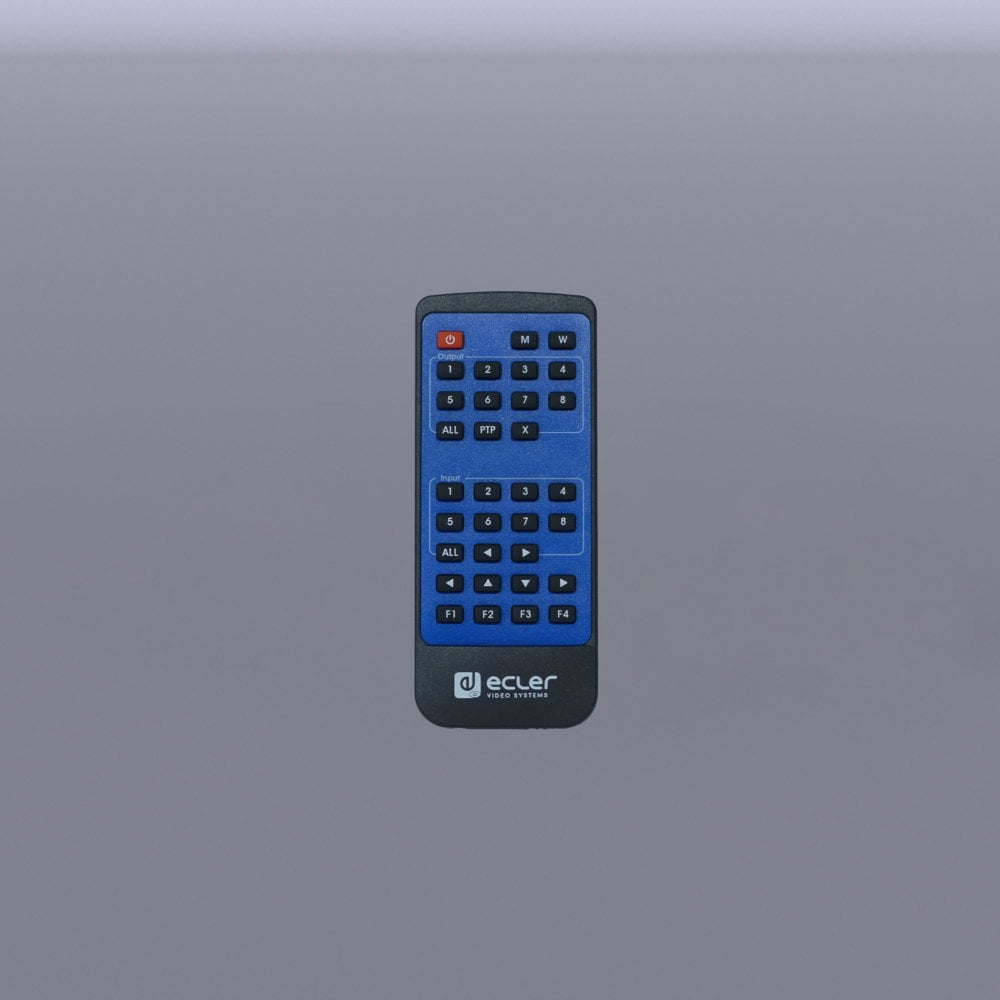

| Included | IR remote, IR receiver, 17 x 3-pin Euroblock plugs, 12V power supply |
