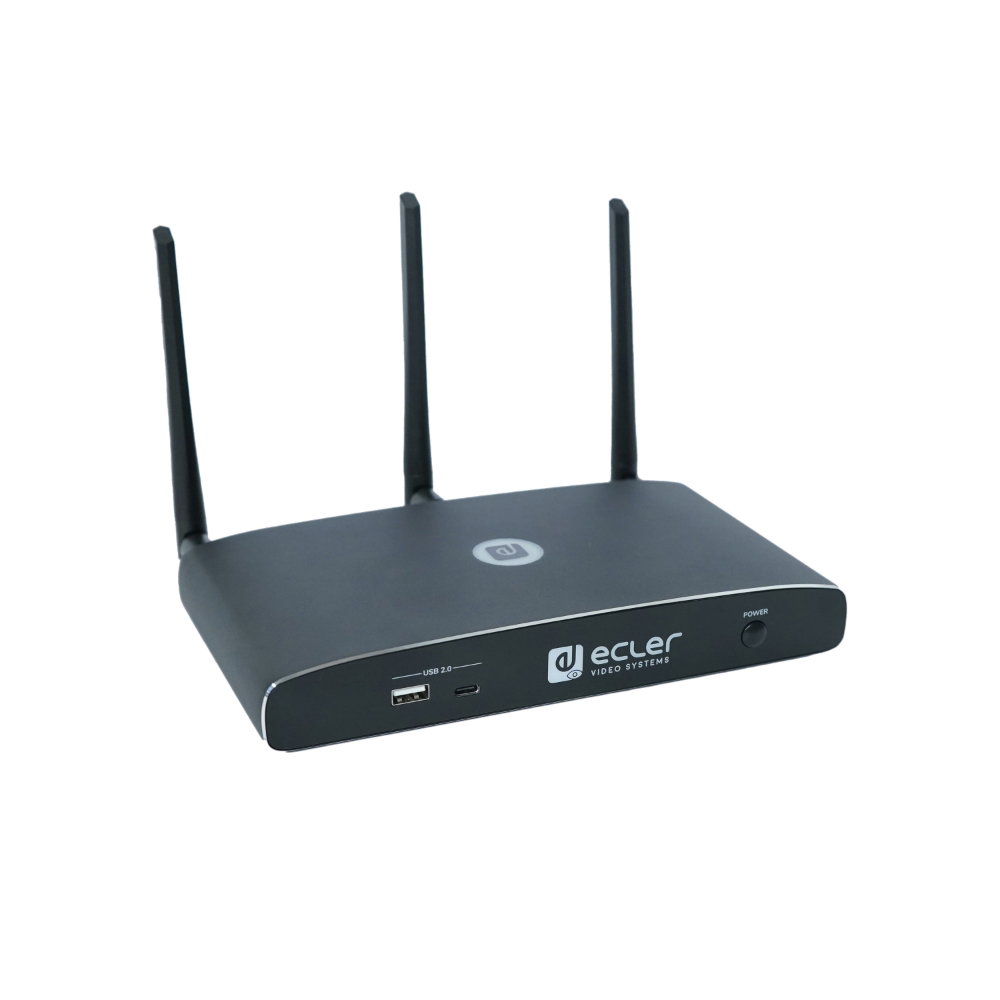

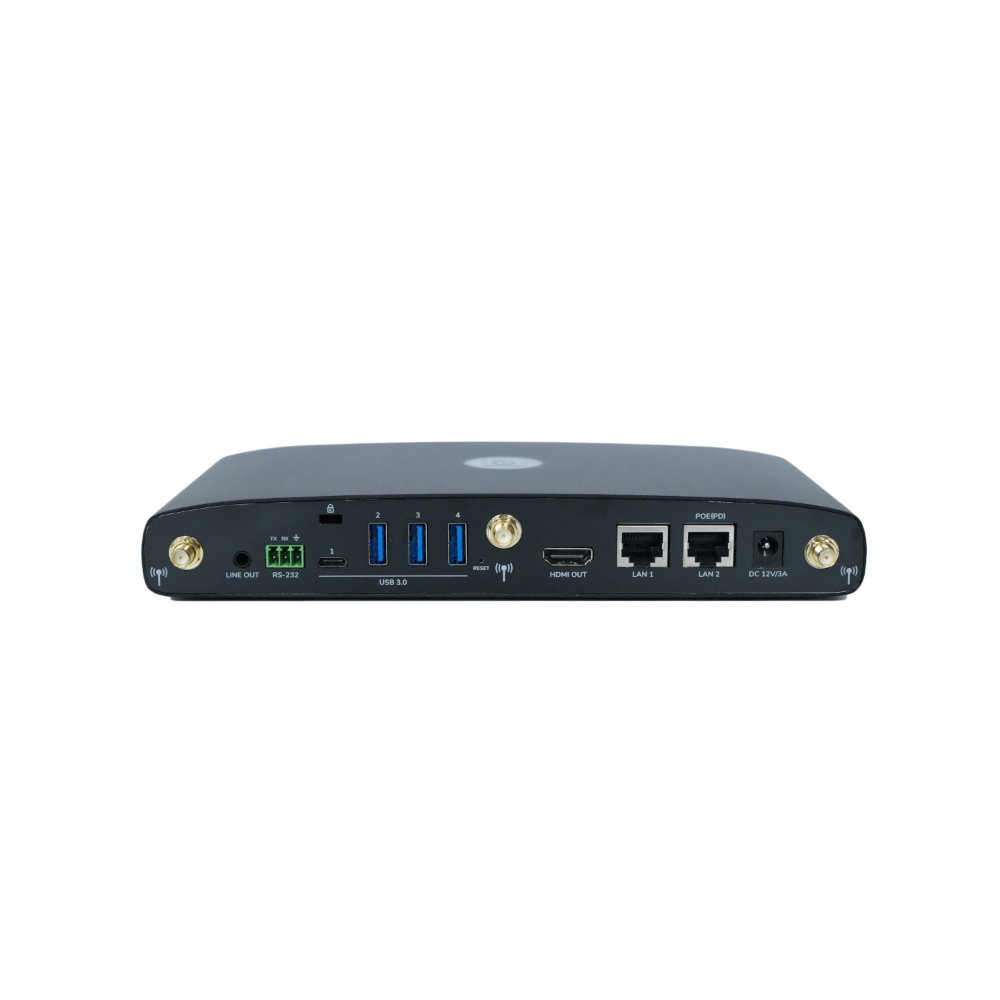

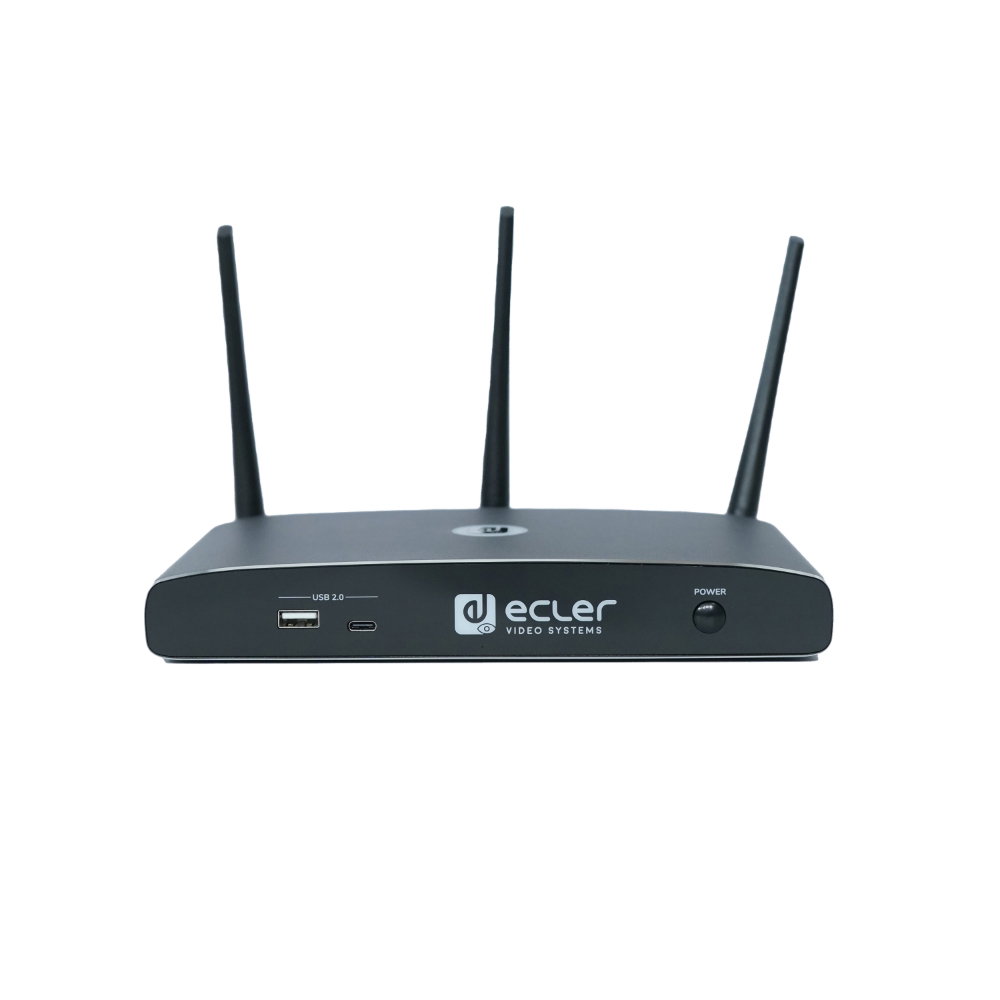

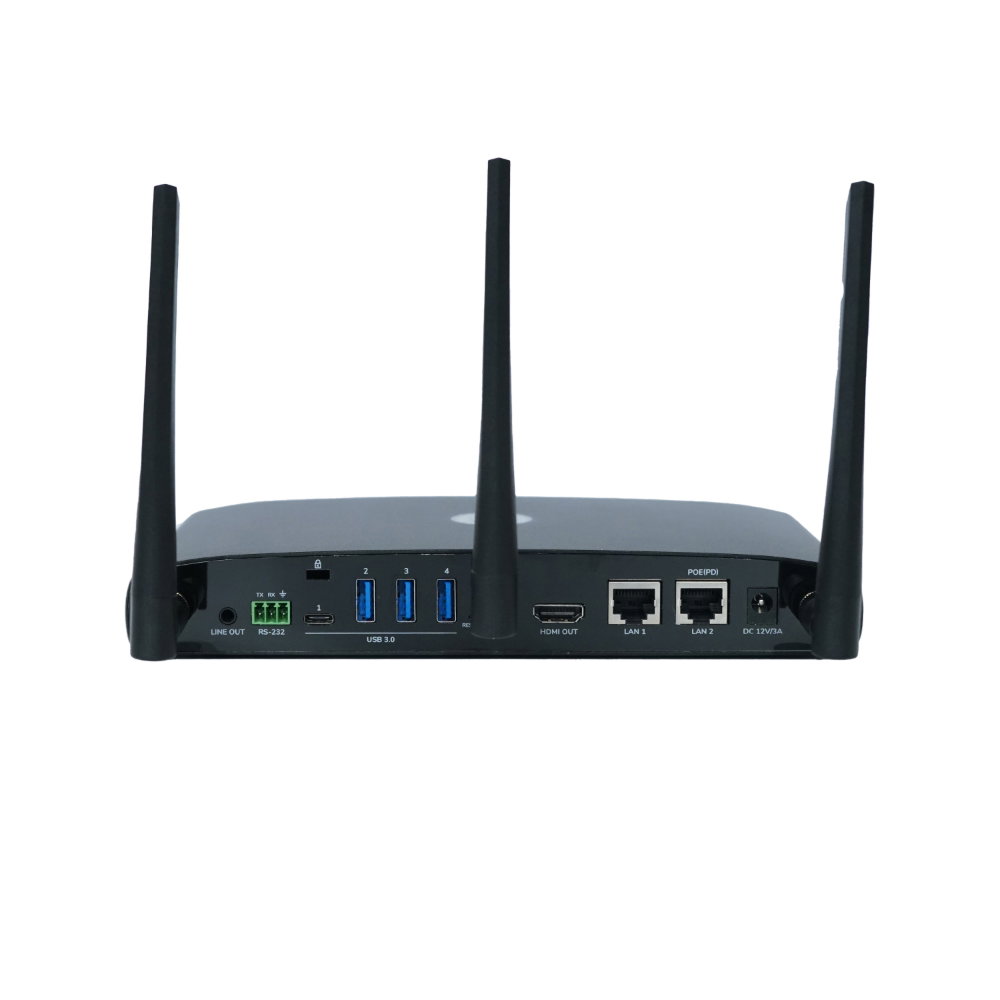

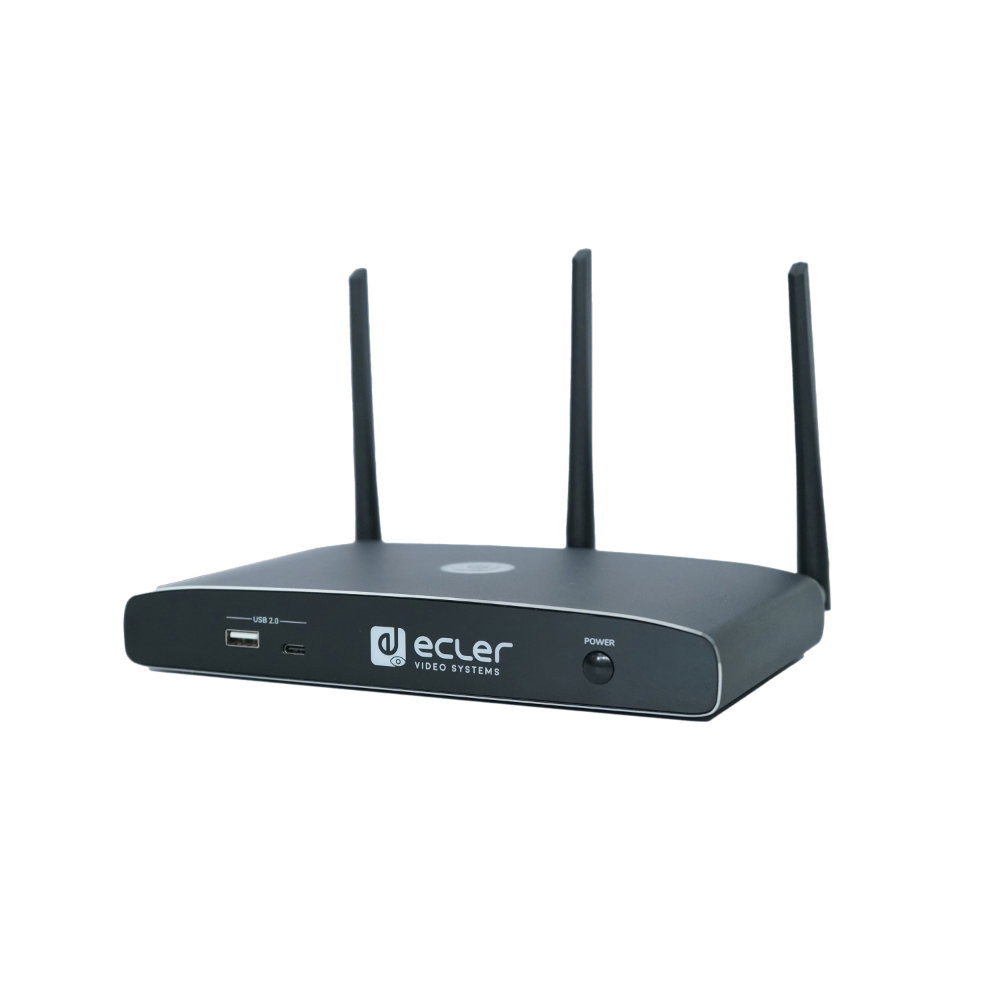

Ecler VEO-SWC44 Wireless BYOD Presentation Switcher

Product code: 195395

£807.00 inc VAT
£672.50 ex VAT

SKU: ECL0135

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler VEO-SWC44 is a wireless presentation and conferencing base unit with a 4K HDMI output to the room display. Laptops and phones connect over Wi-Fi at up to 1080p60 using AirPlay, Miracast, the Windows and macOS apps, or the optional VEO-SWC44TH and VEO-SWC44TU dongles, and up to four can be shown on screen at once. USB ports pass a room camera and microphone through to the presenting laptop, for BYOD meeting rooms, huddle spaces and classrooms.

1080p60
Wireless input
4K60
HDMI output
4
On screen at once
PoE
Or 12V PSU
Dongles sold separatelyThe VEO-SWC44TH (HDMI) and VEO-SWC44TU (USB-C) transmitters are optional. They pair with the SWC44 only, not the SWC45.

Features

Wireless sharing at up to 1080p60 to a 4K HDMI output
AirPlay and Miracast, plus Windows and macOS apps
Optional HDMI and USB-C transmitter dongles for one-touch sharing
Up to 4 sources on screen at once, with up to 16 participants on hold
USB ports connect room cameras and microphones to the presenting laptop for video calls
Touchback for interactive displays, plus whiteboard and annotation tools
Encrypted wireless transmission
Two RJ-45 LAN ports on independent networks
Control by web GUI, RS-232 and Telnet
Powered by PoE (802.3af) or the included 12V supply

Specifications

Ecler VEO-SWC44 Wireless BYOD Presentation Switcher specifications
Wireless input resolution 1080p at 60Hz
Video output HDMI Type A
Output resolutions 3840 x 2160 at 60/30Hz, 1920 x 1080 at 60Hz, 1280 x 720 at 60Hz
HDCP 2.2
USB USB 3.0, USB-C, USB 2.0 (UVC)
Audio output 3.5 mm jack, stereo unbalanced, PCM 2.0
Wi-Fi IEEE 802.11 a/g/n/ac, 2.4 and 5 GHz
Network 2 x RJ-45 (port 1: 100Mbps, port 2: 1Gbps)
Control Web, Telnet, RS-232 (Euroblock)
Power PoE IEEE 802.3af or 12V DC 3A external supply
Power consumption 10W
Dimensions (W x H x D) 220 x 32 x 120 mm (220 x 145 x 120 mm with antennas)
Weight 1 kg
Included 3 antennas, 3-pin Euroblock plug, 12V power supply

Full features

  • USB 3.0 ports for wireless connection between a laptop and room USB devices like camera and mic for an easy video conference
  • Wireless input up to Full HD video resolution and a HDM®I 4K / UHD video output.
  • Analogue audio extraction on stereo unbalanced 3,5mm jack connector.
  • Support for native wireless mirroring protocols like Airplay and Miracast for a flawless presentation.
  • Plug-n-play by optional wireless transmitters HDMI® VEO-SWC44TH or USB Type-C VEO-SWC44TU as well as Windows and macOS apps for wireless connection with a laptop or PC.
  • RS-232 and IP control as well as WebGUI management.
  • Extra security layer for an encrypted wireless transmission.
  • Support for up to 4 simultaneous split screen view presentation as well as up to 16 participants on hold.
  • Customizable background image or logo for the welcome screen page.
  • Support wireless touchback for interactive screen as well as whiteboard and live annotation tool.
  • Support for PoE.
  • Local 12V DC power supply.

Video Perfomances

  • Video Input Connectors : USB 3.0, USB-C, USB 2.0 (UVC)
  • Video Output Connectors: HDMI® Type A Female, 1.4, 10.2 Gbps
  • Video Input Resolutions : 1080p@60Hz
  • Video Output Resolutions: 3840x2160@60Hz,3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
  • HDCP: 2.2
  • HDMI® Distance: 10m with Ecler VEO Cables

Audio Performances

  • Audio Output Connectors: Jack 3.5mm
  • Audio Formats: PCM 2.0
  • Audio De-Embedding: Yes

Device Control

  • Control Connectors: USB Type A, Euroblock, RJ-45
  • Control Protocols: Web, Telnet, RS-232
  • Control Buttons: 1 x Power ON button
  • EDID Management: Software
  • Status Indicators: Input LED Multicolour

Network

  • Network Connectors: 2 x RJ-45 (LAN port 1 is 100Mbps and LAN port 2 is 1Gbps), WiFi (Wireless transmission protocol is WIFI IEEE 802.11 a/g/n/ac. Compatible with 2.4GHz and 5GHz frequency bands)
  • Average Streaming Bitrate: Up to 1200Mbps
  • Transmission Distance: 100m via Ethernet Network

Electrical

  • Power supply: PoE (IEEE802.3af.) or External Power supply
  • AC mains connector: 100-240VAC  50-60Hz with EU, UK, US, AU blades
  • DC mains connector: 12VDC-3A with coaxial DC connector
  • Power consumption: 10W

Physical

  • Operating temperature: Min: -20°C; -4°F
    Max: 60°C; 140°F
  • Operating humidity: <90% HR
  • Installation options: Desktop
  • Included accessories: 1 x 3pin Euroblock connector, 3 x antennas, 1x 12V PSU
  • Optional accessories: VEO-SWC44TH, VEO-SWC44TU
  • Dimensions: 220 x 32 x 120mm. (WxHxD) / 8.66 x 1.26 x 4.72 in. (WxHxD)
    Including antenna: 220 x 145 x 120mm. (WxHxD) / 8.66 x 5.71 x 4.72 in.(WxHxD)
  • Weight: 1 Kg / 2,2 lb
  • Shipping dimensions: 340 x 77 x 208mm. (WxHxD) / 13.38 x 3.03 x 8.19 in. (WxHxD)
  • Shipping weight: 1.25 Kg / 2.76 lb
  • Chassis material: Metal
  • Finished colour: Black
