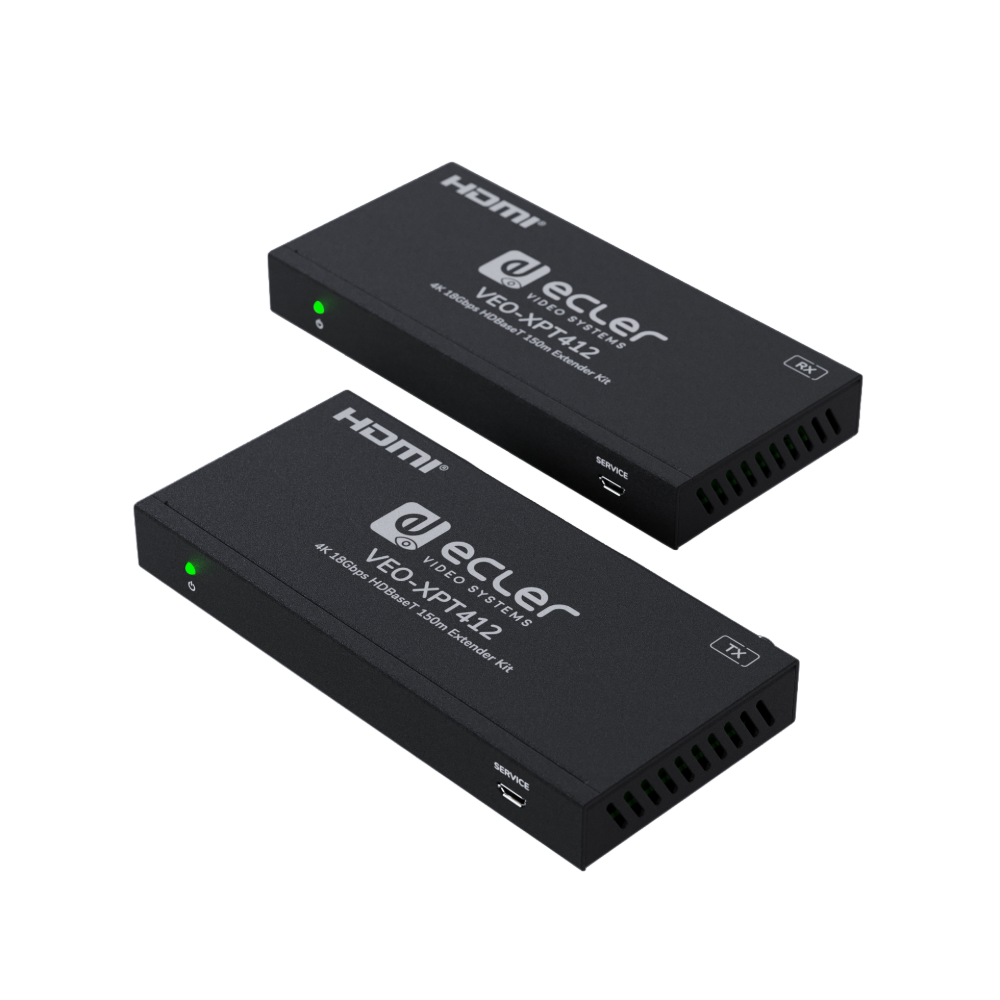

Ecler VEO-XPT412 4K HDBaseT Extender Kit 150m

Product code: 195458

£323.00 inc VAT
£269.17 ex VAT

SKU: ECL0143

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler VEO-XPT412 is an HDBaseT extender kit (transmitter and receiver) that carries 18Gbps HDMI, audio, IR and RS-232 over a single CAT5e or better cable. It reaches 120 m at 4K 60Hz 4:4:4 and 150 m at 1080p, and either end can power the other over the cable. Typical uses are long runs in lecture theatres, conference halls, venues and digital signage.

120 m
4K60 range
150 m
1080p range
4K60 4:4:4
Max video
HDCP 2.2
Copy protection

Features

HDBaseT transmitter and receiver pair over a single CAT5e or higher cable
18Gbps HDMI 2.0b input and output, 4K60 4:4:4 using colour space conversion
4K60 up to 120 m, 1080p60 up to 150 m
HDR10, HDR10+, Dolby Vision and HLG
Bidirectional power over HDBaseT, so one power supply runs both ends
Stereo unbalanced audio de-embedding on Euroblock at both ends
Bidirectional IR, plus RS-232 and CEC pass-through
HDCP 2.2 / 1.4
Mounting ears for table or wall fixing

Specifications

Ecler VEO-XPT412 4K HDBaseT Extender Kit 150m specifications

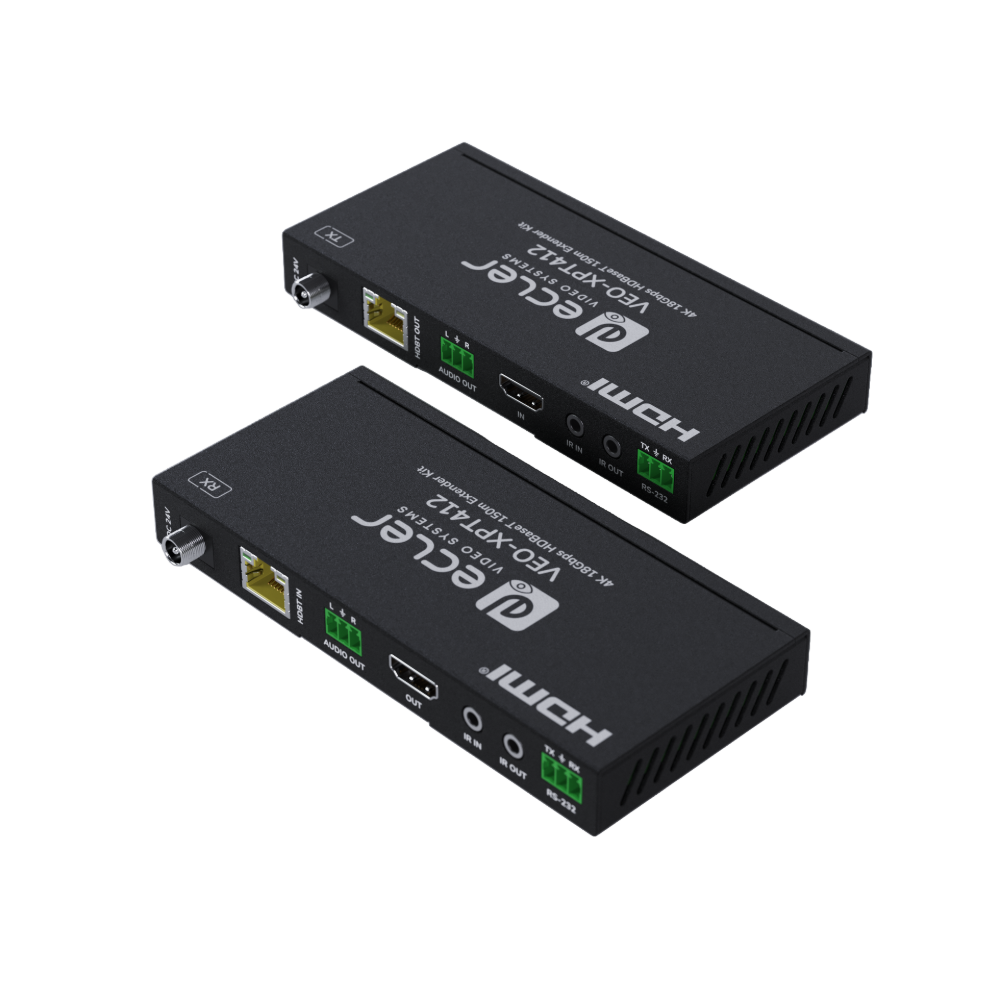

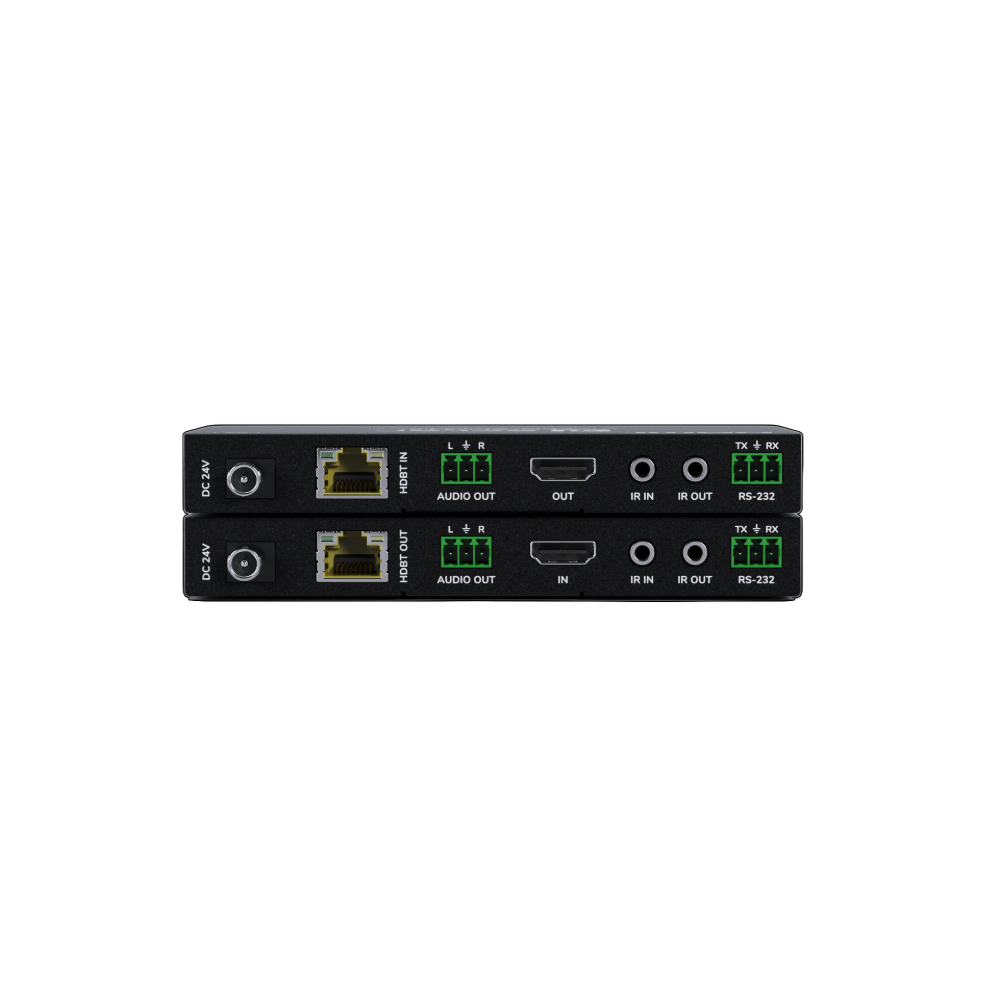

Connectors TX: HDMI 2.0 in, RJ-45 HDBaseT; RX: HDMI 2.0 out, RJ-45 HDBaseT
Resolutions 480i to 1080p at 60Hz, 1920 x 1200 at 60Hz, 4K up to 60Hz
Chroma subsampling 4:4:4, 4:2:2, 4:2:0
HDCP 2.2 / 1.4
HDR HDR10, HDR10+, Dolby Vision, HLG
HDBaseT version 1.0
Transmission distance 4K60: up to 120 m, 1080p60: up to 150 m (CAT5e or higher)
Audio output 3-pin Euroblock on TX and RX
Pass-through RS-232 (3-pin Euroblock), IR (3.5 mm jack), CEC
Power Bidirectional PoH; external 24V DC 1A, UK/EU/US/AU blades
Power consumption 9.36W
Dimensions (W x H x D) 140 x 19 x 65 mm (each unit)
Weight TX 0.160 kg, RX 0.155 kg
Operating temperature 0 to 40°C
Included IR receiver and blaster cables, 4 x Euroblock plugs, 4 mounting ears with screws, 24V PSU

Full features

  • Transmitter and receiver set for HDBaseT signal extension over a single Cat 5e or higher cable.
  • Support for HDMI® 18Gbps 4K 60Hz 4:4:4 (with Colour Space Conversion technology) as specified in HDMI® 2.0b.
  • Transmission distance for 4K/60Hz up to 120 meters and 1080p/60Hz up to 150 meters.
  • Stereo unbalanced audio extraction via Euroblock connectors on both the transmitter and receiver.
  • Support for HDR10, HDR10+, Dolby Vision, and HLG video signals.
  • Support for audio formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X.
  • HDCP 2.2 compliant.
  • Bidirectional IR control extension.
  • Bidirectional PoH function.

Video Perfomances

  • Video Input Connectors : Transmitter: 1 x HDMI® Type A Female, 2.0, 18Gbps;
    1 x RJ-45 Female , HDBaseT 1.0
  • Video Output Connectors: Receiver: 1 x HDMI® Type A Female, 2.0, 18Gbps;
    1 x RJ-45 Female , HDBaseT 1.0
  • Video Input Resolutions : 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1920 x 1200/60Hz, 4K up to 60Hz
  • Video Output Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p up to 60Hz, 1920 x 1200/60Hz, 4K up to 60Hz (with Colour Space Conversion Technology)
  • Chroma Subsampling: 4:4:4,4:2:2,4:2:0
  • Colour Depth: 8-bit (4K 60Hz 4:4:4) , 10-bit / 12-bit (4K 60Hz 4:2:2 – 4:2:0)
  • Colour Space: RGB, YCbCr, YUV
  • HDCP: 2.2, 1.4
  • HDR: HDR10, HDR 10+, Dolby Vision,HLG
  • HDMI® Distance: Up to 4K/60Hz: 5m with IN/OUT HDMI® Cable
    Up to 1080p/60Hz: 10m with IN/OUT HDMI® Cable

Audio Performances

  • Audio Output Connectors: 3-pin Euroblock
  • Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Sample Rate: 48KHz, 96KHz, 192KHz
  • Bit Depth: Up to 24-bit
  • Frequency Response: 20Hz-20KHz (±3dB)

Device Control

  • EDID Management: Pass-through

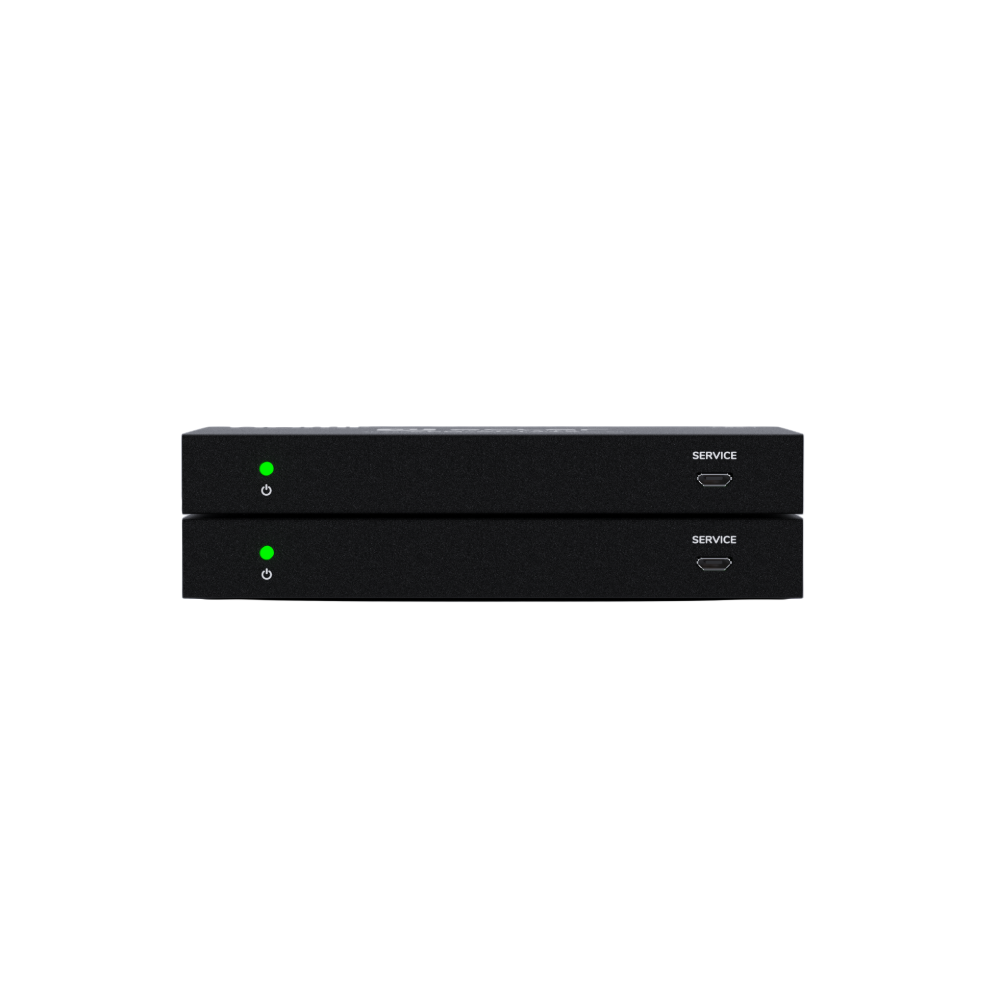

  • Status Indicators: Power LED, HDBaseT status LED's

Pass-Through Control

  • Pass-through Connectors:  1 x 3-pin Euroblock, 1 x Jack 3,5mm, 1 x HDMI®
  • Pass-through Protocols: RS-232, IR, CEC

Hdbaset Specification

  • HDBaseT Version: HDBaseT 1.0
  • Transmission Distance: 4K/60Hz up to 120m with Cat 5e or higher
    1080p/60Hz up to 150m with Cat 5e or higher

Electrical

  • Power supply: PoH; External: Input 100-240VAC @ 50/60Hz  0.6A, Output 24VDC-1A
  • AC mains connector: External PSU. Included 4 region power blades (UK,US,AU,EU)
  • DC mains connector: DC Locking
  • Power consumption: 9.36W

Physical

  • Operating temperature: Min: 0°C; 32°F
    Max: 40°C; 104°F
  • Operating humidity: 20% to 90% HR, non-condensing
  • Storage temperature: Min: -20°C ; -4°F
    Max: 60°C ; 140°F
  • Storage humidity: 40% to 60% HR, non-condensing
  • Installation options: Mounting ears for table, wall or screwed
  • Included accessories: 1 x IR Receiver cable (1.5 meters), 1 x  IR Blaster cable (1.5 meters), 4 x 3-pin 3.5mm Euroblock connector, 4 x Mounting ears, 8 x Mounting screw, 1 x PSU 24V/1A
  • Dimensions: Transmitter & Receiver: 140 x 19 x 65mm / 5.51 x 0.75 x 2.56 in.(WxHxD)
  • Weight: Transmitter: 0.160 Kg / 0.35 lb
    Receiver: 0.155 Kg / 0.34 lb
  • Shipping dimensions: 245 x 75 x 185mm / 9.65 x 2.95 x 7.28 in. (WxHxD)
  • Shipping weight: 1.08kg / 2.38 lb
  • Chassis material: Metal
  • Finished colour: Black
