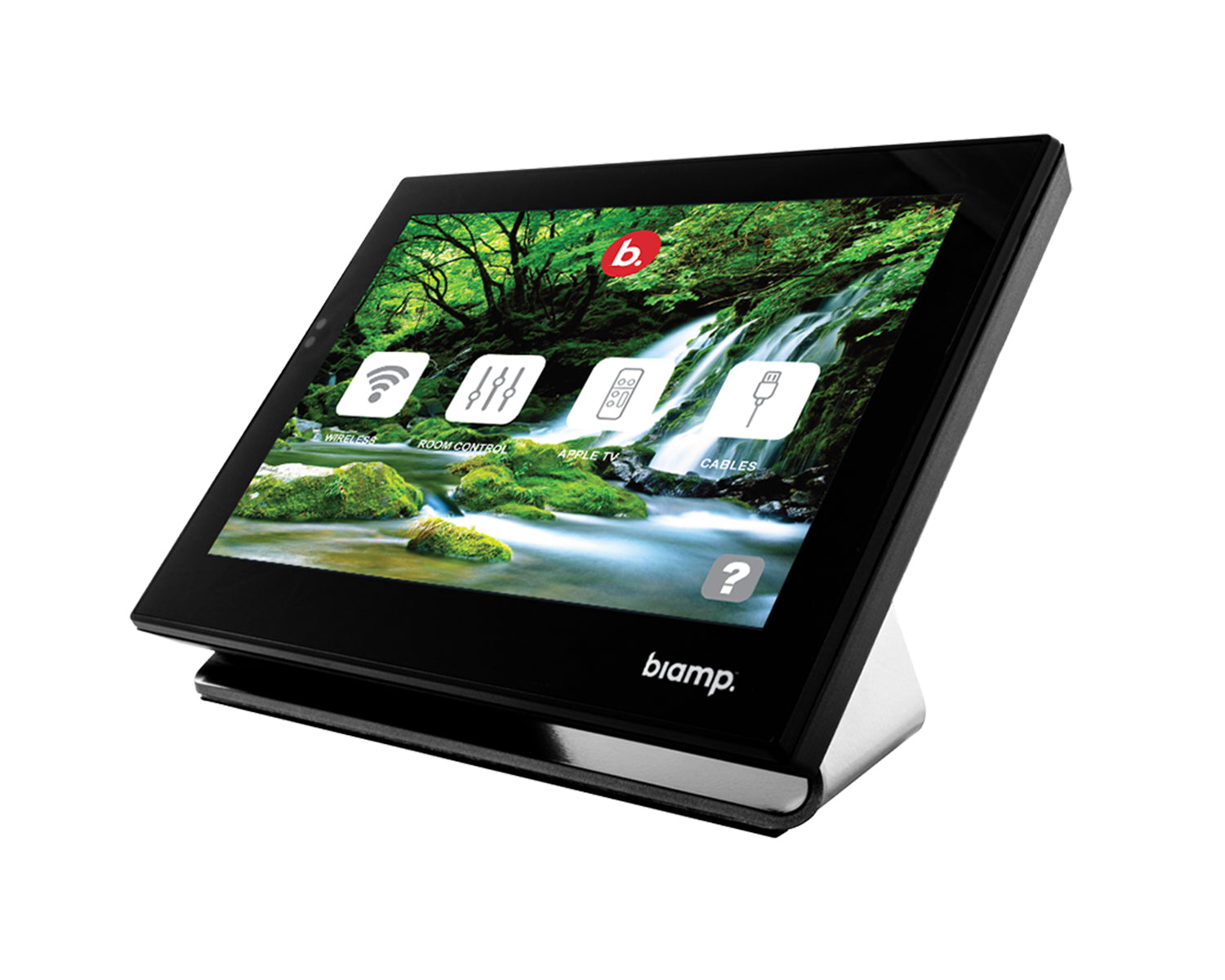

The Biamp Apprimo Touch 7 (920-01871-10000) is a 7 inch capacitive touch LCD control panel with a 1024×595 display and scratch-resistant glass, finished in black. It runs UI templates and themes built in Project Designer software, fits standard single gang US, EU and DK back boxes, and is PoE powered over a single CAT5e/CAT6 cable. Proximity and ambient light sensors wake the screen and adjust brightness. Mounting bracket, ejector pin, USB-OTG adapter and polishing cloth are included.
Key Features
7 inch capacitive touch LCD, 1024×595
Scratch-resistant glass, 350 nits max brightness
UI templates and themes via Project Designer software
Fits standard single gang US, EU and DK back boxes
Proximity sensor wakes screen on approach
Ambient light sensor for automatic brightness
Magnetic wall plate for easy installation
PoE powered (IEEE 802.3at Class 3, 15W)
Compatible with Impera Alfa II, Lima, Tango, Sierra II
Covered by Biamp 5-year warranty
Specifications
| Display | 7 inch (178 mm) capacitive touch LCD |
| Resolution | 1024×595 |
| Brightness | 350 nits max |
| Network connection | RJ-45, Cat 5e and above |
| Sensors | Proximity, ambient light |
| Power | PoE (IEEE 802.3at Class 3, 15W) |
| Dimensions (HxWxD) | 120 x 180 x 41 mm |
| Weight | 330 g |
