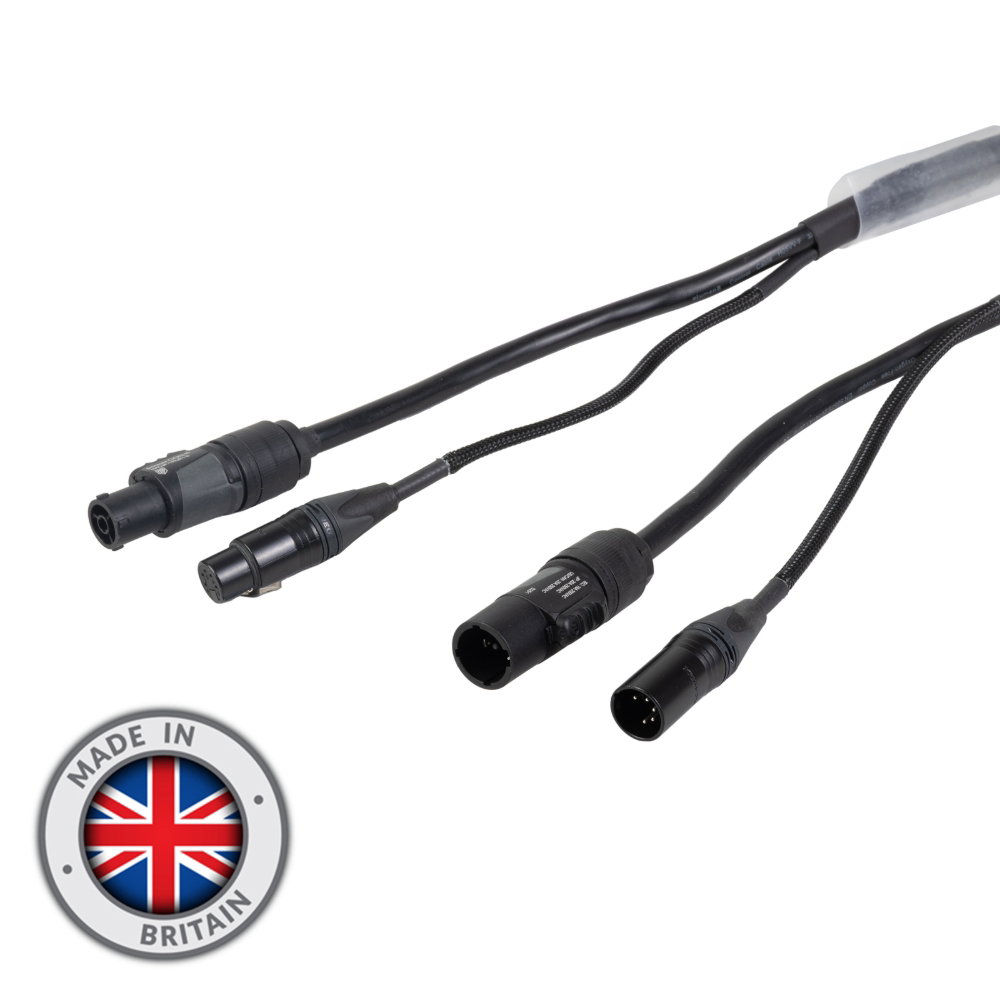

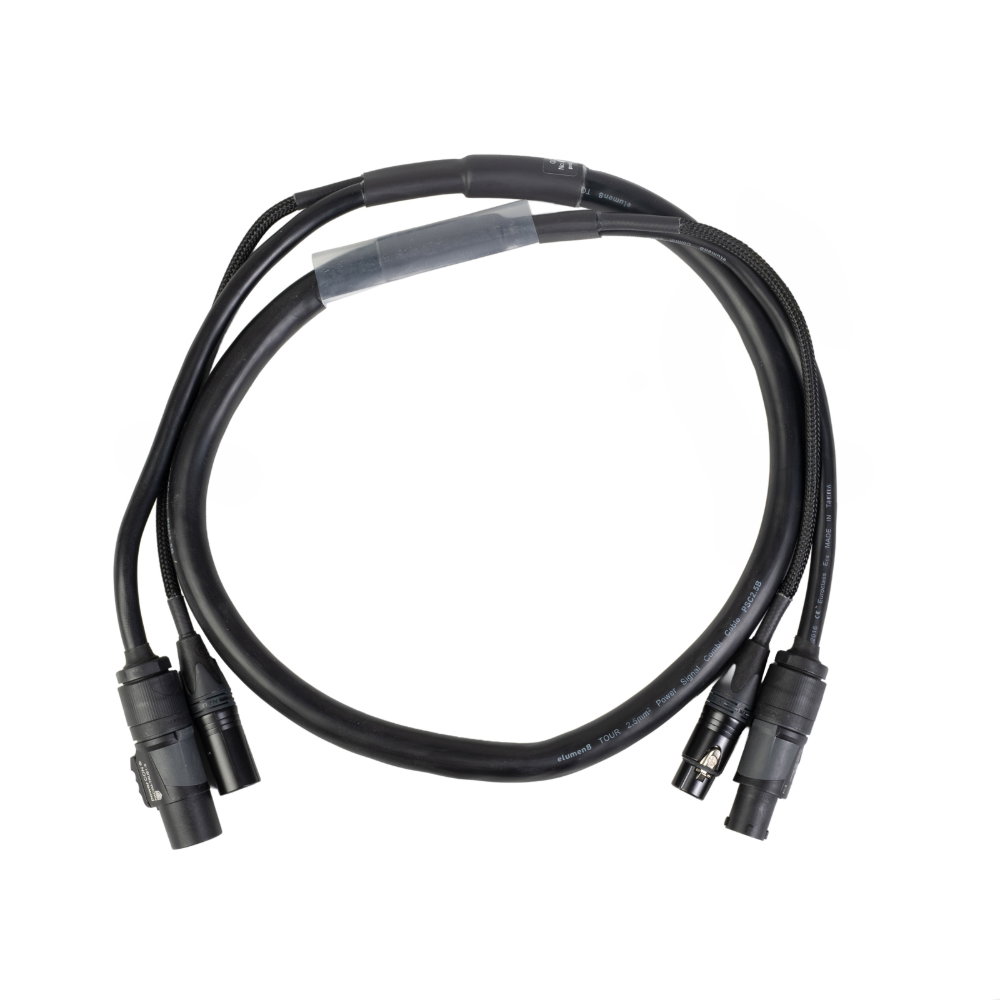

A British-manufactured combi cable that runs DMX signal and mains power to lighting fixtures in a single outer jacket, speeding up rigging and keeping cable runs tidy. This 3m version uses a heavier 2.5mm² power core and is terminated with Neutrik 5-Pin XLR and powerCON TRUE1-TOP connectors, with a nylon-braided signal tail for durability. Ultra-flexible with a round profile for easy coiling, it is designed for touring where integrated signal and power distribution is required.
Length
3m
Combi run
Power core
2.5mm²
H05VV-F 3-core
Signal
5-Pin
XLR DMX
Features
✓British-manufactured hybrid DMX and power combi cable
✓Neutrik 5-Pin XLR and powerCON TRUE1-TOP connectors
✓Heavier 2.5mm² H05VV-F harmonised 3-core power for longer feeds
✓Nylon-braided signal tail secured with adhesive-lined heatshrink
✓Carries DMX512, RS422/RS485 control or analogue and AES digital audio
✓Suitable for most 110Ω balanced data applications including timecode
✓Oxygen-free copper cores for signal integrity
✓Selected fillers keep the round profile for easy coiling
✓Clear heatshrink section for identification or asset labels
✓Ultra-flexible and designed for touring use
Specifications
| Brand | Elumen8 |
| Type | Combi DMX and power cable |
| Length | 3m |
| Signal connectors | Neutrik 5-Pin XLR (male to female) |
| Power connectors | Neutrik powerCON TRUE1-TOP (male to female) |
| Power core | 2.5mm² H05VV-F 3-core |
| Data standards | DMX512, RS422, RS485, AES, timecode |
| Manufacture | Made in Britain |
| Warranty | 1 year |
