Rated 4.9 (120 reviews)

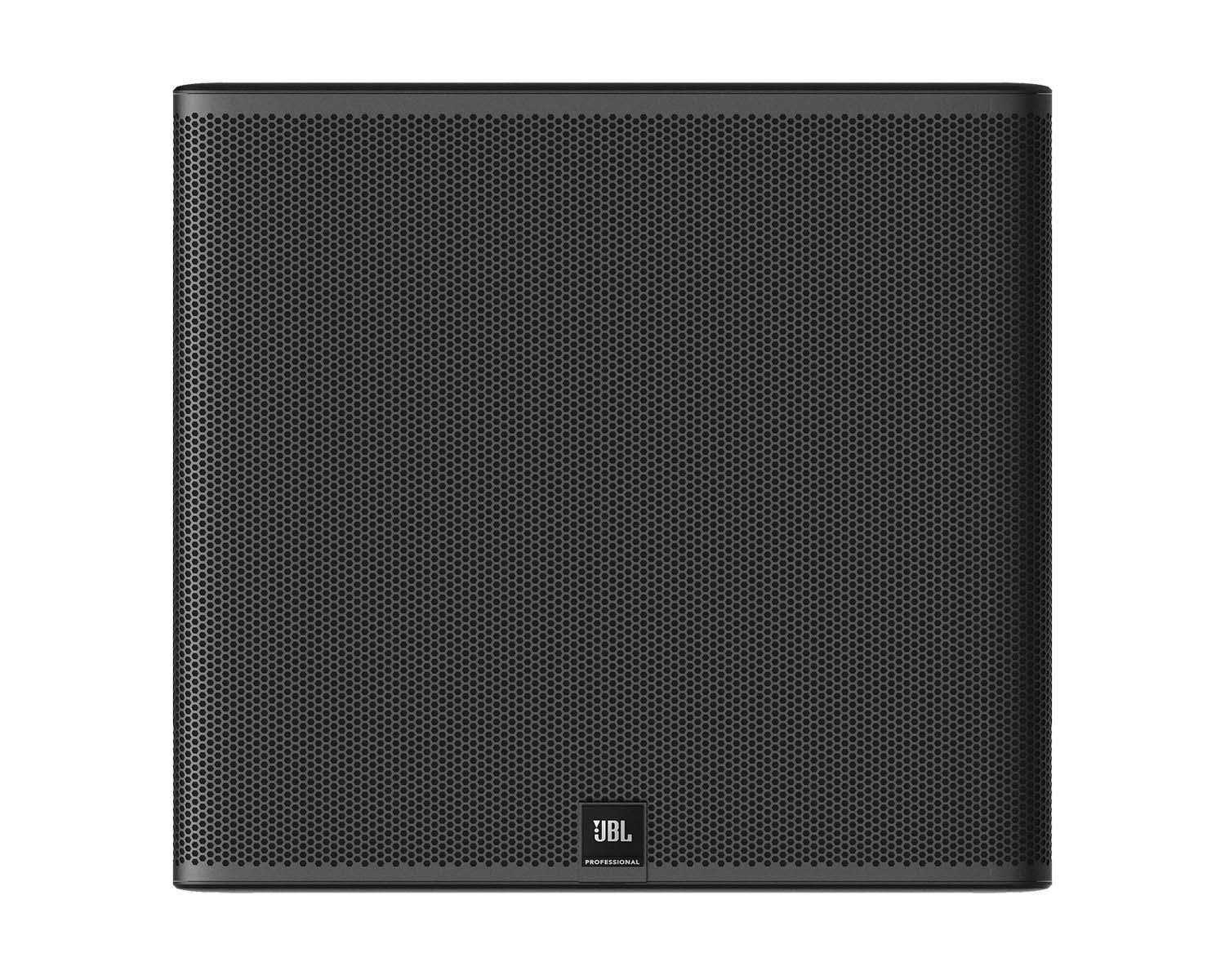

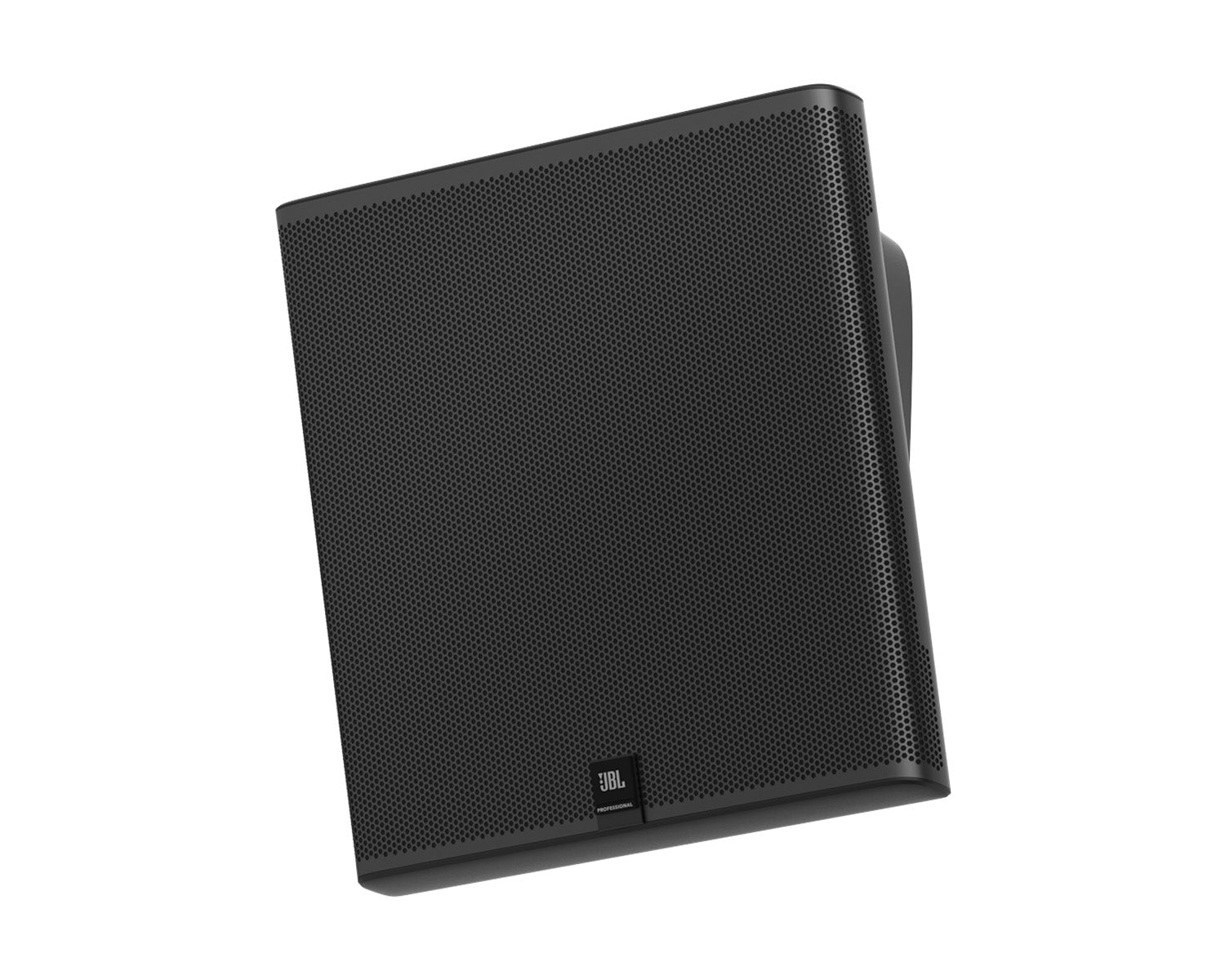

The JBL SLP14/T is a low-profile 4in two-way on-wall speaker, 100 mm deep, with 15° of downward aim built in so it can be mounted flat to the wall. It has a 25W transformer for 100V and 70V lines plus an 8 ohm setting, and is voiced to match the Control 14C/T ceiling speaker. It suits restaurants, hotels, retail and offices.
4in
2-way coaxial
140°
Coverage
25W
Max 100V tap
100 mm
Depth
Features

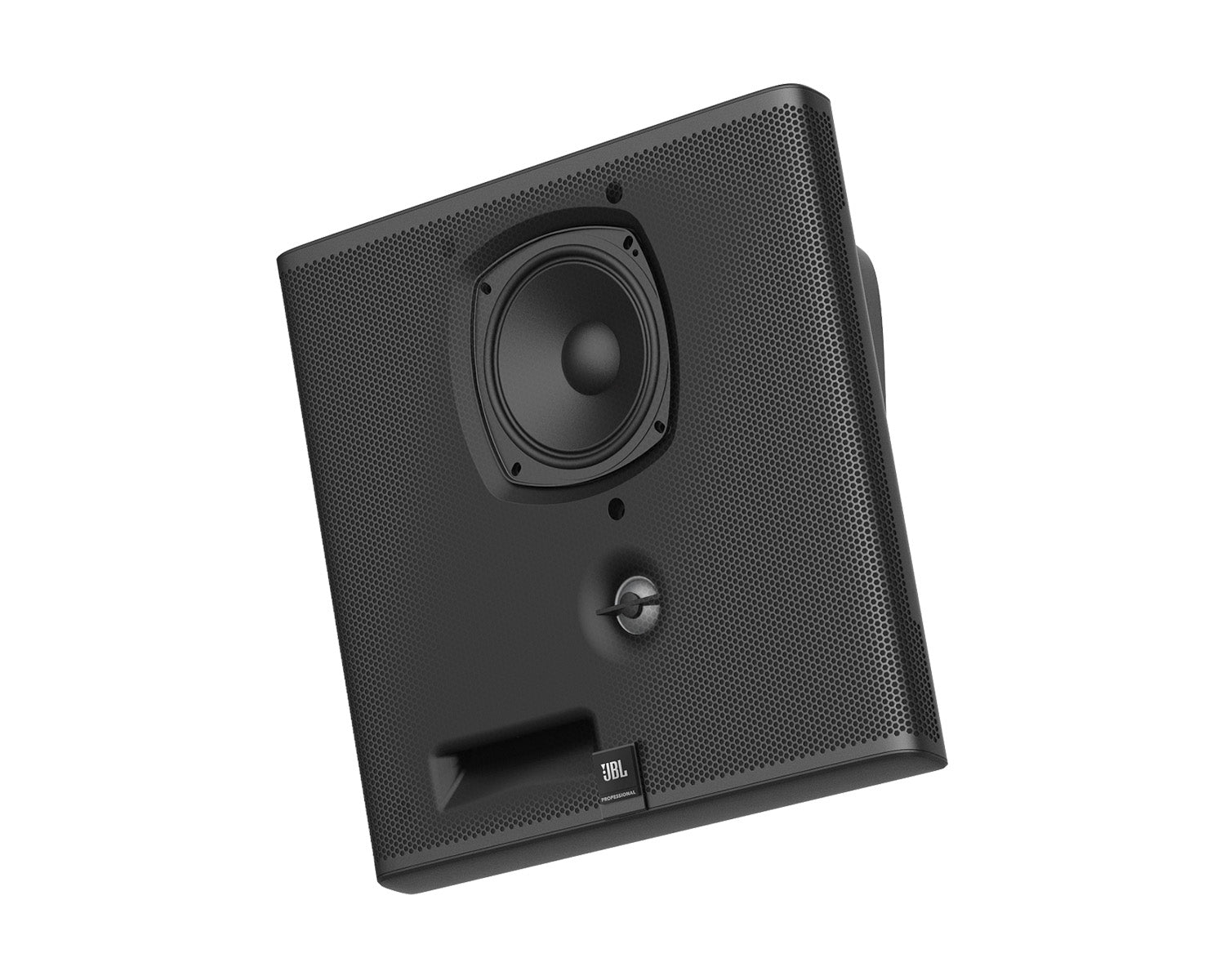

100 mm (4 in) polypropylene cone woofer and 25 mm (1 in) silk dome tweeter
100V taps at 25W, 12.5W and 6.3W; 70V taps at 25W, 12.5W, 6.3W and 3.2W
8 ohm direct setting, 45W continuous pink noise (2 hrs)

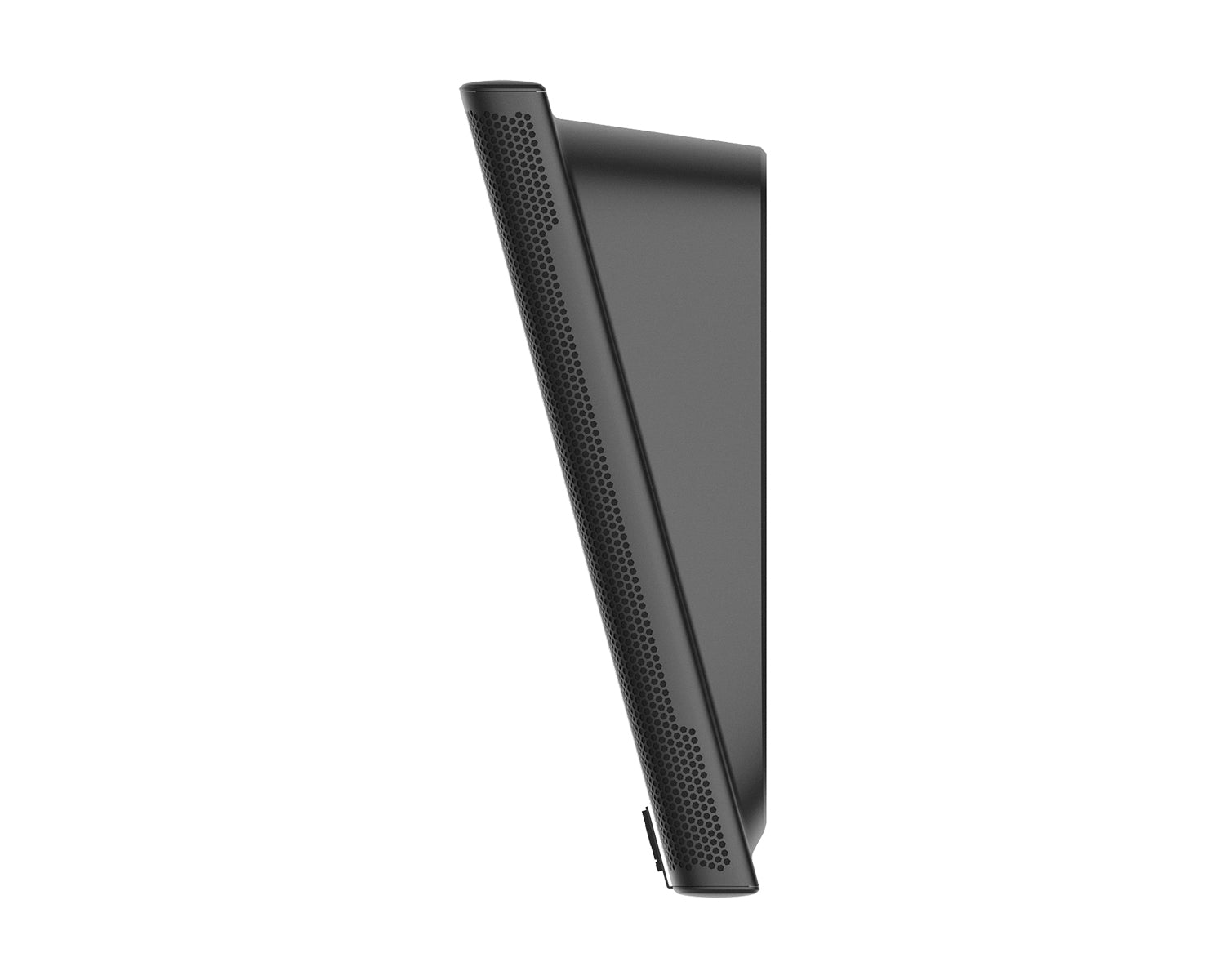

140° x 140° coverage with 15° built-in down-tilt
Voicing matched to JBL Control 14C/T ceiling speakers

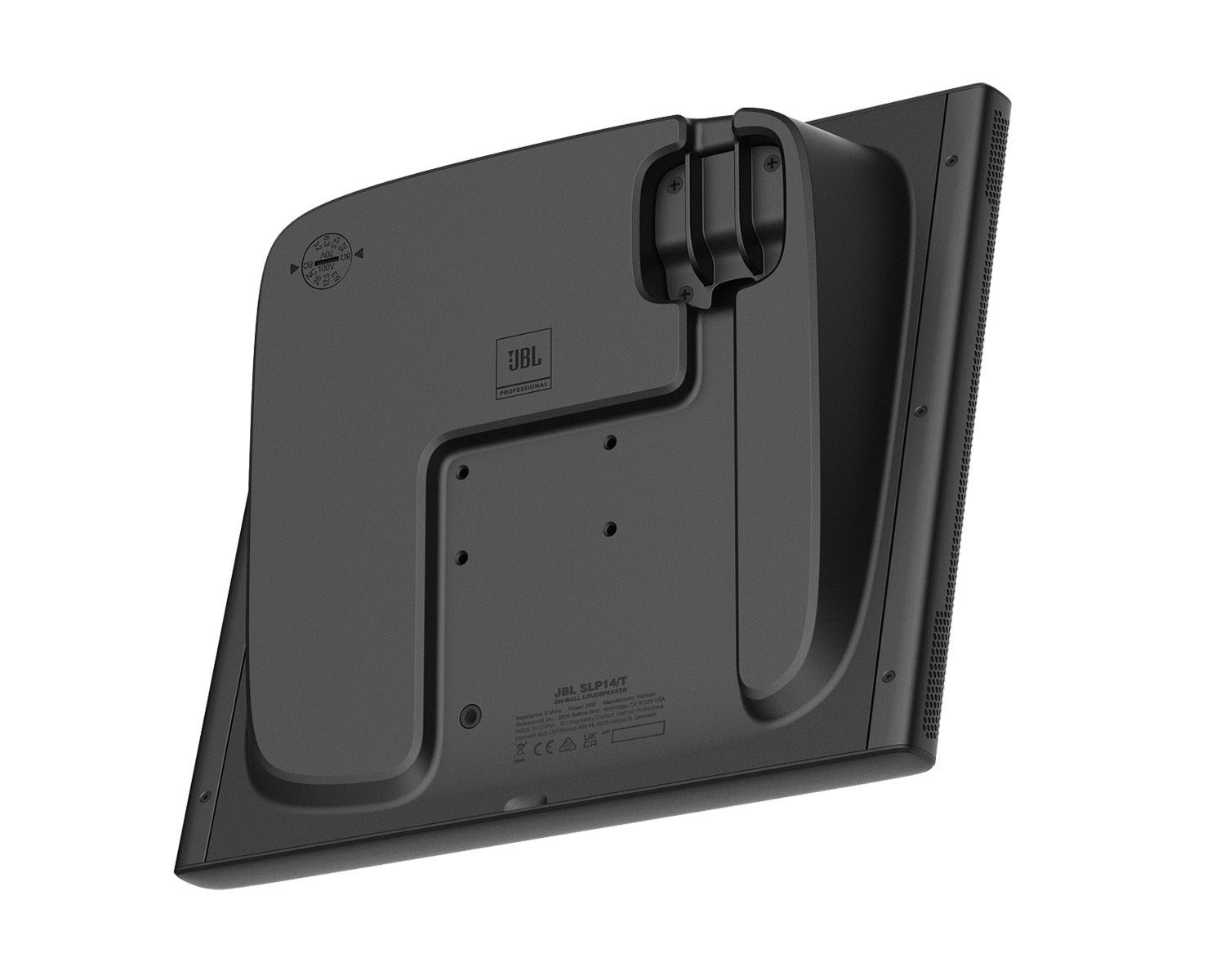

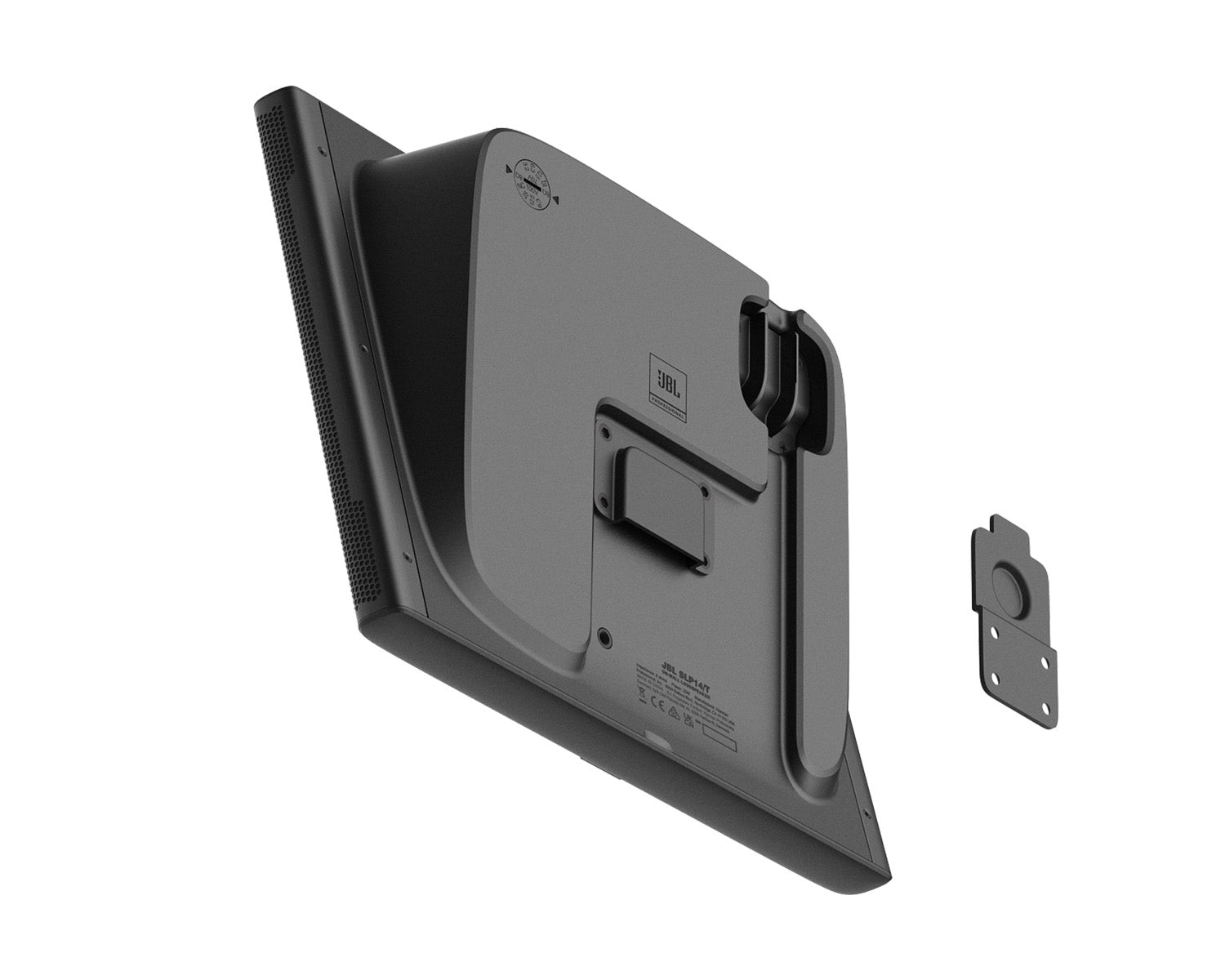

Slide-on wall bracket included
Rain cover for the terminal compartment, for covered outdoor use

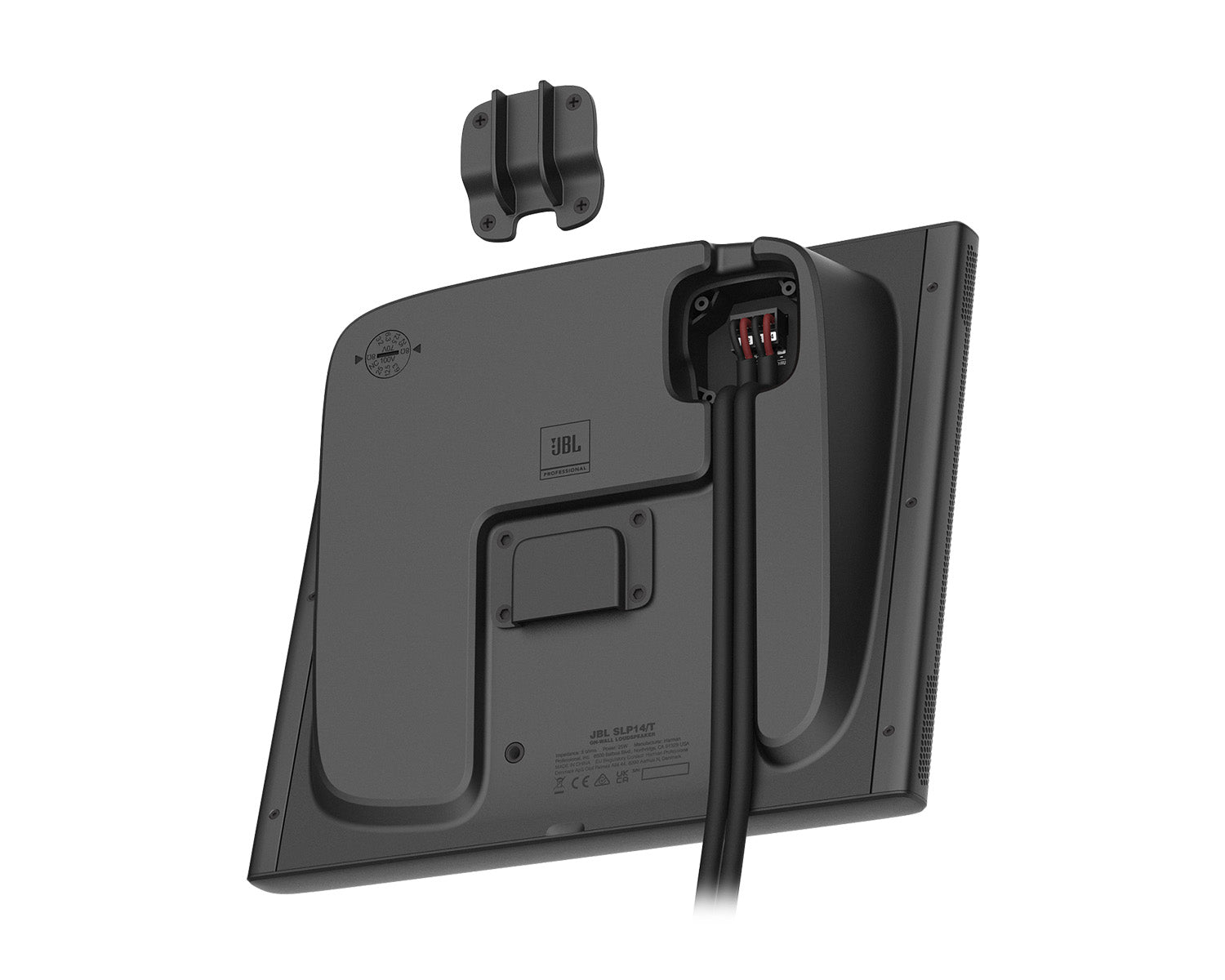

4-pin euroblock input
Black finish
Sold individually
Specifications
| Frequency range (-10 dB) | 85 Hz to 20 kHz (on wall) |
| Frequency response (±3 dB) | 105 Hz to 17 kHz (on wall) |
| Power rating | 90W continuous programme, 45W continuous pink noise (2 hrs) |
| Sensitivity | 86 dB (on wall) |
| Maximum SPL | 102 dB continuous, 108 dB peak at 1 m |
| Coverage | 140° x 140° |
| 100V taps | 25W, 12.5W, 6.3W |
| 70V taps | 25W, 12.5W, 6.3W, 3.2W |
| Low-impedance setting | 8 ohms |
| Enclosure | Polycarbonate and ABS, UL94V-0 |
| Dimensions (W x H x D) | 286 x 263 x 100 mm |
| Weight | 2.8 kg |
